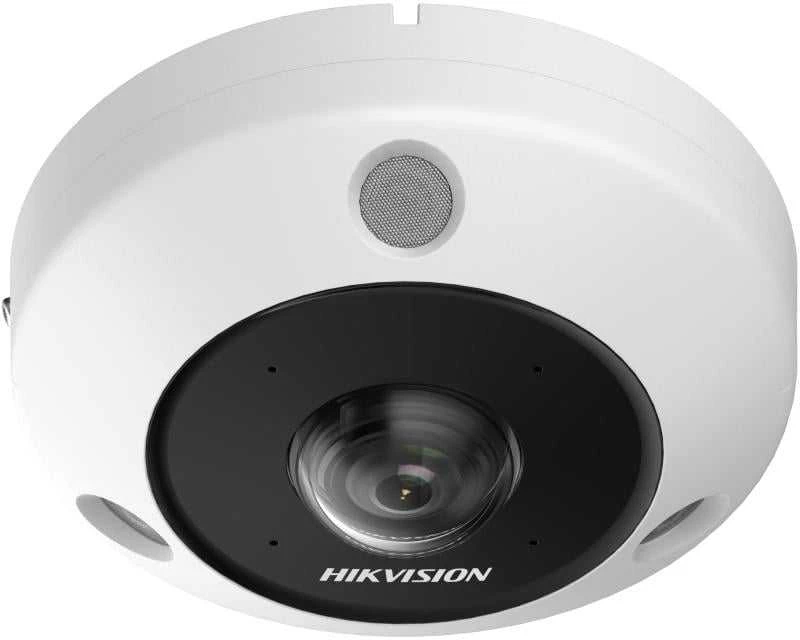

Hikvision fisheye DS-2CD6365G1-IVS F1.16

D: 23.2 m

O: 9.2 m

R: 4.6 m

I: 2.3 m

Memory: 60 MB,

Smart RAM: 800 MB,

eMMC: 2 GB

50 Hz: 25 fps/60 Hz: 30 fps:

Fisheye View:

2560 × 2560, 2048 × 2048, 1280 × 1280

180 Panorama View:

2048 × 1536, 1920 × 1440

180 Dual Channel Panorama View:

2048 × 768, 1920 × 720

Panorama View:

2048 × 1536, 1920 × 1440

4PTZ View:

camera 01/camera 02/camera 03/camera 04: 1024 × 768

Fisheye + 3PTZ View:

camera 01: 2048 × 2048, 1024 × 1024

camera 02/camera 03/camera 04: 1024 × 768

4PTZ Fusion View:

2048 × 1536, 1600 × 1200

50 Hz: 25 fps/60 Hz: 30 fps:

Fisheye View:

720 × 720, 480 × 480

180 Panorama View:

640 × 480, 320 × 240

180 Dual Channel Panorama View:

640 × 480, 320 × 240

Panorama View:

640 × 360, 320 × 240

4PTZ View:

camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240

Fisheye + 3PTZ View:

camera 01: 720 × 720

camera 02/camera 03/camera 04: 640 × 480, 320 × 240

Main stream: H.265+/H.265/H.264+/ H.264,

Sub-stream: H.265/H.264/MJPEG

20 display modes in total,

Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,

Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,

Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX

Up to 32 users

3 user levels: administrator, operator, and user

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Counts people entering, exiting and passing by separately (The data is stored in the flash.)

Supports real-time uploading and uploading by statistic cycle

Sends email reports on daily, weekly, monthly or annually basis

Supports up to 3 detection regions, and independent arming schedule and linkage method

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: regional people queuing-up, waiting time detection

Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

Supports raw data export for further analysis

Supports real-time data uploading and scheduled data uploading

Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

Two report types are available, space heat map and time heat map line chart.

Detects and analyze flow in an intersection-like scene, and generate reports

Support one intersection of up to 10 ways

12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block,

PoE: IEEE 802.3af, Class 3, max. 12.5 W

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
