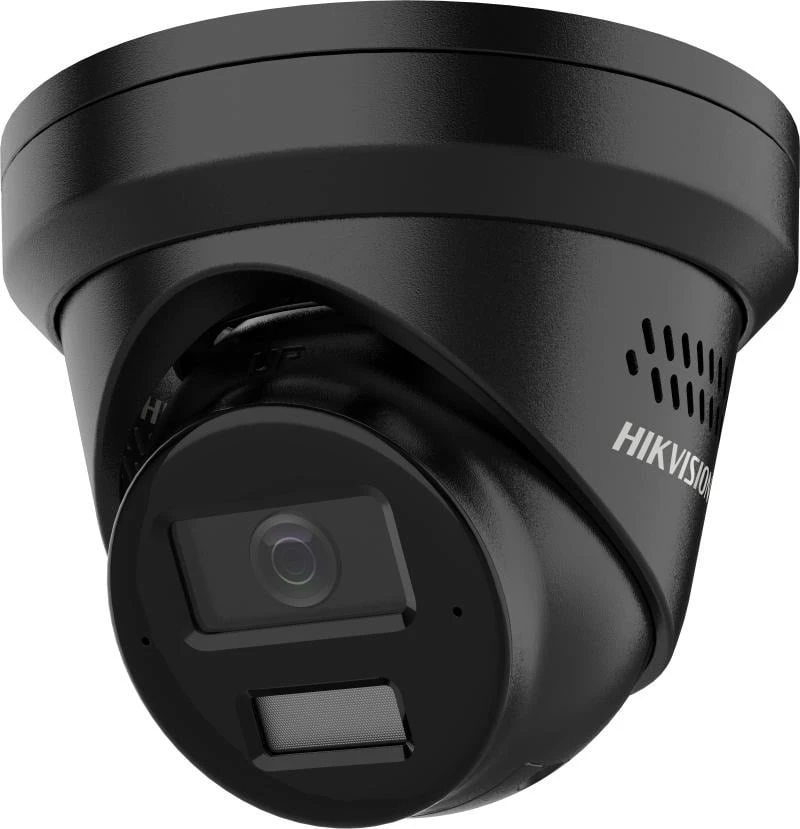

Hikvision dome DS-2CD2343G2-LI2U / SL F2.8 (juoda, 4 MP, 30 m IR+LED, AcuSense), žema kaina

Patvirtinimai
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Aplinkosauga CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Apsauga IP67: IEC 60529-2013
Saugumas CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1

Garsas
Garso bitų dažnis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimas Yes

DORI
DORI 2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Išmaniosios funkcijos
Perimeter Protection Line crossing, intrusionSupport alarm triggering by specified target types (human and vehicle)

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light flashing
Išmaniosios funkcijos Face detection

Bendra informacija
Matmenys Ø127.3 mm × 96.3 mm (Ø5" × 3.8")
Flashing Light SRB models: Red and Blue LightOther models: White Light
Pagrindinės funkcijos Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Medžiaga Metal
Pakuotės dydis 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")
Galia 12 VDC ± 25%, 1 A, max. 12 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 16 W
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Svoris Approx. 590 g (1.1 lb.)
Svoris su įpakavimu Approx. 820 g (1.7 lb.)

Sąsaja
Garsas Built-in Microphone: Arrayed dual-microphone
Integruotas garsiakalbis 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukas Yes

Objektyvas
Diafragma F1.6
Ryškumo gylis 2.8 mm: 1.3 m to ∞4 mm: 1.4 m to ∞
Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 57°, diagonal FOV 118°4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 96°
Rainelės tipas Fixed
Objektyvo tvirtinimas M12
Objektyvo tipas Fixed focal lens, 2.8 and 4 mm optional

Tinklas
API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Klientas iVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintis NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Saugumas Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
Naudotojas/prievadas Up to 32 users3 user levels: administrator, operator, and user
Naršyklė Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Vaizdas
Bitų dažnio valdymas CBR,VBR
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Pagrindinis srautas 50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Antrinis srautas 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Tikslinis apkarpymas Yes
Trečias srautas 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Vaizdo bitų dažnis 32 Kbps to 8 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
