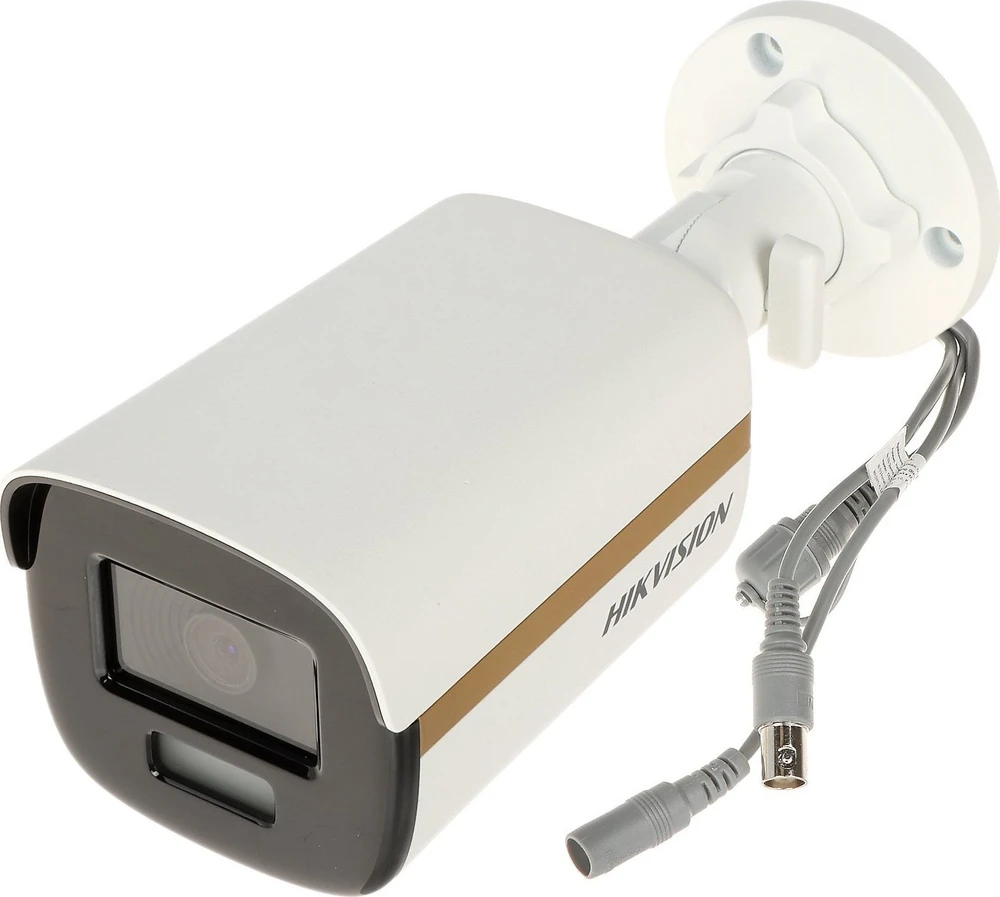

Hikvision bullet DS-2CE12DF3T-FS...

Lęšiai
Lęšių tipas Varifocal lens, motorized lens, 3.6 to 9 mm
Židinio nuotolis & FOV 3.6 to 9 mm, horizontal FOV 92.3° to 48°, vertical FOV 48.4° to 27°, diagonal FOV 112.2° to 55°
Lęšio montavimas Ø20
Iris tipas Fixed
Diafragma F1.0

DORI
DORI D: 69 m to 124 m, O: 27.4 m to 49.3 m, R: 13.8 m to 24.8 m, I: 6.9 m to 12.4 m

Vaizdo išvestis
Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Pagalbinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Tretinis srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Vaizdo bitų greitis 32 Kbps to 8 Mbps
H.264 tipas Baseline Profile/Main Profile/High Profile
H.265 tipas Main Profile
Bitų greičio kontrolė CBR/VBR
SVC H.265 and H.264 encoding
ROI 1 fixed region for main stream and sub-stream

Garsas
Garso suspaudimas G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Garso bitų greitis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Garso pavyzdžių ėmimo dažnis 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Aplinkos triukšmo filtravimas Yes

Tinklas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Naudotojas/transliuotojas Up to 32 users. 3 user levels: administrator, operator and user
Apsauga Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Tinklo saugykla
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Klientas iVMS-4200, Hik-Connect, Hik-Central
Internetinės naršyklės
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Nuotraukos
Nuotraukų nustatymų keitimas Yes
Nuotraukų nustatymas Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Dienos/nakties keitimas Auto, Schedule
WDR 130 dB
SNR ≥ 52 dB
Nuotraukų gerinimas BLC, HLC, 3D DNR

Sąsajos
Eterneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė saugykla Built-in memory card slot, support micro SD/SDHC/SDXC slot, up to 256 GB
Garsas
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Įspėjamasis signalas 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Atkūrimo mygtukas Yes

Įvykiai
Paprasti įvykiai Motion detection (human and vehicle targets classification), video tampering alarm, exception
Išmanūs įvykiai
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

Scene change detection
Sujungimas Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

Pagrindinis
Galia
12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Matmenys Ø155 mm × 152 mm (Ø6.1" × 6.0")
Pakuotės matmenys 227 mm × 198 mm × 220 mm (8.9" × 7.8" × 8.7")
Svoris Approx. 1520 g (3.4 lb.)
Svoris su pakuote Approx. 2109 g (4.6 lb.)
Laikymo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Paleidimo ir veikimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Patvirtinimai
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)
Saugumas
UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

LOA (IEC/EN 60950-1)
Aplinkosauga
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
Apsauga IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
