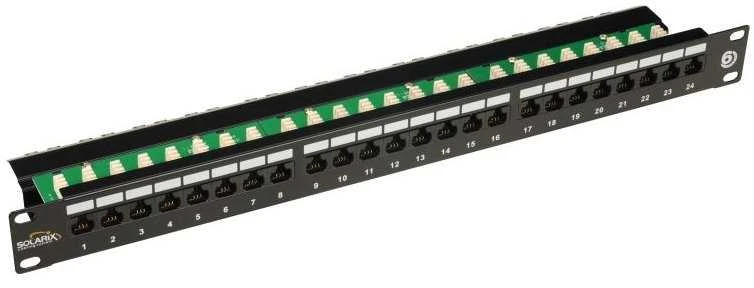

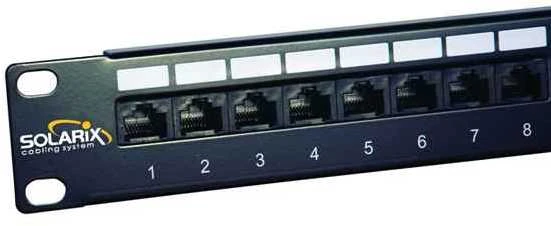

SOLARIX patch panel, CAT6, 24 x RJ45 , UTP, su surišimo juosta, juodas, 1U

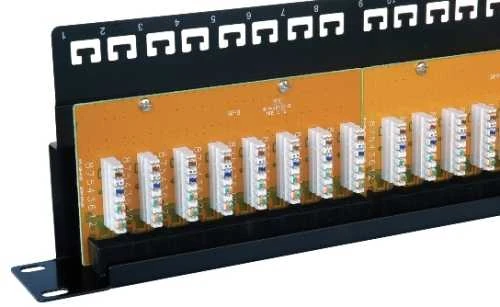

Patch panel Solarix SX24L-6-UTP-BK is an unshielded CAT6 panel equipped with 24 RJ45 ports. An important part of the body of this panel is the tie bar, which serves to fix the cables firmly. The installation cable on this panel of the Solarix - CAT6 product line terminates in a dual 110/Krone IDC terminal block - i.e. both 110 and Krone type tools can be used for cutting. The panel terminal block is marked to both T568A and T568B standards. Like all other Solarix structured cabling components, this panel is manufactured to provide very good functionality and high reliability. This patch panel meets the requirements for CAT6 components defined in ANSI/TIA/EIA 568, EN 50173 and ISO 11801 standards. The color of the patch panel is black; the size in the data rack is 1U.

CAT6 category.
Highest supported protocol: 1000BaseT, 1000BaseTX
Highest theoretical speed that can be achieved on the cable
Number of ports: 24
Number of RJ45 ports per panel
Tie bar: yes
Min. port lifetime: 1000 connections/disconnections
RJ45 port lifetime - i.e. number of cycles of patch cable connection and disconnection
Contact protection: 50 µ gold and 100 µ nickel
RJ45 connector contact material and quantity
Terminal block: dual 110/Krone 8p8c
Type of terminal block used to notch the installation cable conductor
Min. lifetime of terminal block: 200 notches
Terminal block life - i.e. number of installation cable notching cycles
Trimming blades: bronze, P, Sn and Pb alloy
Material of the notching knives on the terminal block
Wire size: AWG 26 - 22
Recommended conductor diameter of the installation cable for the component terminal block
Material of non-metallic parts: FR plastic according to UL94-0
Type of plastic material on the component
Color: Black
Size: 1U
Height: 44 mm
Width: 484 mm
Depth: 109 mm
Storage temperature: -40 to 70°C
Operating temperature: -10 to 60°C
Max. operating humidity: 93%
