Goobay Outdoor (IP68) LAN kabelio...

Techniniai duomenys

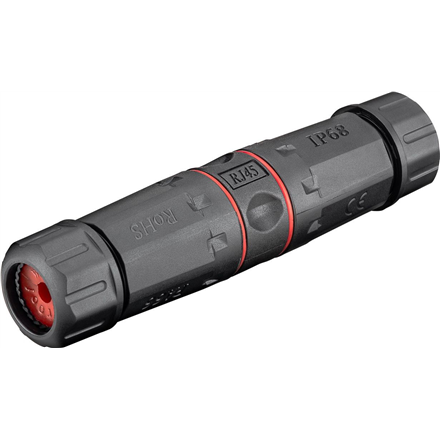

Kitos savybės	The outdoor cable connector is designed for 8-wire connection, extension, repair or rerouting of data / lan network cables, eliminating the need for bulky connection boxes. easy assembly without special tools and easy extension. plastic outer housing pa66, protection class ip68, with strain relief on both sides. for easy connection of network installation cables - without special tools; for outdoor / industrial applications - provides increased protection against dirt and moisture; suitable for poe+ according to ieee 802.3at; for shield connection and strain relief integrated in the housing; for conductor diameter solid wire 0.48 to 0.65 mm (awg 22 to 26); or conductor diameter strand 7 * 0.16 to 7 * 0.20 mm (awg 22 to 26); suitable for cable sheath diameters from 5.0 to 7.5 mm. technical specifications connection, type for idc connectors (toolless) connection 2, type for idc connectors (toolless) cable specification cat 6 shielding class stp signal transmission max. bandwidth 250 mhz general consumption unit 1 pc. in polybag markings ce, weee operating temperature from -20 °c operating temperature up to 85 °c length 122 mm diameter 28 mm

Modelio pavadinimas	44417
Gamintojo prekės serija	Outdoor (ip68) lan cable connector, cat 6 shielded

Modelio pavadinimas	KON526
