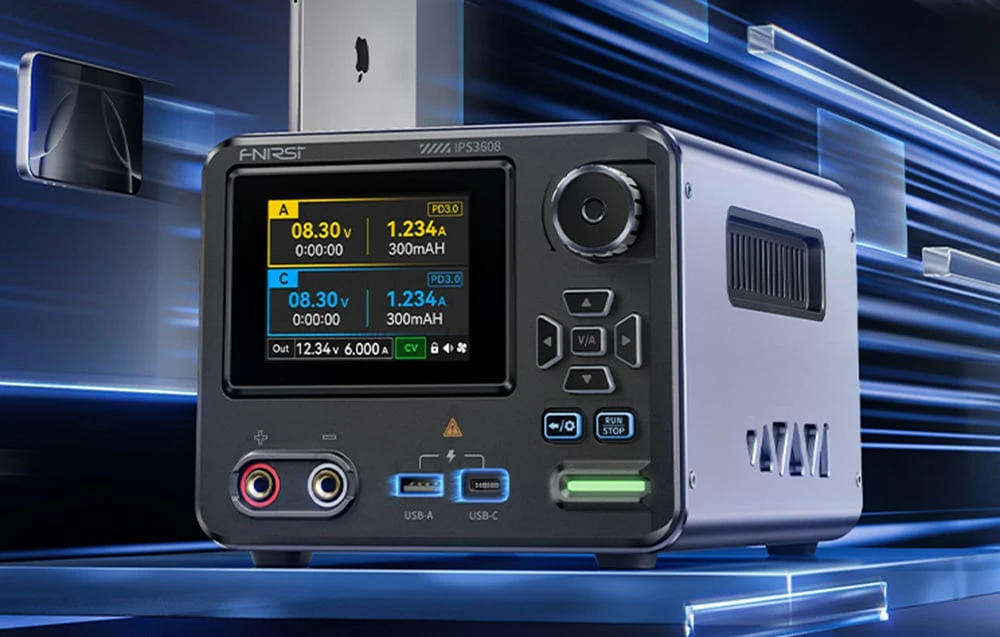

The FNIRSI IPS3608 is an intelligent, programmable digital power supply designed for precise and stable operation with electronics. It offers high power, clean power with low interference, and automatic voltage and current control modes. The robust aluminum housing with active cooling ensures reliability, while the easy-to-read color display with angle adjustment and light and dark themes enhances user comfort. The device supports presets, advanced software functions, and computer connectivity, while built-in USB ports with fast charging expand its applications. The whole is complemented by an extensive security system that protects both the power supply and the connected equipment.

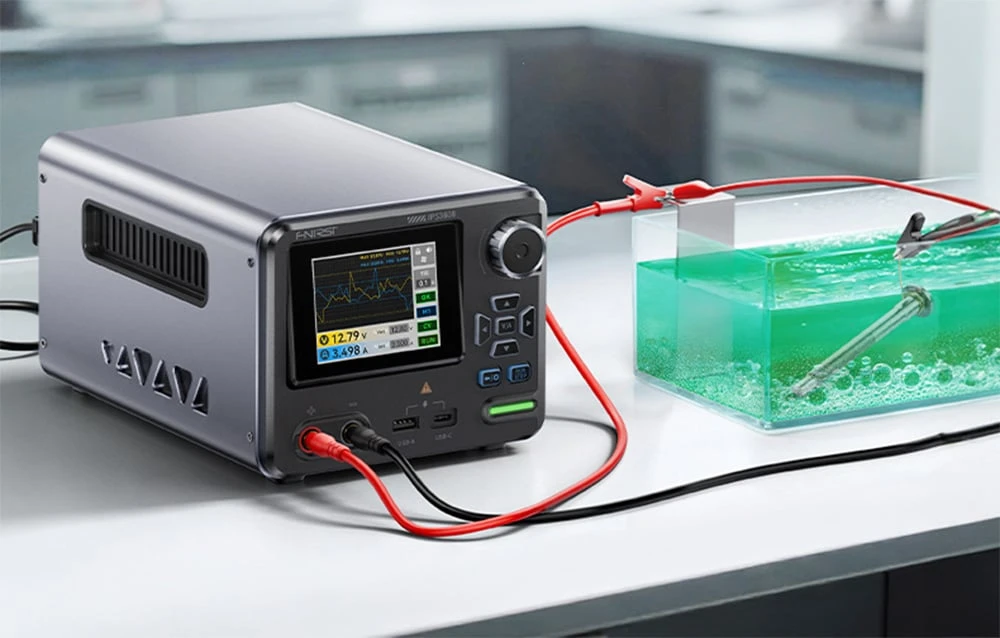

The FNIRSI IPS3608 is designed for demanding laboratory, service, and research applications. It offers 285 W of power and ultra-low ripple of 10 mV, which translates into exceptionally clean and stable power. The use of high-quality MOSFET transistors in combination with an LC filter increases energy efficiency and effectively reduces interference, ensuring low noise levels even when working with sensitive electronics.
The power supply allows for precise control of constant voltage and constant current modes, automatically switching between Auto CV and Auto CC depending on operating conditions. Such parameter control guarantees uniform processes, including precise experiments requiring stable conditions, and ensures reliable, repeatable measurement results. In addition, thanks to its refined power supply design, the FNIRSI IPS3608 delivers power with very low interference.
The full CNC-machined aluminum housing ensures a professional appearance, as well as high mechanical resistance and effective heat dissipation. The intelligent cooling system with an active fan automatically maintains the optimum operating temperature, which translates into stable operation and long service life of the device, even with intensive use.

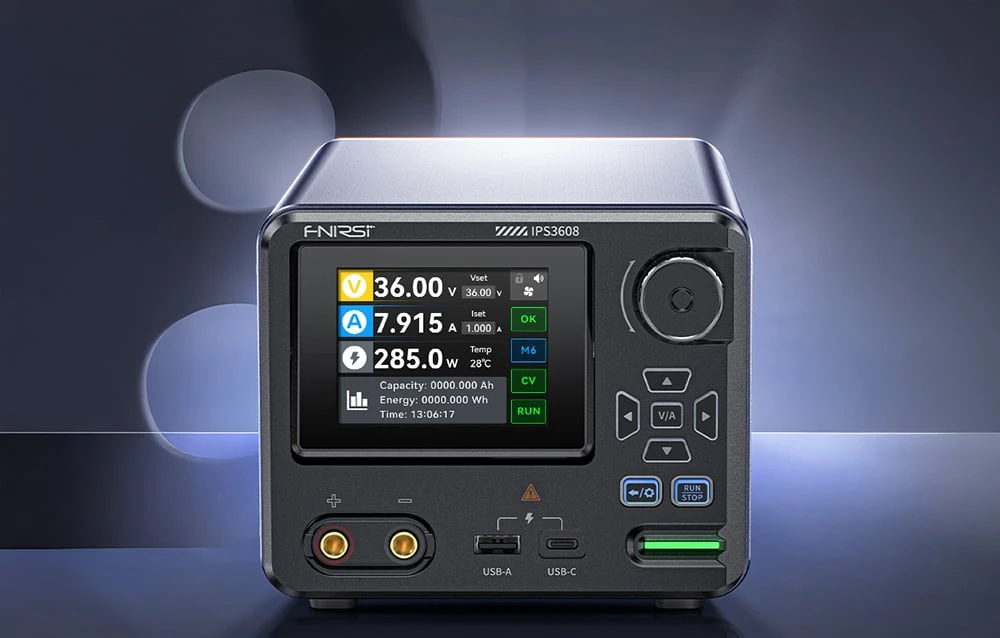

The power supply is equipped with a 2.8-inch TFT color display that presents real-time data in a clear and transparent manner. Adjustable brightness allows you to adapt the screen to lighting conditions, and the ability to change the angle of inclination facilitates comfortable work in various workstation configurations. The interface offers three view modes and two color themes—light and dark—allowing you to quickly customize the appearance to your preferences. An additional safety feature is the rear power switch, which reduces the risk of accidental startup.

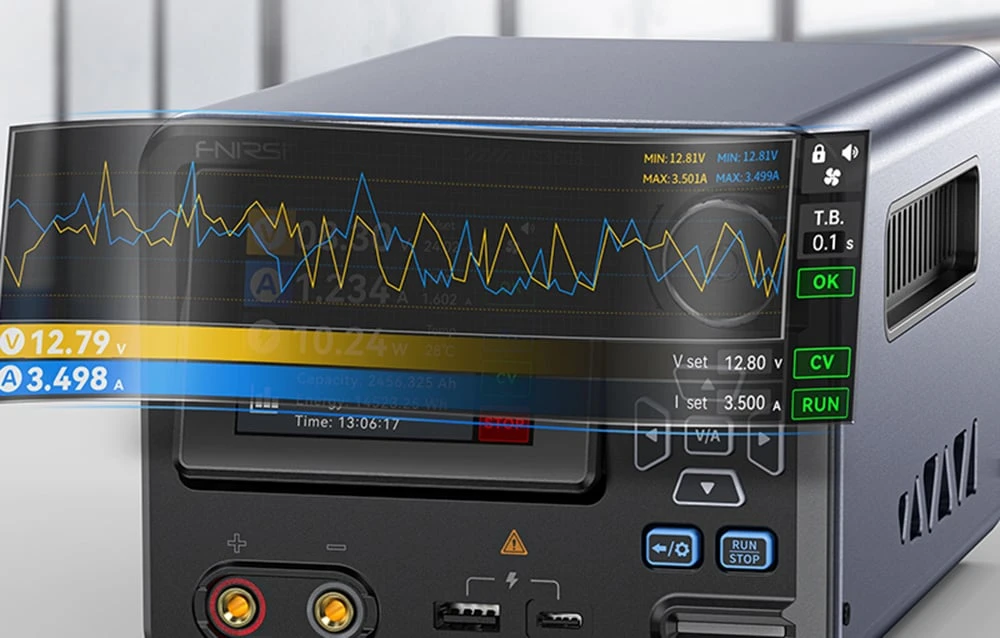

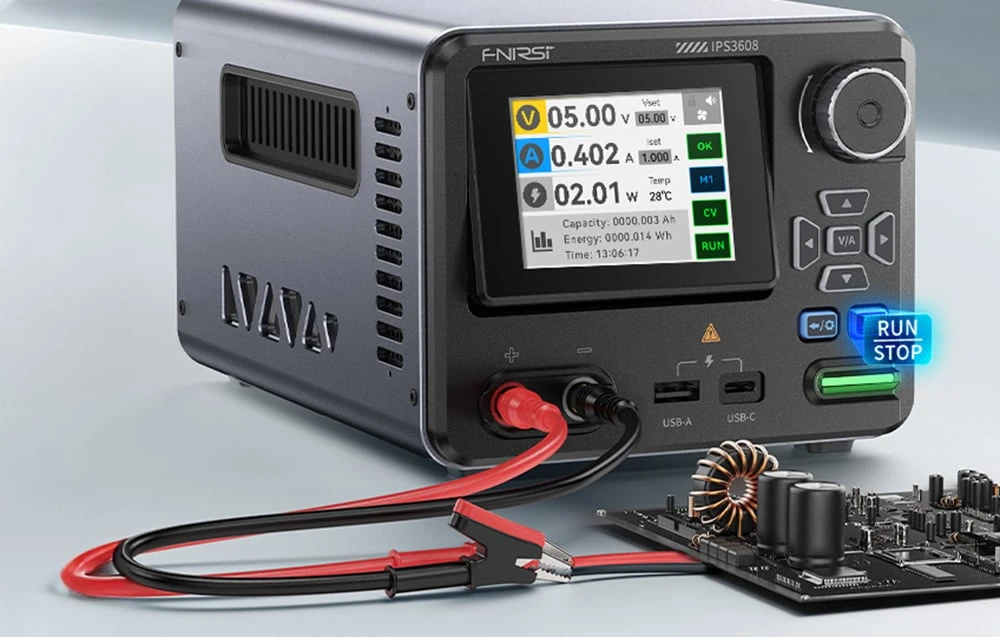

The FNIRSI IPS3608 allows you to save up to six sets of presets covering voltage, current, and protection limits. The quick start and stop function with a single button significantly improves work, especially in situations requiring frequent parameter switching or repetitive tests. The device works with computer software that allows you to view parameters in real time, record voltage and current curves, and conveniently manage presets. For more advanced users, features such as sequential output and voltage and current scanning are available, paving the way for comprehensive analysis and automated testing.
The power supply is equipped with USB-A and USB-C ports that support fast charging standards, including PD, QC, FCP, SCP, and AFC. This allows it to serve as a reliable power source not only for the systems under test, but also for smartphones and mobile devices used in everyday work. Importantly, the equipment offers a full set of eight protections, including protection against overvoltage, overcurrent, overload, undervoltage, overheating, reverse polarity, reverse current, and short circuit.
| Manufacturer | FNIRSI |
|---|---|
| Model | IPS3608 |
| Screen | 2.8-inch color screen |
| Backlight | Adjustable backlight brightness |
| Interface language | Chinese, English |
| Product dimensions | approx. 138 × 214 × 115 mm |
| Product weight | approx. 1539 g |
| Voltage range | 100–240 V AC (50/60 Hz) |
| Setting resolution | Voltage 0.01 V; Current 0.001 A |
| Reading accuracy | Output voltage accuracy ± (0.3% + 3 bits); output current accuracy: ± (0.15% + 5 bits) |
| Operating conditions | Temperature: -10°C to 40°C | Humidity: 0%–75% RH |
| Protections | Overvoltage, overcurrent, overload, thermal, undervoltage, short circuit, reverse connection, reverse current injection |
| Output | DC voltage 0–36 V | Current 0–8 A | Power 0–285 W |
| Load regulation | ± (0.2% + 2 bits) |
| Fast charging | USB-C: PD 3.0 | USB-A: Huawei FCP, Huawei SCP, AFC, QC 2.0, QC 3.0 |
