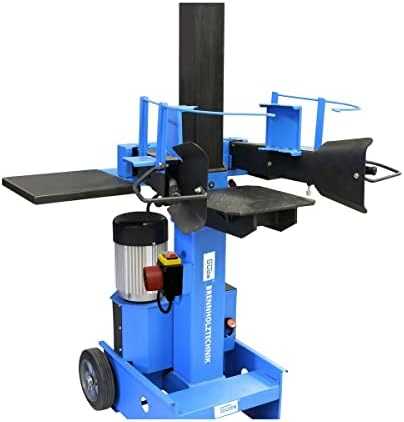

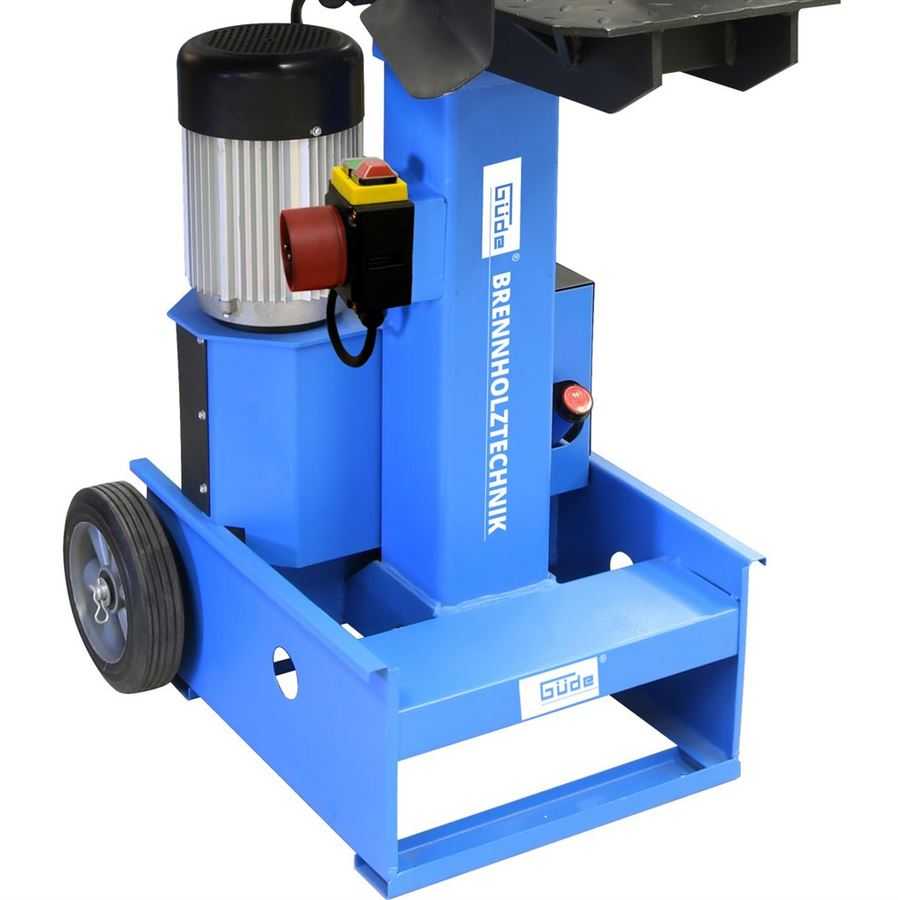

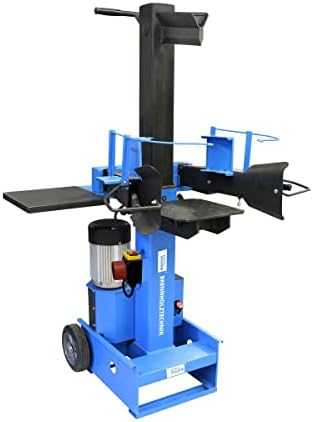

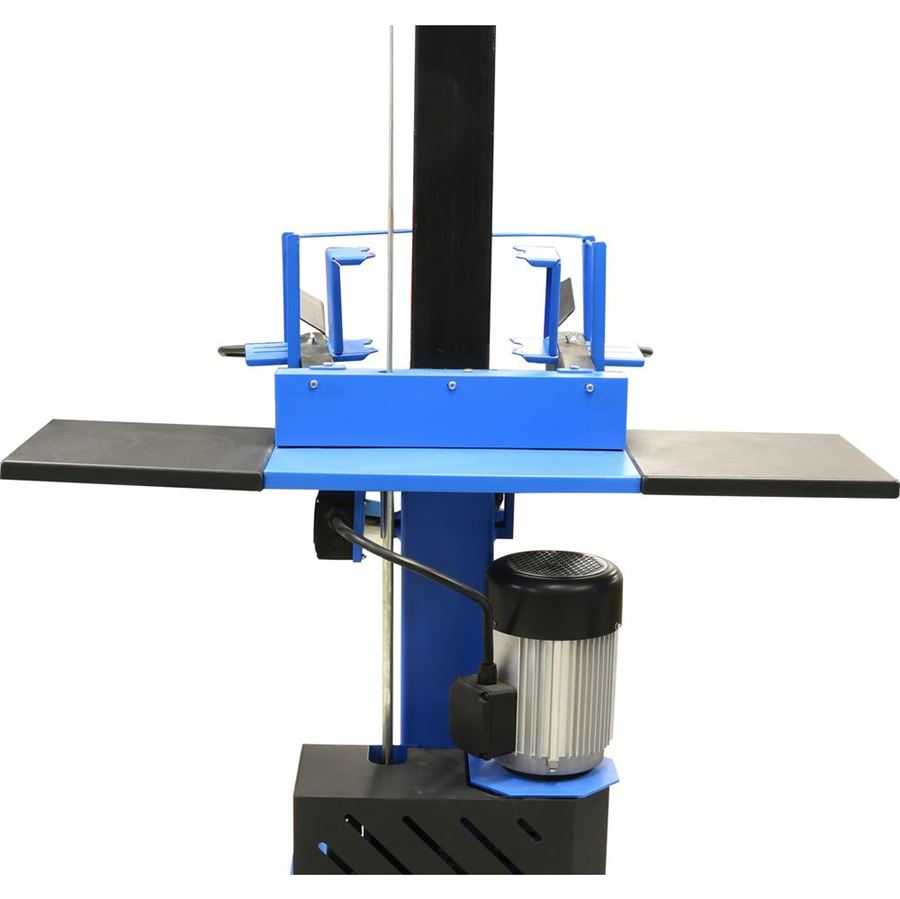

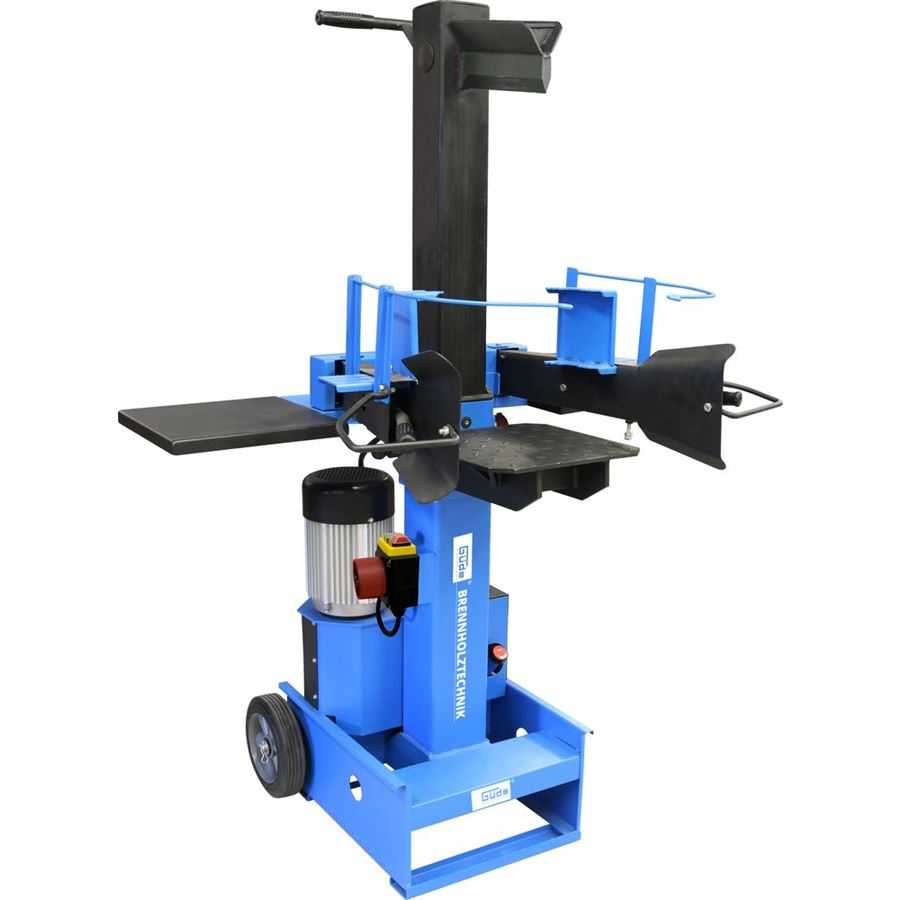

Güde GHS 500/8 TED (2053)

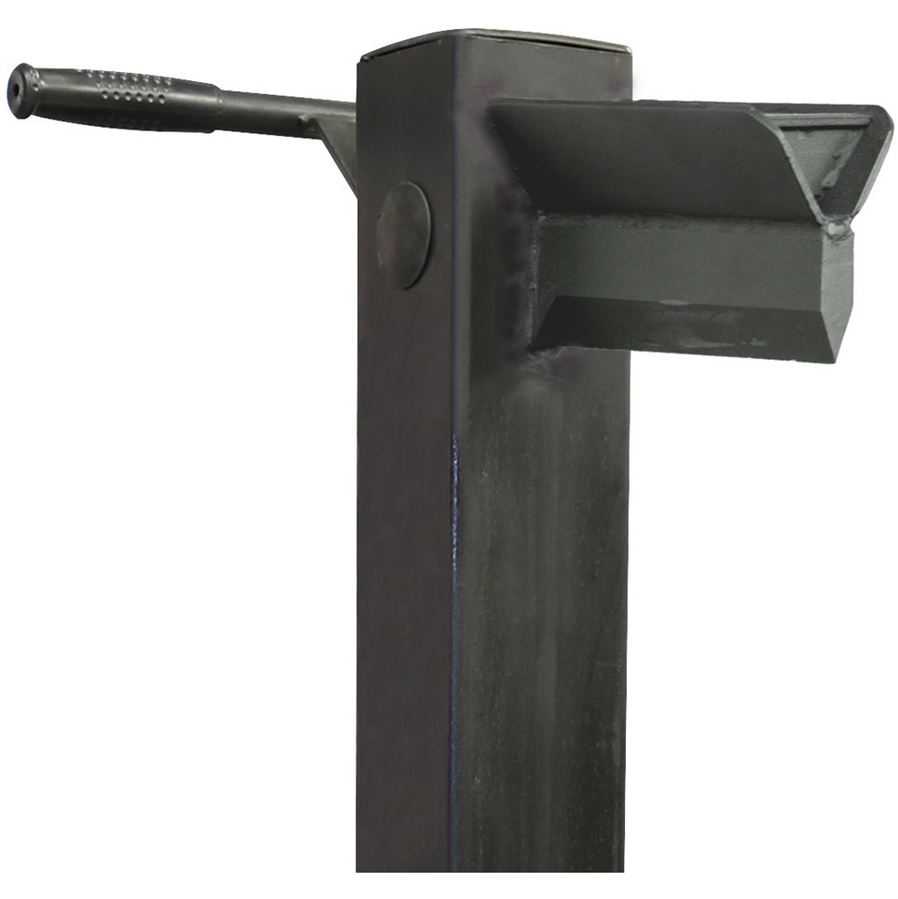

Reliable splitter for splitting cut firewood. Vertical splitting of wood for fireplaces, stoves, boilers, stoves, etc. - diameter of logs: 50 - 350 mm, max. length: 500 mm. GHS - the latest design series of splitters, meeting the safety requirements for agricultural (forestry) machinery according to the technical standard DIN EN 609-1:2017. Safe (ambidextrous) operation by means of levers with protective covers; precise adjustment of the splitting wedge stroke according to the actual length of the logs. Motor 3.0 kW/P1 (type of operation: S6/40%), safety switch, socket with phase converter. Construction: robust steel frame, powerful hydraulic pump, splitting pole 100 x 100 cm, hanging work table (L x W: 310 x 300 mm), storage areas (2), pull handle, base incl. transport wheels. Hydraulic pressure: 280 bar, cutting speed (reverse): 4 cm/s (16 cm/s), overall dimensions (l x w x h): 880 x 1,050 x 1,500 mm, sound power level LWA: 87 dB (A), protection class: F, protection class: IP 54. Parameters: 400 V~50 Hz. Width of the assembled device in mm: 1050 Height of the assembled device in mm: 1510 Assembled length in mm: 845 Motor power: 3,0 kW/P1 Max. diameter of logs: 350 mm Max. length of logs: 500 mm Splitting pressure: 8 t Package dimensions: 56 x 47 x 119 cm
