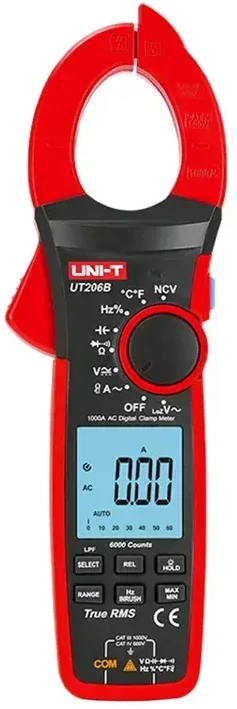

Uni-T UT206B Digital Clamp Meter

The Uni-T UT206B digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly facilitates work in the field and at switchgear.

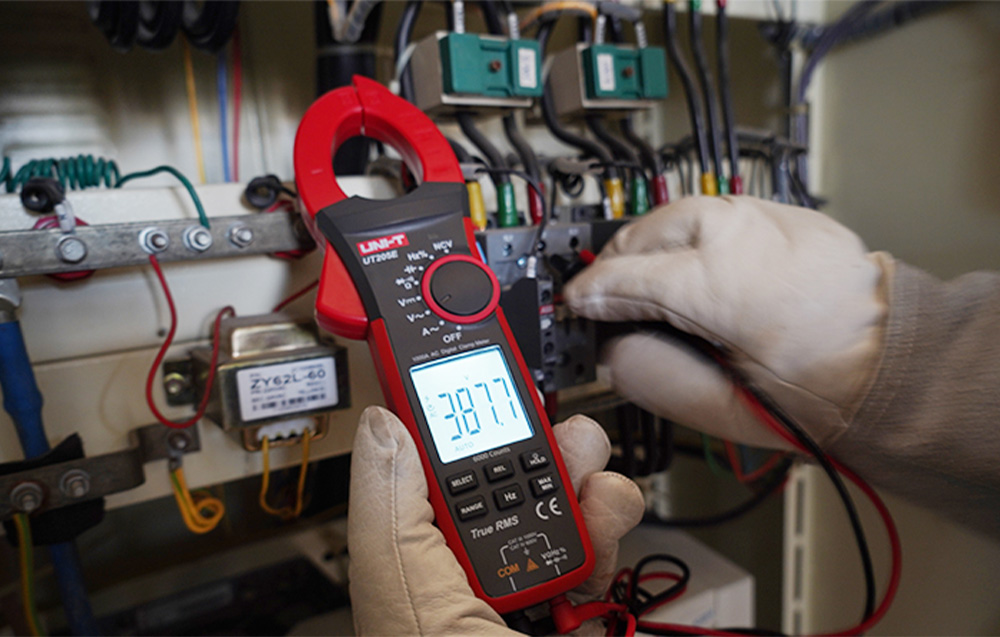

Uni-T UT206B Digital Clamp Meter aprašymas - Prekės nuotrauka

Extended measurement capabilities

The UT206B model measures AC current up to 1000A and AC/DC voltage up to 1000V, and additionally offers temperature and inrush current measurement. The LoZ and LPF functions provide more accurate results in industrial installations.

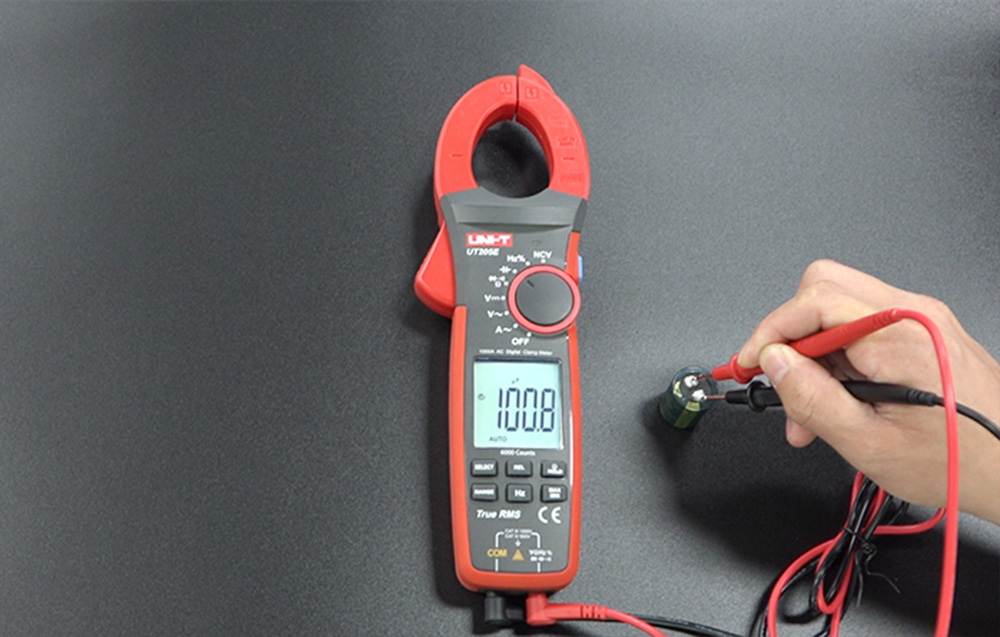

Uni-T UT206B Digital Clamp Meter aprašymas - Prekės nuotrauka

Features that make work easier

True RMS, NCV, inrush mode, and a low-pass filter increase measurement accuracy. The ability to connect a Flex probe allows the current measurement range to be extended up to 3000A.

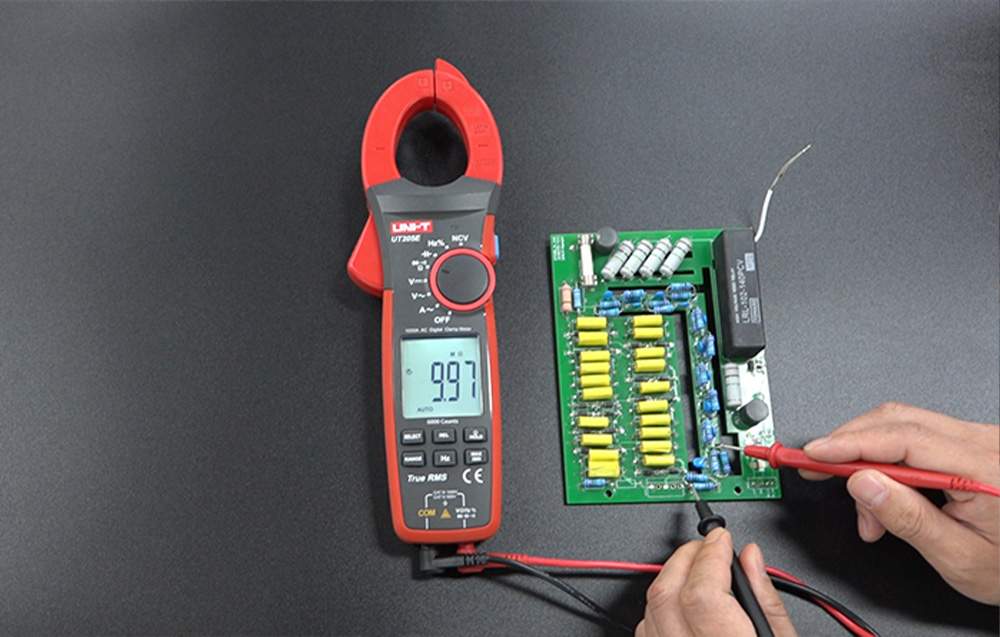

Uni-T UT206B Digital Clamp Meter aprašymas - Prekės nuotrauka

Intuitive design and safety

A large display with a bar graph and a 42 mm jaw opening make work easier. The device complies with CAT III 1000V / CAT IV 600V standards.

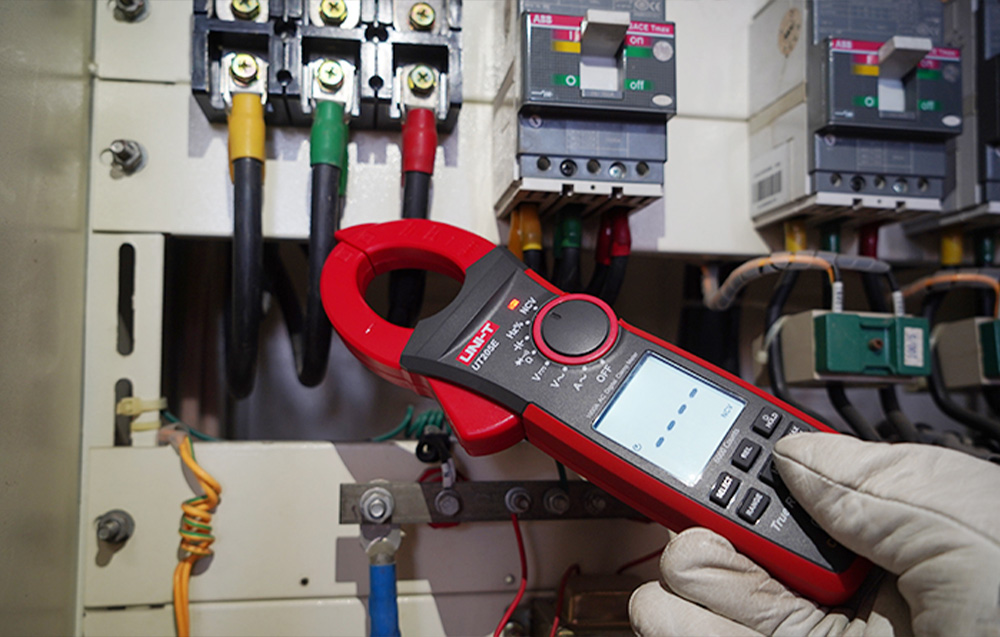

Uni-T UT206B Digital Clamp Meter aprašymas - Prekės nuotrauka

Included

Clamp meter
Batteries x3
Test leads
Temperature probe
User manual

Specifications

Manufacturer	Uni-T
Model	UT206B
Type	True RMS clamp meter
AC current	1000A ±(2%+5)
Inrush current	1000A ±(10%+10)
AC voltage	1000V ±(1.2%+3)
DC voltage	1000V ±(0.5%+5)
LPF ACV	1000V ±(2%+5)
LoZ ACV	1000V ±(2%+5)
AC voltage range	40Hz ~ 400Hz
Resistance	60MΩ ±(1%+2)
Capacitance	60mF ±(4%+5)
Temperature	-40°C ~ 1000°C ±(1%+2)
Frequency	10Hz ~ 1MHz ±(0.1%+3)
Duty cycle	10% ~ 90% ±(2.6%+7)
Maximum reading	6000
Functions	True RMS, NCV, LPF, LoZ, inrush current measurement, bargraph, Flex probe capability
Jaw opening	42 mm
Power supply	3x 1.5V battery (R03)
Display	43 x 45 mm
Dimensions	272 x 81 x 43.5 mm
Weight	465 g
Safety	CAT III 1000V / CAT IV 600V
Certifications	CE, UKCA, cETLus
