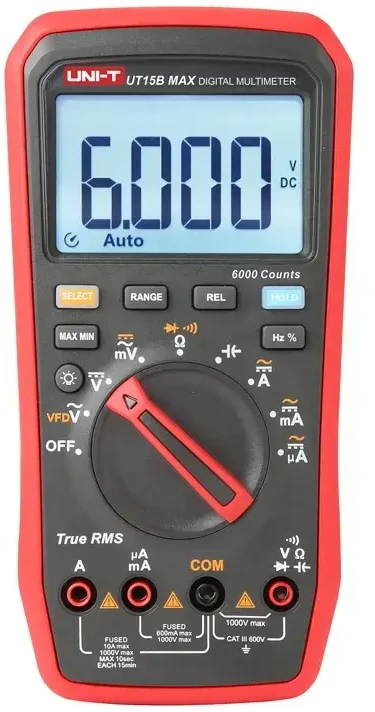

Uni-T True RMS UT15B MAX Digital Multimeter

The Uni-T UT15B MAX is the entry-level model in the series, combining high measurement precision with practical features useful in everyday work. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz. An additional advantage is the VFD function, which enhances the multimeter’s utility when working with specific electrical circuits.

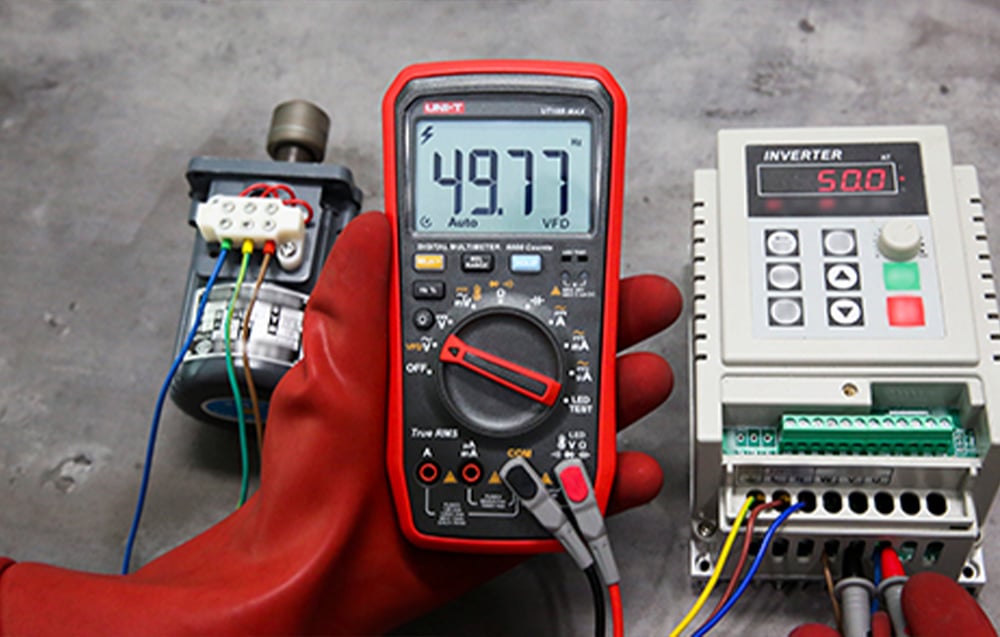

Uni-T True RMS UT15B MAX Digital Multimeter aprašymas - Prekės nuotrauka

Convenient features and safe operation

The model features a display with a maximum reading of 6000, as well as continuity and diode test functions, Data Hold, MAX/MIN, and relative mode. Adjustable backlighting improves readability, and automatic or manual range switching allows you to adapt the operation to the situation. Automatic shutdown and wake-up with any button also contribute to ease of use.

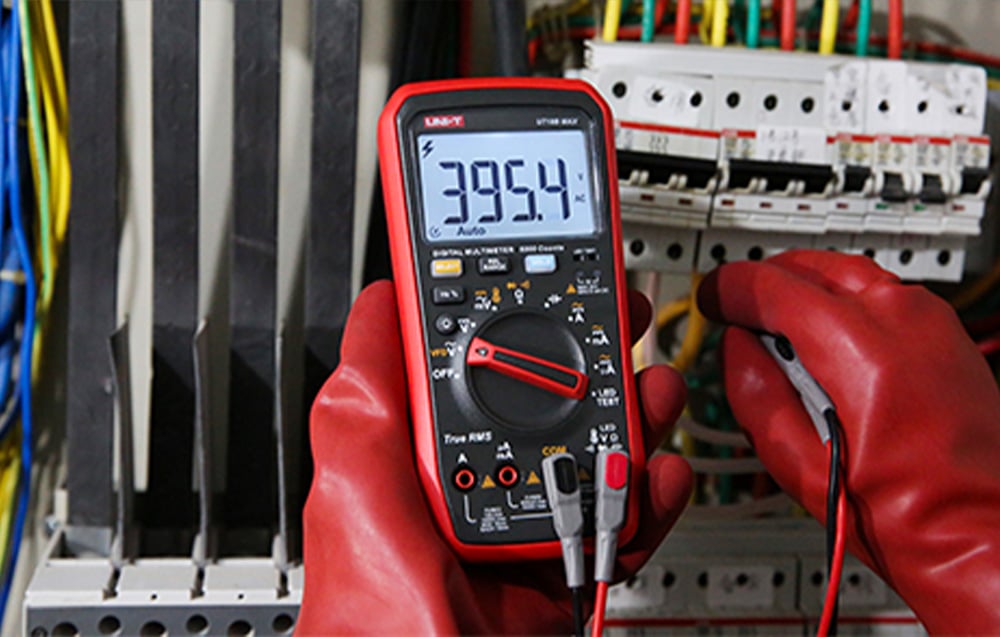

Uni-T True RMS UT15B MAX Digital Multimeter aprašymas - Prekės nuotrauka

Safety and practical operation

The UT15B MAX is designed for safe and convenient operation. The device features visual and audible alarms, a wrong-lead connection alarm, and CAT III 600V overvoltage protection. An ideal solution for professionals seeking a precise multimeter for routine tasks where temperature measurement is not critical

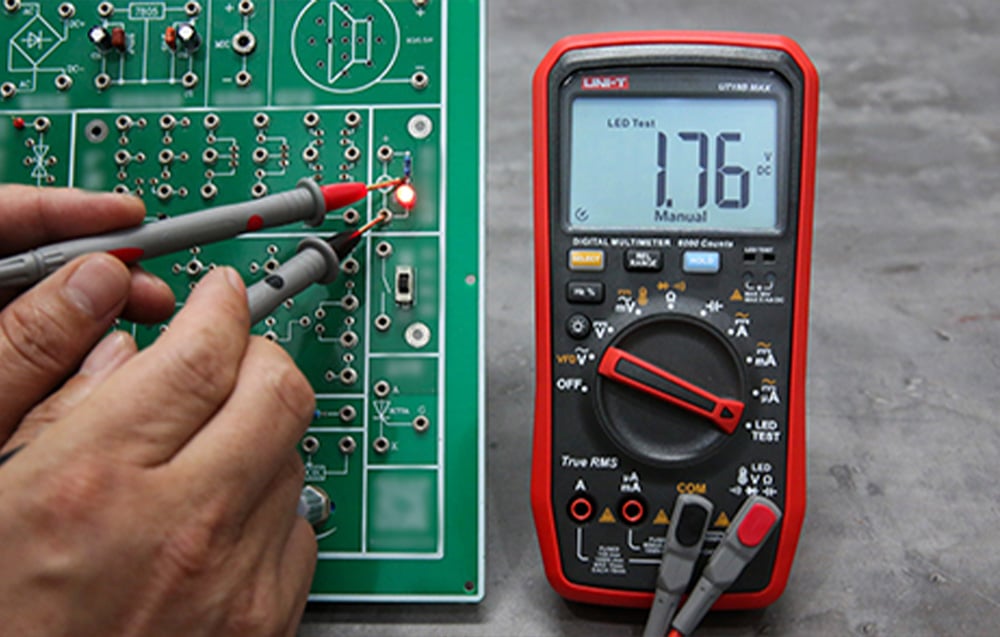

Uni-T True RMS UT15B MAX Digital Multimeter aprašymas - Prekės nuotrauka

Included

Digital multimeter
User manual
Standard gold-plated test leads x2
Test leads with fine tips x2
Batteries x2

Specifications

Manufacturer	Uni-T
Model	UT15B MAX
Type	True RMS digital multimeter
DC voltage	600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4%+3)
AC Voltage	600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5%+5)
VFD	600.0 V ±(8%)
AC current	600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
DC current	600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
Resistance	600.0 Ω to 60.00 MΩ ±(0.5%+2)
Capacitance	6.000 nF to 6000 µF ±(2.0%+5)
Frequency	10 Hz ~ 10 MHz ±(0.1%+3)
Duty Cycle	1% ~ 99.9% ±(1.0%+4)
Temperature Measurement	No
Display	6000
Continuity Test	Yes
Diode Test	Yes
Data Hold	Yes
MAX/MIN Mode	Yes
Relative Mode	Yes
Backlight	Adjustable
Range Selection	Automatic and manual
Auto Power Off	Yes
Wake-up with any button	Yes
Visual and Audible Alarm	Yes
Wiring Error Alarm	Yes
Voltage category	CAT III 600V
Power supply	2x 1.5V AA batteries
Weight	455 g
Dimensions	182 mm × 91 mm × 45 mm
Color	Red and gray
