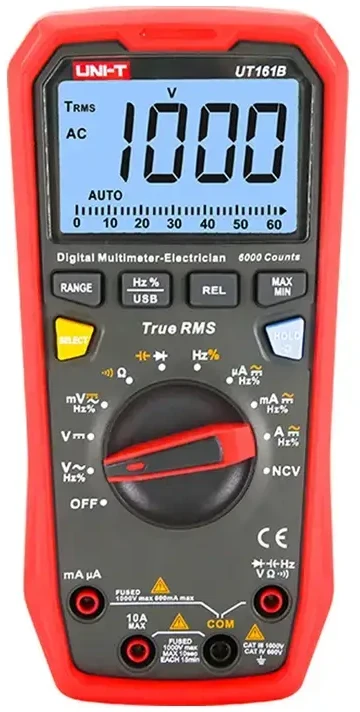

Uni-T UT161B Universal Digital Multimeter

The Uni-T UT161B universal digital multimeter is an advanced measurement tool with True RMS functionality, designed for use in electrical installations and equipment diagnostics. It performs well both in the workshop and in more demanding service applications where measurement accuracy and safety are critical.

Uni-T UT161B Digital Multimeter aprašymas - Prekės nuotrauka

Wide Measurement Range

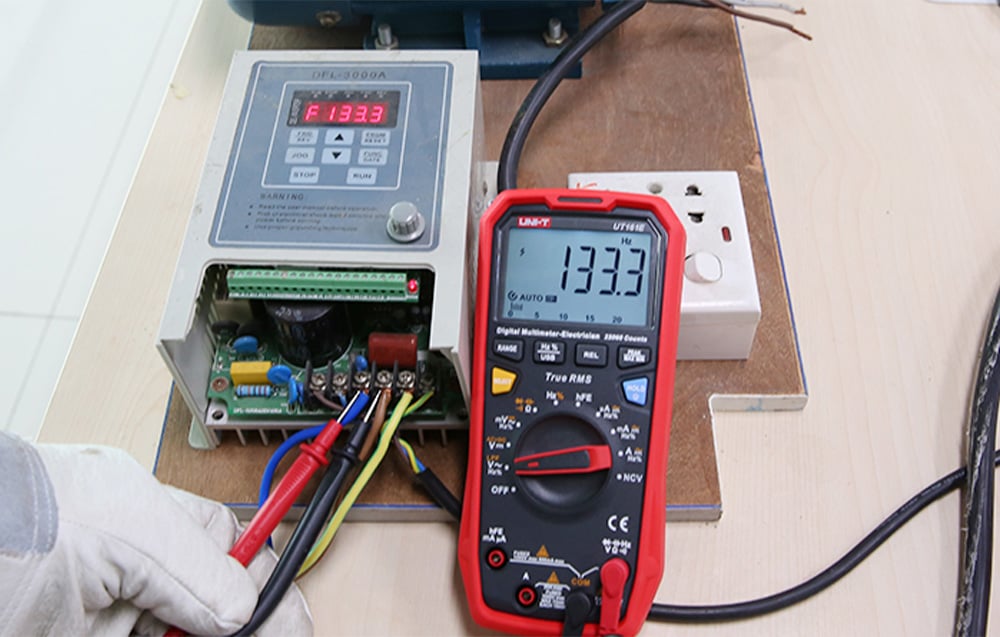

The device measures AC/DC voltage up to 1000 V and current up to 10 A, allowing it to handle higher-voltage systems. Support for frequency, capacitance, and resistance measurements makes the multimeter suitable for comprehensive diagnostics of electrical and electronic circuits.

Uni-T UT161B Digital Multimeter aprašymas - Prekės nuotrauka

Advanced measurement functions

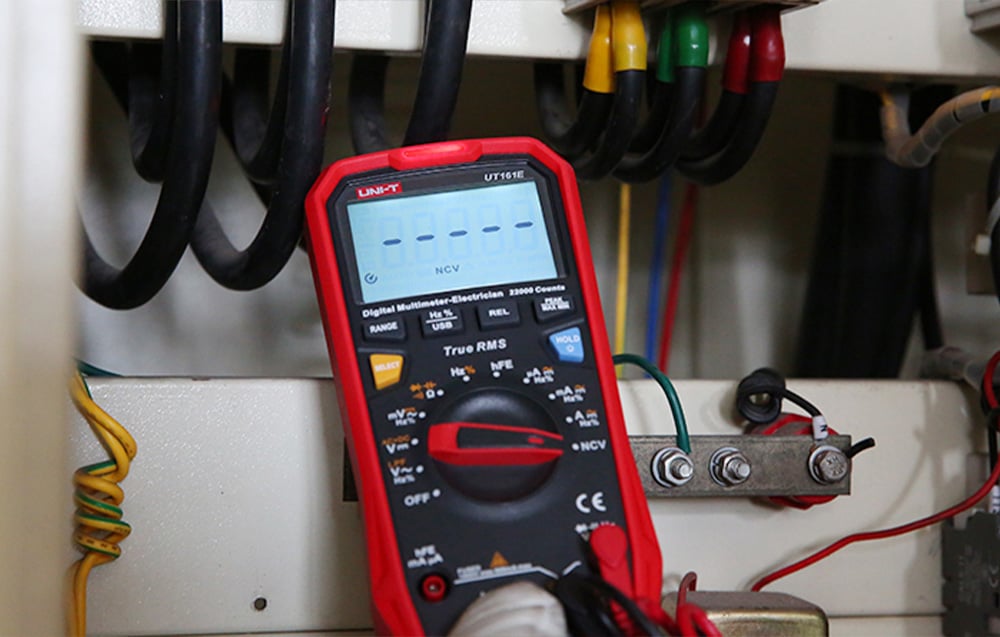

True RMS ensures accurate measurements of alternating signals, while functions such as Max/Min, relative mode, and Peak Hold facilitate the analysis of results. Non-contact voltage detection (NCV) with audible and visual alerts enhances safety during operation.

Uni-T UT161B Digital Multimeter aprašymas - Prekės nuotrauka

Readability and ease of use

The backlit display and analog bar graph allow for quick reading of results. USB communication enables data transfer, facilitating the documentation of measurements.

Uni-T UT161B Digital Multimeter aprašymas - Prekės nuotrauka

Included

Digital multimeter
4 AAA batteries
Test leads
USB cable
User manual

Specifications

Manufacturer	Uni-T
Model	UT161B
Type	True RMS digital multimeter
DC voltage	1000V ±(0.5%+3)
AC voltage	1000V ±(1.0%+3)
DC current	10A ±(1.0%+2)
AC current	10A ±(1.2%+5)
Resistance	60MΩ ±(1.0%+2)
Capacitance	60mF ±(3.0%+5)
Frequency	10MHz ±(0.1%+4)
Duty Cycle	0.1% ~ 99.9% ±(2.0%+5)
Maximum Reading	6000
AC Bandwidth	40Hz ~ 500Hz
Functions	True RMS, NCV, Diode Test, Continuity Test, Data Hold, Relative Mode, Max/Min, Backlight, Bargraph, USB Communication
Power supply	4x 1.5V AAA batteries
Dimensions	190 × 90 × 50 mm
Weight	350 g
Safety	CAT III 1000V / CAT IV 600V
Certifications	CE, UKCA, cETLus
