The Bosch GIS 12V-800-16 professional infrared spot thermometer offers high accuracy, reliability, and durability in demanding work conditions. It is equipped with two lasers for precise targeting of the measurement area, featuring a 20:1 optical ratio and a large 2.4" TFT LCD graphic display. It enables non-contact temperature measurements in the range of -40 °C to +800 °C, as well as contact measurements using an external Type K probe (suitable for shiny surfaces, liquids, or flowing air).
The device has a rugged design with an IP54 rating and can withstand drops from heights of up to 2 m. The dual power supply system allows operation on a 12V Bosch Li-Ion rechargeable battery or on 4 AA batteries with an adapter. It features a built-in LED light for working in dark areas, a materials catalog for setting emissivity, and the option for advanced measurement customization.
Specifications
Power supply: 12 V (GBA 12V / 10.8V) or 4× 1.5V LR6 (AA)
IR measurement range: -40 °C to +800 °C
IR measurement accuracy: ±1.5 °C
Optics (distance-to-spot ratio): 20:1
Operating range: 0.1 – 5 m
Display type and size: 2.4" TFT LCD (resolution 0.1 °C)
Protection rating: IP54
Drop resistance: 2 m
Features and equipment: Interface for Type K probe, dual laser, LED illumination, materials catalog
Dimensions (L × W × H): 119 × 73 × 212 mm
Weight without battery: 0.36 kg (unit weight 0.546 kg)

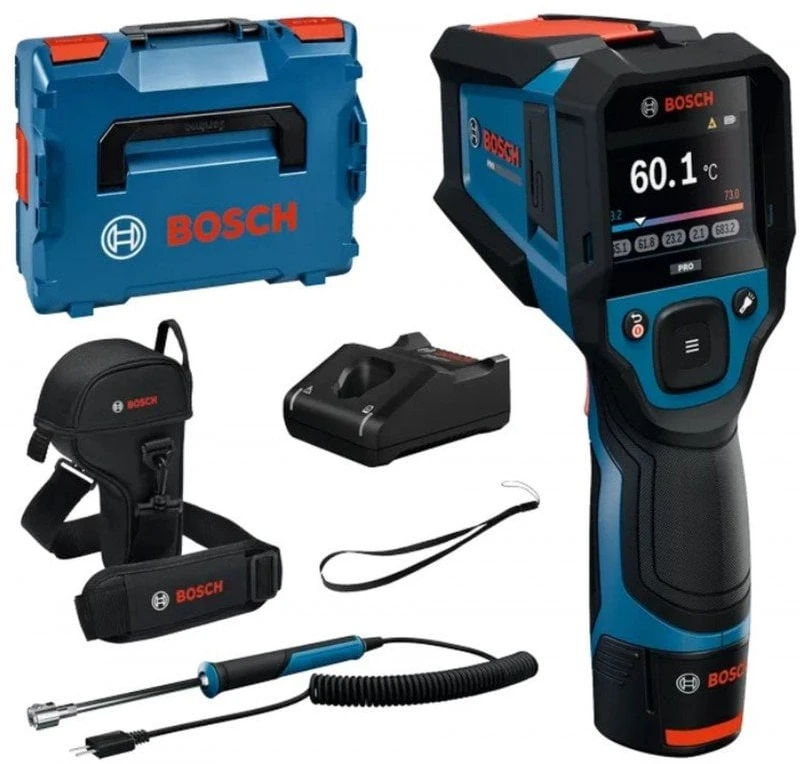

Package contents:
1× GBA 12V 2.0Ah 1 600 Z00 02X battery
L-BOXX 136 1 600 A01 2G0
GAL 12V-40 Professional 1 600 A01 9R3 rapid charger
Tool bag
Tool insert for L-BOXX
