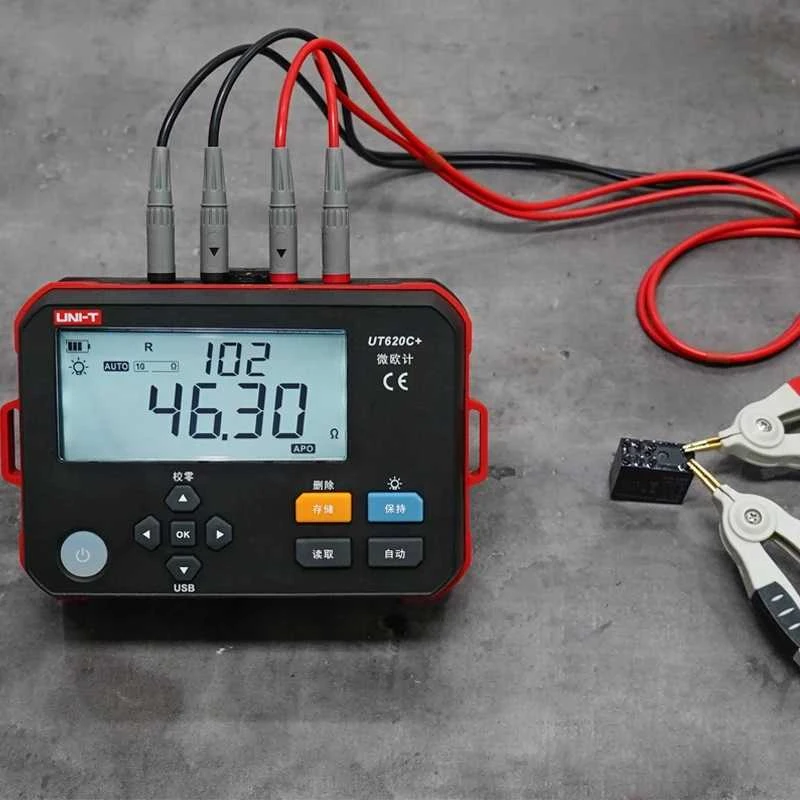

Uni-T UT620C+ Digital Micro-Ohm Meter

The Uni-T UT620C+ Digital Micro-Ohm Meter is a precision instrument designed for measuring very low resistances—from 0.001 mΩ up to 300 kΩ—making it ideal for testing both small components and more complex systems. High resolution down to 1 μΩ and accuracy of ±0.1% FS allow for the detection of even slight changes in resistance, which is crucial for technical diagnostics. The use of the four-wire method minimizes the influence of test leads on the result, and a test current of up to 1 A enables stable measurements under various conditions. Additionally, the device offers storage for up to 500 results, a clear backlit LCD display, and a compact, portable design with battery power.

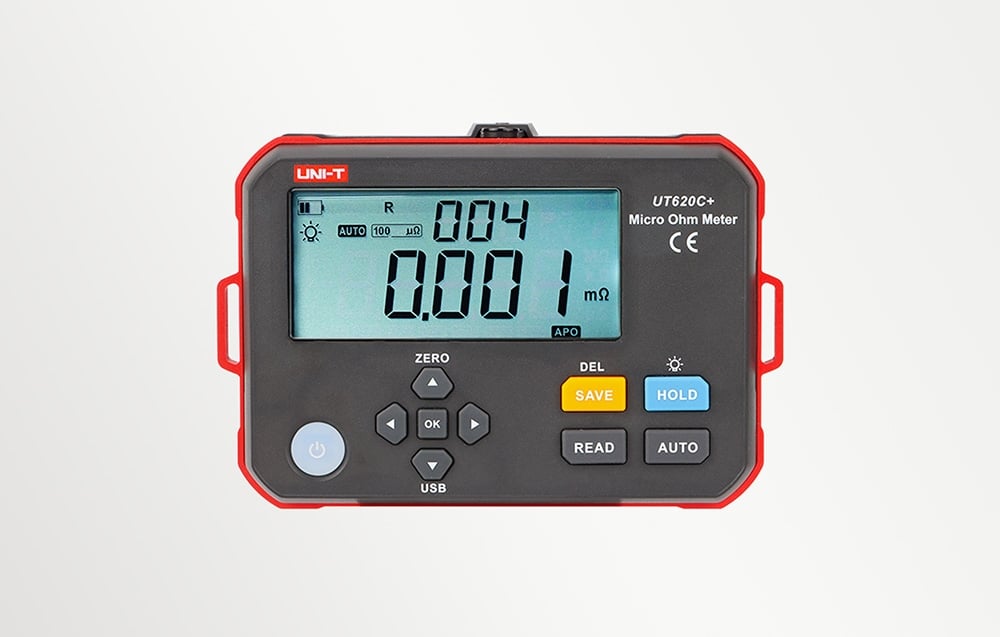

Aukšto tikslumo skaitmeninis mikroommetras, 0.001mΩ~300.0kΩ; 1mΩ, Type C, IP54, DC 3.7V 3200mAh Li, 500 matavimų atmintis, UNI-T aprašymas - Prekės nuotrauka

Manufacturer	Uni-T
Model	UT620C+
Resistance measurement range	0.001 mΩ – 300.0 kΩ
Resolution	up to 1 μΩ
Open-circuit voltage	≤ 4.2 V
Measurement rate	approx. 2 measurements/s
Memory	up to 500 data sets
Display	backlit segment LCD
Interface	USB Type-C
Input protection	up to 36 V AC/DC
Protection rating	IP54
Power supply	3.7 V / 3200 mAh Li-ion battery
Power consumption	≤ 8 W
Dimensions	161 × 117 × 68 mm
Weight	480 g (with battery)
