Šakotuvas TP-Link 24-PORT 1G L3...

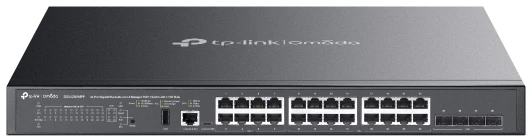

TP-Link OMADA switch SG5428XMPP

Omada 24portový gigabitový stohovatelný switch Lite L3 se správou PoE++ a 4× 10G sloty

8× Gigabitové PoE++ porty 802.3af/at/bt (Max 90 W na port)
16× Gigabitové PoE+ porty 802.3af/at (Max 30 W na port)
4× 10Gb/s SFP+ sloty
Až 500 W celkový PoE rozpočet
Funkce Fast PoE a Perpetual PoE
Fyzické stohování až 4 jednotek pro vestavěnou redundanci a výkon
L3 funkce: RIP, OSPF, Statické směrování a DHCP server/relay
Bezpečnostní strategie: ACL, Port Security, DoS ochrana, 802.1X
ERPS podporuje rychlou ochranu a obnovení v kruhové topologii
Centralizovaná správa přes cloud pomocí Omada SDN kontroléru
Samostatná správa přes web, CLI, SNMP a RMON

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-campus/sg5428xmpp

Technické specifikace

HARDWARE FEATURES
Interface	• 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) • 4× 1/10 Gbps SFP+ Slots** • 1× USB 2.0 Port • 1× RJ45 Console Port • 1× USB Type-C Console Port
Fan Quantity	3
Power Supply	100-240 V~ 50/60 Hz
PoE Ports (RJ45)	• Standard: 802.3af/at/bt compliant • PoE++ Ports: Ports 1~8 (up to 90W per Port) • PoE+ Ports: Ports 9~24 (up to 30W per Port) • Power Budget: 500W* • Fast PoE • Perpetual PoE
Dimensions ( W x D x H )	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting	Rackmountable
Max. Power Consumption	• 587.7 W (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 615.8 W (110V/60Hz) ( with 500 W PD connected @ 25 °C)
Max. Heat Dissipation	• 2004.06 BTU/hr (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 2099.88 BTU/hr (110V/60Hz) ( with 550W PD connected @ 25 °C)
PERFORMANCE
Switching Capacity	128 Gbps per Unit
Stacking	• Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (uplink ports can be used as stacking ports) • Stacking Bandwidth: Up to 40 Gbps (max 2 stacking ports)
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark)
L3 Features	• IP Interfaces: - IPv4: Max 128, IPv6: Max 128 • Static Routing - IPv4 Max 512, IPv6: Max 128 • Host Route Table: Max 1,024 entries • RIP: Version v1/v2, Max 1,796 • OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 • Static ARP: 512 static entries • Dynamic ARP: 2,000 dynamic entries • Proxy ARP • DHCP Server: - Max 64 IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN
L2 and L2+ Features	• Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering
Advanced Features	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
VLAN	• Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 60 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN
Security	• Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control
Management Features
Omada App	Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access	Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE)
OTHERS
Package Content	• SG5428XMPP Switch • Power Cord • Console Cable • Rackmount Kits • Rubber Feet • Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment	• Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F) • Storage Temperature: -40 °C to 70 ? (-40 °F to 158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
