Šakotuvas TELTONIKA NETWORKS TSF000 Low Profile POE+ Switch

5 ports with PoE+

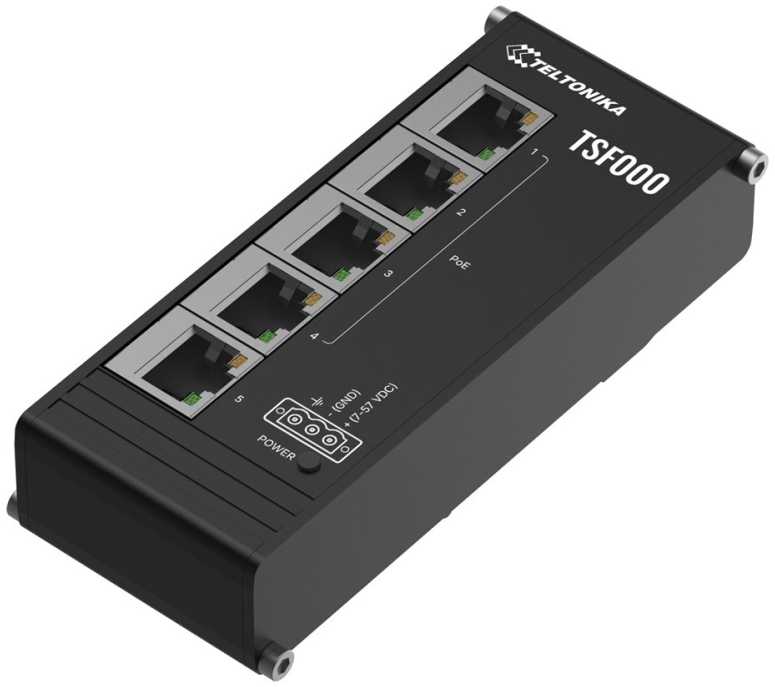

Teltonika TSF000 is a compact, unmanaged Ethernet switch for industrial installations, monitoring and automation. It combines 5 Fast Ethernet 10/100 Mb/s ports with 4 PoE+ ports , so it transmits data and powers devices over a single cable. This layout reduces the number of cables in the control cabinet and simplifies installation.

Key advantages

• 4 PoE-out ports – powers cameras, access points and other devices without additional power supplies.
• 120 W PoE budget – supports several receivers at the same time in one installation.
• 113 x 28 x 50 mm enclosure – fits into shallow cabinets and densely populated panels.
• DIN mounting – speeds up installation in industrial cabinets.
• 7–57 V DC power range – makes it easy to match different power systems.
• Operating range from -40°C to 75°C – performs well in demanding environmental conditions.

Space saving

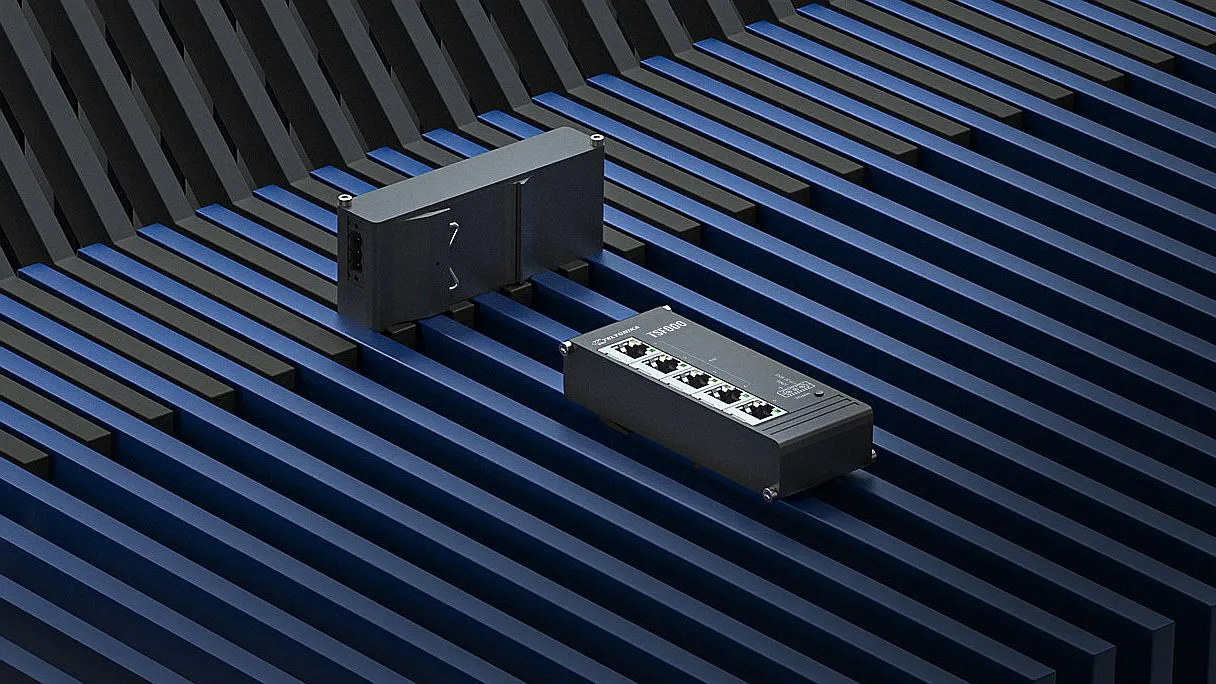

TSF000 was designed for places where every centimetre matters. The low-profile design and aluminium enclosure keep the installation tidy, while the modest 142 g weight does not burden the mounting. It is a good choice for shallow cabinets, tight panels and expanded systems where a clear layout of components matters.

Powering devices

The switch supports IEEE 802.3af and IEEE 802.3at , so it powers typical PoE and PoE+ network devices. Each PoE port provides up to 30 W , and the total 120 W budget gives flexibility for cameras, terminals or access points. This reduces the number of separate power supplies and shortens cabling time.

Stable connectivity

The TSF000 model provides basic wired 10/100 Mb/s connectivity, which is sufficient in many industrial and monitoring applications. Auto MDI/MDIX support simplifies cable connection, and the Plug-n-Play mode requires no additional configuration. It is a convenient solution where quick system start-up matters.

Industrial conditions

The operating range from -40°C to 75°C and the enclosure resistance in IP30 class support installations in demanding environments. The device also has power protection, including protection against overvoltage and reverse polarity. This solution increases the installation's resistance to typical problems encountered in control cabinets and technical systems.

Installation and equipment

You mount the TSF000 on a DIN rail , which speeds up installation in automation panels and CCTV systems. The set includes the TSF000 switch , a 3-pin power connector , a quick start guide and packaging. The power supply must be purchased separately, so you can easily match it to the specific infrastructure.

Practical applications

This switch works well in automation, EV chargers, monitoring systems and office installations where you need a simple network connection and PoE power. 5 Ethernet ports and a compact design make it easy to build an organised infrastructure without expanding the cabinet. It is a practical choice for deployments where space saving and quick installation are important.
