The ZP3 preamplifier helps you to unify and control your audio setup. Via RCA inputs you can connect e.g. CD player or DAC, the specialty is also the possibility to connect devices with symmetrical output via XLR, everything is switchable via selector or remote control. The active subwoofer output and high-pass filters for the main speakers make it easy to build a 2.1 setup. For integration into a home studio, the 2x TRS 6.3mm balanced input for recording soundcards comes in handy.
-RCA inputs for hi-fi components
-Symmetrical XLR input
-Switching on the device and via the driver
-2.1 setup made easy
-2x 6.3mm input for studio interface
Transparent and low distortion

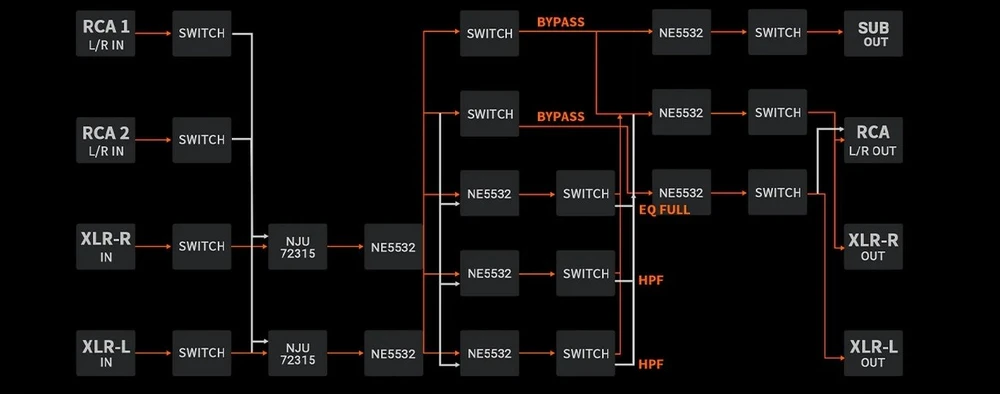

The NE5532 operational amplifiers form the basis. The design of the electronic circuits avoids the formation of ground loops. Distortion is kept below 0.0008%, noise within 6µV. Dynamic range is 112dB for XLR input and 115dB for RCA. As an option to match room sound or taste, the ZP3 offers bass and treble level adjustments.
-Op. NE5532 amplifiers
-Distortion to 0.0008%
-Dynamic range 115dB at RCA, 112dB at XLR
-Bass and treble level adjustment
Specifications
Frequency Range: 20 - 20,000 Hz (±0.2dB)
XLR output
SNR: > 112dB
Dynamic Range: > 112dB
THD+N: < 0.0007%
Noise Threshold: < 6µV
RCA output
SNR: > 115dB
Dynamic Range: > 115dB
THD+N: < 0.0008%
Noise Threshold: < 4µV
Body Material: Aluminum
Colour black
Dimensions (WxHxD) 239 x 164 x 54 mm
Weight 970 g
Accessories included Remote control, power cable, 12 V trigger cable
Warranty period 24 months according to the Consumer Protection Act, 24 months also for purchases made with an I.C.O.
Condition New
Outputs RCA Cinch, Subwoofer Out, XLR
Inputs RCA Cinch, XLR
Body Material Aluminum
