Off-road power in 1:10 scale
Extralink RC SC10 is a remote-controlled Extreme Truck in 1:10 scale, designed for dynamic driving, jumps and tackling off-road obstacles. Large treaded wheels and 4WD drive help it move smoothly over sand, gravel, grass and uneven paths. The vehicle’s chunky silhouette is inspired by off-road cars, and the model’s design allows it to be used both for recreational driving and for more demanding off-road runs.
Brushless 4WD drive

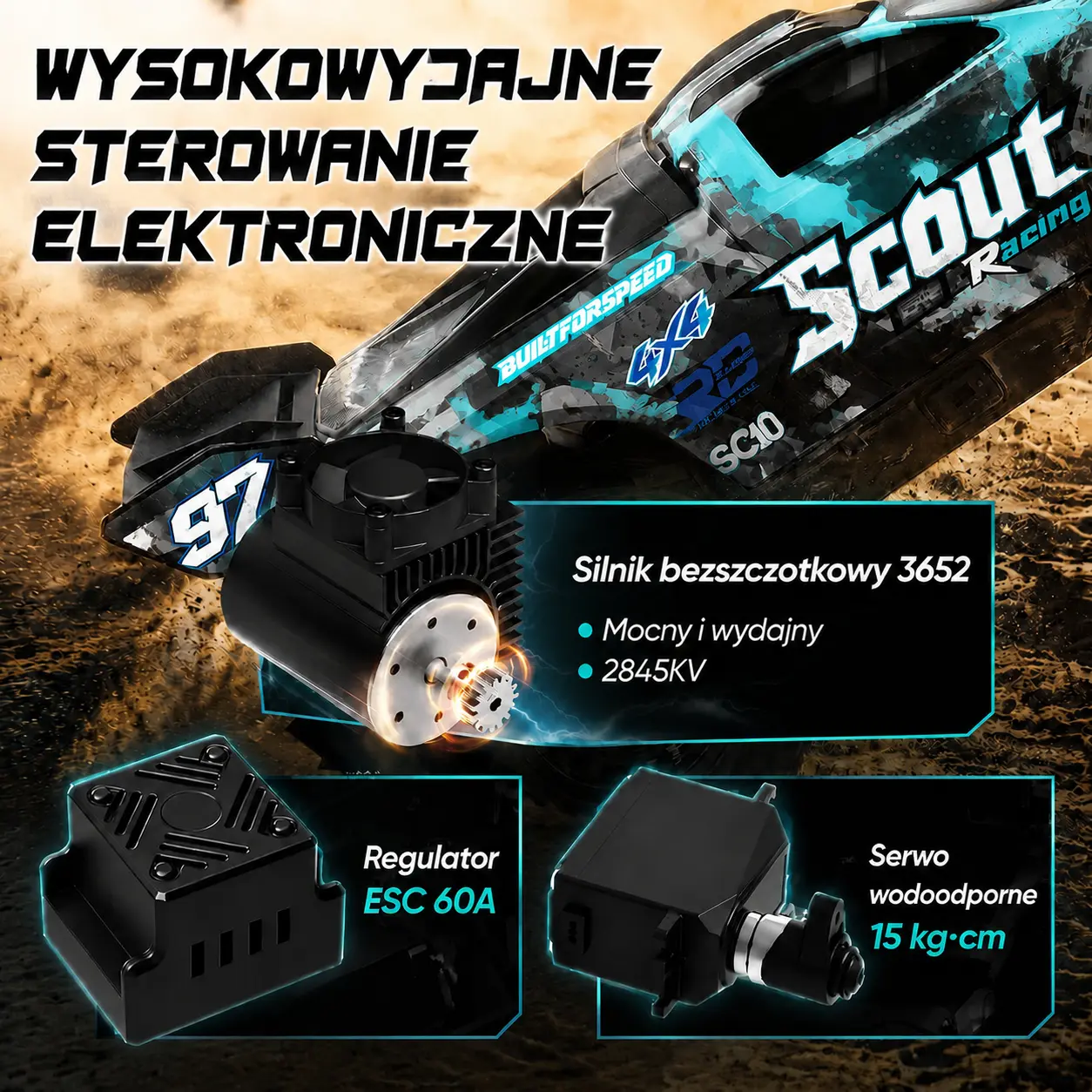

Extralink RC SC10 uses a brushless 3652 motor rated at 2800 KV, working with a 60 A ESC controller. This setup offers brisk acceleration and responsive throttle control. Four-wheel drive delivers power to all wheels, which helps when pulling away, taking corners and driving on surfaces with varying grip. The model can reach speeds of up to 80 km/h, making it exciting to drive even in open spaces.

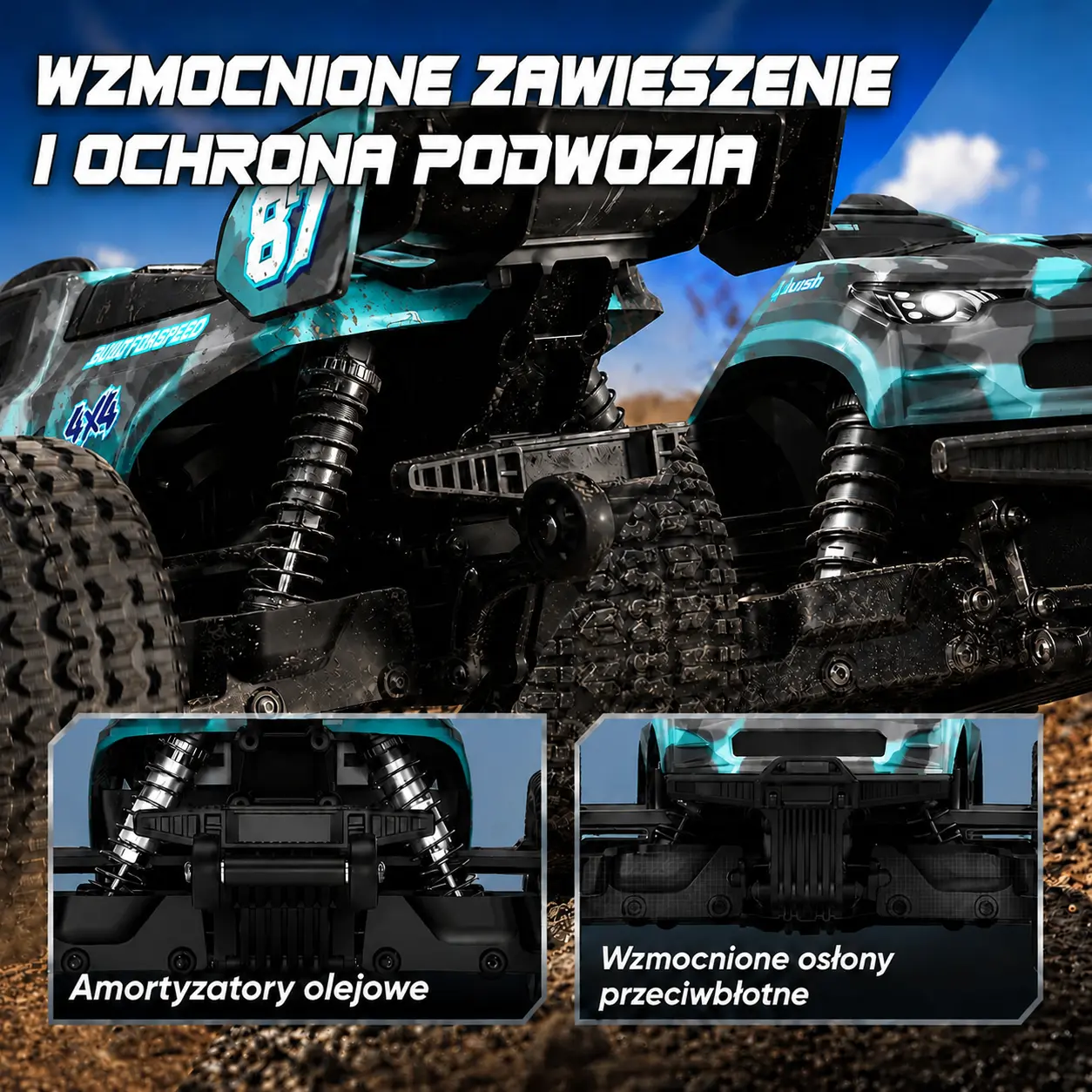

Off-road-ready construction

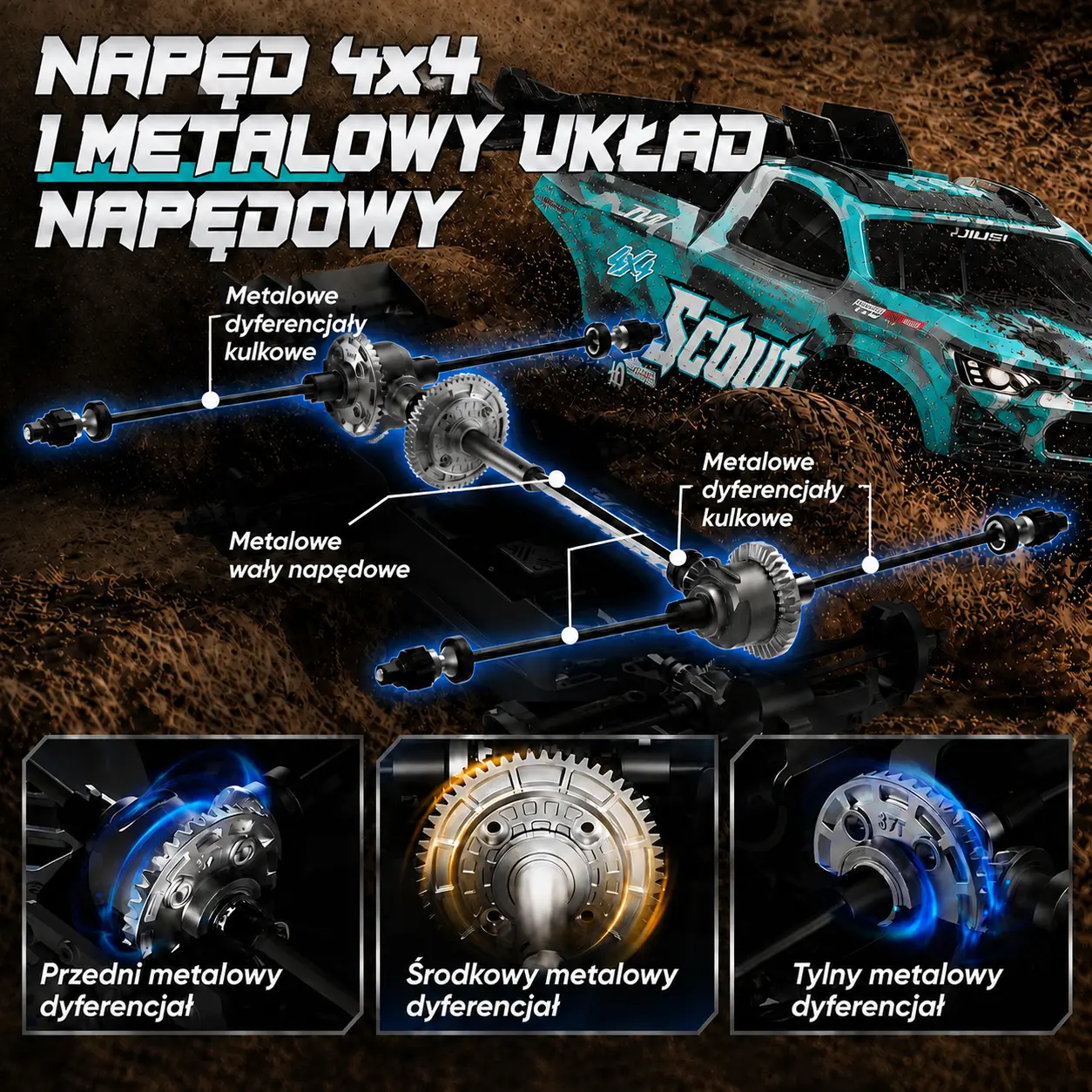

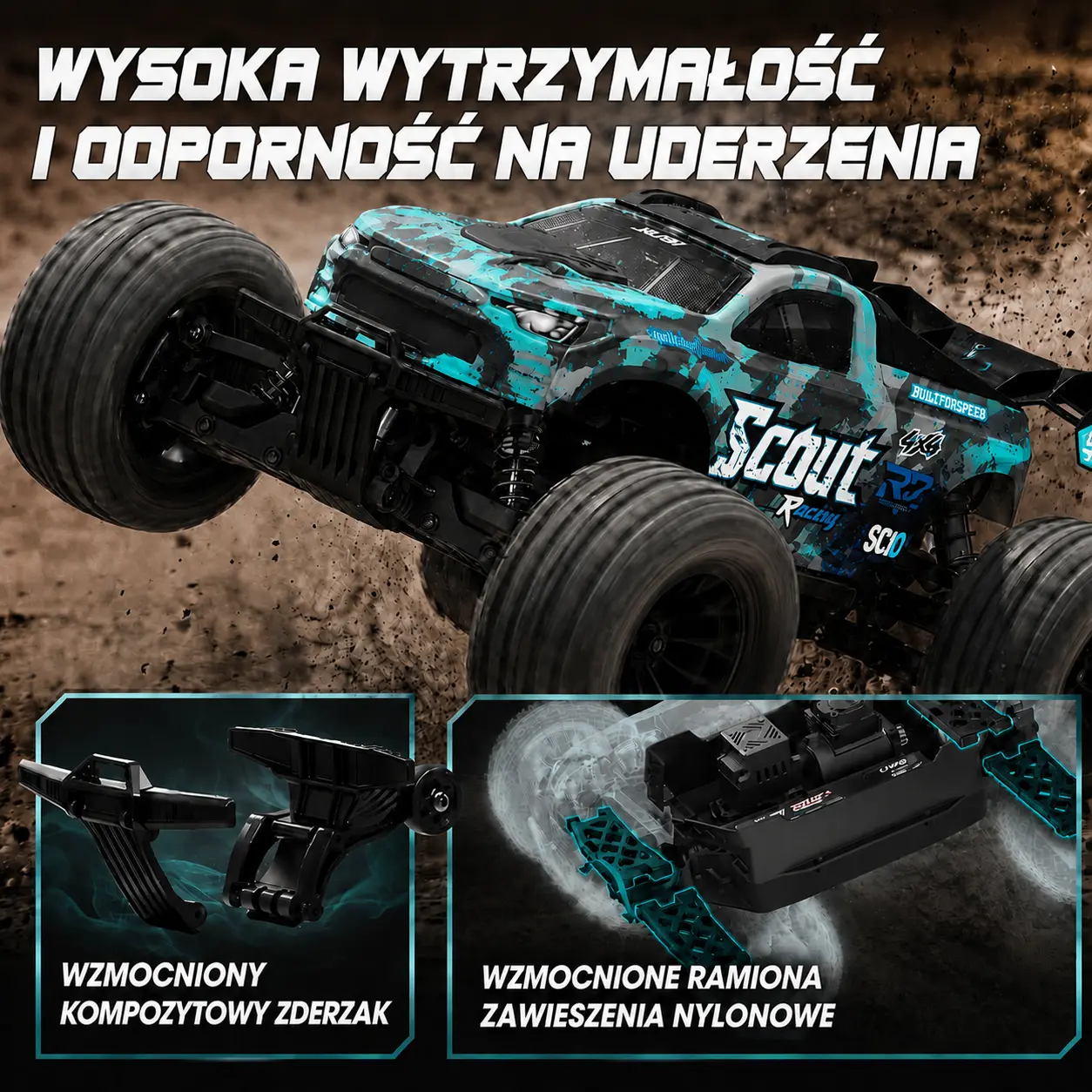

The model’s chassis has been adapted for use on uneven surfaces. Oil-filled shock absorbers help dampen impacts when driving over bumps and landing after jumps, while 32 mm ground clearance makes it easier to overcome small obstacles. Metal differentials at the front, centre and rear work with a metal drive shaft and Dog Bone half-shafts. A composite bumper and nylon suspension arms complete the off-road-ready design.
2.4 GHz control and Gyro

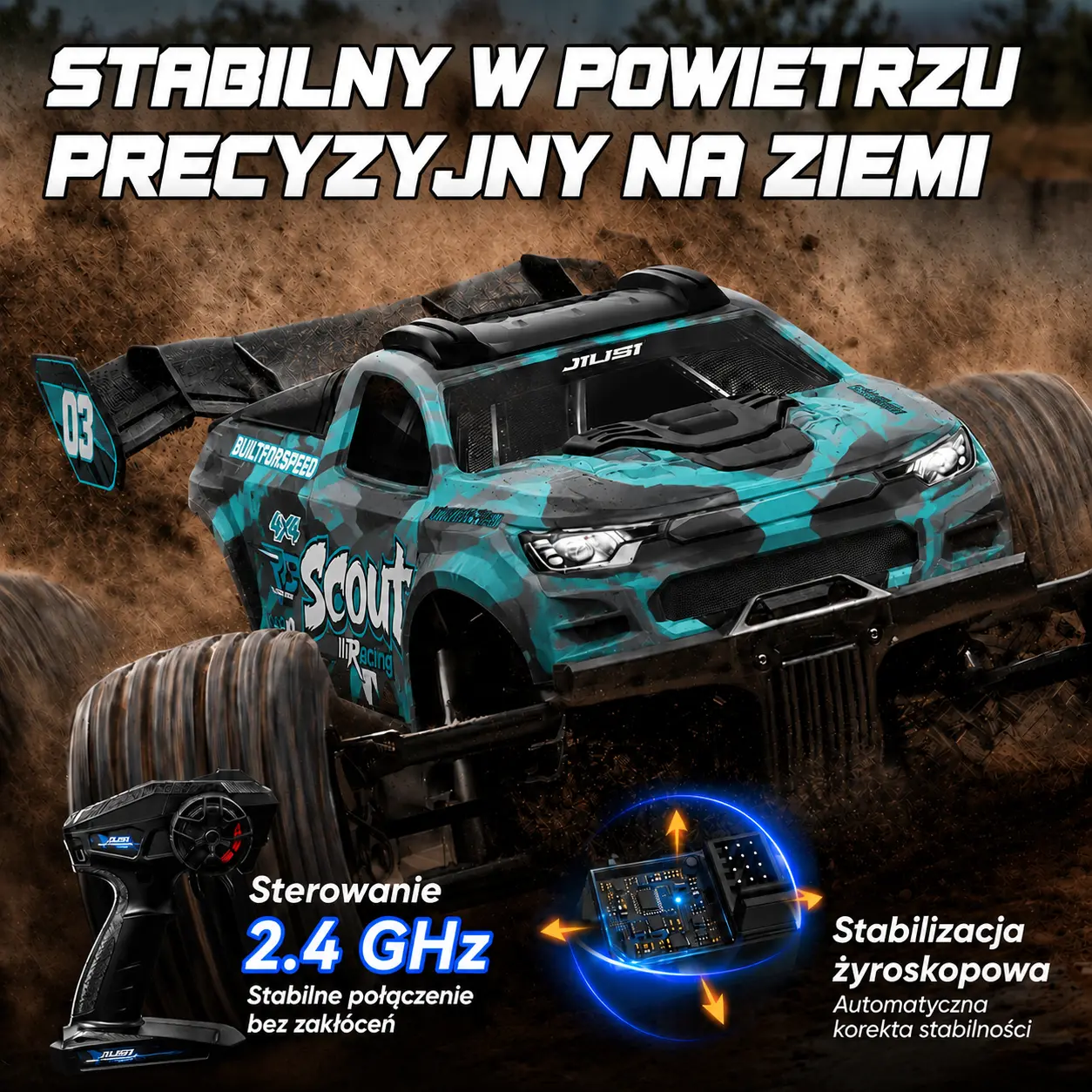

The 2.4 GHz controller allows convenient operation of the car using a four-channel transmitter. The Gyro Assist system helps maintain the chosen driving direction during fast runs and on surfaces with limited grip. The waterproof 15 kg·cm servo is responsible for steering the wheels, so the model responds smoothly to transmitter steering inputs when manoeuvring and taking corners.
Complete RTR set
Extralink RC SC10 is supplied in RTR – Ready To Run configuration. The set includes the RC car, a 3S 11.1 V LiPo battery with a capacity of 3000 mAh, a 2.4 GHz transmitter, a 25 W charger, instructions and a tool set. The quick-release body system makes it easy to access the vehicle’s components, while the adjustable battery compartment helps position the battery conveniently inside the model.
Specification
|
Parameter
|
Details
|
|
Brand
|
Extralink
|
|
Model
|
RC SC10
|
|
Type
|
Extreme Truck RC
|
|
Scale
|
1:10
|
|
Drive
|
4WD
|
|
Motor
|
Brushless 3652
|
|
Motor speed
|
2800 KV
|
|
ESC controller
|
Brushless 60 A
|
|
Maximum speed
|
Up to 80 km/h
|
|
Controller
|
2.4 GHz, 4 channels
|
|
Stabilisation system
|
Gyro Assist
|
|
Servo
|
Waterproof 15 kg·cm
|
|
Battery
|
LiPo 3S
|
|
Battery voltage
|
11.1 V
|
|
Battery capacity
|
3000 mAh
|
|
Battery energy
|
33.3 Wh
|
|
Charger
|
25 W
|
|
Differentials
|
Metal: front, centre, rear
|
|
Drivetrain
|
Metal drive shaft and Dog Bone half-shafts
|
|
Suspension
|
Oil-filled shock absorbers
|
|
Suspension arms
|
Nylon
|
|
Bumper
|
Composite
|
|
Body
|
Quick-release system
|
|
Adjustable battery compartment
|
Yes
|
|
Ground clearance
|
32 mm
|
|
Wheelbase
|
257 mm
|
|
Vehicle dimensions
|
423 × 318 × 162 mm
|
|
Weight without battery
|
2.7 kg
|
|
Package dimensions
|
535 × 330 × 170 mm
|
|
Set contents
|
RC car, 3S 3000 mAh LiPo battery, 2.4 GHz transmitter, 25 W charger, instructions, tool set
|
