Off-road power at 1:10 scale

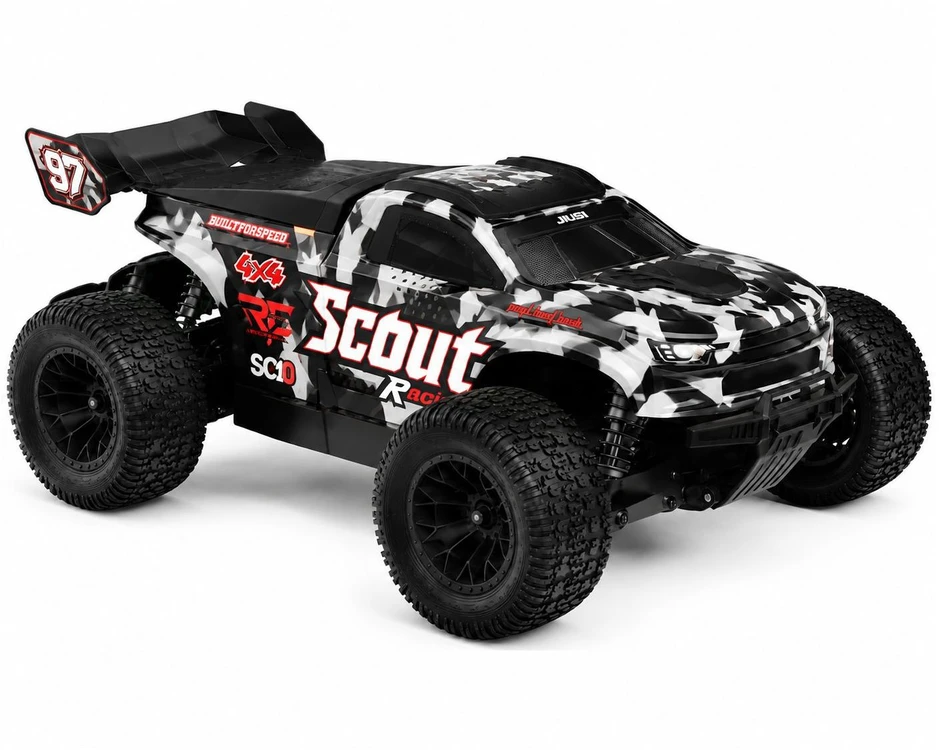

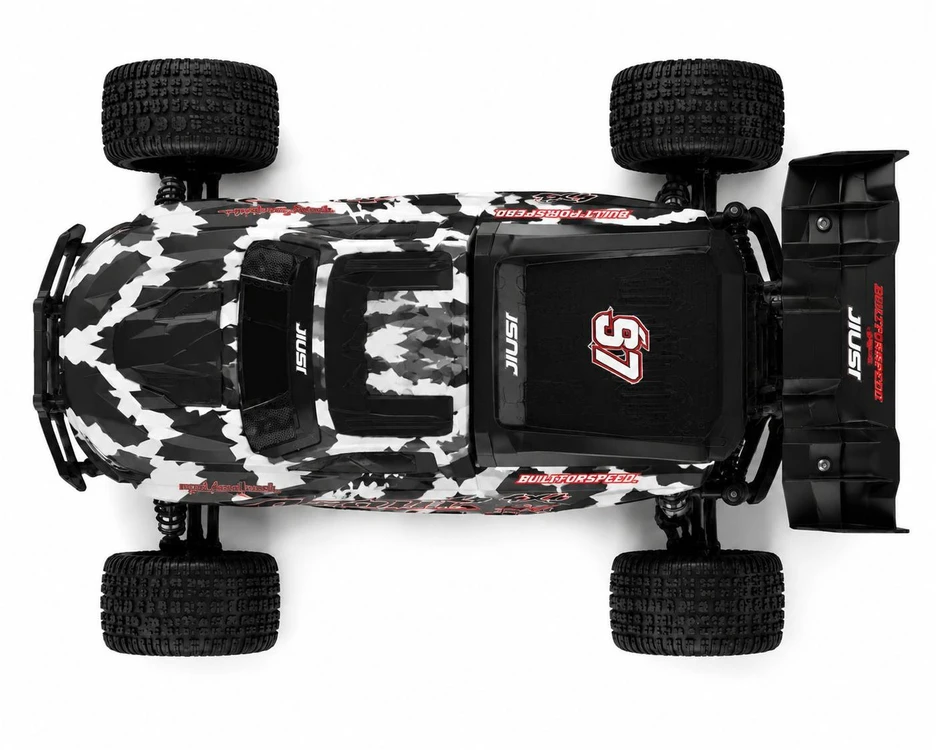

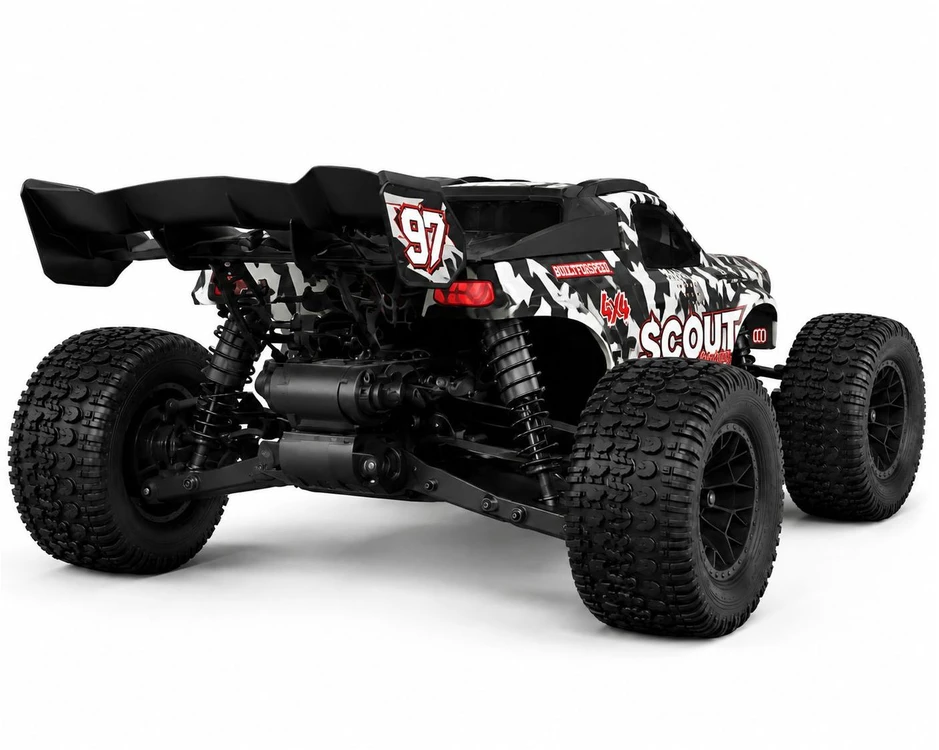

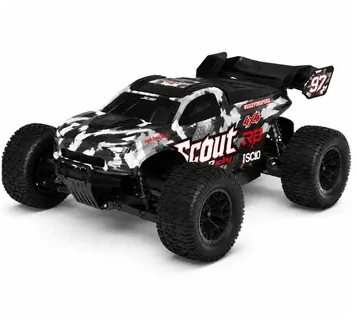

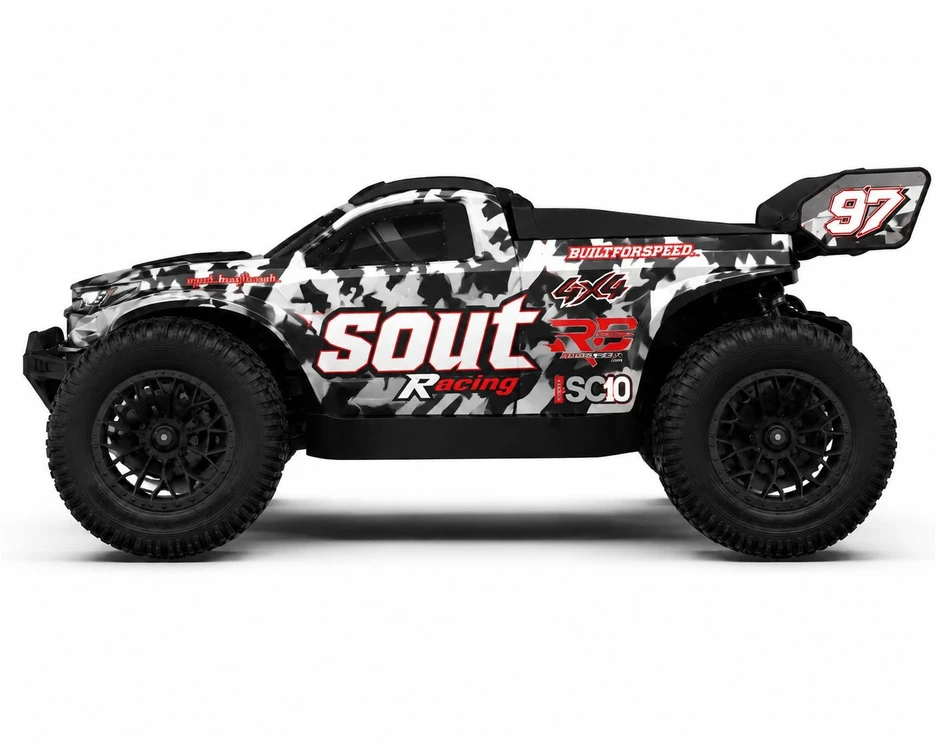

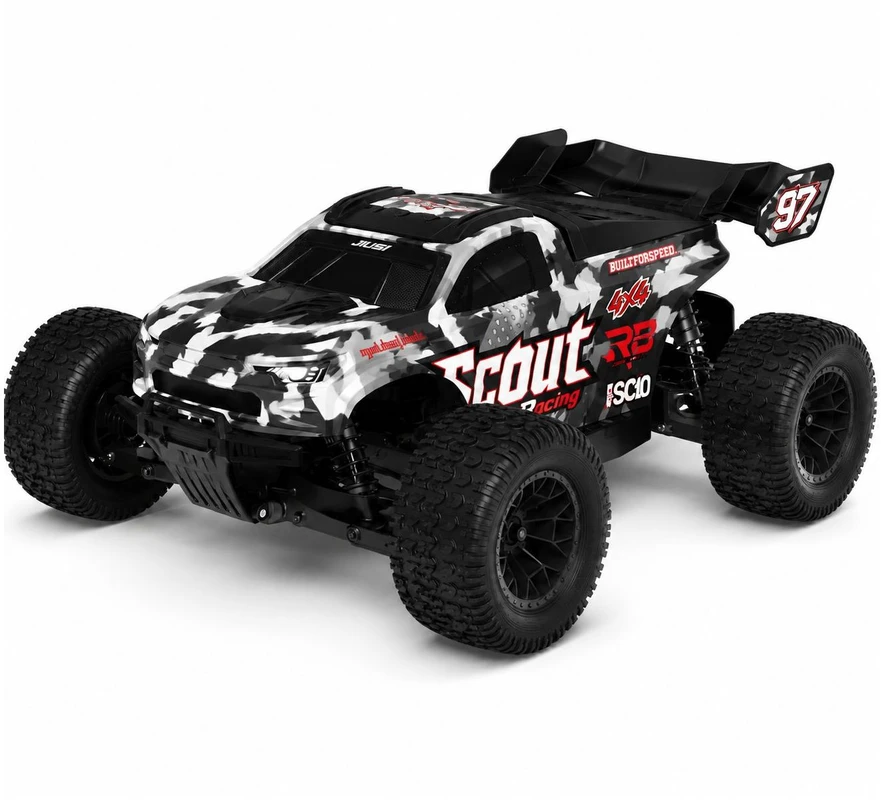

Extralink RC SC10 is a remote-controlled Extreme Truck in 1:10 scale, designed for dynamic driving, jumps and overcoming off-road obstacles. Large wheels with off-road tread and 4WD drive help it move smoothly over sand, gravel, grass and uneven paths. The vehicle’s muscular silhouette is inspired by off-road cars, and the model’s construction allows you to make the most of it during leisure driving as well as more demanding off-road runs.
Brushless 4WD drive

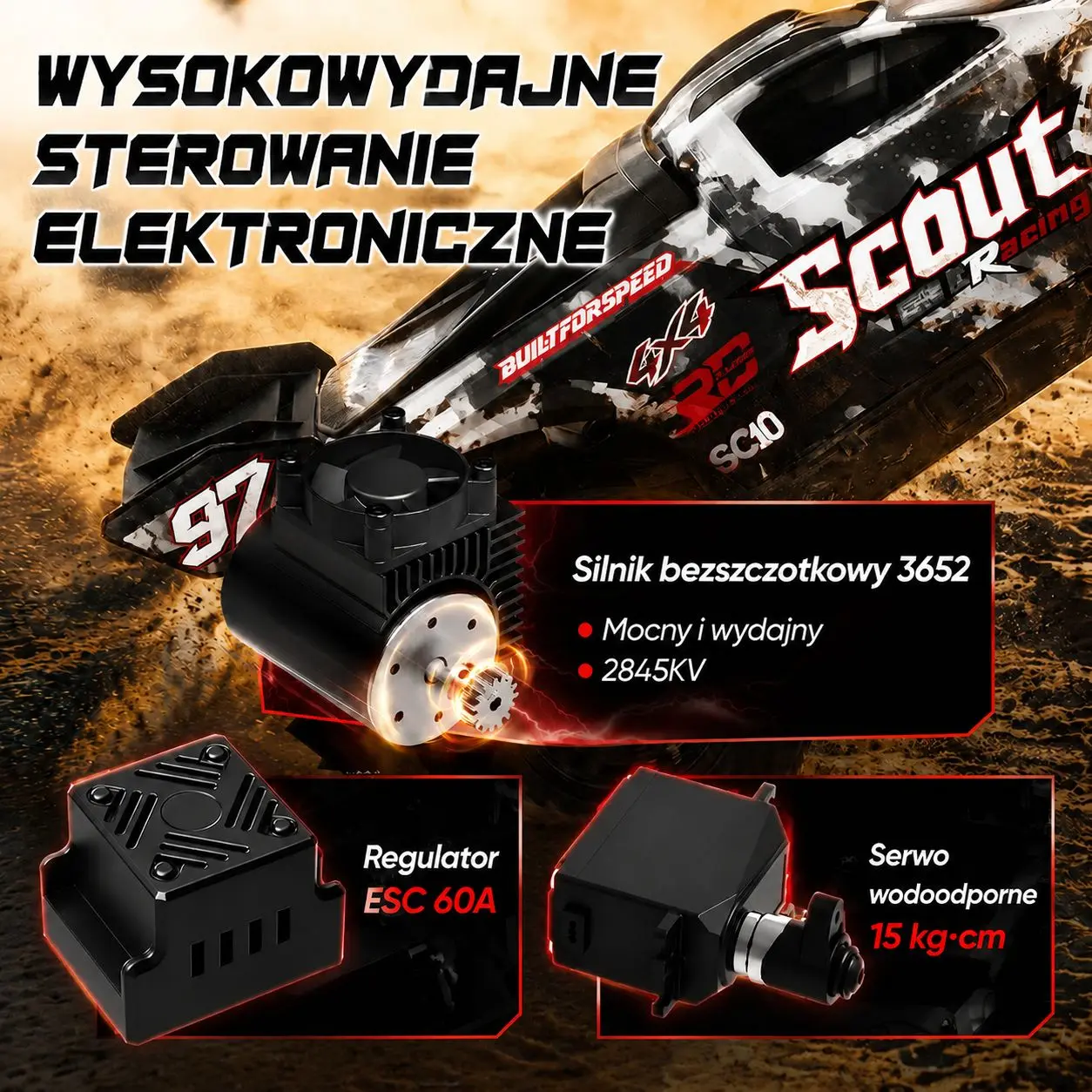

Extralink RC SC10 uses a brushless Brushless 3652 motor rated at 2800 KV, working with a 60 A ESC controller. This setup offers dynamic acceleration and a quick response to throttle inputs. Four-wheel drive delivers power to all wheels, which helps when starting off, taking corners and driving on surfaces with varying grip. The model can reach speeds of up to 80 km/h, providing exciting runs in open spaces.
Construction for off-road driving

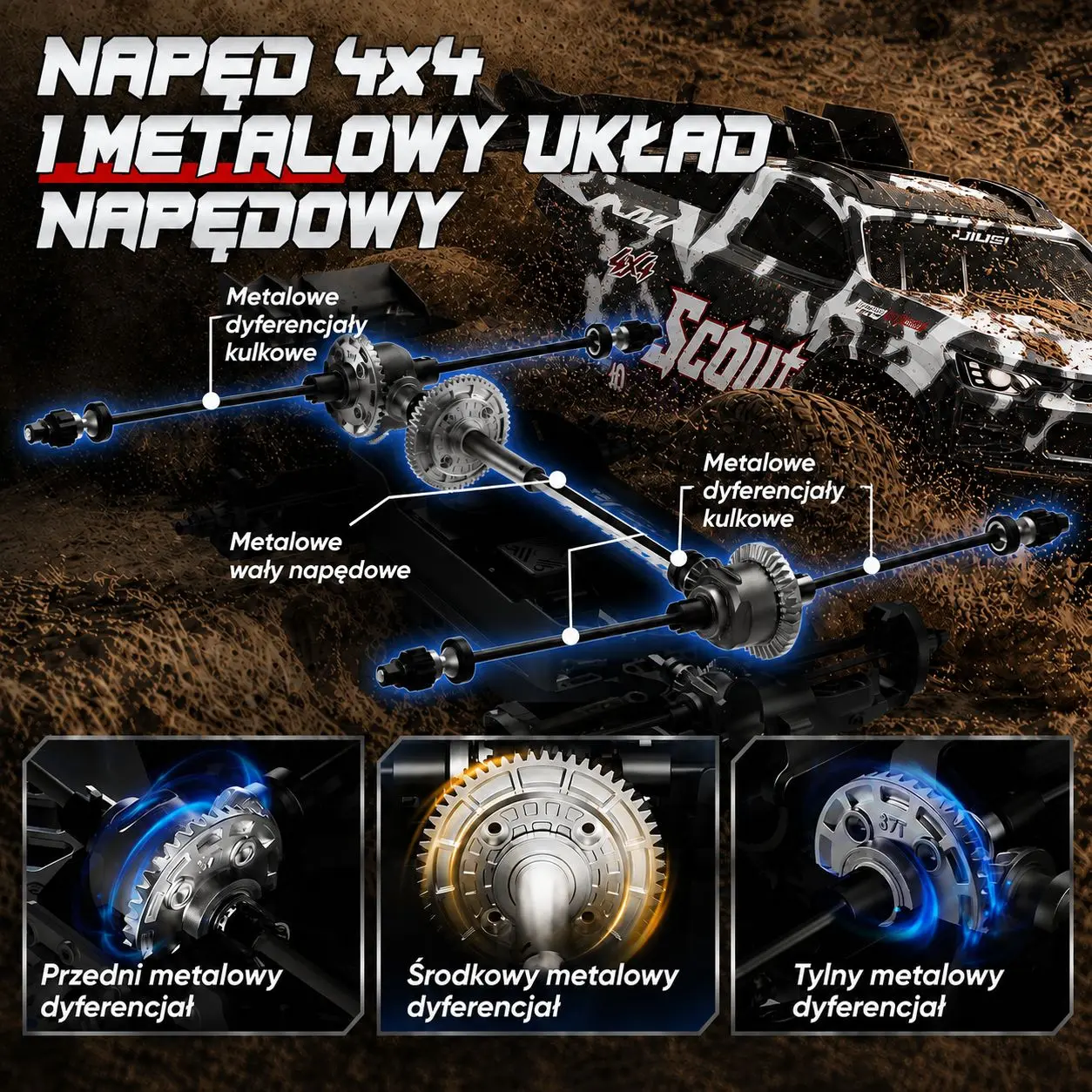

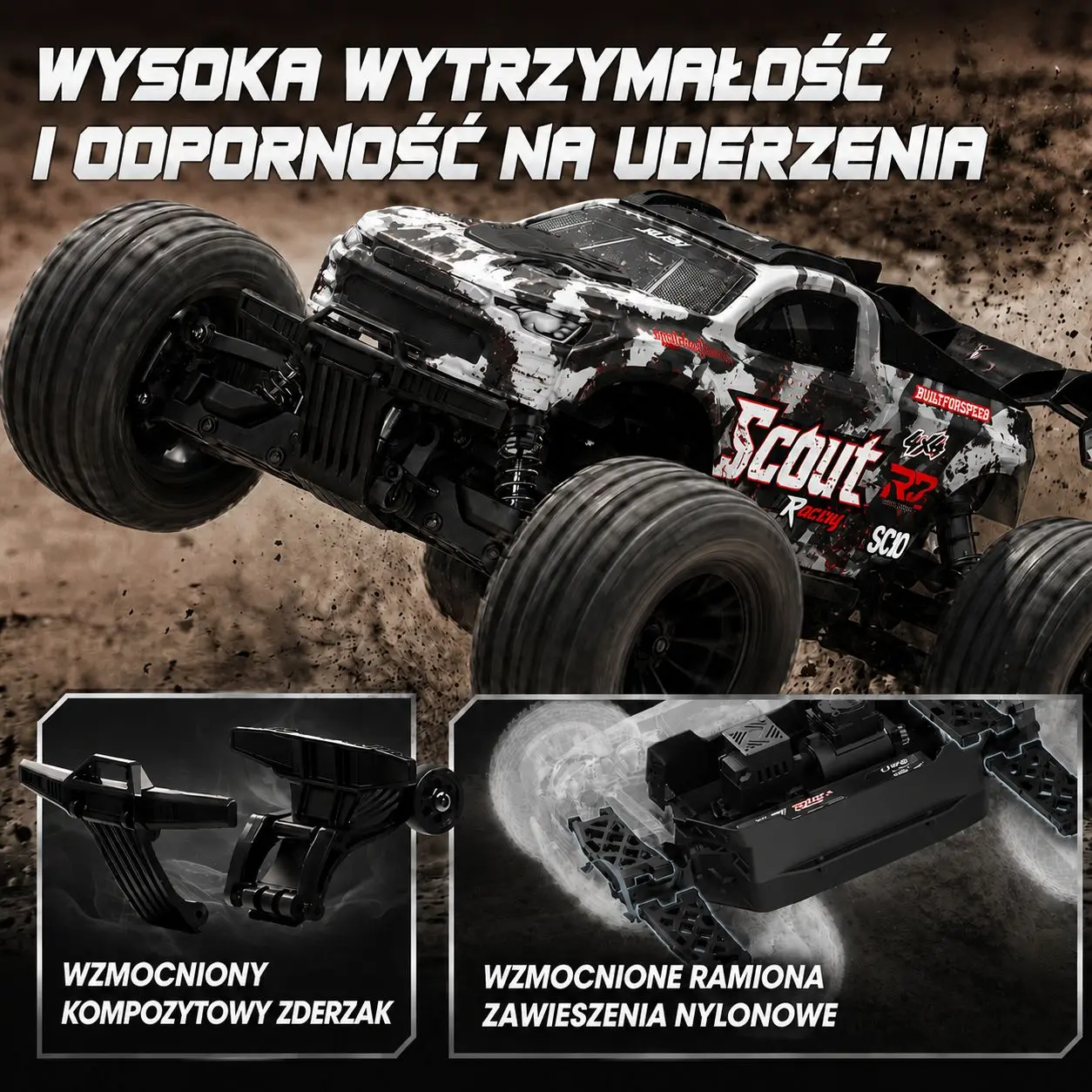

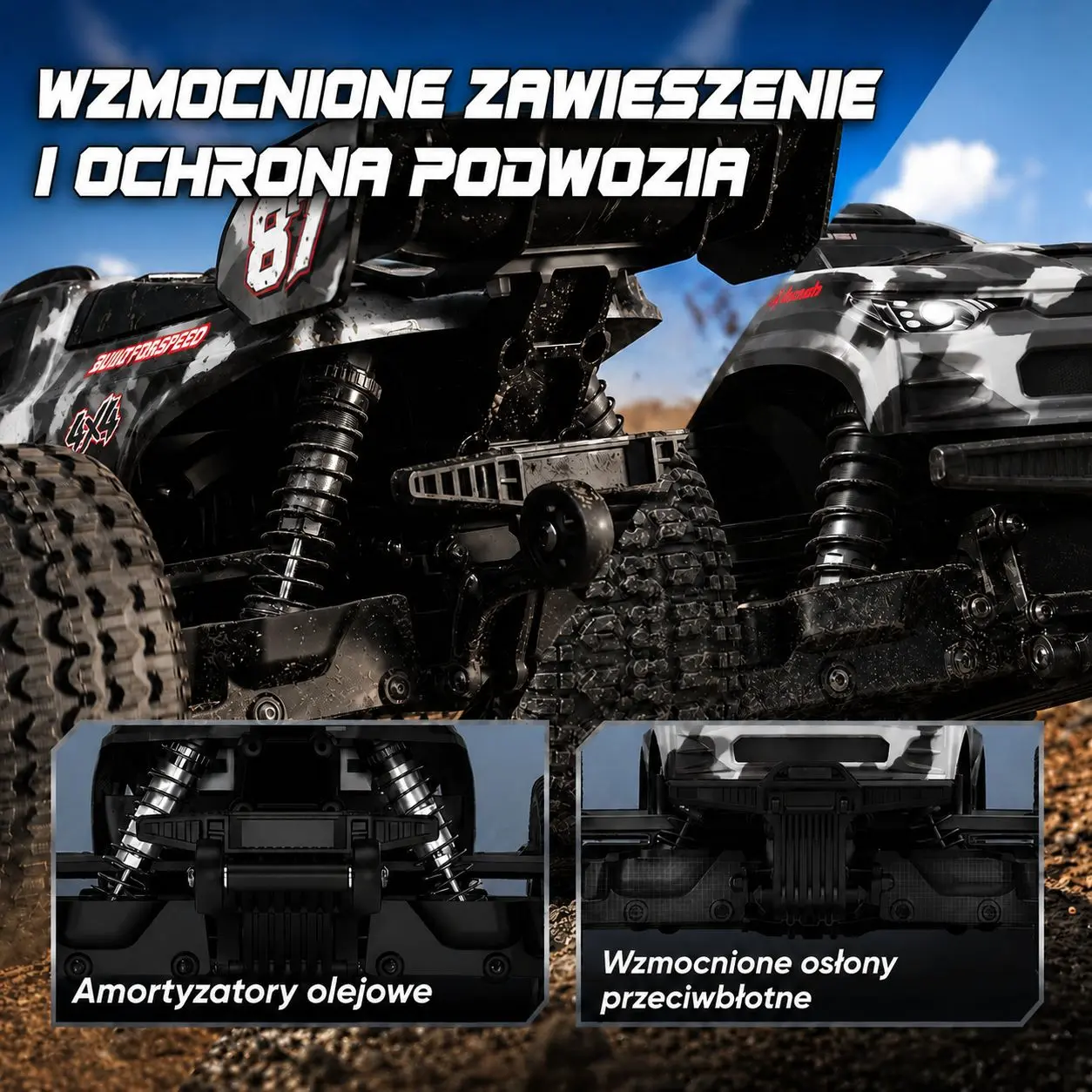

The model’s chassis has been prepared for driving on demanding surfaces. Oil-filled shock absorbers help damp vibrations when crossing bumps and landing after jumps, while 32 mm ground clearance makes it easier to overcome obstacles. Metal differentials at the front, centre and rear work with a metal drive shaft and Dog Bone half-shafts. A composite bumper and nylon suspension arms complete the construction designed for off-road use.
2.4 GHz control and Gyro

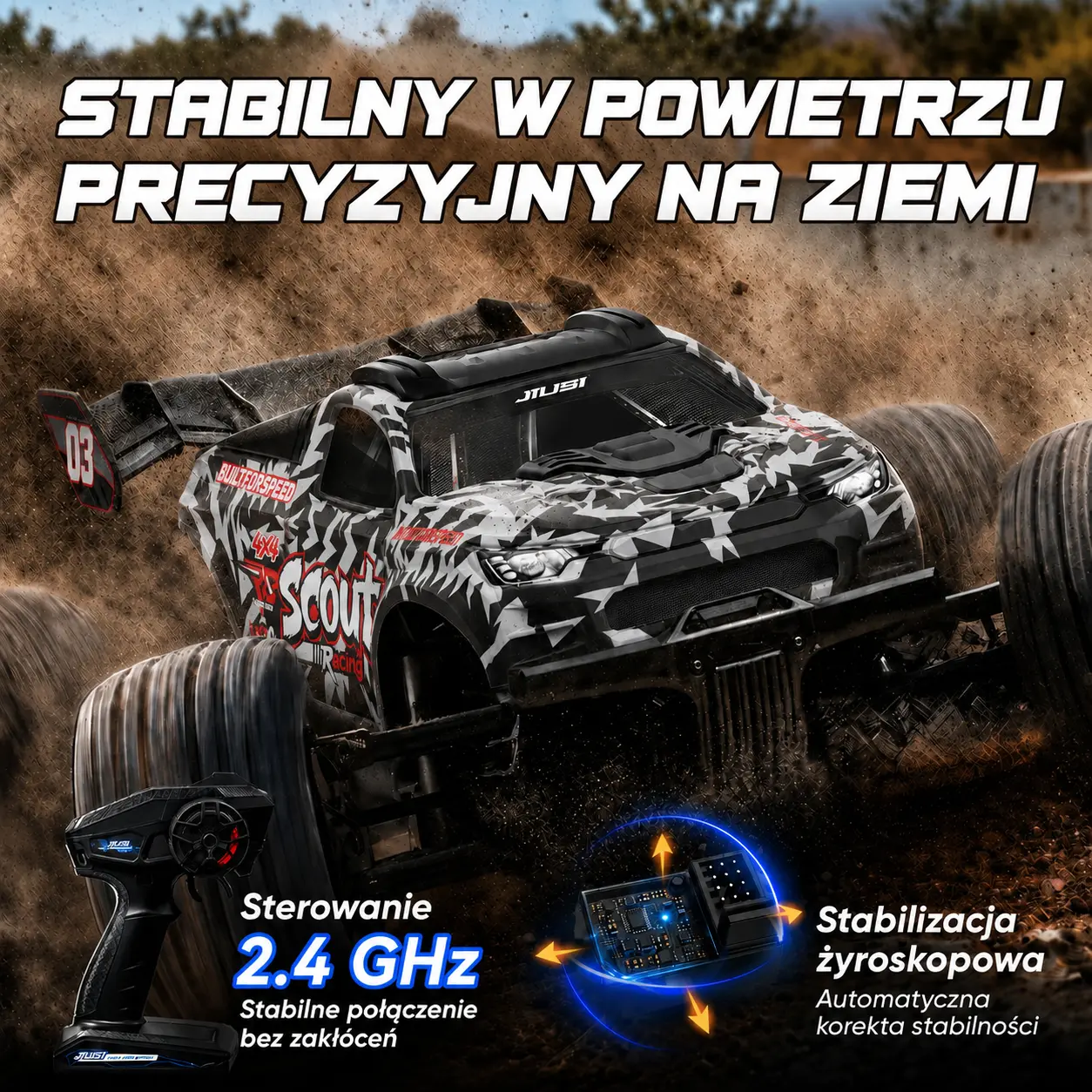

The 2.4 GHz control system allows convenient operation of the car using a four-channel transmitter. The Gyro Assist system helps maintain the correct driving line during fast runs and on slippery surfaces. The waterproof servo with 15 kg·cm torque provides efficient wheel control, helping to maintain control when manoeuvring and taking corners.
Complete RTR set
Extralink RC SC10 is supplied in RTR (Ready To Run) configuration, so the set includes all the basic elements needed to start driving. The package includes a 3S 11.1 V LiPo battery with a capacity of 3000 mAh, a 2.4 GHz transmitter, a 25 W charger, instructions and a set of tools. The quick-release body system makes it easy to access the electronics and components, and the adjustable battery compartment helps you fit the battery comfortably.
Specification
|
Parameter
|
Details
|
|
Brand
|
Extralink
|
|
Model
|
RC SC10
|
|
Type
|
Extreme Truck RC
|
|
Scale
|
1:10
|
|
Drive
|
4WD
|
|
Motor
|
Brushless 3652
|
|
Motor speed
|
2800 KV
|
|
ESC controller
|
Brushless 60 A
|
|
Maximum speed
|
Up to 80 km/h
|
|
Control system
|
2.4 GHz, 4 channels
|
|
Stabilisation system
|
Gyro Assist
|
|
Servo
|
Waterproof 15 kg·cm
|
|
Battery
|
LiPo 3S
|
|
Battery voltage
|
11.1 V
|
|
Battery capacity
|
3000 mAh
|
|
Battery energy
|
33.3 Wh
|
|
Charger
|
25 W
|
|
Differentials
|
Metal: front, centre, rear
|
|
Drivetrain
|
Metal drive shaft and Dog Bone half-shafts
|
|
Suspension
|
Oil-filled shock absorbers
|
|
Suspension arms
|
Nylon
|
|
Bumper
|
Composite
|
|
Body
|
Quick-release system
|
|
Adjustable battery compartment
|
Yes
|
|
Ground clearance
|
32 mm
|
|
Wheelbase
|
257 mm
|
|
Vehicle dimensions
|
423 × 318 × 162 mm
|
|
Weight without battery
|
2.7 kg
|
|
Package dimensions
|
535 × 330 × 170 mm
|
|
Set contents
|
RC car, 3S 3000 mAh LiPo battery, 2.4 GHz transmitter, 25 W charger, instructions, set of tools
|
