6,000 ANSI Liumenų WUXGA Lazerinis Instaliacinis Projektorius ViewSonic LS920WU

LS920WU

6,000 ANSI Lumens WUXGA Laser Installation Projector

• 6,000 ANSI Lumens to deliver bright images up to 300" in size
• 2nd generation Laser Phosphor technology with a 20,000-hour lifespan
• Wide H/V lens shift and 1.6x optical zoom for flexible installation
• Creativity supported by 360° projection & portrait mode
• Dual HDMI 2.0b supporting 4K HDR/HLG content
• Cost-effective compact size and built-in HDBaseT

OVERVIEW
The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Adopting 2nd generation Laser Phosphor technology, the LS920WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 300". Wide lens shift, 1.6x optical zoom, 360° projection, and portrait mode combine for incredible flexibility that gives life to captivating creative installations, especially ideal for auditoriums, board rooms, commercial displays, restaurants, and sports bars. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. Add to that the compact size and the built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.

High Brightness

Packed with 6,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.
6,000 ANSI Lumens

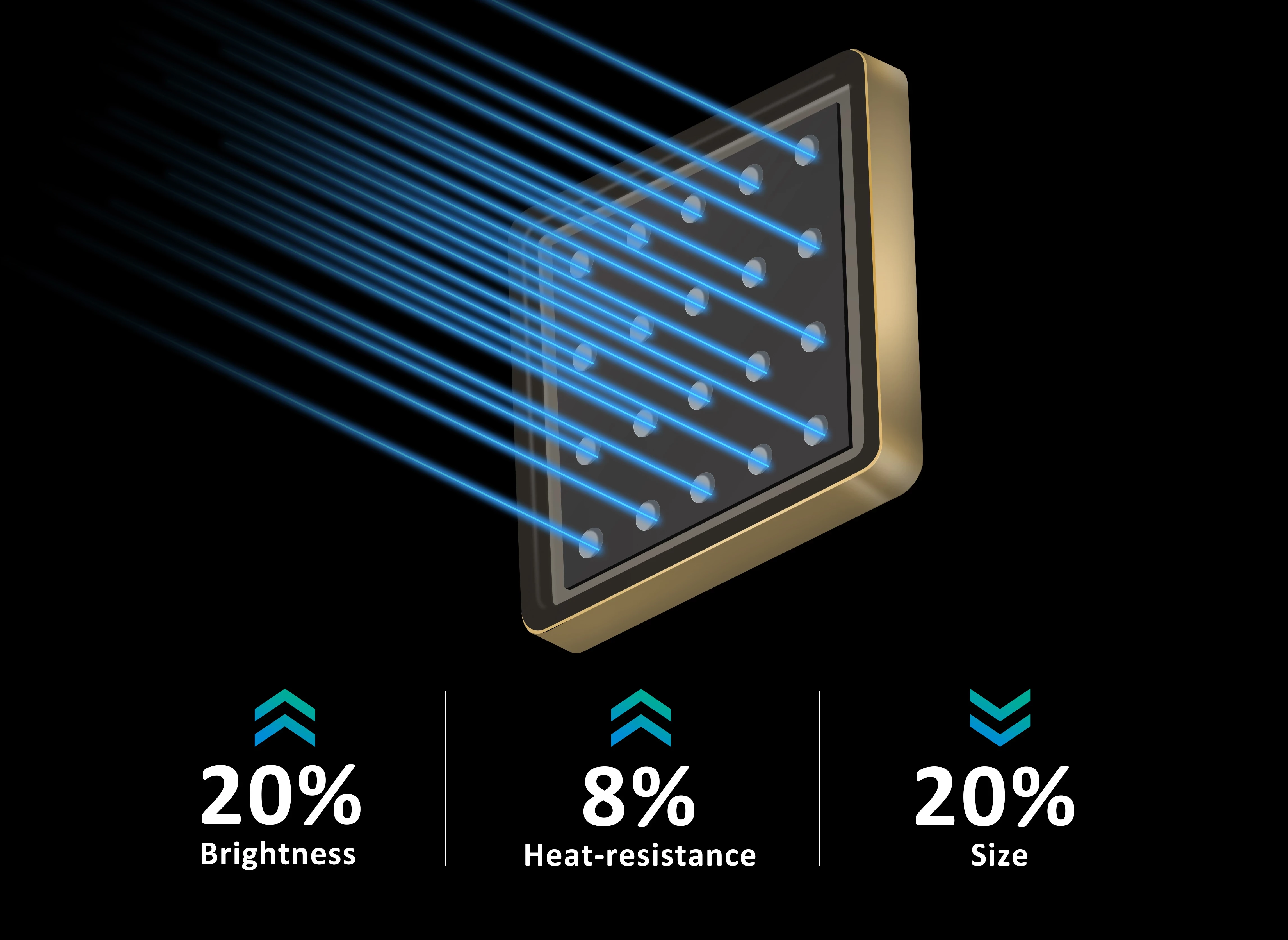

2nd Generation Laser Phosphor Technology

Thanks to 2nd generation Laser Phosphor technology, it improves brightness (by 20%), heat-resistance and reduces the product size in addition to excellent color performance, lamp-free design and instant on/off switch.
Brighter, Smaller, Safer

Reliable Long-Term Performance

Laser technology offers a lifespan of up to 20,000 hours (4 hours per day for more than 13 years) with no degradation in brightness over time so that your installations are consistently vibrant.
20,000 hours
Lifespan

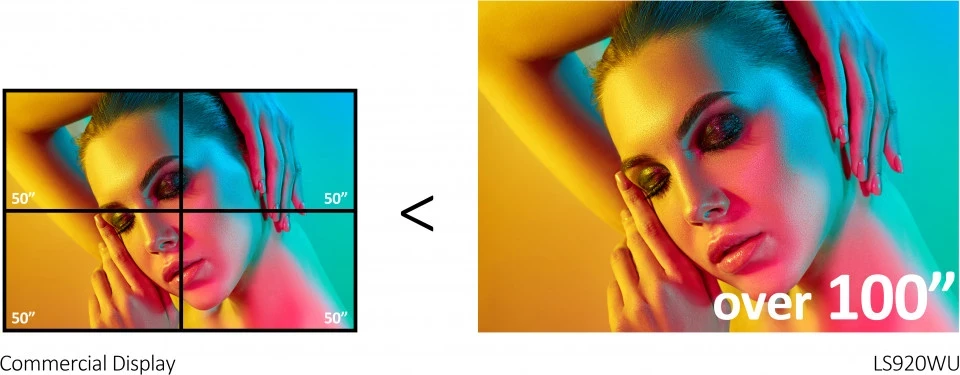

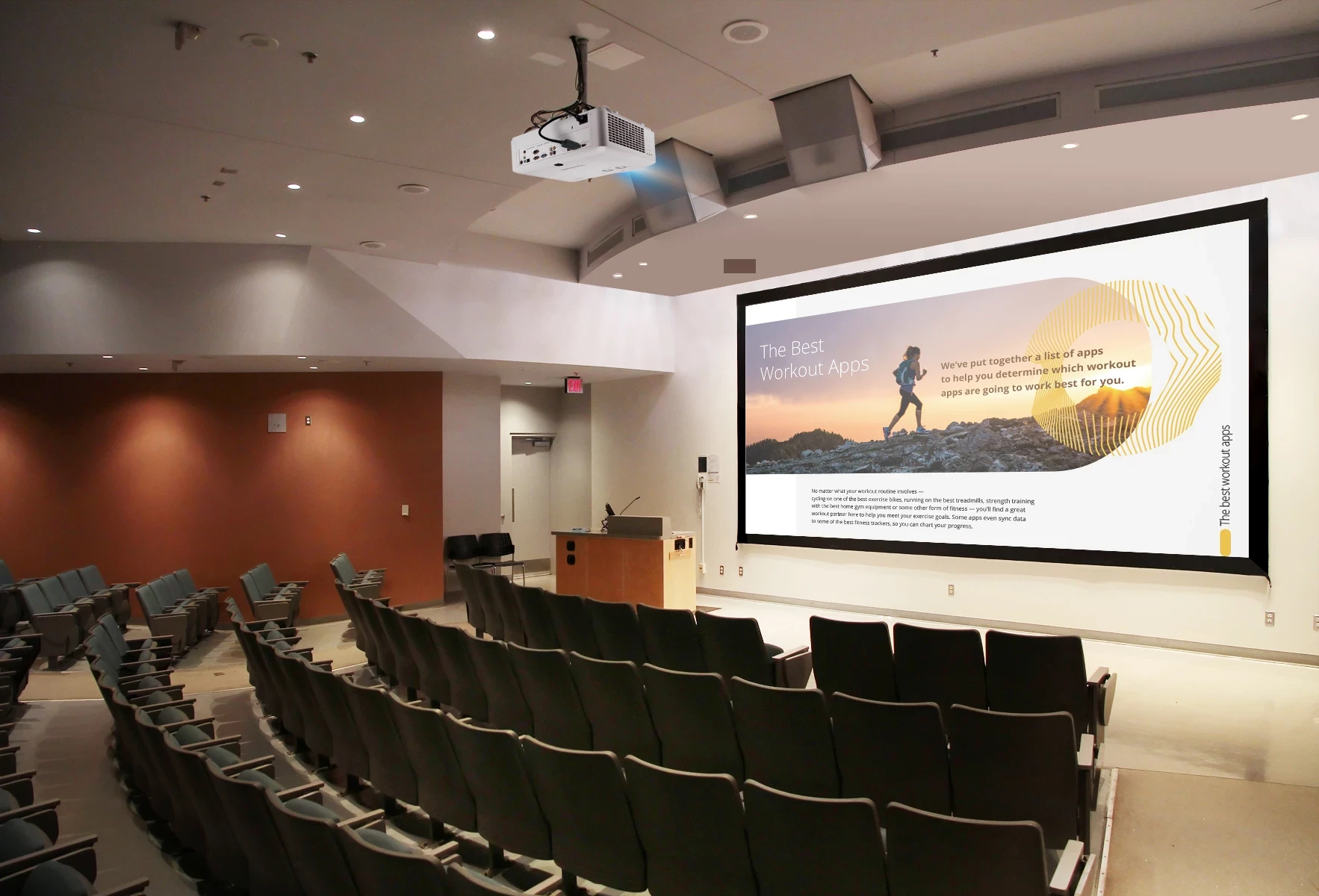

Larger Screen Size, Lower Cost-Per-Inch

Flexible installation and effortless transportation of the projector allows for an up-to-300” image size, which is much larger and easier to install than multiple commercial displays combined.

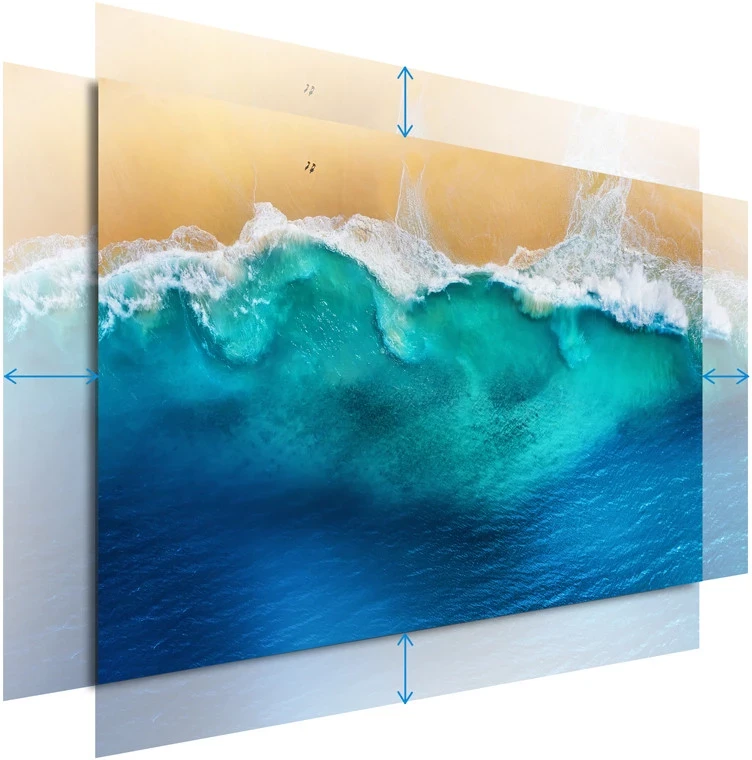

Installation Flexibility

The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy. It provides flexible installation options with a wide adjustable range (H: +/- 23%, V: +/-50%) and less placement restrictions.
Wide H/V Lens Shift

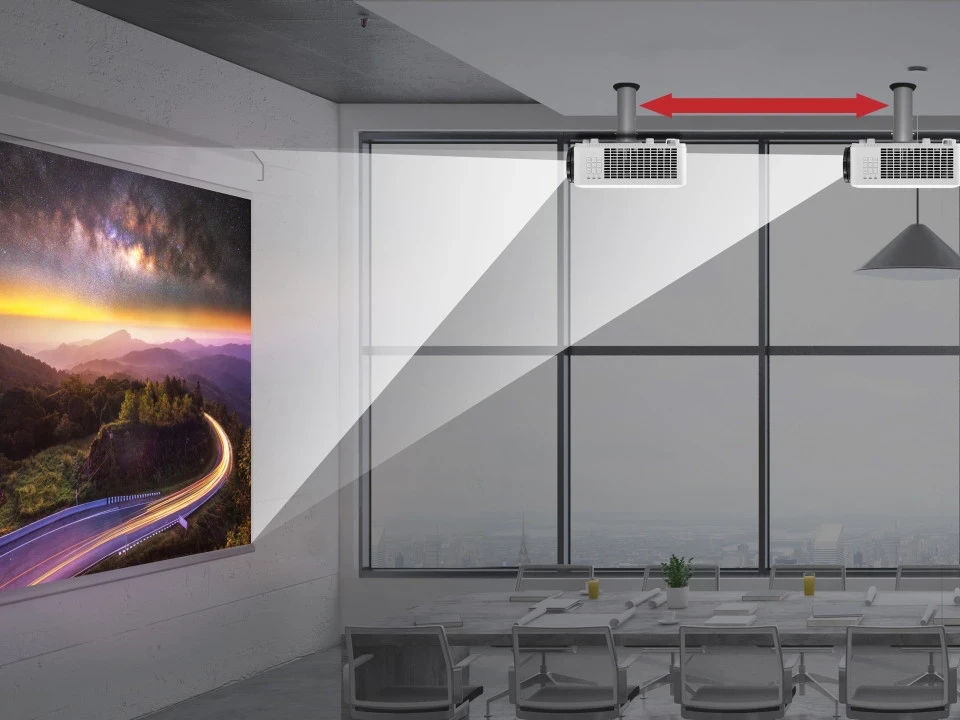

Adaptable to Any Environment

Equipped with a 1.6x optical zoom lens, the projector empowers users to choose the most ideal set-up location within a wider throw distance range that doesn’t interfere with existing interior design while still getting the desired image size.
1.6x Optical Zoom

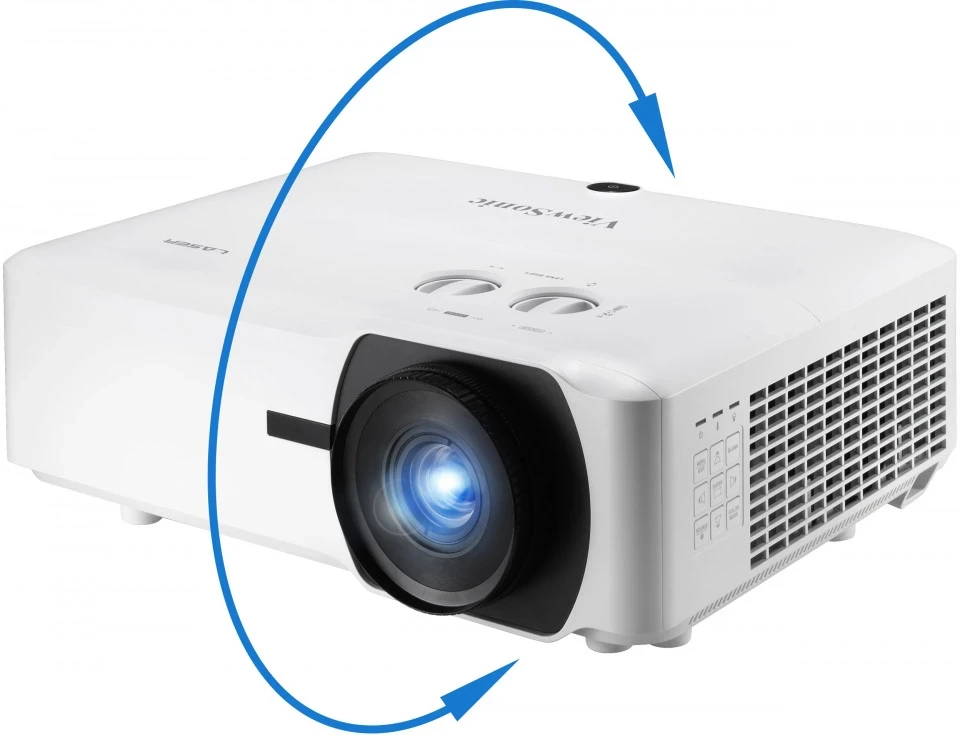

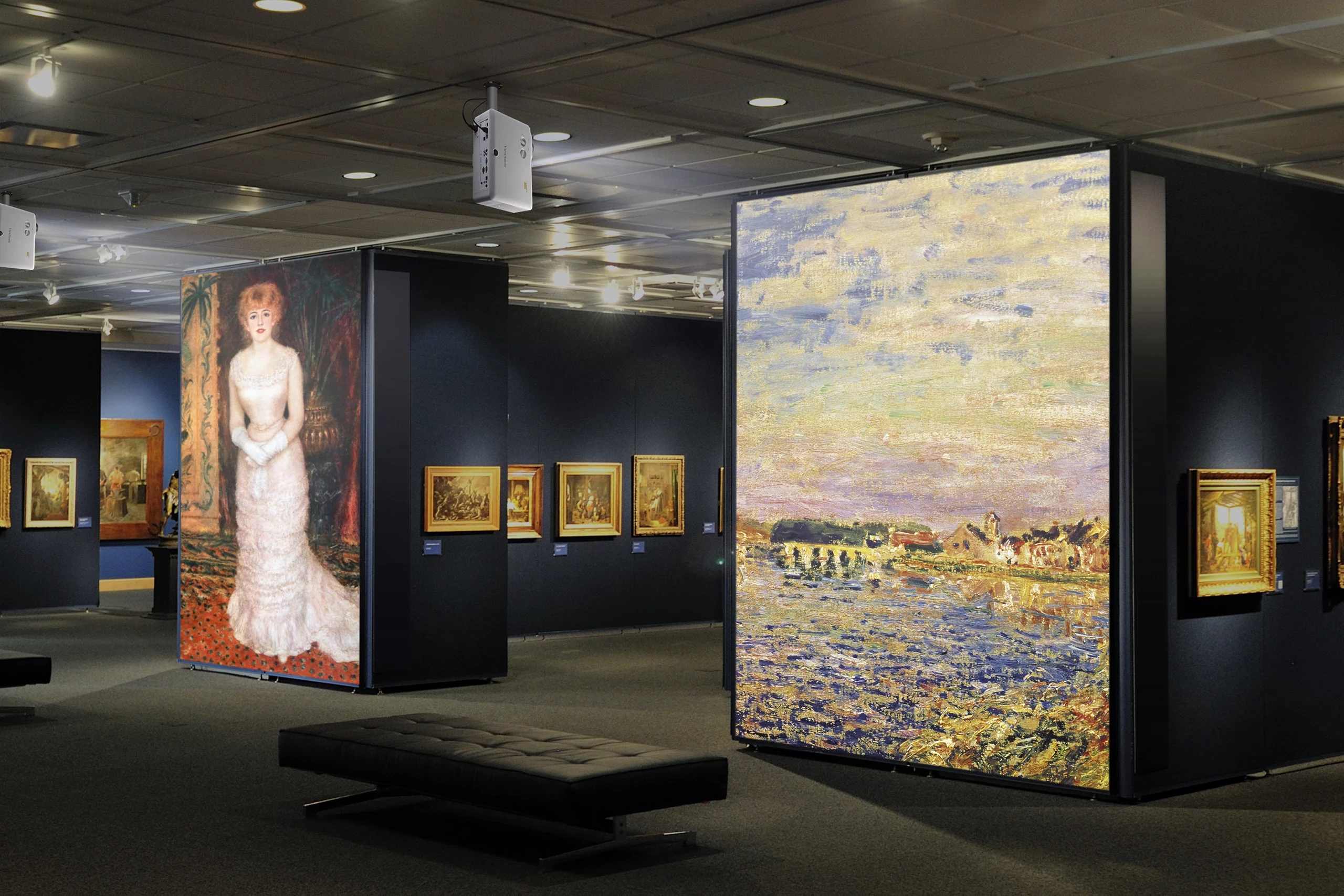

360° Creative Applications

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

90° Portrait Mode

Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.


Dual HDMI 2.0b Supporting 4K/HDR/HLG

It comes with dual HDMI 2.0b / HDCP 2.2 ports, ensuring your access to original 4K quality content with HDR/HLG supported at a 60Hz frame rate from external devices (e.g. Roku stick, 4K Blu-ray player), producing the brightest whites, deepest blacks, and showing more picture detail.

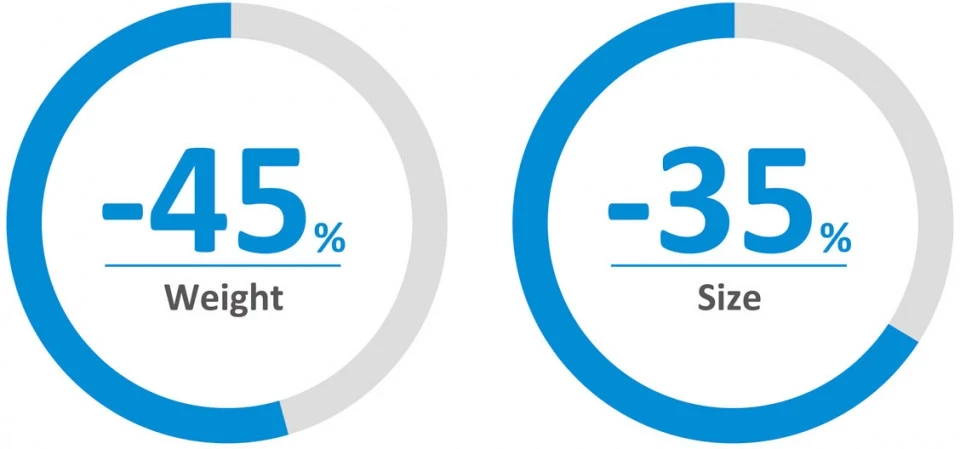

Lighter Weight & Compact Size

It is almost half the weight and 35% smaller in size when compared with its predecessor, which reduces the cost of transportation and enhances the ease of installation.

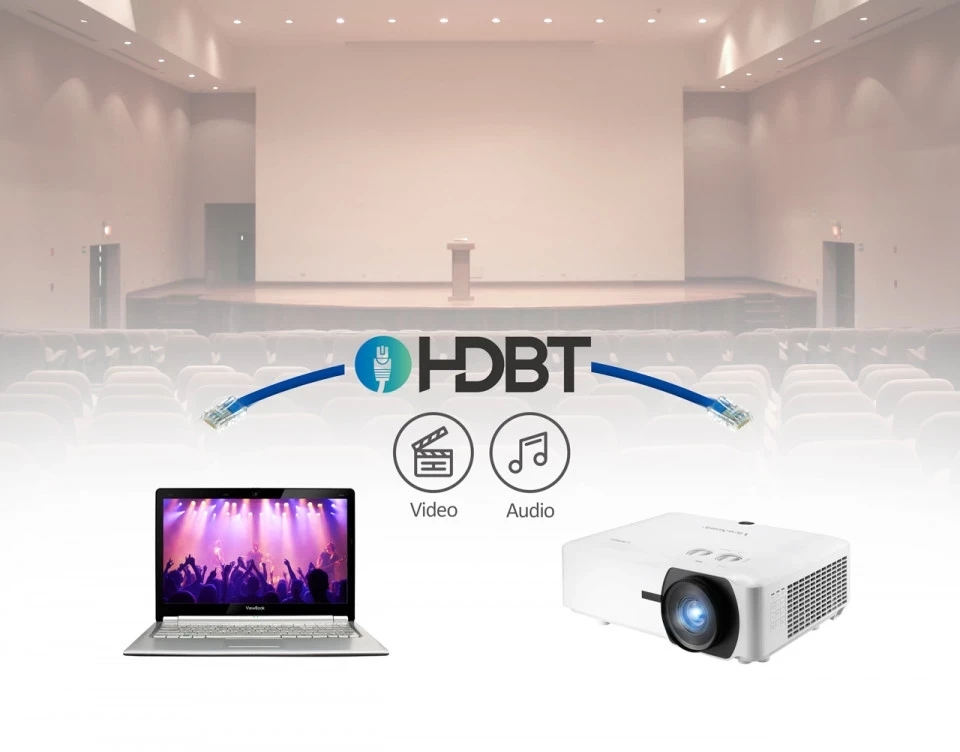

Cost-effectively Receive AV Signal over Long Distance

With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (100 m for 1080p) via a Cat.5e/6 single network cable and is compatible with any certified HDBaseT transmitter.
HDBaseT Receiver

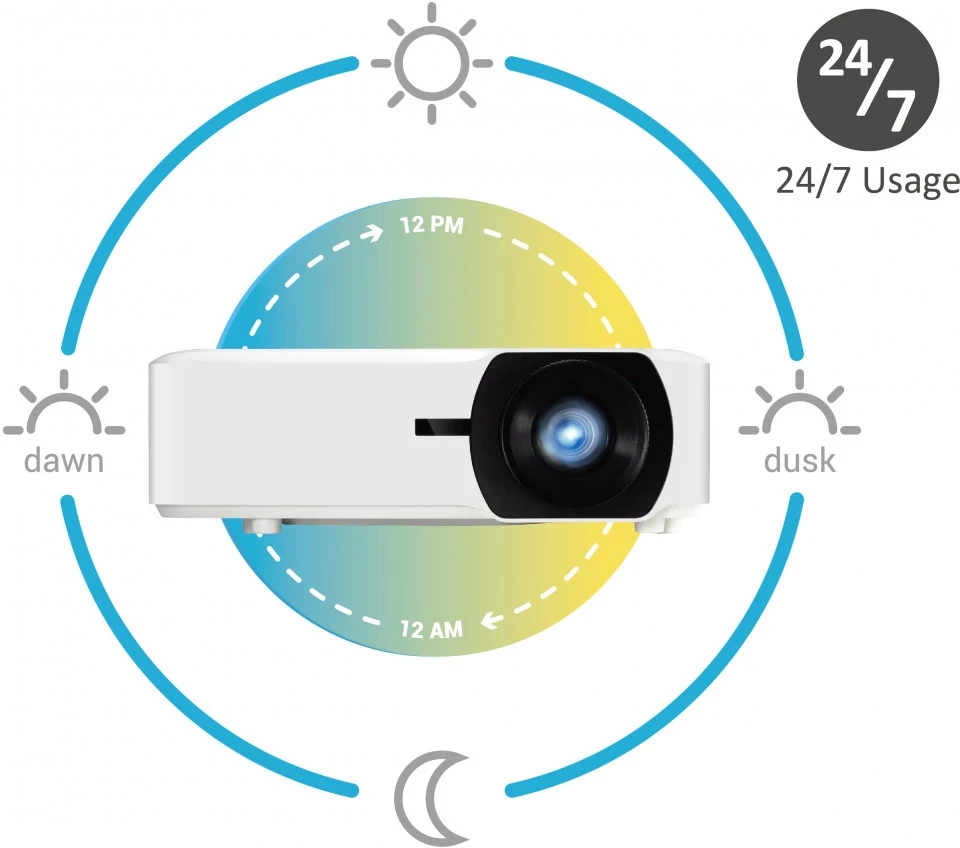

Non-stop 24/7 Operation

With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.

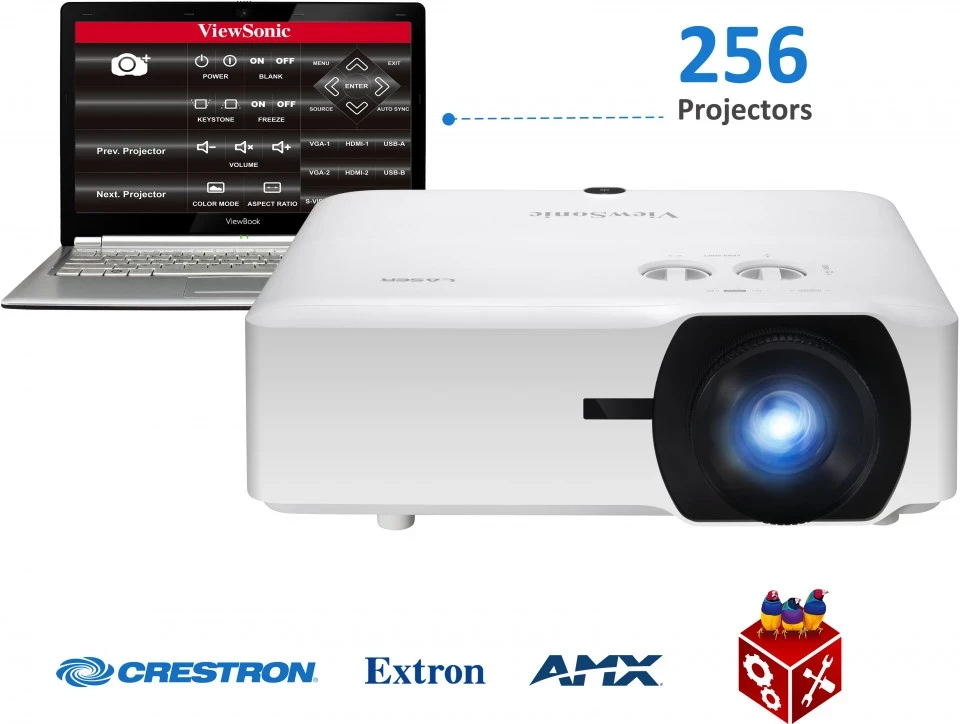

Centralized Control for Management Efficiency

This projector comes equipped with Crestron, AMX, Extron and ViewSonic vController, an easy-to-use network management tool.
Comprehensive LAN Control

A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service center for software updates.

Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.

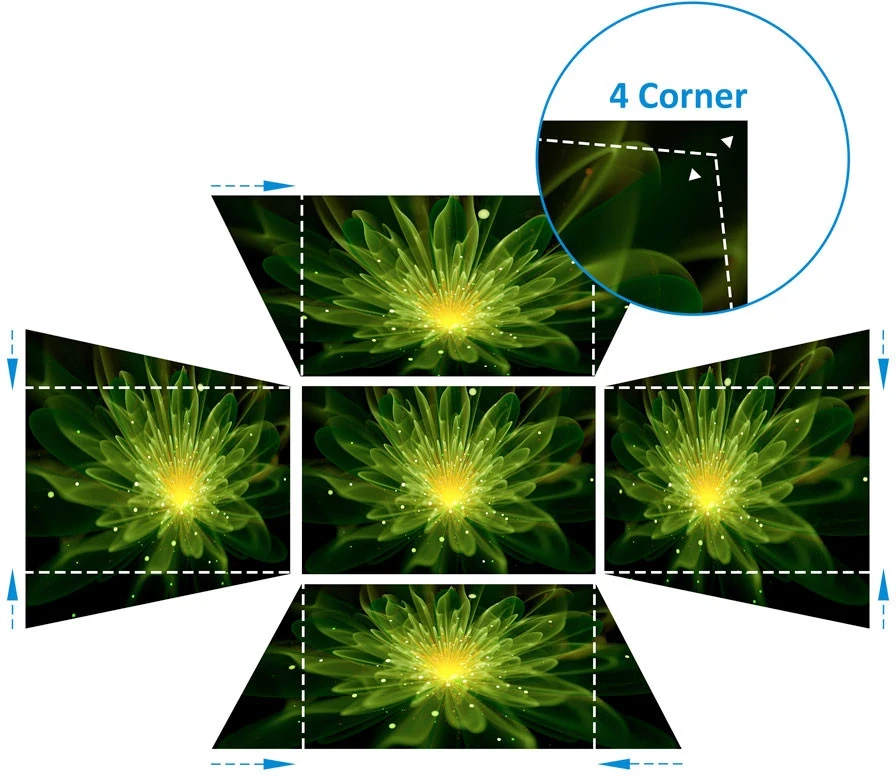

Easy Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone
4 Corner Adjustment

SuperColor™ Technology

ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.

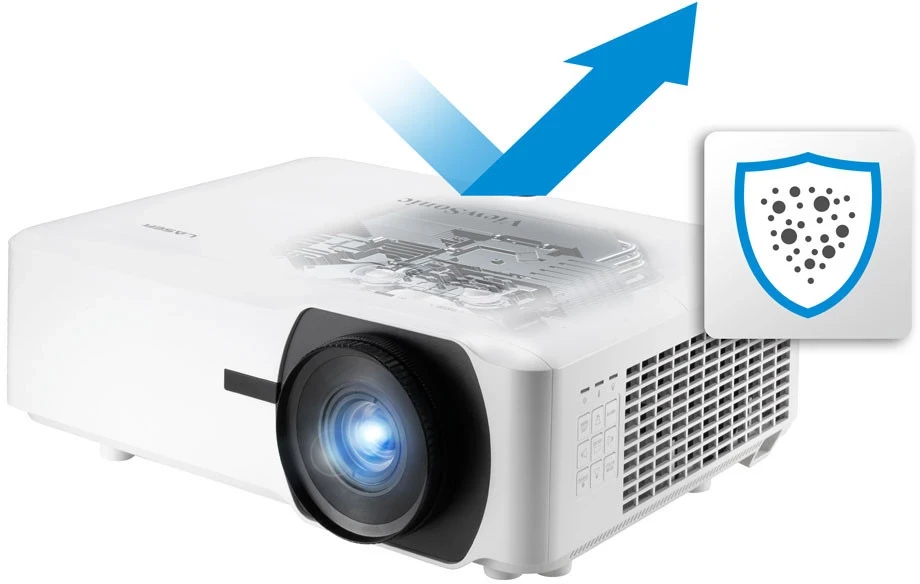

Sealed Optical Engine with IP5X

The advanced sealed optical engine prevents dust from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.
IP5X

1. Power Key & IR
2. Front IR
3. Lens
4. Lens Shift Control Knob
5. Zoom/Focus Ring
6. Adjustment Foot
7. LED Indicator
8. Keypad
9. Composite
10. S-Video
11. USB Type A(5V/1.5A)
12. HDMI X 2
13. HDBaseT
14. Computer In
15. Monitor Out
16. LAN
17. Audio In & Out
18. 3D VESA
19. 12V OUT
20. RS-232

Specification
Native Resolution: 1920x1200
DMD Type: DC3
Brightness: 6000 (ANSI Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor system
Light Source Life (hours) with Normal Mode: up to 20000
Lamp Watt: Nichia 74W x2
Lens: F=1.81-2.1, f=14.3-22.9mm
Projection Offset: 0%
Throw Ratio: 1.36-2.18
Optical Zoom: 1.6X
Digital Zoom: 0.8x-2.0x
Image Size: 30
Throw Distance: 0.88-14.09m, (100
Keystone: H:+/-40° , V:+/-40°
Lens Shift V. Range: +50%, -50%
Lens Shift H. Range: +23%, -23%
Audible Noise (Normal): 36dB
Audible Noise (Eco): 29dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to 4K UHD (3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-120Hz
Input
Computer in (share with component): 1
Composite: 1
S-Video: 1
HDMI: 2 , (HDMI 2.0b, HDCP 2.2)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
3D VESA (Sync): 1
HDBaseT: 1
Output
Monitor out: 1
Audio out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/ 1.5A)
12V Trigger (3.5mm): 1
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz, (AC in)
Power Consumption: Normal: 450W, Standby: <0.5W
Operating Temperature: 0~40℃
Net Weight: 6.5

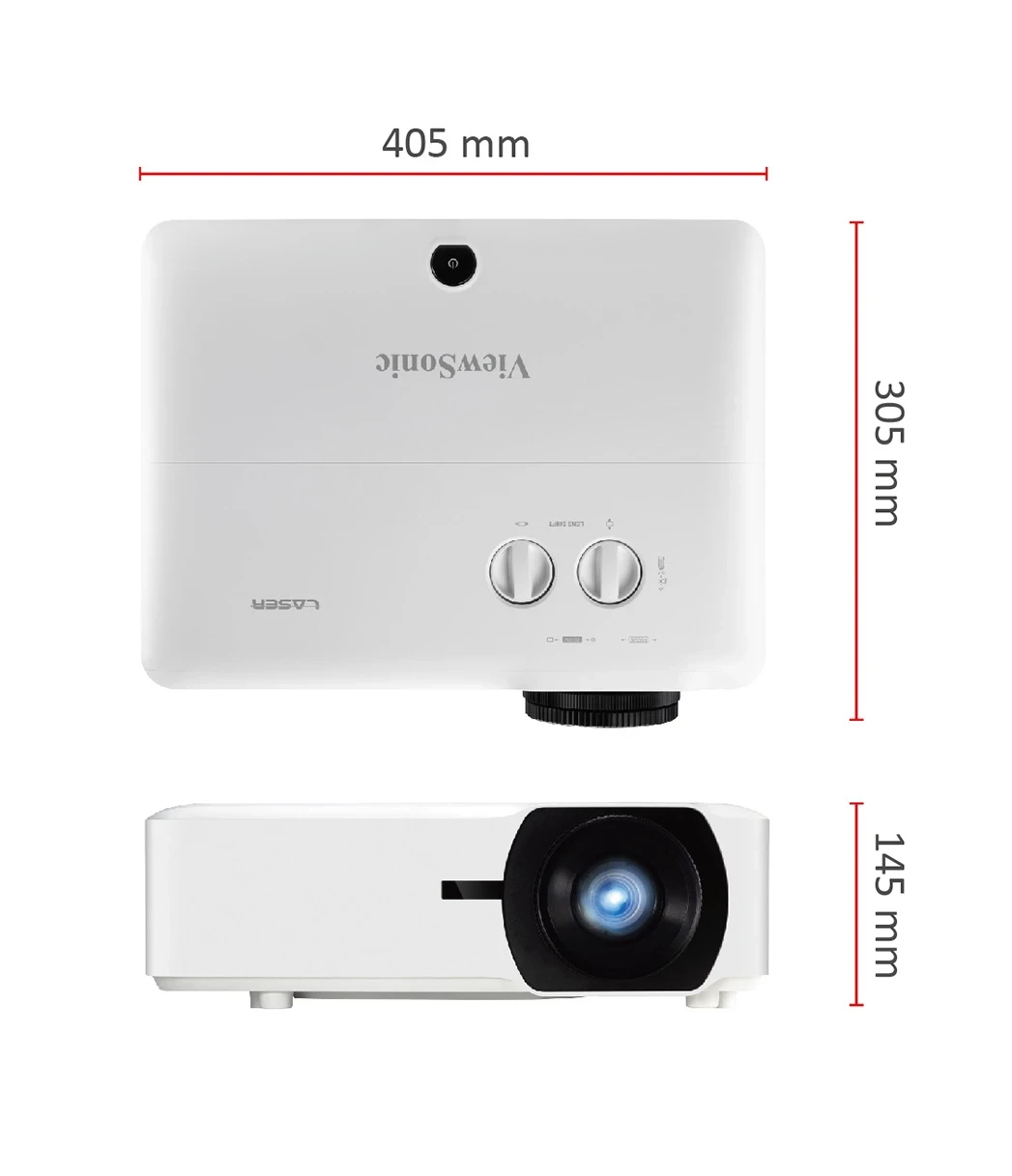

Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages
Standard Accessory
Power Cord: 1
VGA Cable: 1
Remote Control: 1 , (w/ laser pointer)
QSG: Yes
