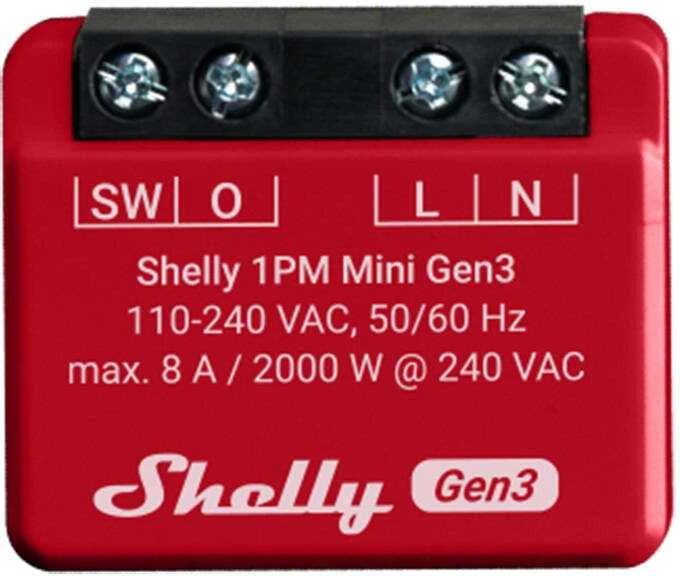

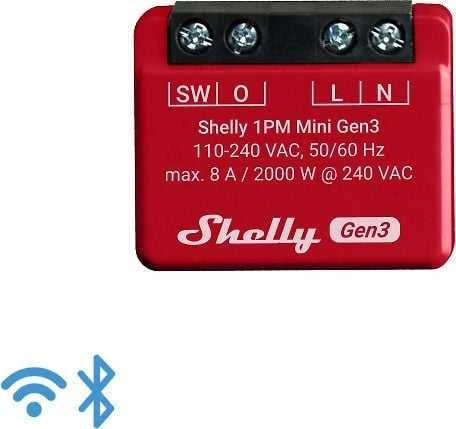

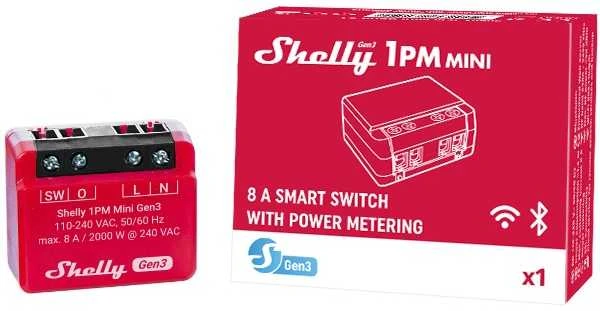

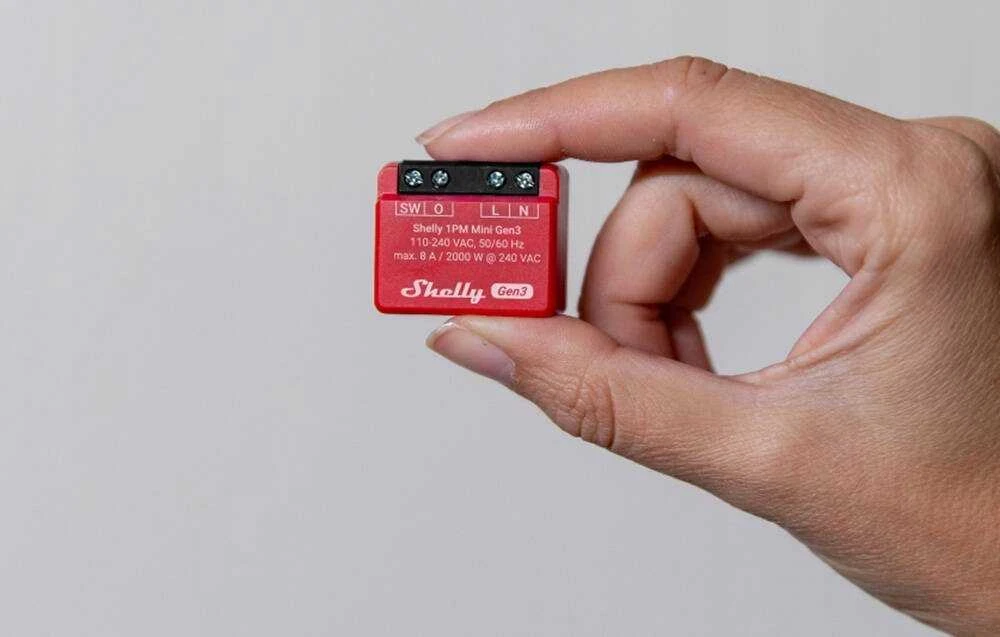

Shelly 1PM Mini Gen3 Controller

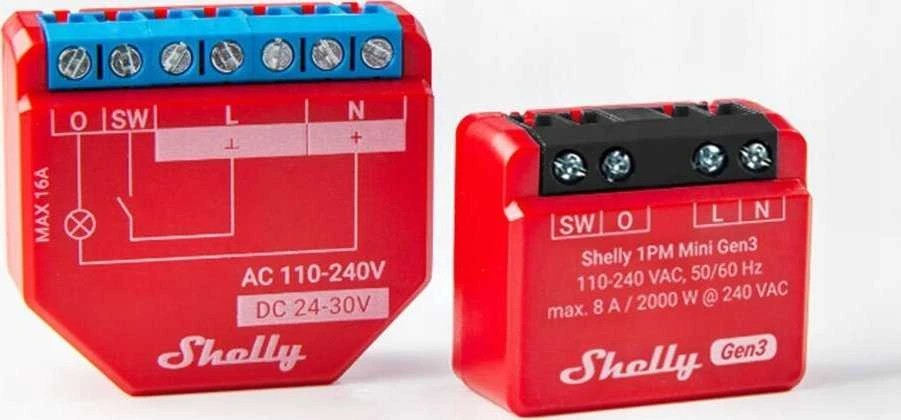

Shelly 1PM Mini Gen3 is a compact smart switch that not only allows you to remotely control electrical appliances, but also measures their energy consumption. It allows you to control and monitor your appliances from your smartphone, tablet, computer or home automation system, no matter where you are. It's an improved version of the Shelly Plus 1PM Mini with an advanced processor and more memory.

Compact design, maximum performance

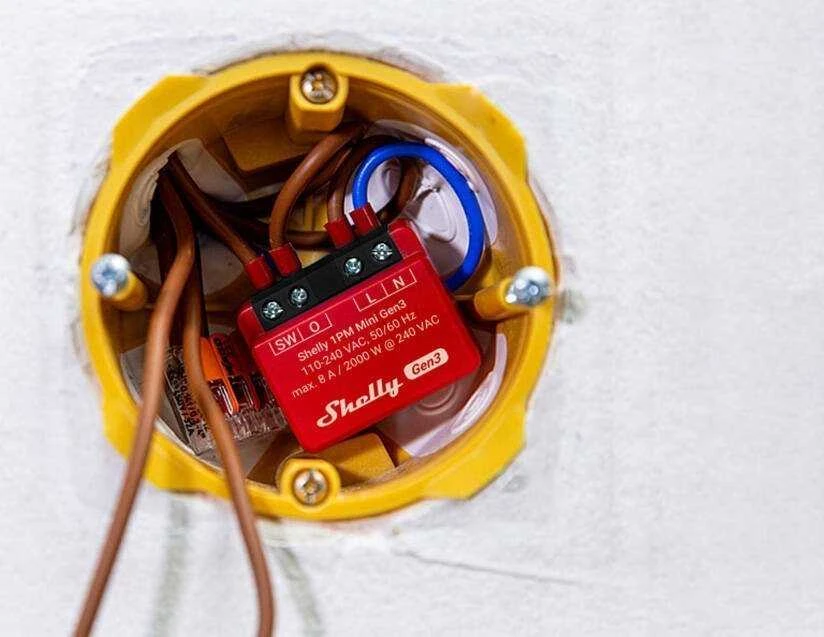

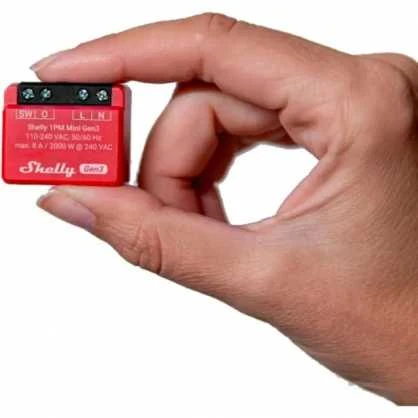

Despite its compact size, the Shelly 1PM Mini Gen3 offers top-level performance - all thanks to its advanced processor and increased memory. Its compact design means you can easily install it in standard wall boxes, even in space-constrained areas. It is ideal for mounting behind outlets, light switches or other electrical devices.

Remote control

The Shelly 1PM Mini Gen3 allows you to remotely control your electrical devices from anywhere, using your smartphone, tablet or computer. You no longer have to worry if you left a light on or forgot to turn off a fan. With the Shelly 1PM Mini Gen3, you can do it easily, even when you're away from home. What's more, the controller is compatible with home automation platforms such as Amazon Alexa, Google Smart Home and Samsung SmartThings, so you can conveniently control your devices with simple voice commands.

Expand the scope of your network

With the Shelly 1PM Mini Gen3, you can also extend the range of your Wi-Fi network for IoT devices. This device acts as a signal booster, picking up Wi-Fi signals and amplifying them to cover a larger area. This ensures that your IoT devices will always stay connected.

Monitor your power consumption

Now you'll gain full control over your home's power consumption! With power consumption metering, you can monitor how much energy your connected devices are using in real time. This not only allows you to understand which devices are the most energy-intensive, but also helps you make informed decisions on energy savings. So you can effectively manage your home's energy consumption while saving money on your electricity bills!

Smart home on your terms

The controller offers the ability to create automations and work schedules that adapt to your daily life. Would you like the lights to turn on at a certain time of day? Or would you like the fan to automatically turn off after an hour? All this and much more is possible with Shelly 1PM Mini Gen3.

Manufacturer	Shelly
Model	1PM Mini Gen3
Power supply	110 - 240 VAC
Relay	Non-contact NO, 1-pole, micro-contact
Power consumption	< 1.2 W
External protection	Breaking characteristic B or C, max. 10 A maximum rated current, min. 6 kA interrupting capacity, class 3 energy limitation
Max. switching voltage	240 VAC
Max. switching current	8A/240 VAC
Max. switching power	2000 W
Power measurement	Yes
Voltage surge protection	Yes
Current overload protection	Yes
Power overload protection	Yes
Internal temperature sensor	Yes
Wi-Fi communication protocol	802.11 b/g/n
Range	Up to 30 m indoors and up to 50 m outdoors
Bluetooth wireless communication protocol	4.2
Range	Up to 10 m inside and up to 30 m outside
CPU	ESP-Shelly-C38F
Flash memory	8 MB
Schedules	20
Webhooks (URL Actions)	20 with 5 URLs per action
Scripts	Yes
MQTT	Yes
UDP	Yes
Advanced scheduling	Yes
KVS (Key-Value Store)	Yes

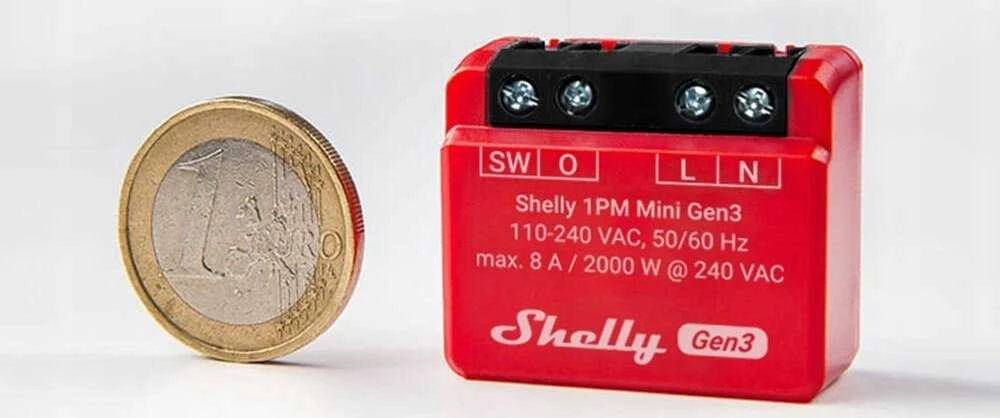

Dimensions	29 x 34 x 16 ±0.5 mm
Weight	18 ±1 g
Cable cross section	0.2 to 2.5 mm² / 24 to 14 AWG (single wire, multicore and bootlace terminated)
Exposed wire length	6 to 7 mm / 0.24 to 0.28 in.
Mounting	In a wall box
Housing material	Plastic
Ambient operating temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max altitude	2000 m
