Uni-T UT336P Wireless Pressure Gauge Kit
The Uni-T UT336P Kit is a complete solution for working with refrigeration systems and heat pumps. It combines a wireless pressure gauge with a temperature probe, enabling simultaneous measurement of pressure and temperature and more accurate system diagnostics.
System Parameter Measurement and Analysis
The UT336P Kit offers a wide pressure measurement range in multiple units and temperature measurement from -50°C to 150°C. Connecting to the mobile app via Bluetooth allows for real-time data monitoring and analysis of parameters such as superheat and subcooling.
Features to make your work easier
The device allows you to store up to 8,000 measurements and set a logging interval, which is useful for long-term monitoring. High and low pressure alarms, a backlit screen, and the ability to work offline enhance user convenience.

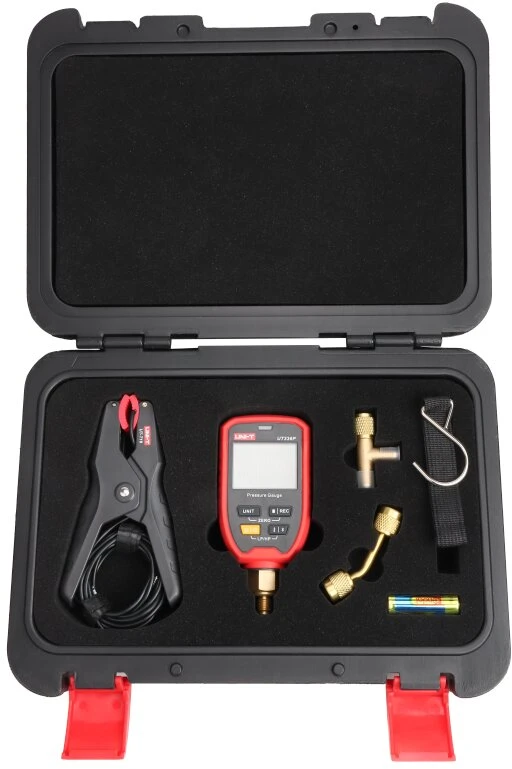

Included in the kit
-
Wireless pressure gauge
-
Temperature probe
-
3 AA batteries
-
Wrist strap
-
Wrist strap
-
Tool kit
-
1/4" SAE tee
-
1/4" SAE elbow
-
User manual
-
Download guide
Specifications
|
Manufacturer
|
Uni-T
|
|
Model
|
UT336P Kit
|
|
Type
|
Wireless pressure gauge with temperature probe
|
|
Pressure range
|
-1 ~ 60 bar ±0.5% FS
|
|
Temperature range
|
-50°C ~ 150°C ±(0.5°C / 1°C)
|
|
Pressure units
|
bar, kg/cm², cmHg, psi, inHg, kPa, MPa
|
|
Temperature units
|
°C / °F
|
|
Data log
|
8,000 measurements
|
|
Recording interval
|
1 s ~ 1 h
|
|
Connectivity
|
Bluetooth
|
|
Supported media
|
10 in the device / 90+ in the app
|
|
Features
|
Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power off
|
|
Temperature port
|
3.5 mm
|
|
Connection
|
1/4" SAE
|
|
Protection rating
|
IP54
|
|
Power supply
|
3x AA batteries
|
|
Dimensions
|
145 x 68 x 39 mm
|
|
Weight
|
250 g
|
|
Certifications
|
CE, RoHS
|
