Pagrindinė plokštė Sapphire Nitro+...

ATX motherboard with X870E chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x4, 10x USB-A / 3x USB-C, 4x M.2 (PCIe 5.0/4.0), up to 256 GB DDR5-8400 RAM

The SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition motherboard provides a strong foundation for high-end gaming and demanding applications. With state-of-the-art interfaces, high memory bandwidth, and innovative features like PhantomLink for GPU power delivery, you are well prepared for current and upcoming hardware generations.

1x PCIe 5.0 x16, 2x PCIe 4.0 x4
4x DIMM slots for up to 256 GB DDR5 RAM up to 8400 MHz (OC)
4x M.2 (2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA
2x USB4, 4x USB 3.2 Gen2, 4x USB 3.2 Gen1 and 2x USB 2.0 on the I/O panel
OC features: 16+2+1 phase VRM design with 90A per phase
Integrated WiFi 7 and 5Gbit LAN

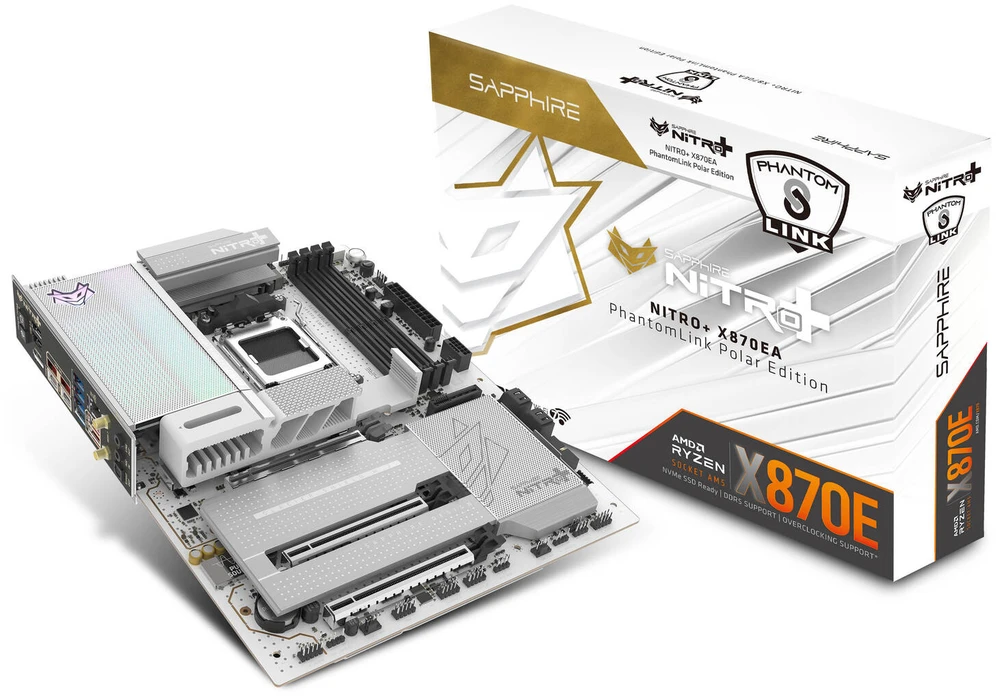

SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition: ATX motherboard with AMD AM5 socket and X870E chipset

The SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition is equipped with the high-end X870E chipset for AMD’s Ryzen 9000, 8000, and 7000 series processors. It features the proven AM5 socket, providing a powerful platform for gaming, content creation, and demanding workloads. A special highlight is the support for PhantomLink (GC-HPWR), allowing compatible graphics cards to be powered directly via the motherboard. This results in a tidier system and reduces visible cables inside the case. Additionally, the motherboard offers USB4 with up to 40 Gbit/s as well as PCIe 5.0 for maximum bandwidth with GPUs and fast NVMe SSDs.

Designed for demanding applications

The SAPPHIRE NITRO+ X870EA PhantomLink Polar Edition is designed for high-end gaming and performance-intensive applications. The robust 16+2+1 phase power delivery with 90A per phase ensures stable power supply to your CPU, even under heavy loads. With support for fast DDR5 memory up to 8400 MHz, you can get the most out of your system. Additionally, you benefit from modern features such as WiFi 7, an integrated debug display, and convenient onboard buttons for power, reset, BIOS update, and CMOS clear. Thoughtful cooling for VRMs, M.2 slots, and chipset ensures consistently stable performance.

Specification

Colour
Primary Colour	White
Dimensions
Width	245 mm
Height	305 mm
Form Factor
Motherboard formfactor	ATX
CPU
CPU Manufacturer	AMD
CPU Socket	AM5
Display
Display Included	No
Power Specifications
Power Stages (VRMs)	16+2+1
Motherboard
BIOS Flashback Button	Yes
Clear CMOS Button	Yes
Motherboard Chipset	AMD X870E
Motherboard Features	Debug LEDs, M.2 Quick Release, Onboard Power Buttons, Q-CODE Display
Dual BIOS	No
Built-In I/O Shield	Yes
PCB Layers	8
Memory
Max. Memory	256 GB
Memory Type	DDR5
Memory Form Factor	DIMM
System Memory Subtype	UDIMM
Max. Memory Speed (OC)	8400 MT/s
EEC Support	No
Memory slots	4x
Performance Profile	AMD EXPO
Wi-Fi & LAN
LAN	Yes
LAN Ports	1x 5 Gbit/s
LAN Chip	Realtek 8126
Wi-Fi / Bluetooth	Yes
Wi-Fi Standard	Wi-Fi 7
Bluetooth Standard	5.4
Cooling
Backplate	Yes
M.2 Heatsinks	Yes
VRM Heatsinks	Yes
Water Cooling
Watercooling	No
Internal Ports
CPU Power Supply	2x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header	1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports	1
USB 3.0 (internal) Header	1
USB 3.0 (internal) Possible Ports	2
USB 2.0 (internal) Header	2
USB 2.0 (internal) Possible Ports	4
RGB / LED connectors	2x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
Front Panel Audio Header	Yes
External Ports
USB4 Gen 3x2 (external) Type C	2
USB 3.2 (external) Type A	8
USB 2.0 (external) Type A	2
Display Connectors	HDMI (1x), USB Type C (DisplayPort shared) (2x)
Audio outputs	3.5 mm jack (total) 2x, S/PDIF optical (TOSLINK) 1x
Storage Ports
M.2 PCIe 4.0 x4	2
M.2 PCIe 5.0 x4	2
SATA 6G (internal)	4
Back Connect
Back Connect	No
Expansion Slots
PCIe x16 slots (total)	3
PCIe 5.0 x16 mechanical slot	1
PCIe 4.0 x4 mechanical slot	2
Compatibility
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Fan Header
4 Pin Fan Connectors	5
Audio
Soundchip	Realtek ALC897
Lighting
Lighting / RGB	Yes
Product Series
Product Series/Family	PhantomLink
