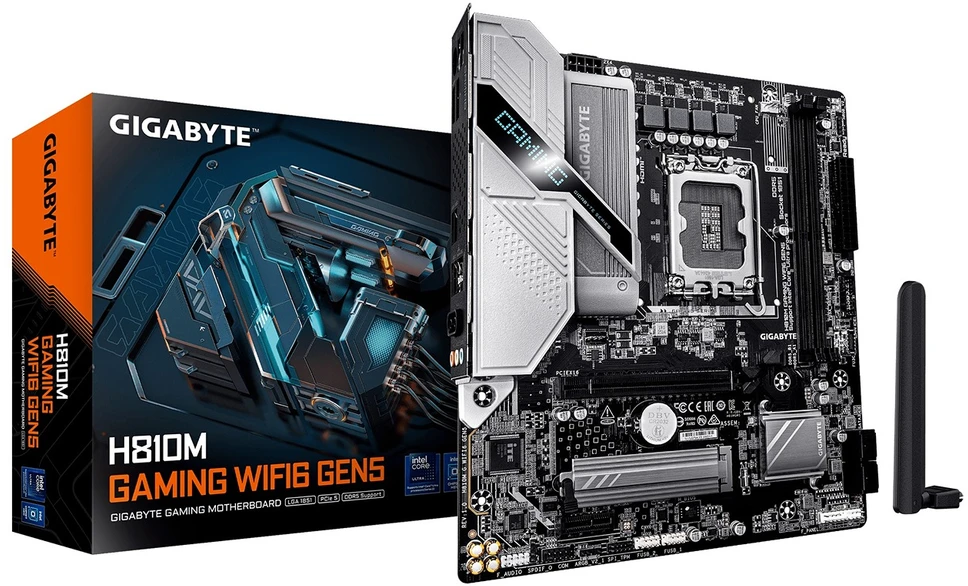

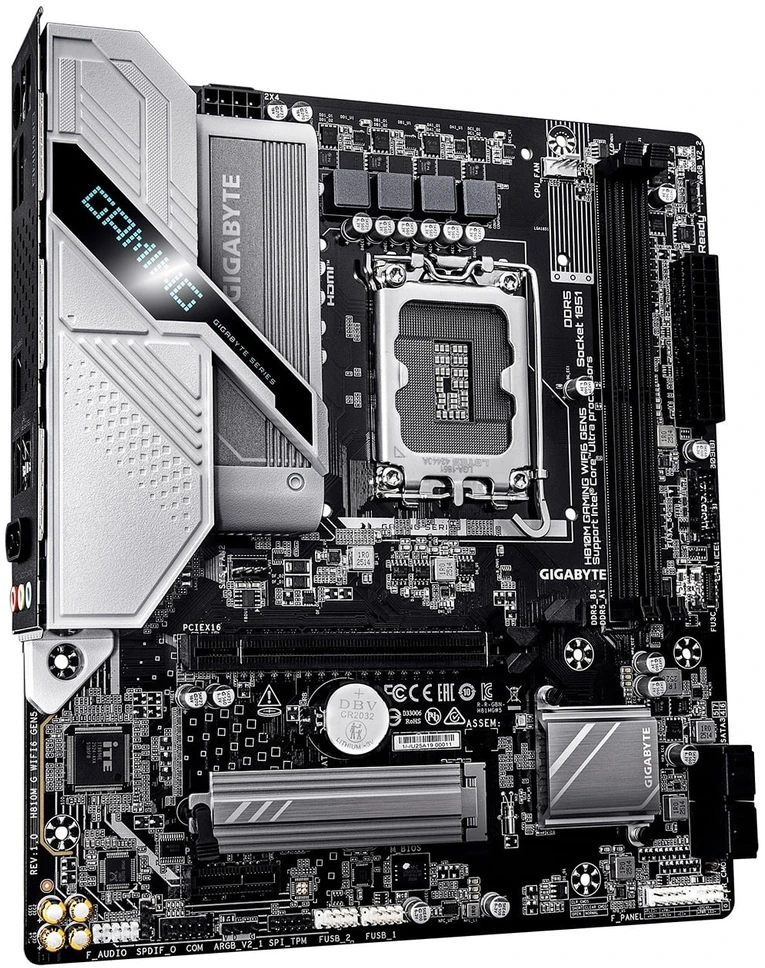

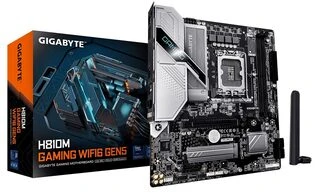

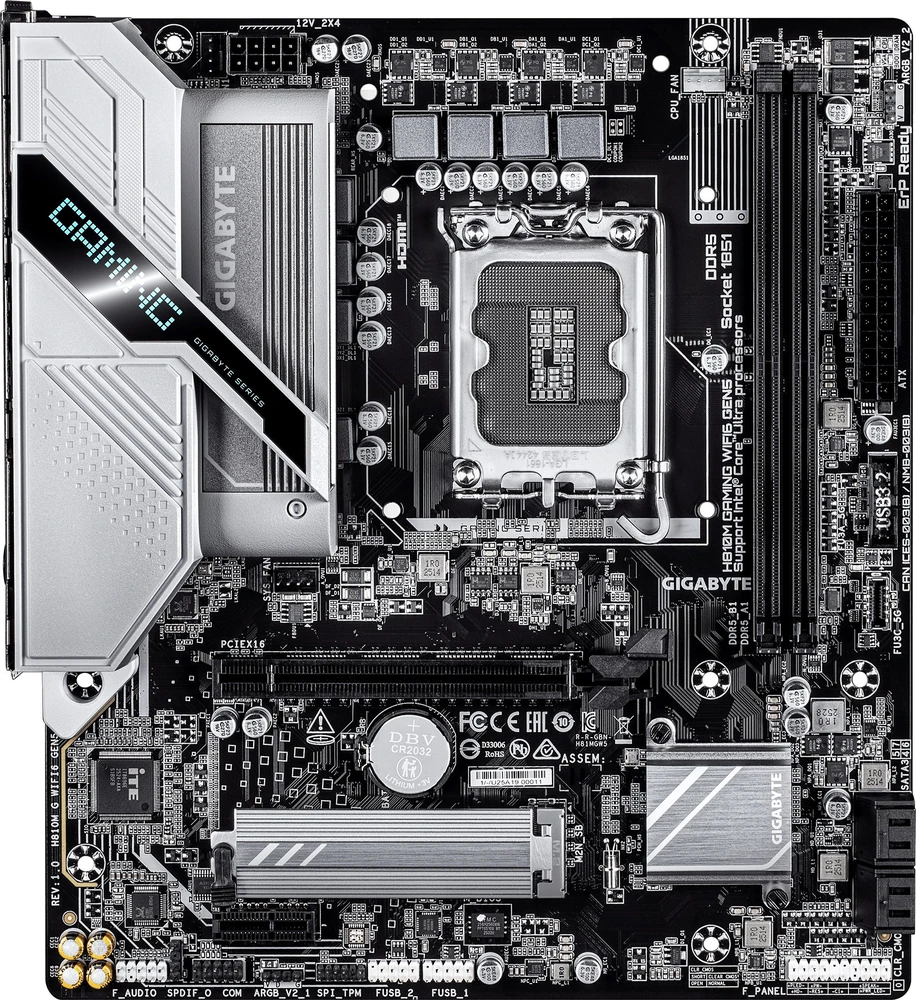

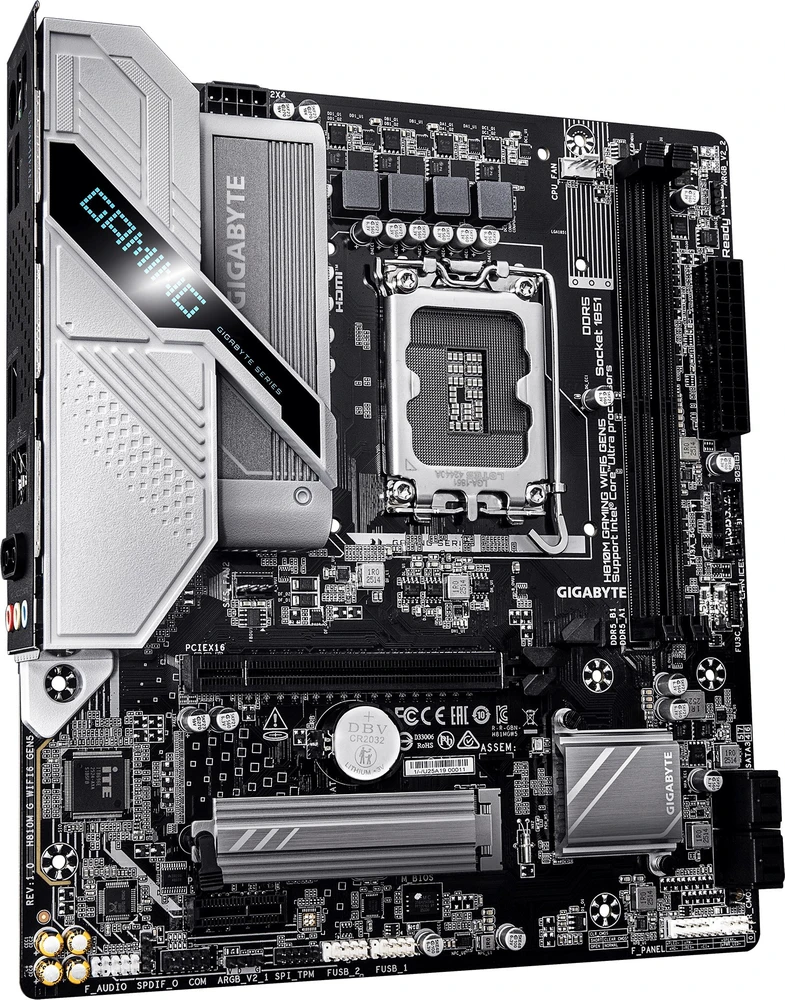

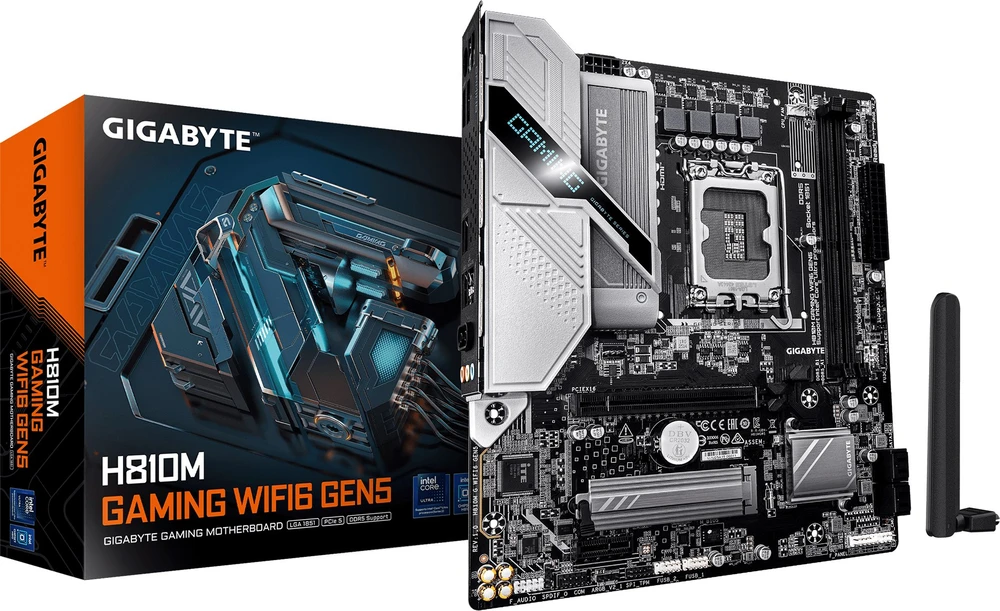

Pagrindinė plokštė GIGABYTE H810M GAMING WIFI6 GEN5

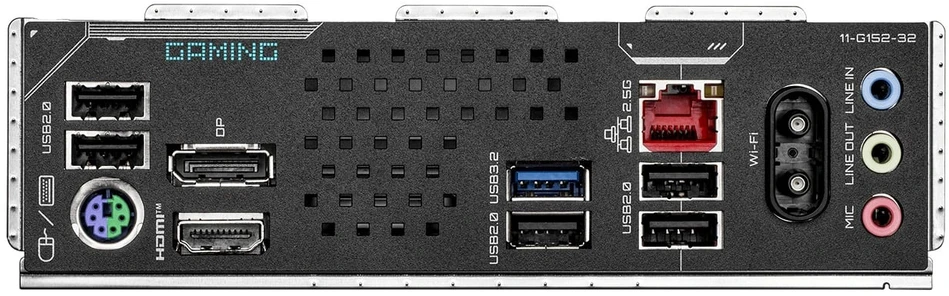

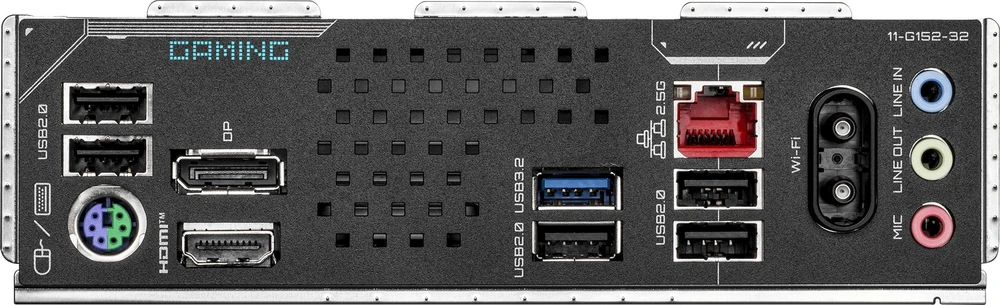

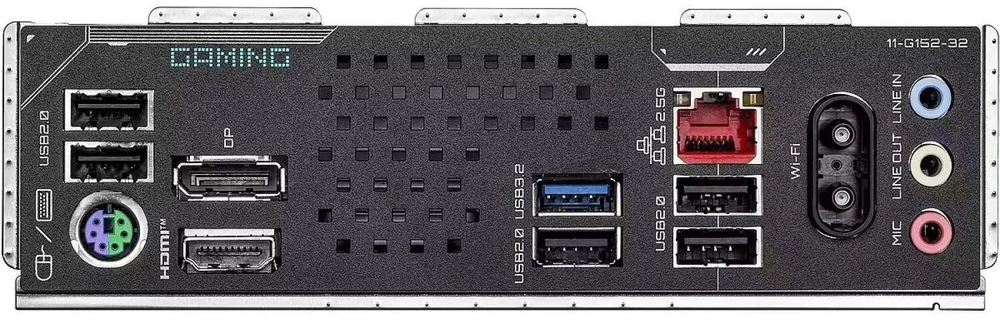

GIGABYTE H810M GAMING WIFI6 GEN5 Chipset: Intel® H810 Express Dimensional Format: Micro ATX (244x215mm) Support for Intel® Core™ Ultra processors Processor Socket: LGA1851 Memory: 2x DIMM sockets supporting up to 128GB, DDR5 6400/5600 MT/s memory modules without ECC buffering Dual channel memory architecture Extreme Memory Profile (XMP) memory module support Graphics outputs: graphics specifications may vary depending on CPU support 1x HDMI® 2.1 1x DisplayPort 2.1 Sound card: Realtek® 7.1 Surround Sound High Definition Audio codec, S/PDIF support Ethernet: Realtek® 2.5 GbE LAN WLAN + Bluetooth: Realtek® Wi-Fi 6 RTL8851BE + BT v5.4 Expansion slots: 1x PCI Express x16 with PCIe 4.0 support (PCIEX16) 1x PCI Express x1 with PCIe 3.0 support (PCIEX1) Storage space: 1 M.2 slot and 4 SATA 6Gb/s ports supported in total 1x M.2, M key, type 2280 - support PCIe 4.0 x4/x2 SSD 4x SATA 6Gb/s port USB: Rear USB (6 ports total) 1x USB 3.2 Gen 1 5x USB 2.0/1.1 Front USB (7 ports total) 1x USB Type-C® header - USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header - support 2 additional USB 3.2 Gen 1 ports 2x USB 2.0/1.1 header - support 4 additional USB 2.0/1.1 ports Rear panel ports: 1x PS/2 keyboard/mouse 1x HDMI 1x DisplayPort 1x USB 3.2 Gen 1 5x USB 2.0/1.1 1x RJ-45 3x audio connector 2x antenna connector (1T1R) Internal ports: Power 1x 24pin ATX main power connector 1x 8pin ATX 12V power connector Fan and cooling related 1x CPU fan header 2x system fan header Storage related 1x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB Type-C® header, USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 header Other 2x addressable RGB Gen2 LED strip header 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x Trusted Platform Module header (only for GC-TPM2.0 SPI V2 module) 1x serial port header 1x Clear CMOS jumper BIOS: 1x 256Mb flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) Manufacturer's website link: https://www.gigabyte.com/cz/Motherboard/H810M-GAMING-WIFI6-GEN5
