TFA 20.1051 - analoginė oro stotis ant medinio pagrindo

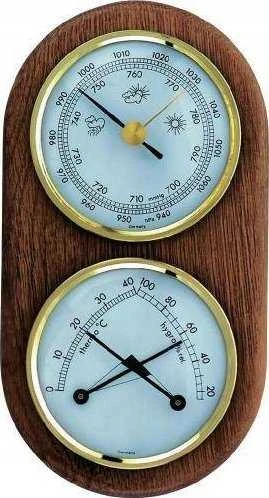

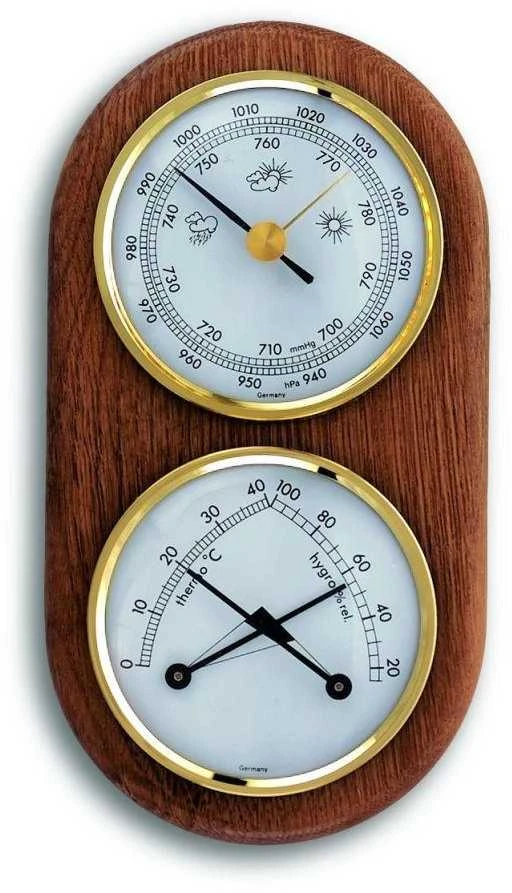

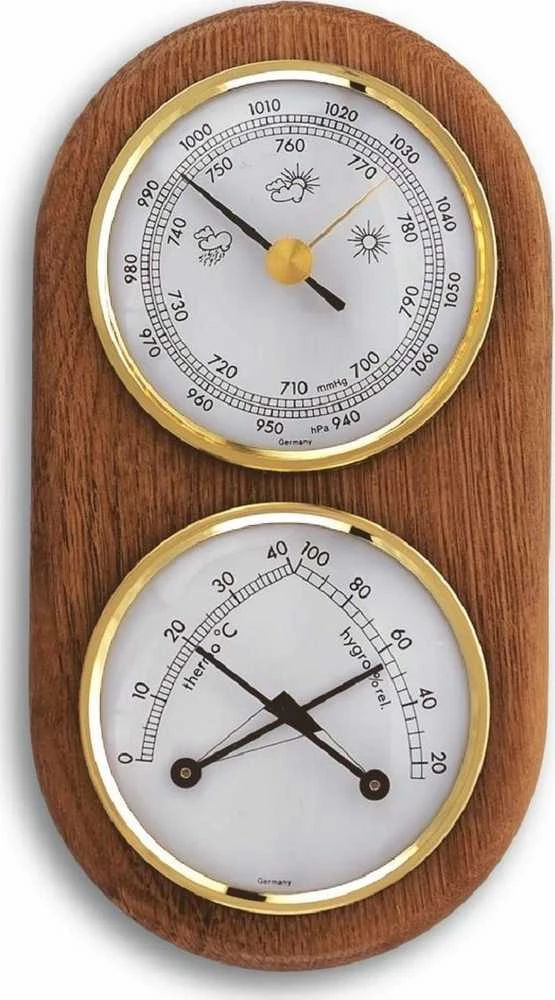

The weather station includes a barometer, hygrometer and thermometer - all instruments are 70 mm in diameter. It is a wall-mounted model on a solid oak base with brass bezels.


Technical parameters

Width: 92 mm
Height: 170 mm
Instrument diameter: 70 mm
Weight: 182 g
Instrument colour: gold
Bezel colour: gold
Base colour: oak
Thermometer: Yes
Barometer: Yes
Hygrometer: Yes


How does the barometer work?
A mechanical barometer or strain gauge, also known as an aneroid, works on the following principle: when the ambient air pressure rises, the metal aneroid box inside the gauge is compressed; if it falls, it is expanded. These fluctuations are transmitted by a set of levers on the needle. The internal mechanism, however, has its friction surfaces and transmission resistance, and therefore every mechanical barometer has its own internal hysteresis, which manifests itself in a certain delay of the pointer. This is also why it is necessary to tap the instrument to get an accurate instantaneous atmospheric pressure reading.
