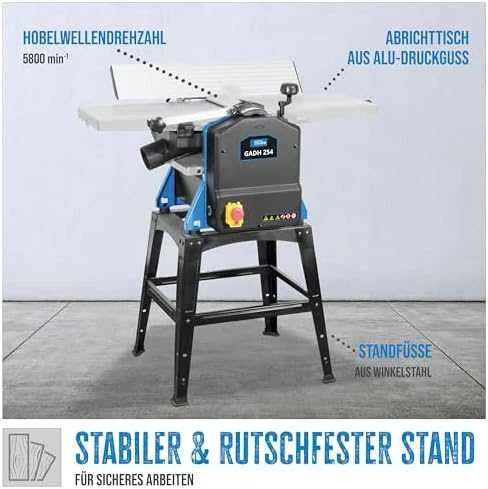

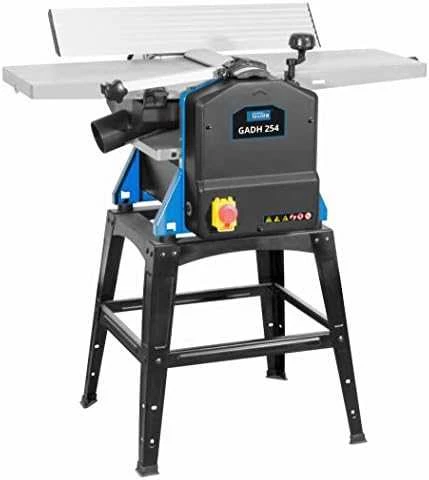

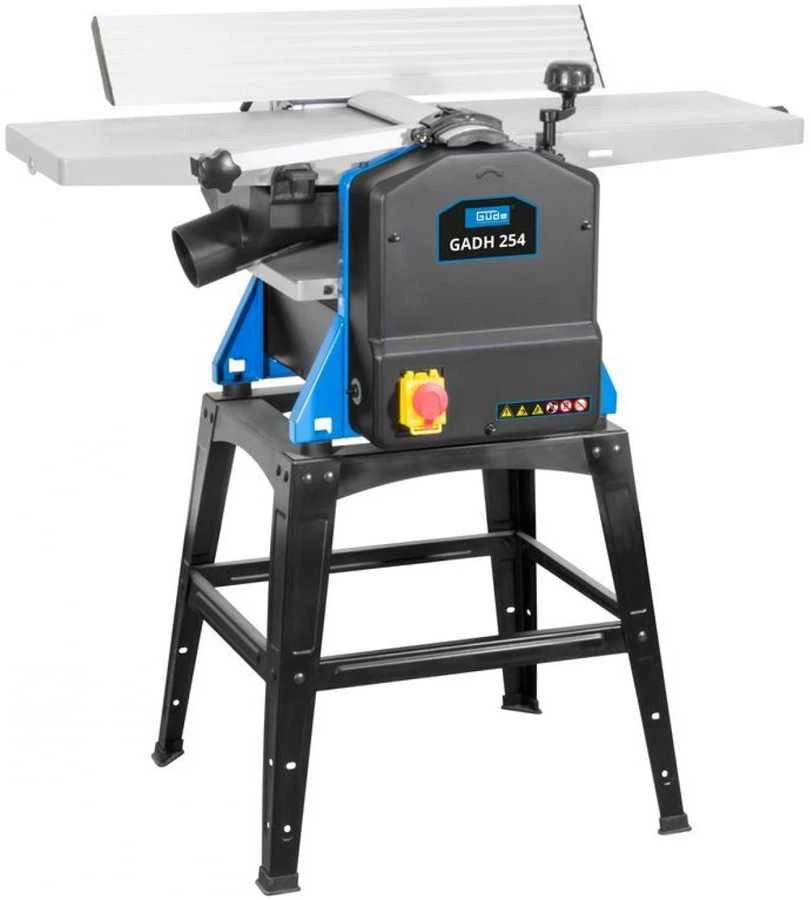

GÜDE GADH 254 obliavimo staklės su vilkimu

Planer with drag, designed for flat machining of soft and hard wood in home workshop conditions.

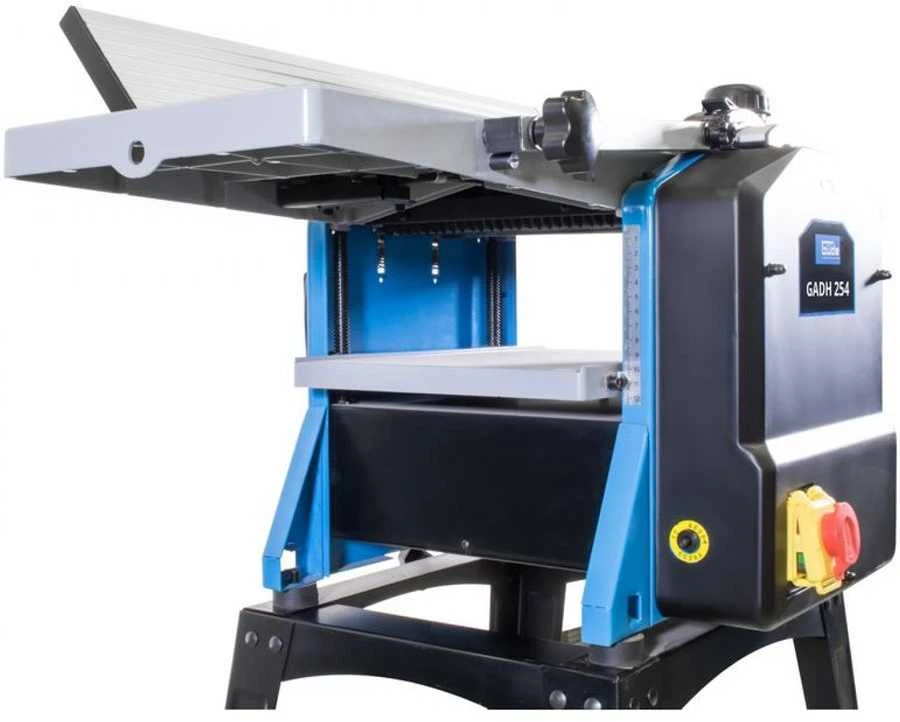

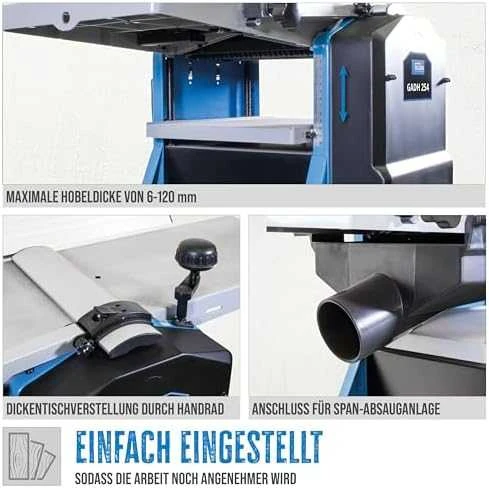

Surface levelling, edge beveling and thicknessing of flat or square profiles (-> mouldings, battens, boards, prisms, etc.; max. workpiece width/height: 254 mm/120 mm).

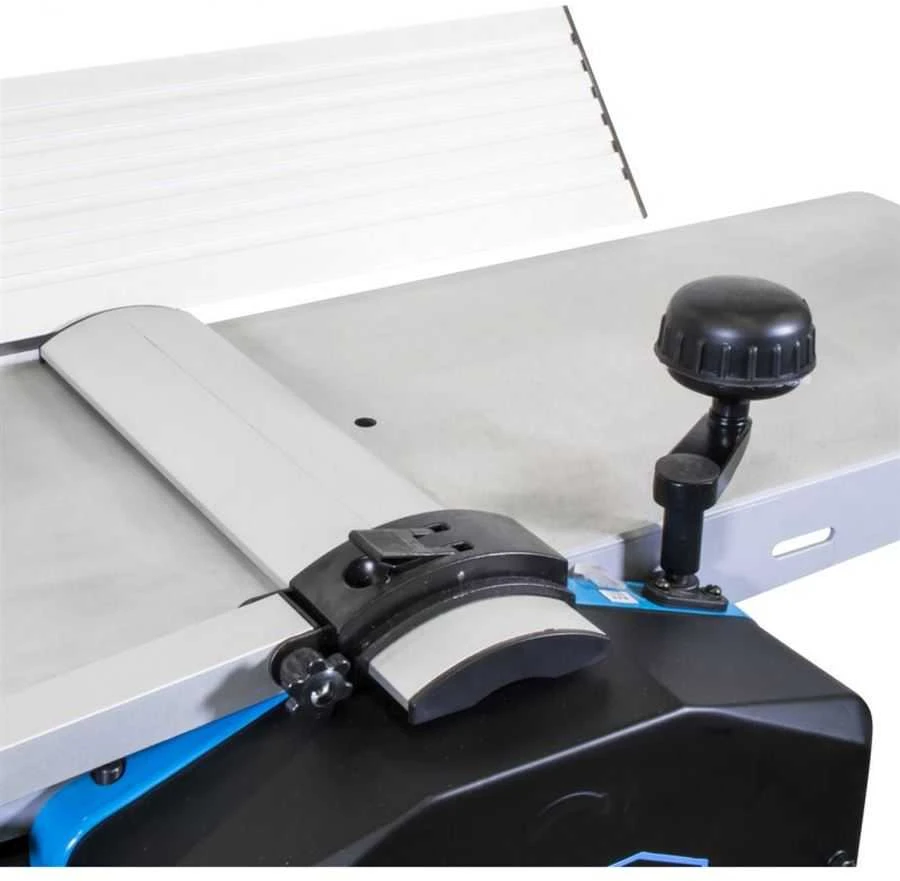

Infinitely variable chip removal (-> flattening: 0 - 2 mm, thicknessing: 0 - 2 mm); broaching with automatic workpiece feed; precise edge beveling with tilting guide stop (-> range: 0 - 45°).

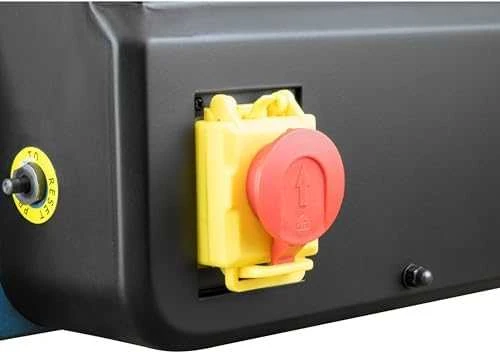

Motor 1,500 W/P1 (-> incl. current protection), emergency switch, 1.8 m power cable H05 VV-F.

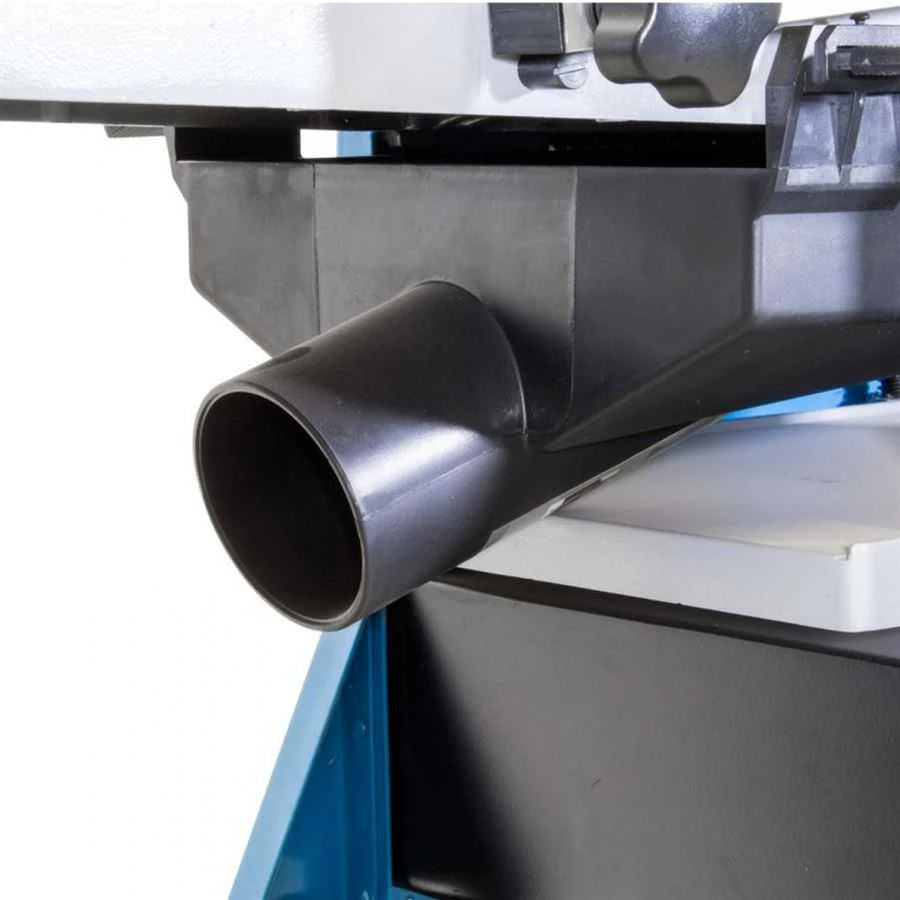

Construction: aluminium planing table (-> L x W: 920 x 264 mm), protective cover for knife shaft, extendable workpiece support, HSS cutting knives (2), exhaust connection, robust steel base.
Overall dimensions (l x w x h): 960 x 490 x 1.110 mm, sound power level LWA: 106 dB (A), protection class: I, protection class: IP 20.

Product parameters:
Connection: 230 V~50 Hz.
Motor power: 1.500 W / P1
Knife shaft speed: 8.500 min-1
Number of knives: 2
Max. workpiece width: 254 mm
Chip removal during flattening: 0 - 2 mm
Chip removal during broaching: 0 - 2 mm
Weight (net): 32.24 kg
Width of assembled machine in mm: 565
Height of assembled machine in mm: 1114
Assembled length in mm: 965
