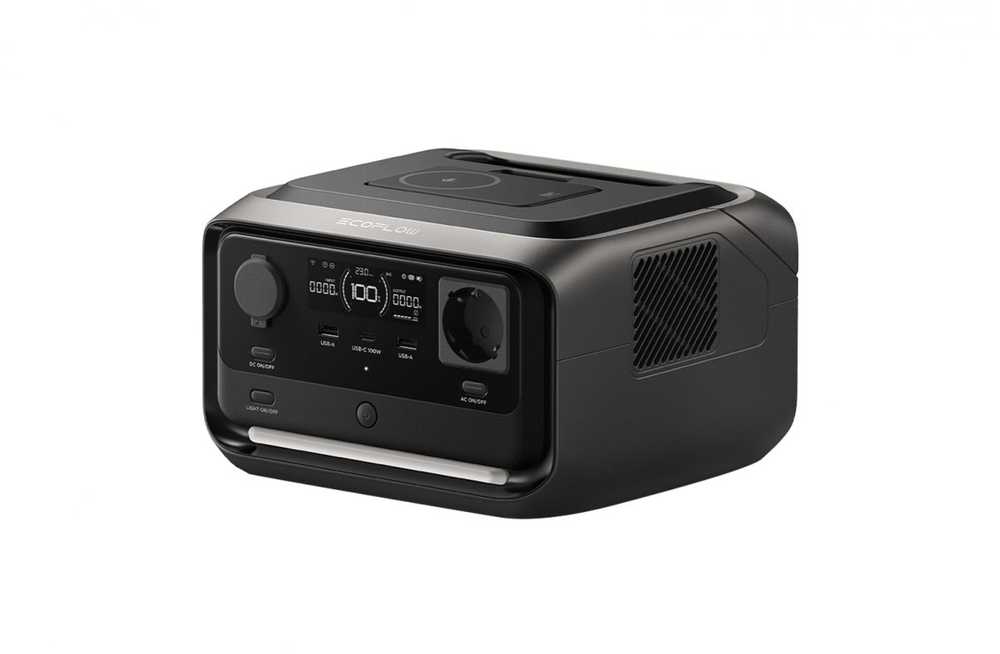

BAT EcoFlow RIVER 3 Plus Wireless

EcoFlow RIVER 3 Plus Wireless is a version of the RIVER 3 Plus battery station, which in this form is complemented by the RAPID magnetic power bank (5000 mAh). The base capacity of the station is 286 Wh, but can reach up to 858 Wh when expanded with an additional battery. Like the other stations in this series, the RIVER 3 Plus Wireless incorporates advanced X-GaNPower technology that minimizes heat loss, allowing for a small footprint yet high charging efficiency and quiet operation. The station also offers a professional UPS with a switching speed of up to 10 ms.
At the heart of the RIVER 3 Plus Wireless battery station is the RIVER 3 Plus, which is complemented by the RAPID magnetic power bank (5000 mAh). The latter is separately usable for wireless and conventional power supply of portable devices.


EcoFlow RIVER 3 Plus
Like the other stations in the RIVER 3 series, it stands out for its small size, high charging speed and quiet operation. This is because it uses the groundbreaking X-GaNPower technology, which minimises heat loss and excels in high efficiency. In addition to these advantages, the RIVER 3 Plus adds significantly increased performance, a professional UPS with a switching speed of up to 10 ms and the possibility of expanding the capacity with an additional battery. Recharging is possible via mains socket, car socket or solar panels.

Power supply for appliances
The doubled power output compared to RIVER 3 (up to 600 W) allows the RIVER 3 Plus to power even the most energy-intensive appliances. Also, the power output of the X-Boost function, suitable for driving heaters and certain types of motors, has been doubled compared to the RIVER 3, up to 1,200 W.

Professional UPS for uninterrupted power supply
The station also offers a backup power supply function for appliances with truly professional specifications. Its automatic switchover speed of 10 ms in the event of a mains failure allows the station to be used in a UPS system even for sensitive appliances that require an uninterrupted power supply.

Expandable station capacity
To extend the operation of powered devices, the RIVER 3 Plus Smart Extra Battery EB300 (286Wh) or RIVER 3 Plus Smart Extra Battery EB600 (572Wh) can be connected to the station to expand the total capacity of the station up to 858 Wh.

Quiet operation
Thanks to the X-GaNPower technology with improved heat dissipation, the station operates at less than 30 dB noise level at a distance of 45 cm, so its operation does not disturb day or night.

Phone control
Using the EcoFlow app, you can manage the operation of the RIVER 3 Plus from anywhere with an internet connection. The battery station supports both Wi-Fi and Bluetooth connectivity, so it can adapt seamlessly to current conditions.


Technical specifications (valid for EU)

General
Model: EF-RV-H02-1
Weight: Approximately 4.7 kg
Dimensions (W × D × H): Approximately 234 × 232 × 146 mm

Output
AC waveform: Pure sine wave
AC output (discharge only): 230 V ~ 50 Hz, 600 W max.
AC output (bypass mode): 220-240 V ~ 50/60 Hz, 600 W max.
USB-A output: 5 V ? 2.4 A, 12 W max. per port, 24 W max.
USB-C output: PD3.0, QC3.0, 5/9/12/15 V ? 3 A max, 20 V ? 5 A max., 100 W max.
DC output: 12.6 V ? 10 A, 126 W max.

Input
AC input: 220-240 V ~ 50/60 Hz, 6 A max.
Solar input: 11-55 V ? 13 A, 220 W max.
Car socket input: 11-55 V ? 8 A max, 220 W max.

Battery
Capacity: 286 Wh, 22.4 V ? 12.8 Ah
Type: LFP (LiFePO4)
Life: 3,000 charge cycles until drop to 80% capacity (SoH) at 25 °C
Type of protection: overvoltage protection, overload protection, overheat protection, short circuit protection, low temperature protection, undervoltage protection, overcurrent protection

Ambient temperature
Optimum operating temperature: 20 °C to 30 °C
Charging temperature: 0 °C to 45 °C
Discharge temperature: -10 °C to 45 °C
Storage temperature: -10 °C to 45 °C (optimum 20 °C to 30 °C)

Communication
Methods: CAN, Wi-Fi, Bluetooth
Wi-Fi (2.4 G): Frequency 2412-2472 MHz / 2422-2462 MHz, maximum output power 17.5 dBm
Bluetooth: Frequency 2402-2480 MHz, maximum output power 9.50 dBm

Other
Operating Altitude: Up to 2,000 m above sea level.


Up to 2,000 m above sea level
It brings truly cutting-edge technology to the segment of commonly used devices. It can also charge Qi2-compatible mobile phones wirelessly and other devices using the built-in USB-C cable. By snapping the RAPID power bank onto the mobile phone, it and the mobile phone become one device, so even charging the phone no longer needs to restrict movement. The N52 magnets and anti-slip elements keep it securely in place.

Fast charging of the power bank and connected devices
The RAPID power bank uses the patented EcoFlow X-Stream technology for extremely fast and safe charging: from 0% to 70% in just 33 minutes. It also works with PD3.0 protocol for lightning-fast charging of phones and laptops and can power two devices simultaneously if needed. In addition, it is very reliable. Even if it is not used for a month, it will retain more than 95% of its power without needing to be recharged. Thanks to its high output power and compatibility with several charging protocols, the EcoFlow RAPID power bank can easily power most portable devices, including MacBooks, iPads, Kindles, fitness bracelets and headphones.

Built-in stand
This power bank also perfectly combines sleek design with practicality. This is demonstrated by an interesting and practical detail. It will thus be ready, for example, for comfortable watching videos or reading messages.

Safety
Sensitive sensors monitor the temperature of the power bank fifty times per second, preventing it from overheating and overheating the phone.


Technical parameters
Model: EFPB503-5K

General Specifications
Dimensions: 70 x 108 x 14.4 mm
Weight: 180 g

Optimal environment
Charging temperature: 0 °C to 40 °C
Discharge temperature: -10 °C to 40 °C
Storage temperature: -20 °C to 40 °C
Altitude: ? 3 000 m above sea level

Battery information
Type: Lithium Cobalt Secondary Battery (LCO)
Capacity: 5000mAh (2500mAh2pcs)
Lithium battery energy: 2500mAh 7.74V / 19.35Wh
Rated capacity: 3200 mAh 5 V ? 2.4 A

Input/Output
USB-C input port: 5 V ? 3 A, 9 V ? 3 A, 12 V ? 2.5 A, 15 V ? 2 A
USB-C output port: 5 V ? 2.4 A, 9 V ? 3 A, 12 V ? 2.5 A, 15 V ? 2 A
Wireless output: max. 15 W
Total output: max. 30 W

Package contents
1. RIVER 3 Plus
2. Powerbank EcoFlow RAPID (5000 mAh)
3. AC charging cable
4. Charging cable for car socket
5. USB-B to USB-A UPS communication cable
6. User manual + warranty card
