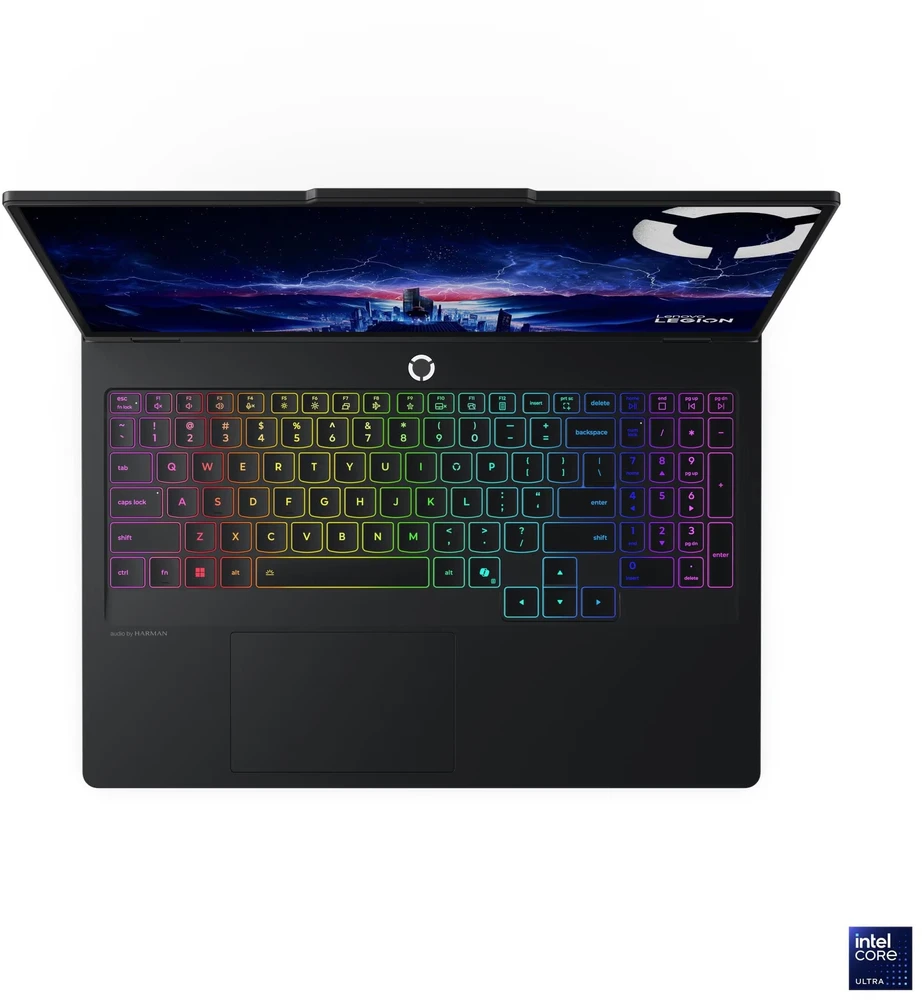

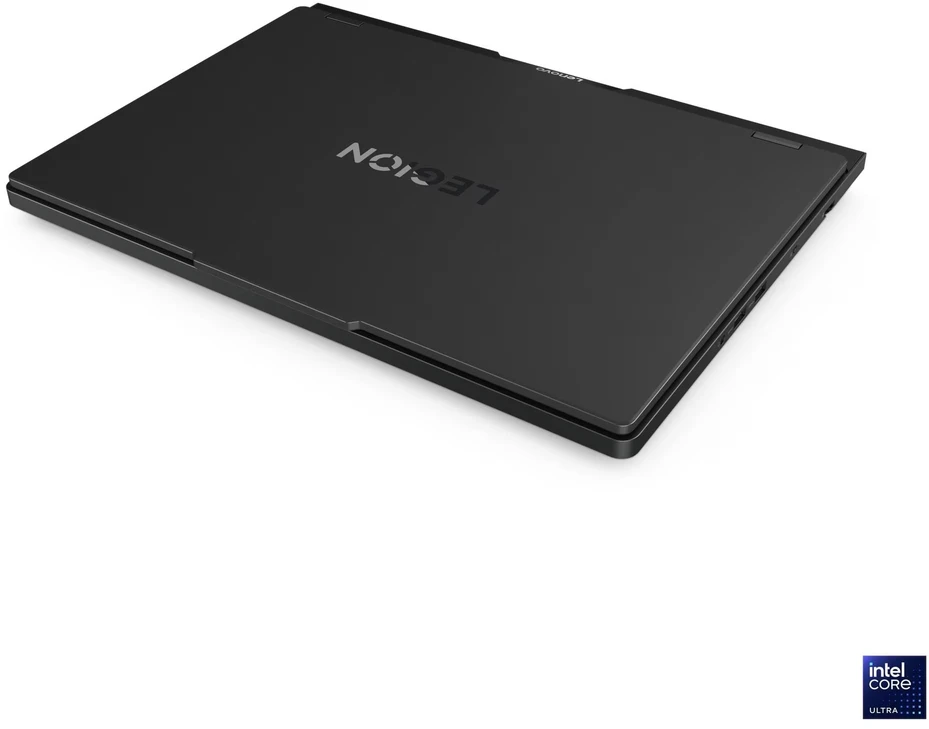

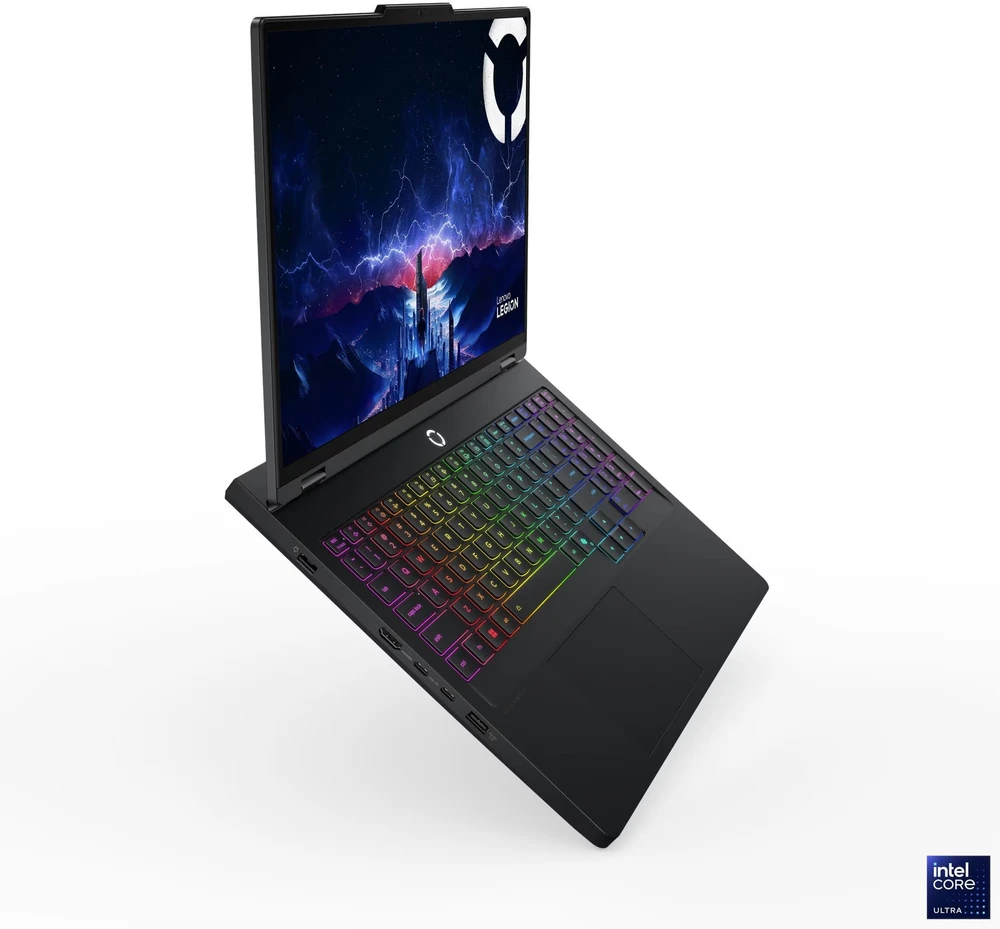

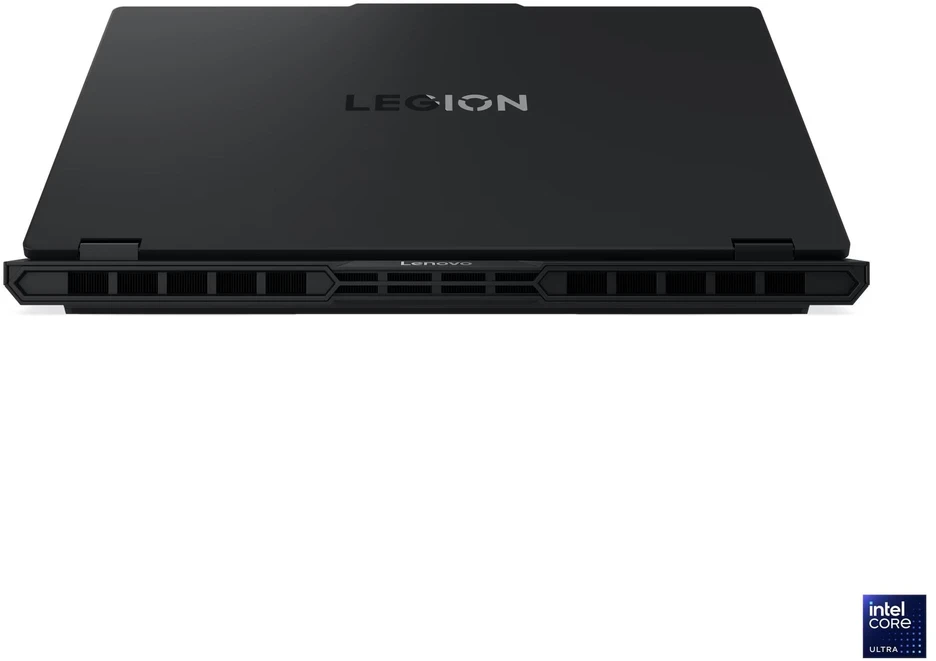

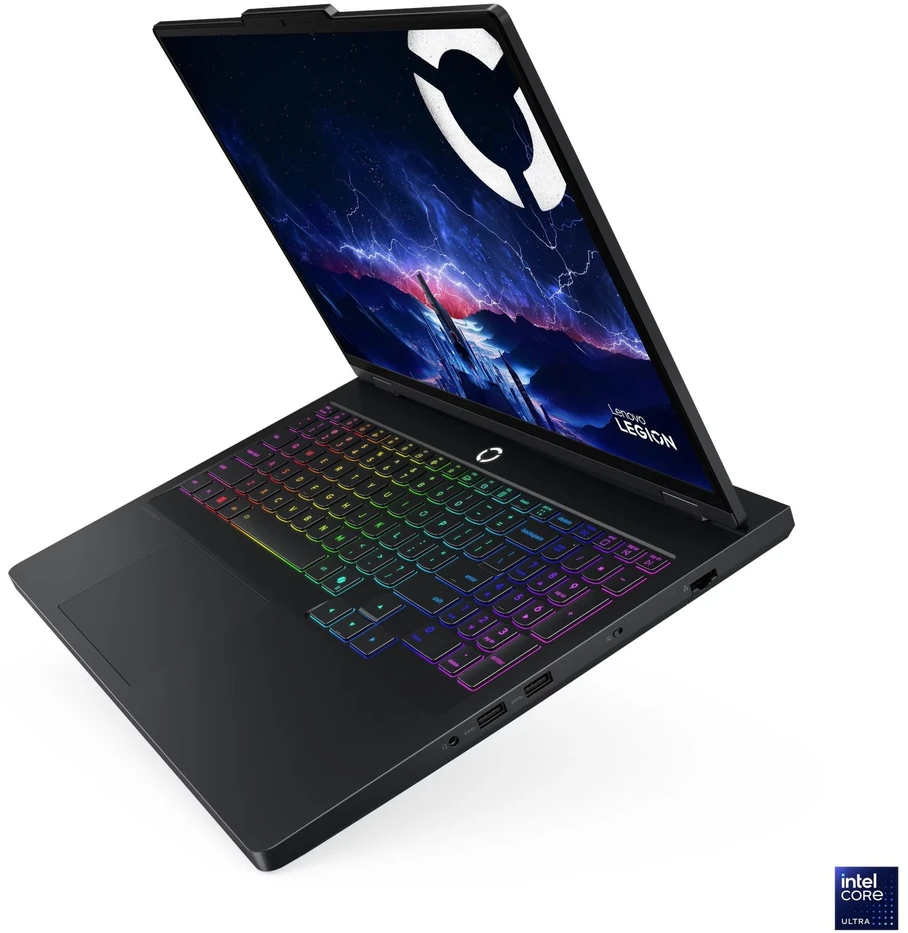

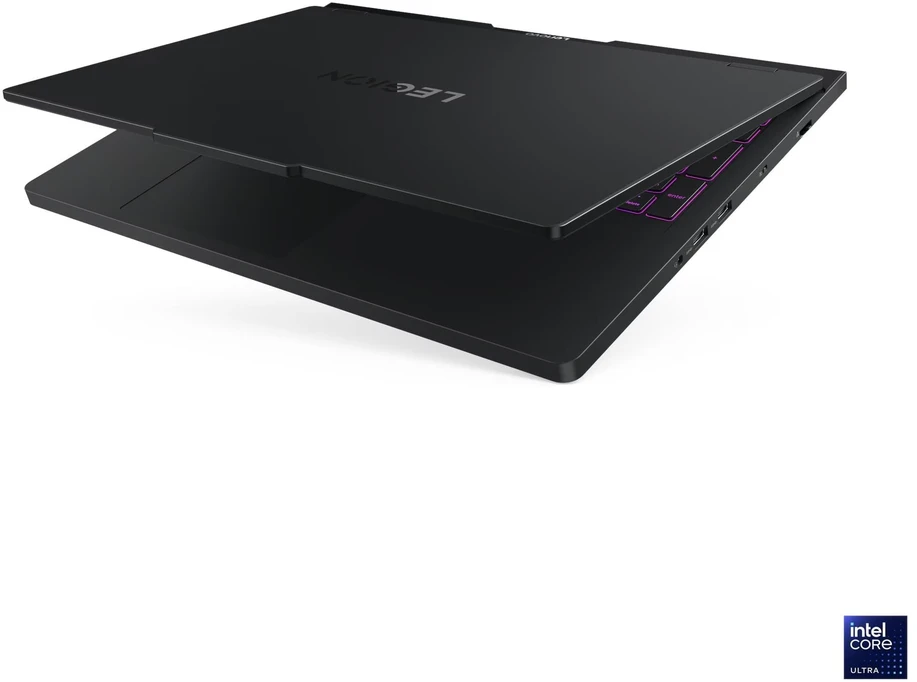

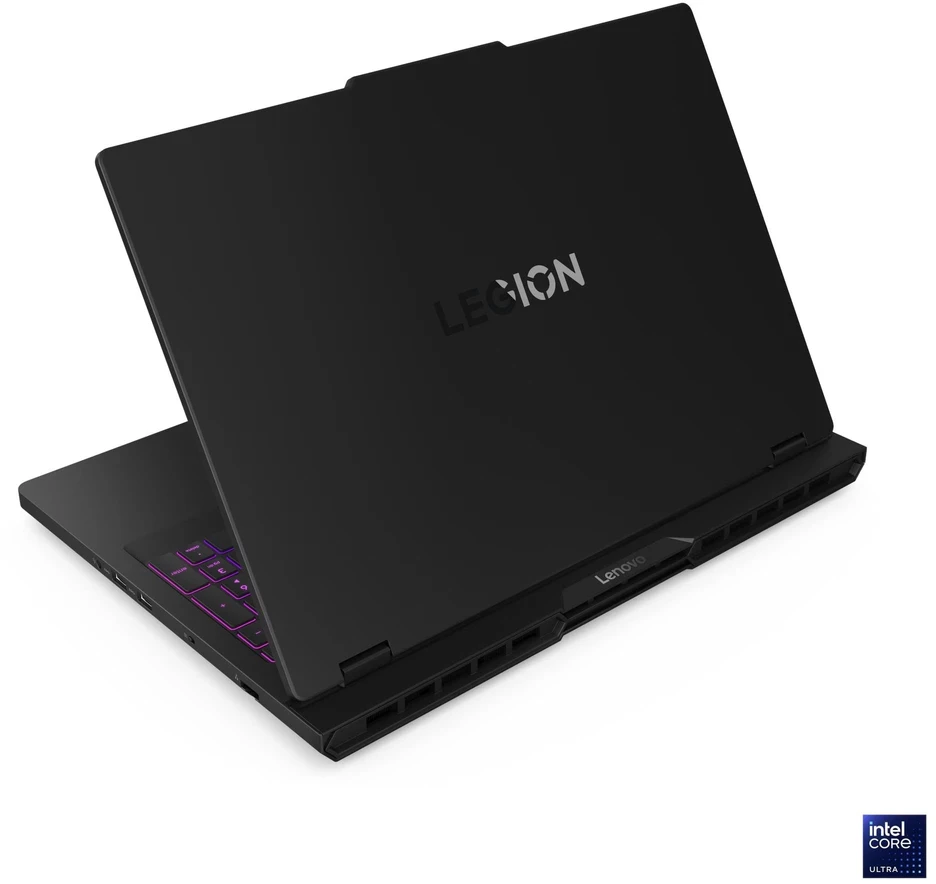

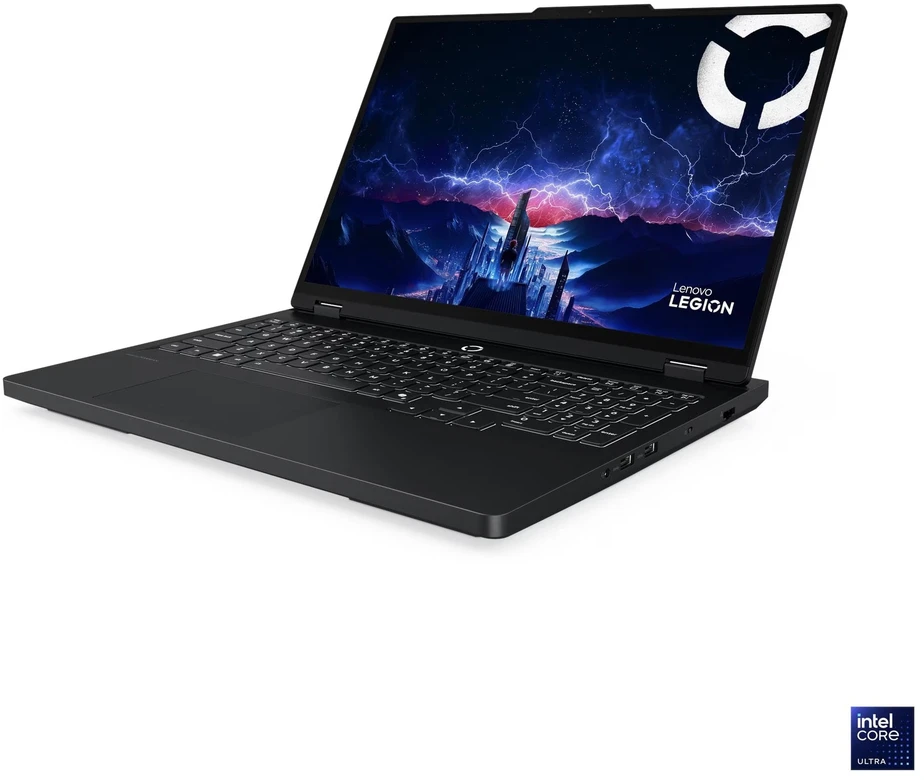

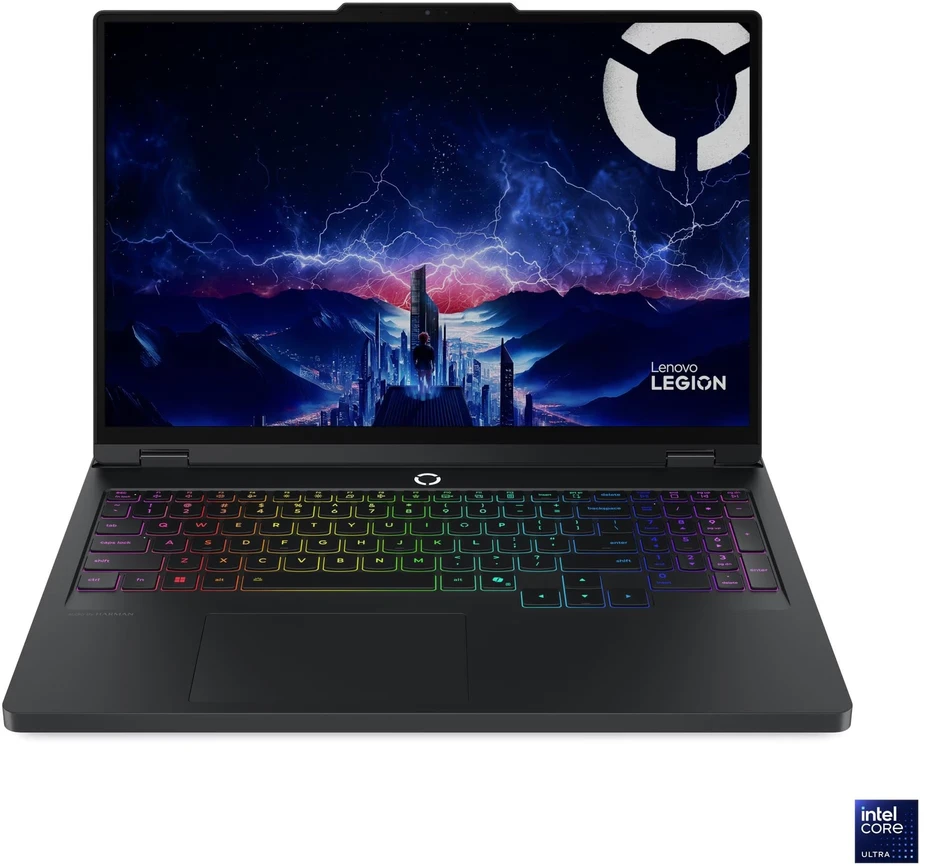

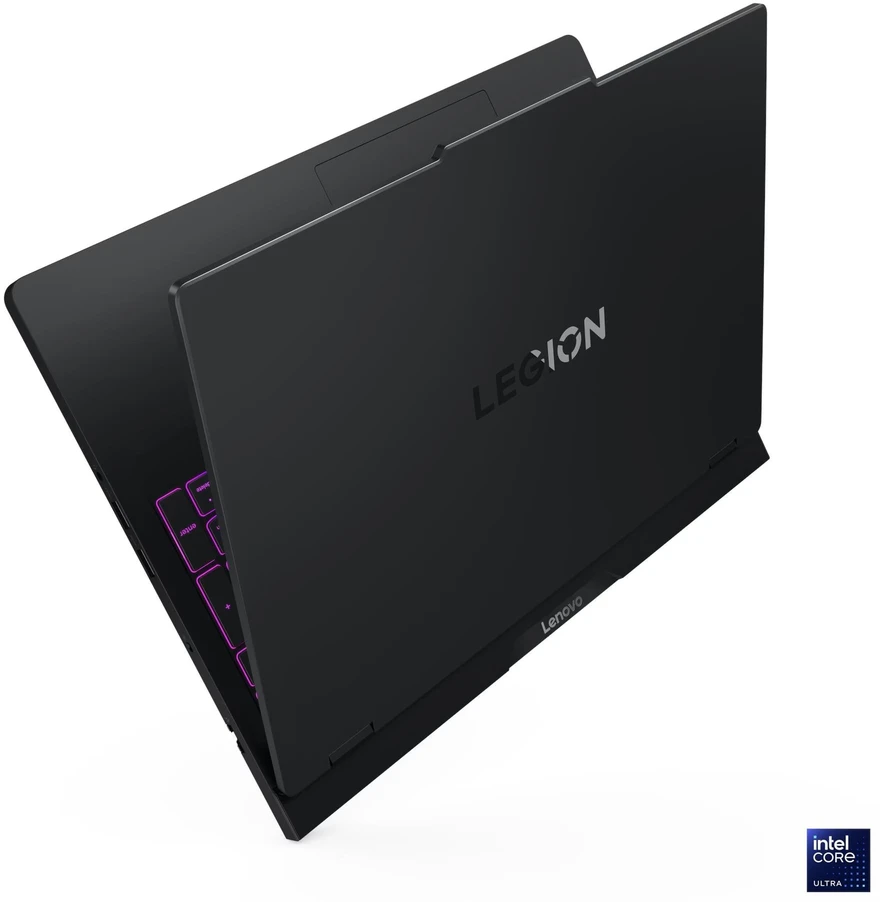

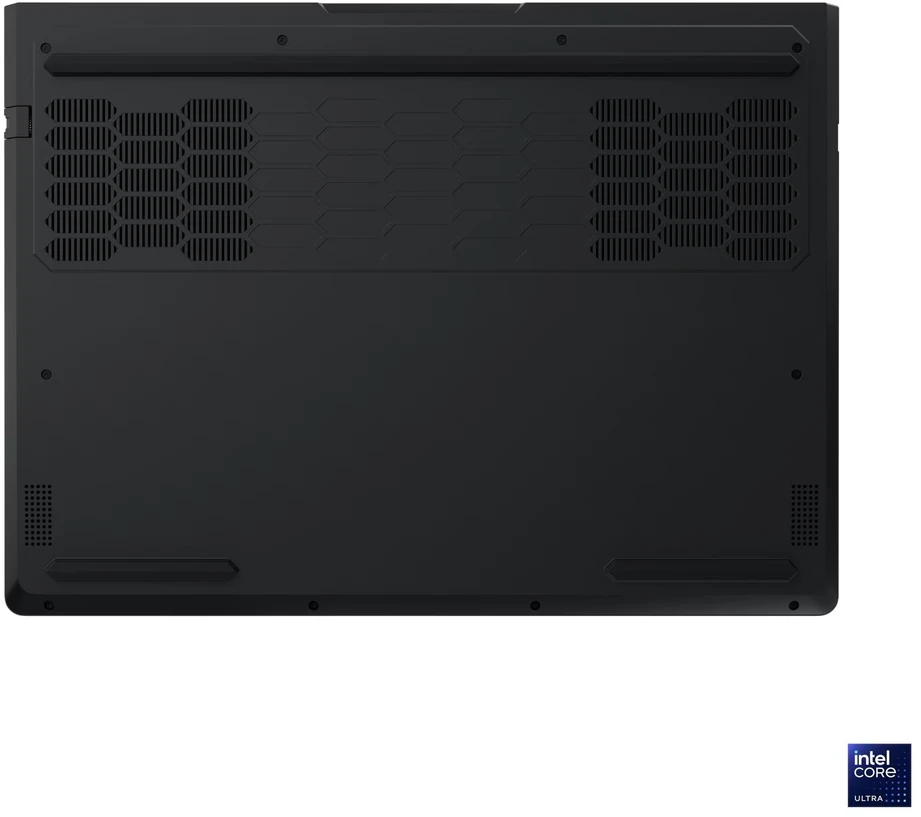

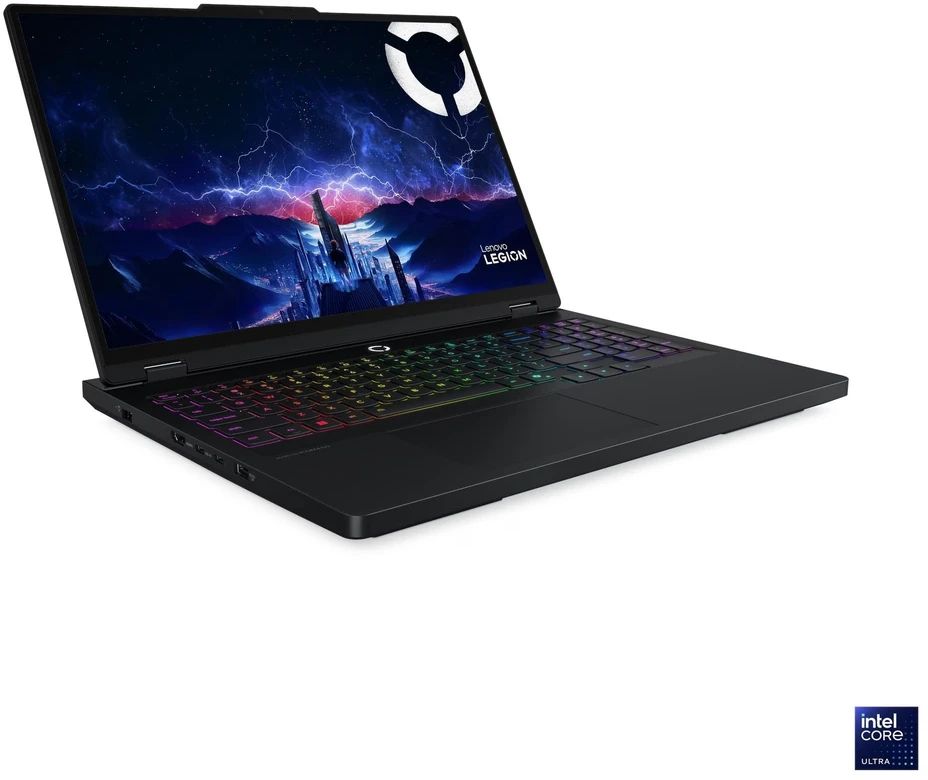

Legion Pro 5 16IAX10 (83F300B3CK)
Legion Pro 5 16IAX10 – laptop, 16" display
Intel Core Ultra 9 275HX processor, 32 GB RAM, 1 TB SSD
2560x1600 OLED display, weight starting at 2.43 kg
Operating system: Windows 11 Home
Processor: Intel Core Ultra 9 275HX (24 cores – 8P + 16E, 24 threads, P-core 2.7/5.4 GHz, E-core 2.1/4.6 GHz, 36 MB cache)
NPU: Integrated Intel AI Boost, up to 13 TOPS
Memory: 2x 16GB SODIMM DDR5-5600
Number of slots (total/available): Two DDR5 SODIMM slots, dual-channel capable
Maximum capacity: Up to 32GB DDR5-5600
Storage: 1TB SSD M.2 2280 PCIe 4.0x4 NVMe
Storage slots: Two M.2 2280 PCIe 4.0 x4 slots
Memory card reader: No card reader
Display: 16" WQXGA (2560x1600) OLED 500 nits (typical) / 1100 nits (peak) Glossy, 100% DCI-P3, 165 Hz, DisplayHDR True Black 1000, Dolby Vision, G-SYNC, Low Blue Light, High Gaming Performance, Flicker-Free
Graphics Card: NVIDIA GeForce RTX 5060 8GB
Audio: High Definition (HD) Audio, Realtek ALC3306 codec; Speakers: Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio; Microphone: 2x, Array
Webcam: 5.0MP with E-shutter
Pointing device: TouchPad
Backlit keyboard: yes
Numeric keypad: yes
Fingerprint reader: no
Stylus: no
Network: 100/1000M (RJ-45)
Wireless connectivity: Wi-Fi 7, 802.11be 2x2 + BT5.4
Ports:
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65–100W and DisplayPort 2.1
1x USB-C (Thunderbolt 4 / USB4 40Gbps), with DisplayPort 2.1
1x HDMI 2.1, up to 8K/60Hz
1x Headphone/microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Slim-tip power connector
TPM 2.0: Yes
Battery: 80Wh
Power: No power adapter included
Color: Eclipse Black (with 24-Zone RGB Backlit Keyboard)
Material: Aluminum (Top), PC-ABS (Bottom)
Dimensions: 364.38 x 268.06 x 21.69–25.95 mm (14.35 x 10.55 x 0.85–1.02 inches)
Weight: Approximately 2.43 kg (5.36 lbs)
