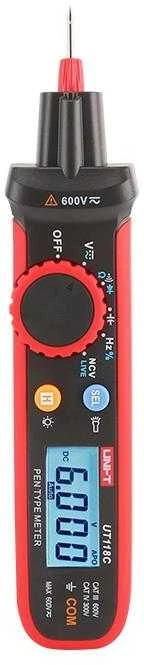

Uni-T UT118C Pen-Style Digital Multimeter

The Uni-T UT118C is a lightweight and durable pen-style multimeter that combines a compact design with accurate True RMS measurement. The device measures AC/DC voltage up to 600 V, resistance up to 60 MΩ, capacitance up to 60 mF, and frequency up to 999.9 kHz, making it ideal for home appliance repairs and hobby projects. An additional advantage is the gold-plated test leads with a special tip, which enhance comfort and safety during use.

Uni-T UT118C Pen-Style Digital Multimeter aprašymas - Prekės nuotrauka

Wide measurement range and user-friendly operation

The UT118C model features a 6000-count display and automatic range switching, which simplifies daily work and speeds up measurements. The device automatically detects diodes, continuity, and resistance, and also offers an NCV function and a LIVE phase wire test. It also features a flashlight, a backlit HTN LCD screen, duty cycle measurement, and a two-color indicator, which improve usability in various conditions.

Uni-T UT118C Pen-Style Digital Multimeter aprašymas - Prekės nuotrauka

Compact design and safe operation

The multimeter features a two-color injection-molded construction, which increases the durability of the housing. The two-step adjustment of the probe length allows for better adaptation of the device to the type of work being performed. The model complies with CAT III 600V and CAT IV 300V standards, and its single AAA battery power supply makes it a convenient tool for quick measurements at home and in the workshop.

Uni-T UT118C Pen-Style Digital Multimeter aprašymas - Prekės nuotrauka

Included

Digital multimeter
AAA battery x1
User manual

Specifications

Manufacturer	Uni-T
Model	UT118C
Type	Pen-style digital multimeter
DC voltage	6.000V / 60.00V / 600.0V ±(1%+3)
AC voltage	6.000V / 60.00V / 600.0V ±(1%+4)
Resistance	600.0Ω / 6,000kΩ / 60,00kΩ / 600,0kΩ ±(1%+3), 6,000MΩ ±(1.5%+5), 60,00MΩ ±(2.5%+5)
Capacitance	600.0 nF / 6,000 µF / 60.00 µF / 600.0 µF ±(3.5%+8), 6,000 mF ±(5.0%+9), 60.00 mF ±(10.0%+9)
Frequency	99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz ±(0.01%+5)
Maximum display reading	6000
Functions	automatic range switching, automatic LED, continuity, and resistance detection, NCV, LIVE test, LED and continuity test, flashlight, duty cycle measurement, dual-color indicator, True RMS, screen backlight, HTN LCD display
Duty cycle	0.1% to 99.9%
Display dimensions	36 mm x 15 mm
Probe length adjustment	Two-step
Safety category	CAT III 600V / CAT IV 300V
Power supply	1 x 1.5V AAA battery
Dimensions	182.5 mm x 38.0 mm x 38.5 mm
Color	Gray and red
Certifications	CE, cETLus, RoHS
