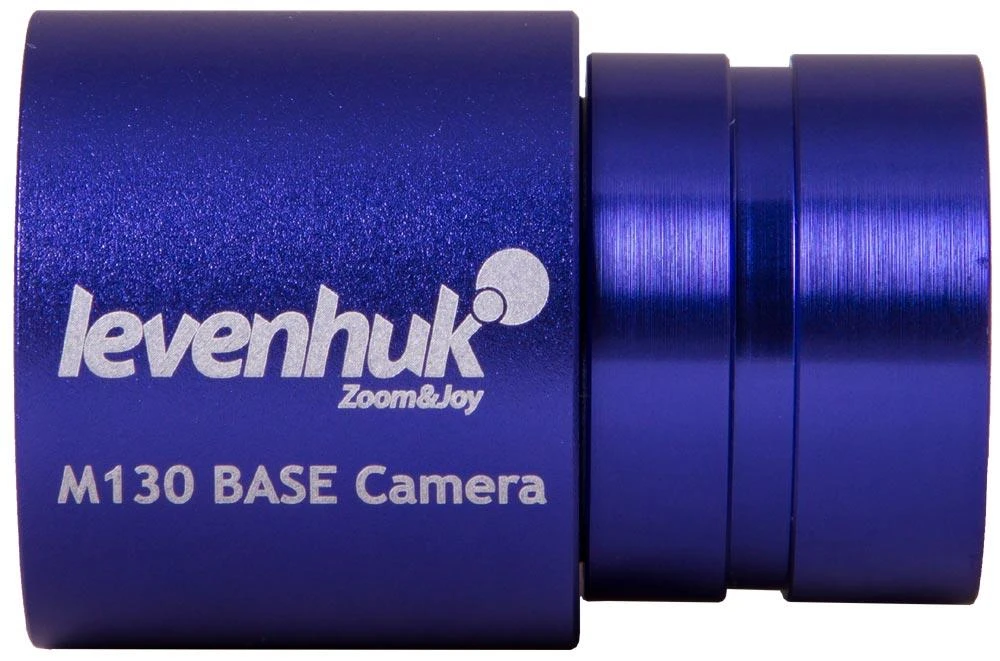

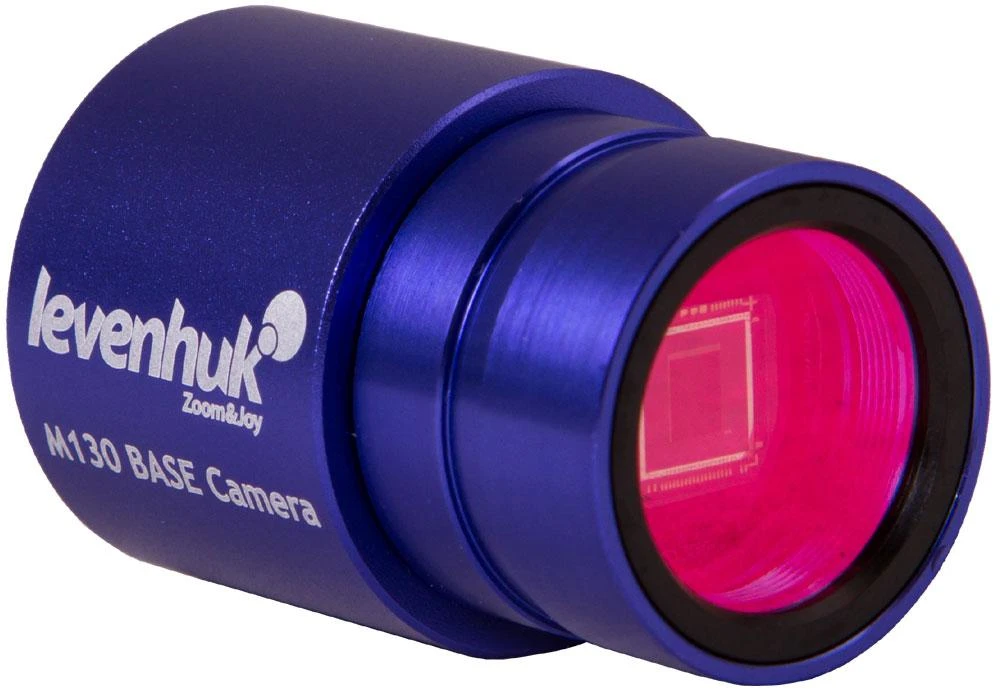

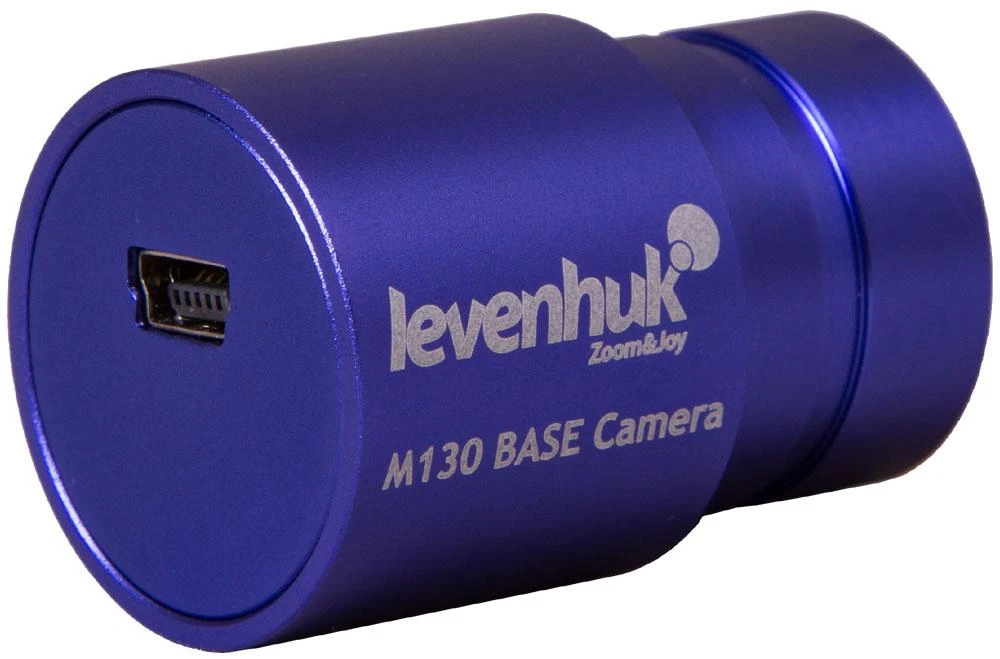

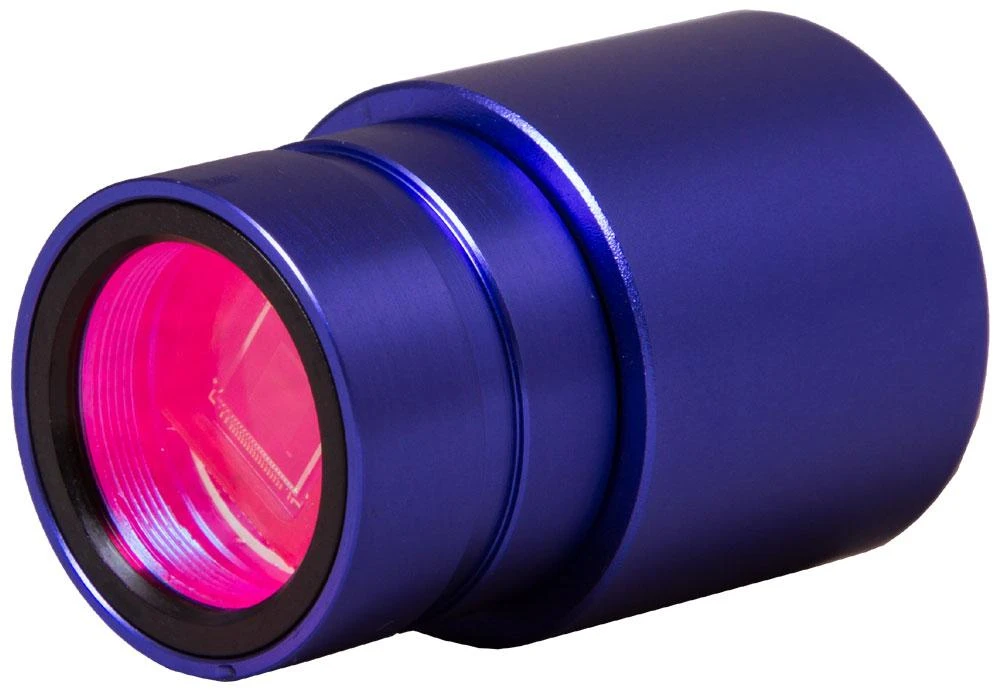

Levenhuk M130 BASE Digital Camera...

The Levenhuk M1300 BASE Digital Camera makes your microscope a modern digital device. With its help, you can save all of the interesting moments of your observations: make photos of the microscope samples or even record a video of the whole observing process. Levenhuk M1300 BASE camera is irreplaceable during lectures and presentations – you can display everything that is happening under the microscope objective on a big screen in real time.

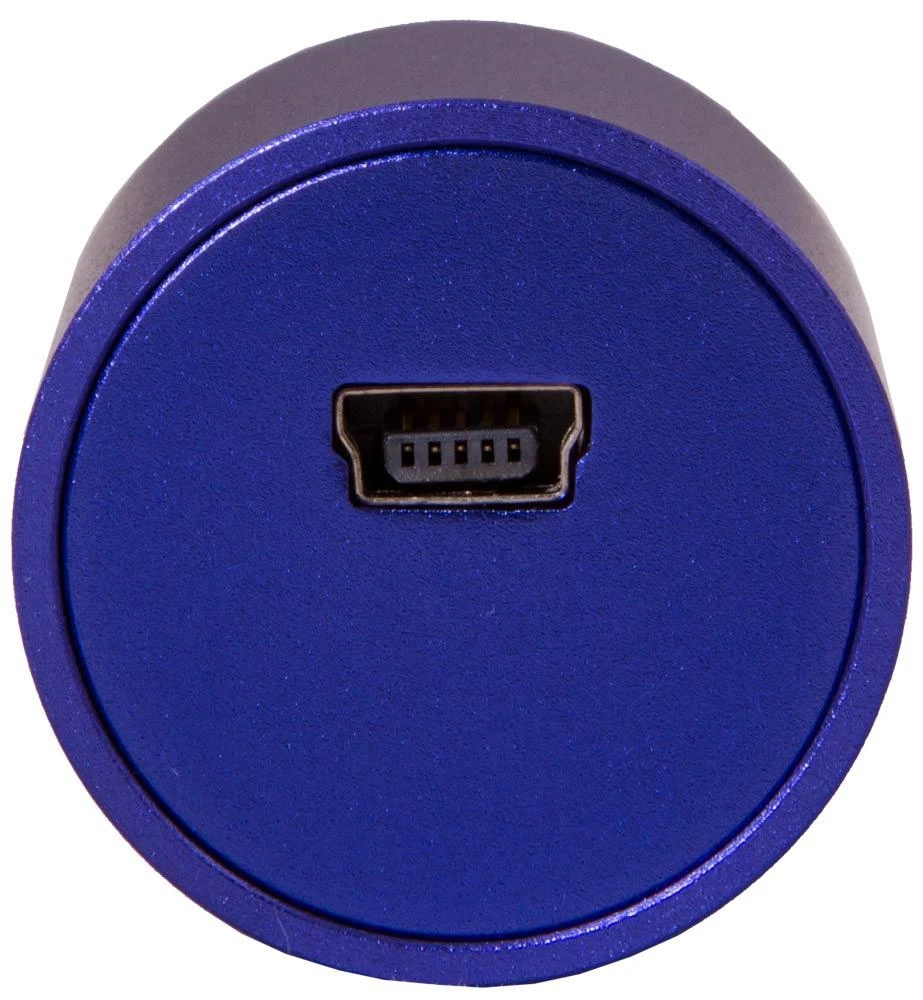

This camera can be used with biological and stereoscopic microscopes of any other brand that feature an eyepiece tube of 23.2mm diameter. Using an adapter (purchased separately), you can install the camera on microscopes of other diameters. The camera is installed in place of an eyepiece and is connected to a PC or laptop via USB cable. To use everything this camera has to offer, do not forget to install Levenhuk image processing software (CD is included in the kit).

To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac OS, Linux * , Windows XP, Windows Vista, and Windows 7/8/10. A USB 2.0 port is required to establish a connection.

The latest version of Levenhuk Software for Windows (release date: 11/20/2013) supports eight languages: English, French, German, Polish, Russian, Simplified Chinese,Traditional Chinese, Turkish.

Levenhuk Digital Camera is compatible with microscopes of 23.2-mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of other diameters using adapters (not included in the kit).

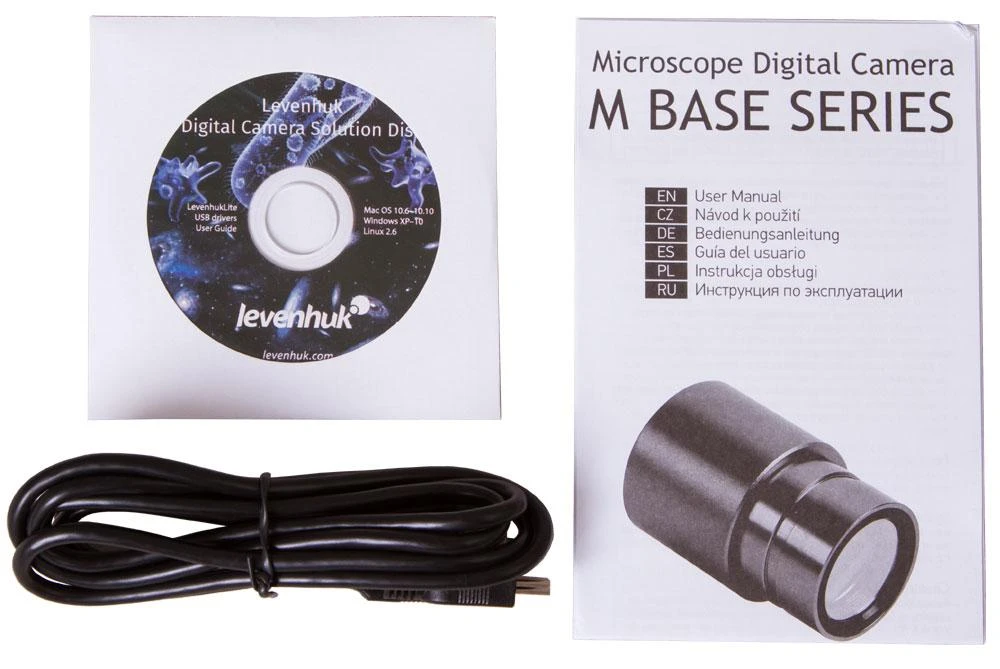

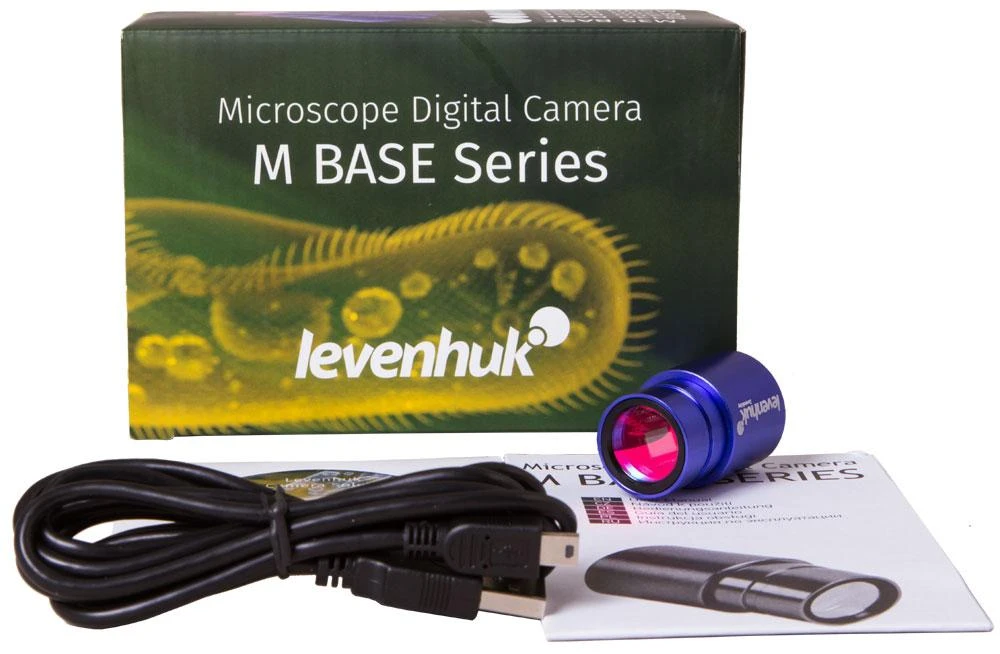

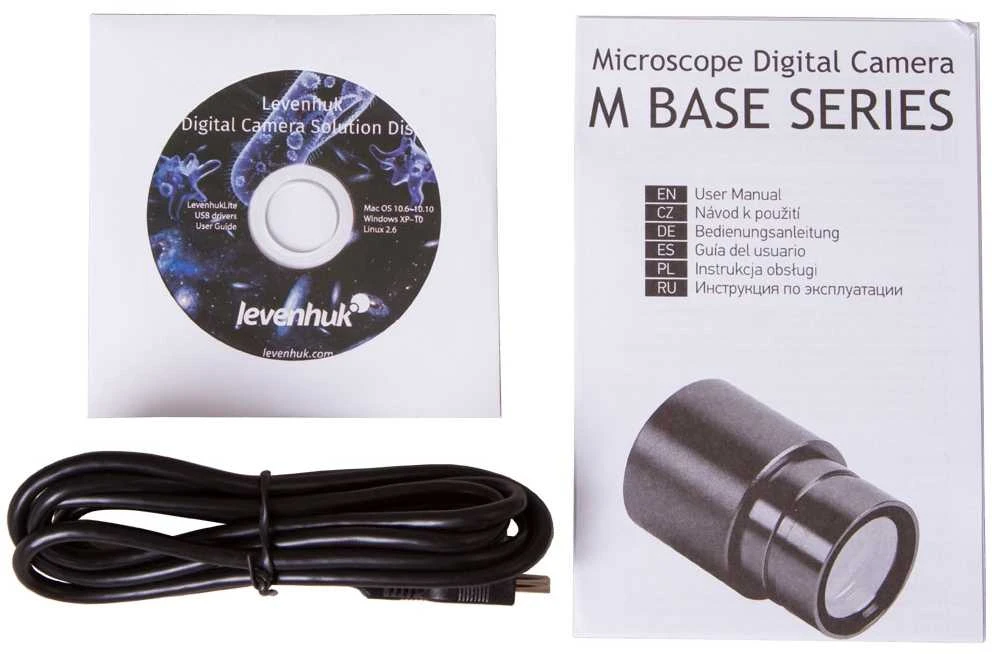

The kit includes:

Levenhuk microscope digital camera
USB cable for connection to PC or laptop and power supply
Installation CD with Levenhuk image editing software and the required drivers
User manual and lifetime warranty

Usermanual: Microscope Digital Camera M BASE Series (pdf)

LevenhukLite Software: Quick Start Guide (pdf)

LevenhukLite 4.11 software 2021-03 (zip)

Specifications
Maximum resolution	1280x1024
Megapixels	1.3

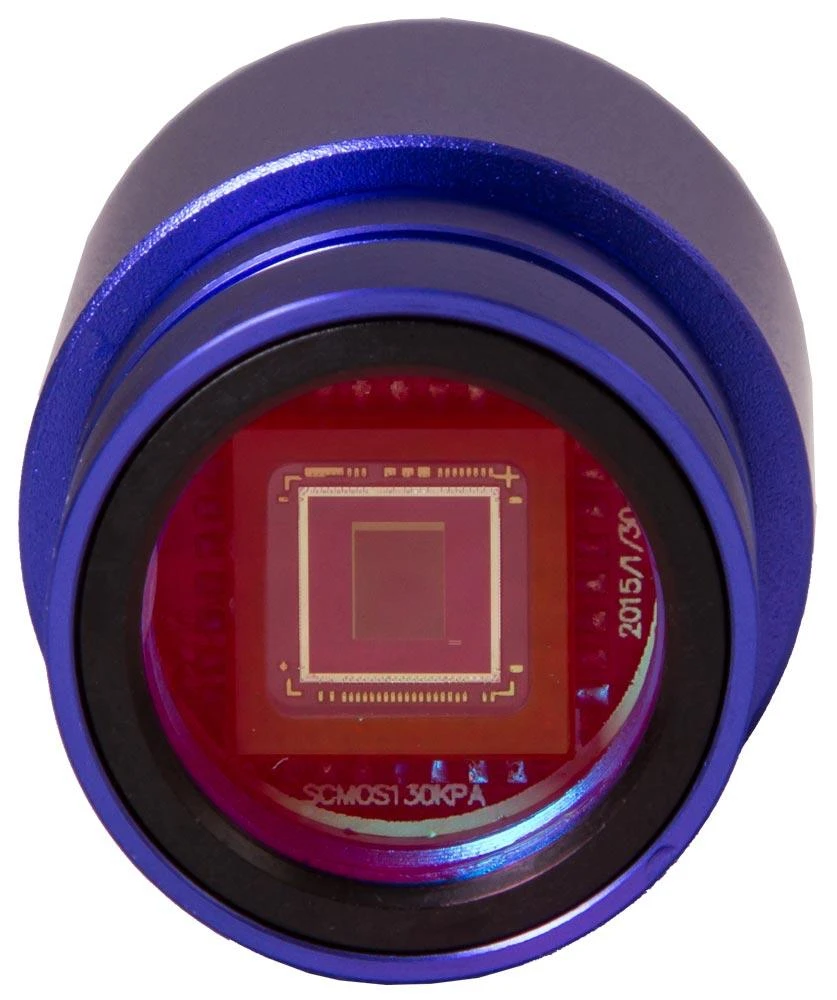

Sensor	1/3'' CMOS
Pixel size	3.6x3.6
Exposure time, ms	auto
Video recording	yes
Sensitivity, v / lux.sec @ 550 nm	7.5@1280x1024 12.5@1024x768 12.5@800x600
Application	eyepiece tube of 23.2mm diameter, instead of the actual eyepiece
Image format	.jpg, .bmp, .png, .tif
Video format	recording: .wmv, .avi, .h264 (Win 8 or later), h265 (Win 10 or later)
Spectral range	380–650 (built-in infrared filter)
Method of exposure	ERS (Electronic Rolling Shutter)
White balance	auto/manual
Exposure control	auto/manual
Software features	image size, brightness, exposure time
USB features	USB 2.0, 480 Mb/sec.
System requirements	Mac OS 10.12, Linux Ubuntu 14.04, Windows XP/Vista/7/8/10 (32bit or 64-bit),
System requirements	CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.
Software	Levenhuk
Casing	metal
Power supply	via USB 2.0 cable
Operating temperature range, °C, °F	-10... 50°C; 14… 122°F
