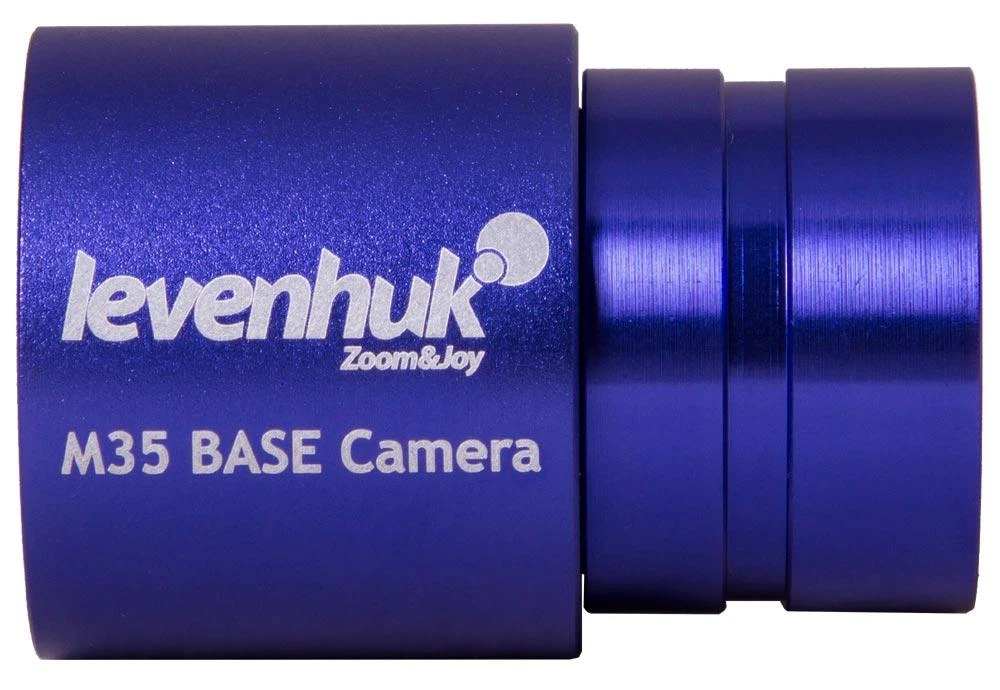

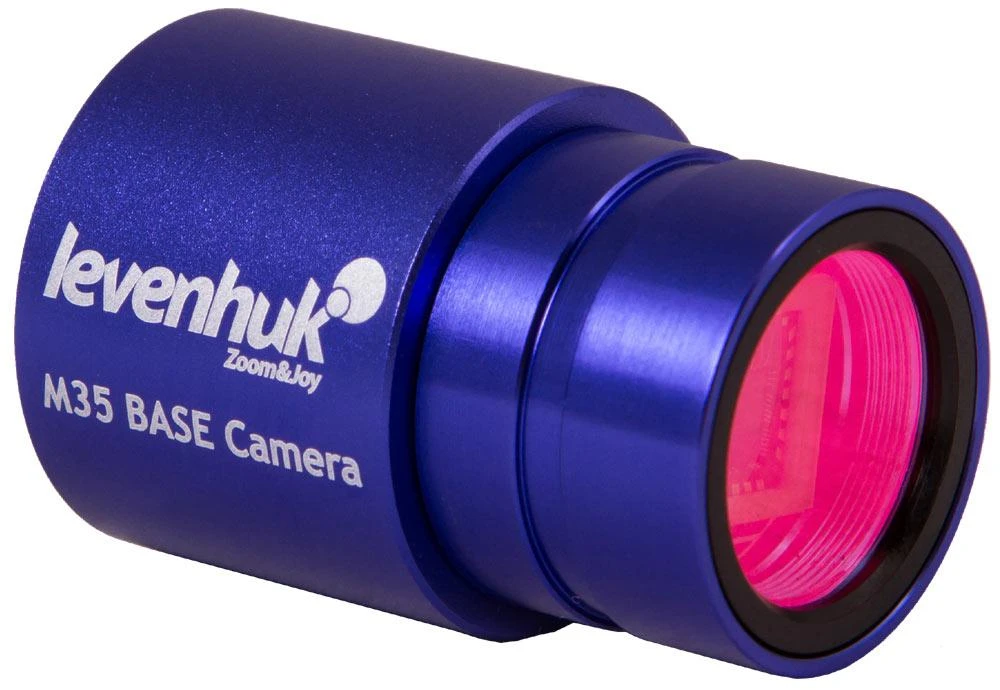

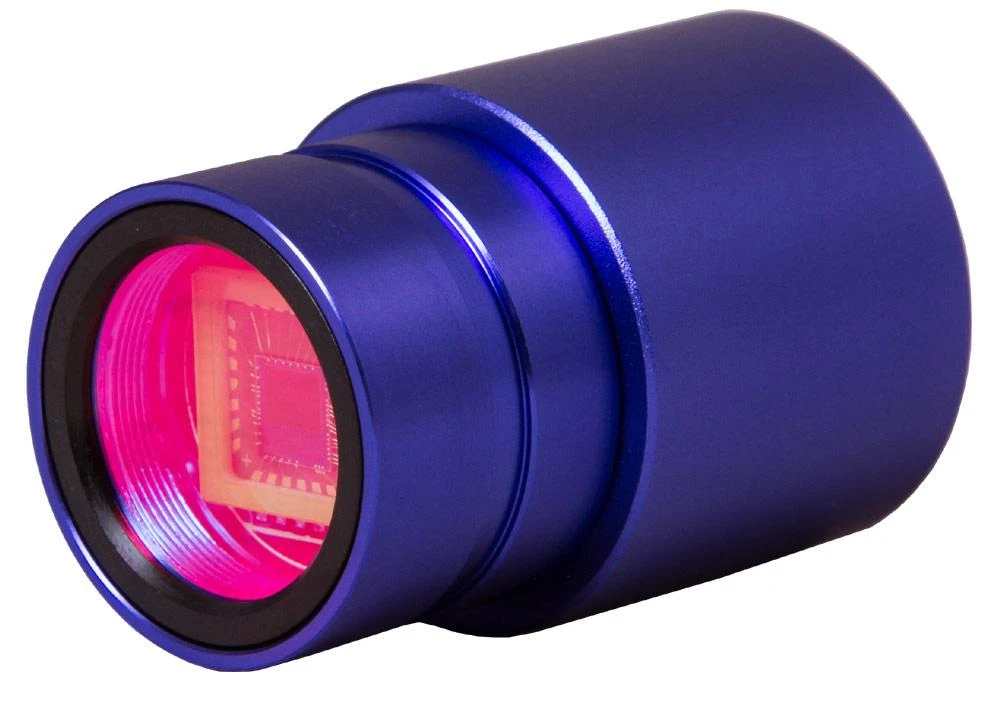

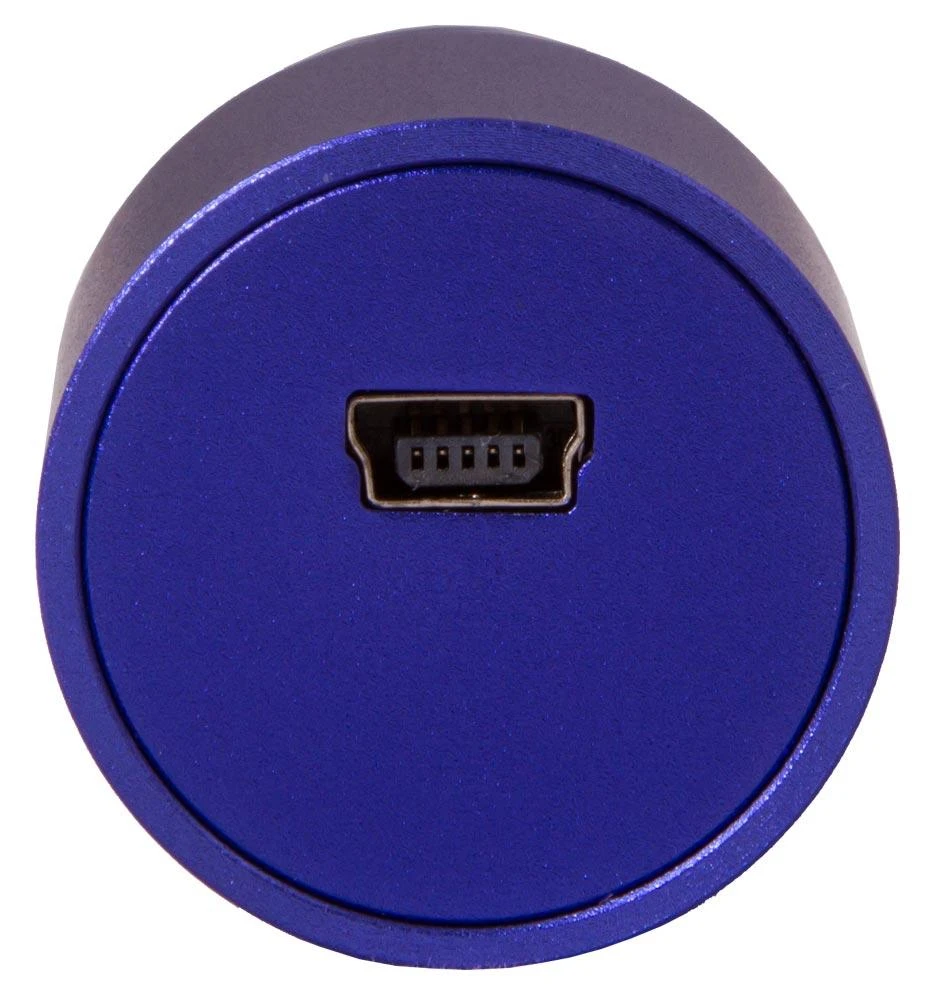

Levenhuk M35 BASE Digital Camera...

The Levenhuk M350 BASE Digital Camera is an entry-level model in the line of digital cameras for beginner biologists. Immediately after installing it, you can record all your research. The 0.3Mpx camera allows recording video with 640x480 resolution and 30fps. This camera is good for becoming familiar with microphotography, for live streaming of your studies, and for creating amateur photo and video archives of the observations.

To start recording, just connect the camera to your laptop or PC via USB cable. This camera does not need any additional power source and works out of the box. The camera is compatible with a 23.2mm diameter eyepiece tube, yet can also be used with microscopes of other sizes if you buy a special adapter.

It also gives you the opportunity to transfer the image (video) to your PC or notebook monitor in real time.

To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac OS, Linux * , Windows XP, Windows Vista, and Windows 7/8/10. A USB 2.0 port is required to establish a connection.

The latest version of Levenhuk Software for Windows (release date: 11/20/2013) supports eight languages: English, French, German, Polish, Russian, Simplified Chinese,Traditional Chinese, Turkish.

Levenhuk Digital Camera is compatible with microscopes of 23.2-mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of other diameters using adapters (not included in the kit).

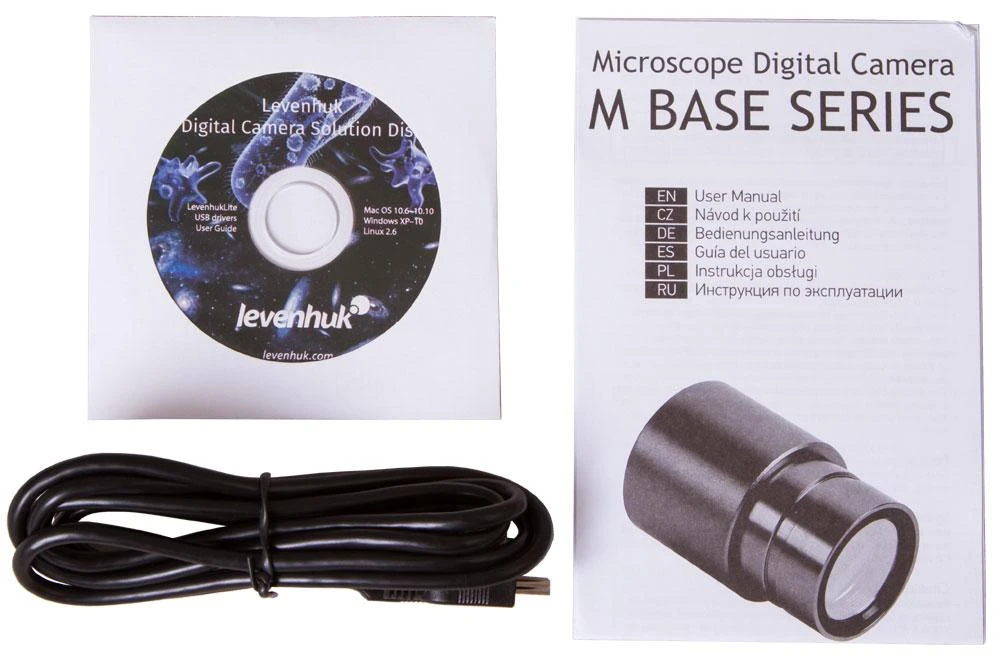

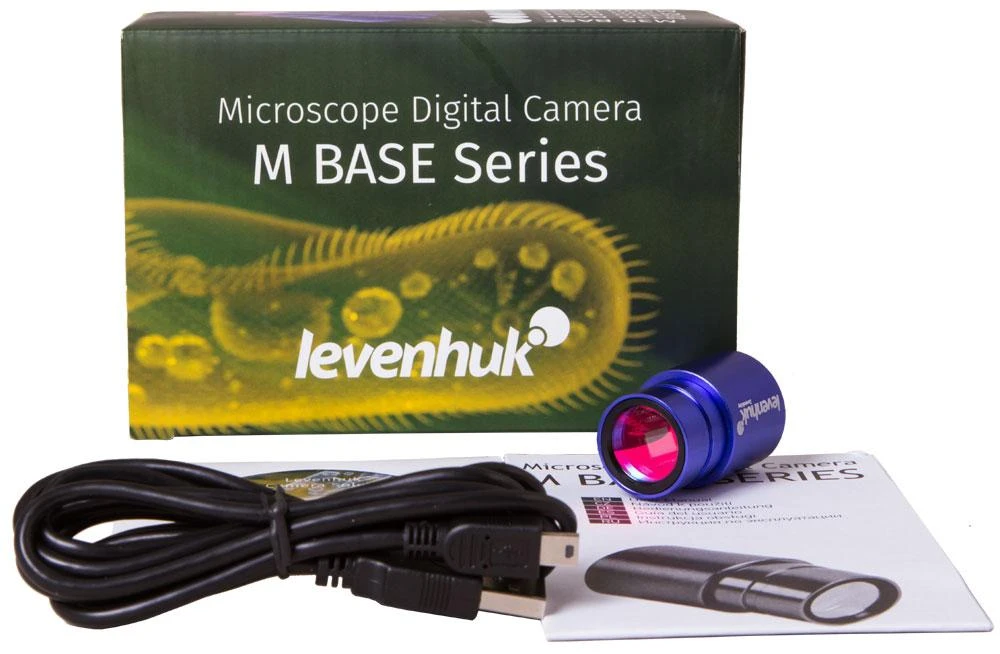

The kit includes:

Levenhuk microscope digital camera
USB cable for connection to PC or laptop and power supply
Installation CD with Levenhuk image editing software and the required driver

User manual: Microscope Digital Camera M BASE Series (pdf)

LevenhukLite Software: Quick Start Guide (pdf)

LevenhukLite 4.11 software 2021-03 (zip)

Specifications
Maximum resolution	640x480
Megapixels	0.3

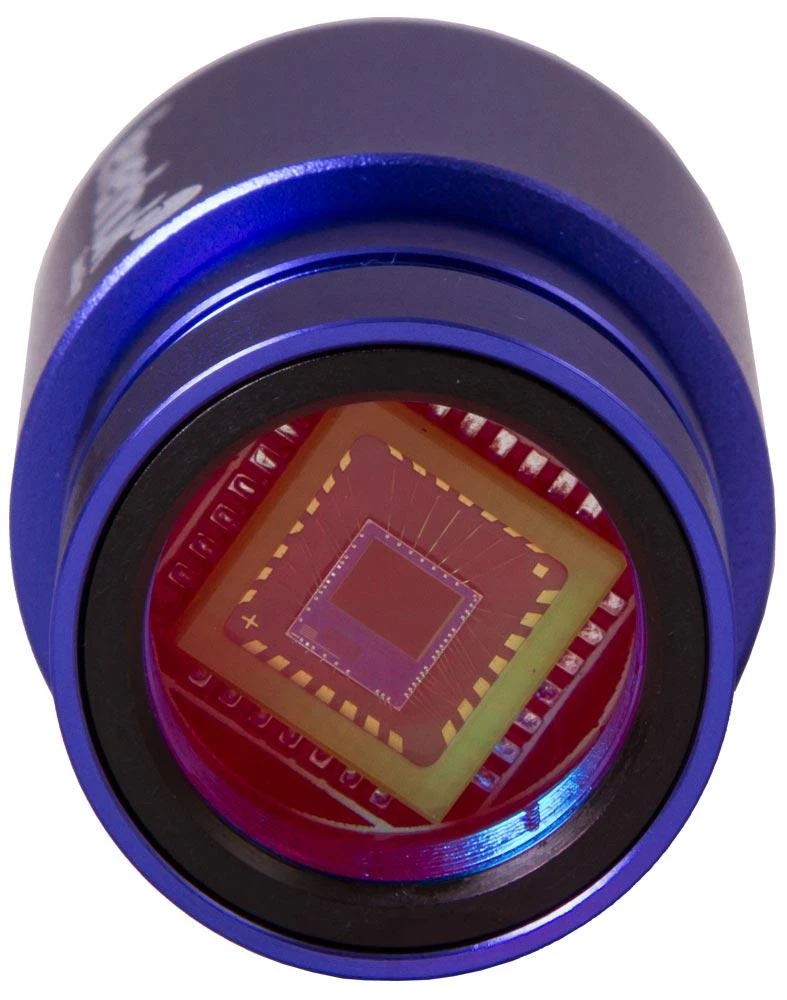

Sensor	1/4'' CMOS
Pixel size	5.6x5.6
Exposure time, ms	auto
Video recording	yes
Sensitivity, v / lux.sec @ 550 nm	30@640x480
Application	eyepiece tube of 23.2mm diameter, instead of the actual eyepiece
Image format	.jpg, .bmp, .png, .tif
Video format	recording: .wmv, .avi, .h264 (Win 8 or later), h265 (Win 10 or later)
Spectral range	380–650nm (built-in infrared filter)
Method of exposure	ERS (Electronic Rolling Shutter)
White balance	auto/manual
Exposure control	auto/manual
Software features	image size, brightness, exposure time
USB features	USB 2.0, 480 Mb/sec.
System requirements	Mac OS 10.12, Linux Ubuntu 14.04, Windows XP/Vista/7/8/10 (32bit or 64-bit),
System requirements	CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.
Software	Levenhuk
Casing	metal
Power supply	via USB 2.0 cable
Operating temperature range, °C, °F	-10... 50°C; 14… 122°F
