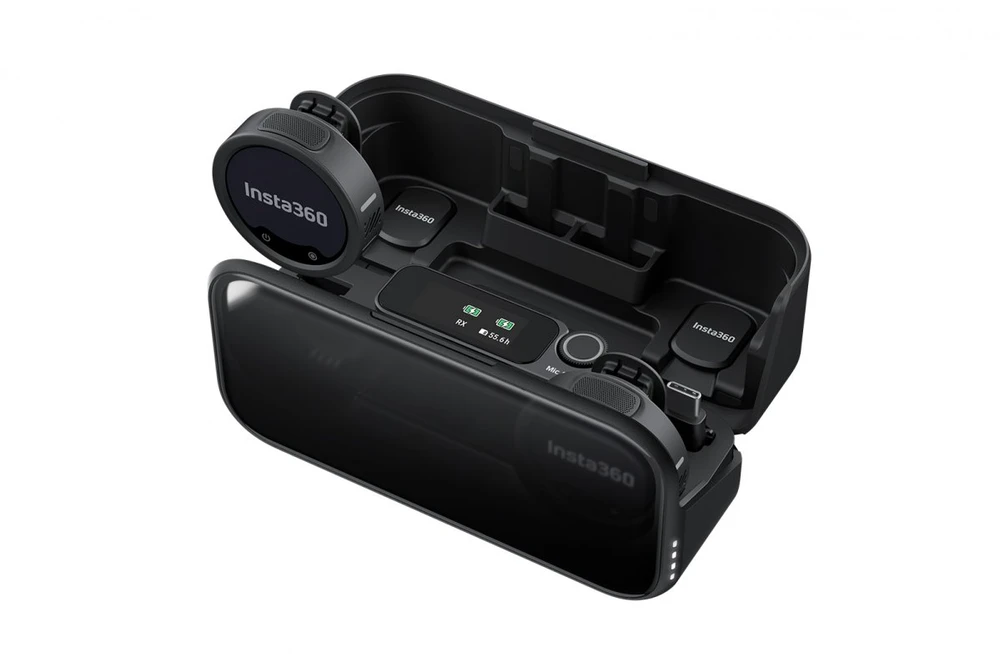

Insta360 Mic Pro (2 TX + 1 RX)

The Insta360 Mic Pro is a wireless microphone kit based on the principle of three built-in microphones, delivering professional sound quality with the ability to record internally with a wide dynamic range. Its intelligent algorithms enable directional sensing and optimally adapt to the current environment. Mic Pro automatically prevents sound oversaturation and controls gain. It is ideal for high-quality audio recording in video recording, streaming and podcast production. It offers clear sound, easy connectivity and reliable professional and casual operation.

Professional sound quality and directional capture modes
The Insta360 Mic Pro features three built-in microphones that provide professional sound quality. Intelligent algorithms enable directional sensing and adapt to any environment.

Two-level noise cancellation
The high-end NPU chip with high AI performance ensures the microphone records clear and natural sound in high quality.

Easy to connect
Without the need for an additional receiver, the Mic Pro pairs with Insta360 cameras (X5, Ace Pro 2, GO Ultra and more) and records high quality 48 kHz audio. It can pair with up to four cameras simultaneously, and the recorded, perfectly synchronized audio can then be easily edited.

Automatic gain control
Automatically adjusts the volume level based on the intensity of the voice. No manual tuning required, two modes are available for different environments.

32-bit internal recording
The microphone can record audio internally using its built-in memory, and its 32-bit internal floating-point recording captures a wide dynamic range and reduces the risk of unwanted audio clipping.

30-hour battery life
Despite powering so many advanced features, it offers up to 30 hours of operation when using the charging base.

E-Ink display
Allows you to brand the microphone with your brand by uploading your own image, logo or graphic via the Insta360 app.

Technical specifications
General
Directional characteristics: omnidirectional
Selectable pickup modes: omnidirectional/super-directional/ Cardioid/Figure-8
Frequency range: with low-pass filtering 20 Hz-20 kHz, without low-pass filtering 100 Hz-20 kHz
Microphone sensitivity: microphone capsule -38 ± 1 dBV @ 1 kHz, 94 dB SPL
Signal-to-noise ratio (SNR): 72 dB (A-weighted)
Maximum Sound Pressure Level (SPL): 130 dB SPL @ 10% THD
Sampling frequency: 48 kHz
Bit Depth: 32-bit floating/24-bit (32-bit floating applies to internal transmitter recordings only)
Maximum input level (3.5 mm): -8 dBV
Equivalent noise: 22 dB (A-weighted)
Monitoring interface output power: 20 mW maximum @ 1 kHz, 32 ?
Maximum transmission range: 400 m

Transmitter
Dimensions: 38 × 12.2 mm (diameter × height)
Weight: 19.7 g (without clip)
Display: 6-colour E-Ink display, size 1.22'', resolution: 240 × 208, PPI 197 (pixels per inch)
Wireless mode: GFSK 1 Mbps and 2 Mbps
Equivalent Isotropic Radiated Power (EIRP) 2.400-2.4835 GHz: ? 20 dBm (FCC/CE/SRRC/MIC)
Wireless Mode Operating Frequency: 2.400-2.4835 GHz
Bluetooth protocol: Bluetooth V5.4
Bluetooth operating frequency: 2.400-2.4835 GHz
Bluetooth transmitter power (EIRP): BLE: ? 20 dBm, BR/EDR: ? 20 dBm
Battery type: Li-ion
Battery capacity: 240 mAh, 0.94 Wh
Battery voltage: 3.89 V
Charging voltage: max. 5 V
Charging temperature: 0 °C to 45 °C
Operating temperature: -10 °C to 45 °C
Charging time: 100% approx. 1 h, 80% approx. 24 min (tested in a laboratory environment with a 5 V / 3 A charger)
5 minute fast charge: provides 1.5 hours of operation.
Operating time: 10 h
Built-in memory: 32 GB
Available 24-bit internal recording time (mono, internal): 60 h
Available 24-bit internal recording time (stereo, internal): 29.7 h
Available internal recording time 32 bit (mono, internal): 44.8 h
Available 32-bit internal recording time (stereo, internal): 22.2 h

Receiver
Dimensions: 55.80 × 27.65 × 21.00 mm (L × W × H)
Weight: 29.8 g
Wireless mode: GFSK 1 Mbps and 2 Mbps
Equivalent Isotropic Radiated Power (EIRP): 2.400 GHz-2.4835 GHz ? 20 dBm (FCC/CE/SRRC/MIC)
Operating frequency: 2.400 GHz-2.4835 GHz
Bluetooth protocol: Bluetooth V5.4
Bluetooth operating frequency: 2.400 GHz-2.4835 GHz
Bluetooth transmitter power (EIRP) BLE: ? 20 dBm
Battery type: Li-ion
Battery capacity: 410 mAh, 1.60 Wh
Battery voltage: 3.89 V
Charging voltage: 5 V max.
Charging temperature: 0 °C to 45 °C
Operating temperature: -10 °C to 45 °C
Charging time: 100% in approx. 75 min, 80% in approx. 27 min (tested in a laboratory environment with a 5 V/3 A charger)
5 minute fast charge: provides 1.5 hours of operation.
Operating time: 11 h

Charging base
Dimensions: 122.00 × 61.90 × 42.20 mm (L × W × H)
Weight: 174 g (charging case only, no accessories included)
Battery type: Li-ion
Battery capacity: 2815 mAh, 10,951 Wh
Battery voltage: 3.89 V
Charging voltage: max. 5 V
Charging temperature: 0 °C to 45 °C
Operating temperature: -10 °C to 45 °C
Operating time: 30 h
Charging time: approx. 2 h
Number of charging cycles for TX and RX: two transmitters and one receiver simultaneously charge a fully charged charging case to 100% approximately 2 times.

Package contents
1. 2x transmitter
2. Receiver 1x
3. Charging base 1x
4. Mobile phone adapter (USB-C) 1x
5. Magnetic grip 2x
6. Clasp 2x
7. Protective cover 2x
8. Case 1x
9. Audio cable 3.5 mm for camera 1x
10. USB-C cable 1x
11. Quick start guide 1x
12. Safety instructions 1x
13. Warranty card 1x
