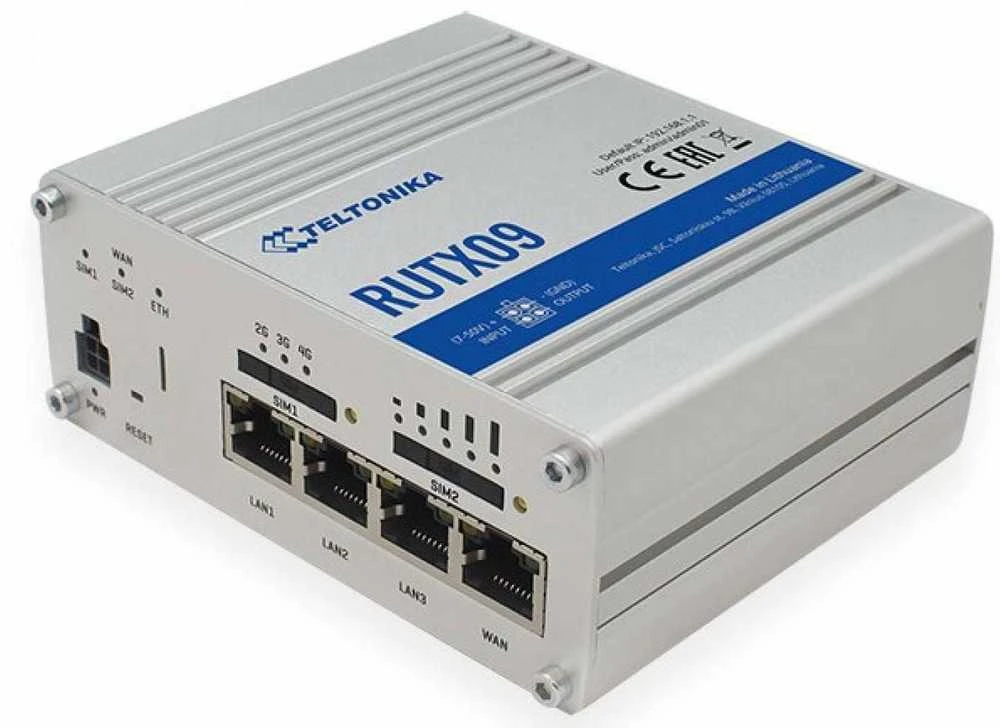

Name: TELTONIKA pramoninis maršrutizatorius LTE RUTX09
Brand: Teltonika
SKU: 39086815
Price: 360.85 EUR
Availability: InStock

4 x Gigabit Ethernet prievadai
Aliuminio korpuso
Bevielio ryšio greitis 300Mbps
GNSS

Mobilaus ryšio funkcijos
Mobilaus ryšio modulis	4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM keitimas	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Statusas	Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Baltasis/juodasis sąrašas	Operator black/white list
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Juostos valdymas	Band lock, Used band status display
APN	Auto APN
Tilto rėžimas	Direct connection (bridge) between mobile ISP and device on LAN
Etherneto funkcijos
WAN	1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Įvestis/išvestis
Įvestis	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Išvestis	1 x Digital Output, Open collector output, max output 30 V, 300 mA
Įvykiai	SMS, Email, RMS
Galia
Sujungimas	4 pin industrial DC power socket
Įvesties įtampos diapozonas	9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE	Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af, 802.3at and 802.3bt standards
Galios suvartojimas	9 W Max
Fizinė specifikacija
Korpuso medžiaga	Aluminium housing with DIN rail mounting option
Matmenys (W x H x D)	115 x 44.2 x 95.1 mm
Svoris	455 g
Montavimo funkcijos	DIN rail, flat surface placement
Aplinkos įtaka
Temperatūros įtaka	-40 C to 75 C
Atsparumas drėgmei	10 % to 90 % non-condensing
Apsauga	IP30
