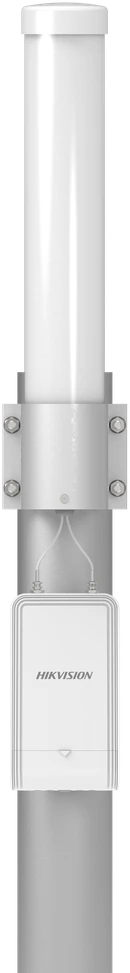

Maršrutizatorius Belaidis LAN perdavimas Hikvision DS-3WF0FA-5AC / O, žema kaina

Pagrindinis
Product Dimensions (W × H × D) 103.6 mm × 58.3 mm × 198.4 mm (4.1'' × 2.3'' × 7.8'')
Pakuotės Matmenys (P × A × G) 550 mm × 238 mm × 167 mm (21.6" × 9.3" × 6.5")
Svoris be įpakavimo 0.3 kg (0.66 lb)
Svoris su įpakavimo 3.5 kg (7.71 lb)
Pakuotėje Wireless Bridge × 1,Power Supply Adaptor × 1,Power Cord × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Binding Tape × 2,Antenna ×1
Packing Method Single unit packing
Darbinė temperatūra -30 °C to 60 °C (-22 °F to 140 °F)
Atsparumas drėgmei 5% to 95% (no condensation)
Sandėliavimo sąlygos temperatūra -40 °C to 80 °C (-40 °F to 176 °F)
Sandėliavimo sąlygos drėgmė 5% to 95% (no condensation)
Installation Mode Pole Mounting
Ingress Protection IP55
Energijos sunaudojimas 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W

Belaidžio ryšio parametrai
Max. Transmission Rate of Air Interface ≤ 867 Mbps
Belaidis standartas IEEE 802.11/a/n/ac
Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
Antenos stiprinimas 8 dBi
Antenna Angle (H) Beamwidth [3 dB] 360° (V) Beamwidth [3 dB] 8°
Perdavimo galia 14 dBm (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity -60±2 dBm@AC80-MCS9,-85±2dBm@AC80-MCS0
Throughput Rate Point to point: Support up to 32-ch IPC (2MP) in Max. 1 KM distance and Max. 160 Mbps bandwidth,Point to multi-point: Support up to 22-ch IPC (2MP) in Max. 1 KM distance and Max. 110 Mbps bandwidth within 360°, Max. 1 to 8 PTMP connection

Programinės įrangos funkcijos
Application Function TDMA,DFS,TPC,IFM,IPM
Kanalo plotis 20/40/80 MHz
Channel Selection Auto/manual selection
Protokolai NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
Security Mode WPA2-PSK
Security Mechanism Wireless network name hidden
Management Method Web,iVMS-4200,HCP
Upgrade Web,iVMS-4200,HCP
System Log Syslog,Control center information

Patvirtinimai
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Saugumas UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Cheminių komponentų sertifikavimas CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
