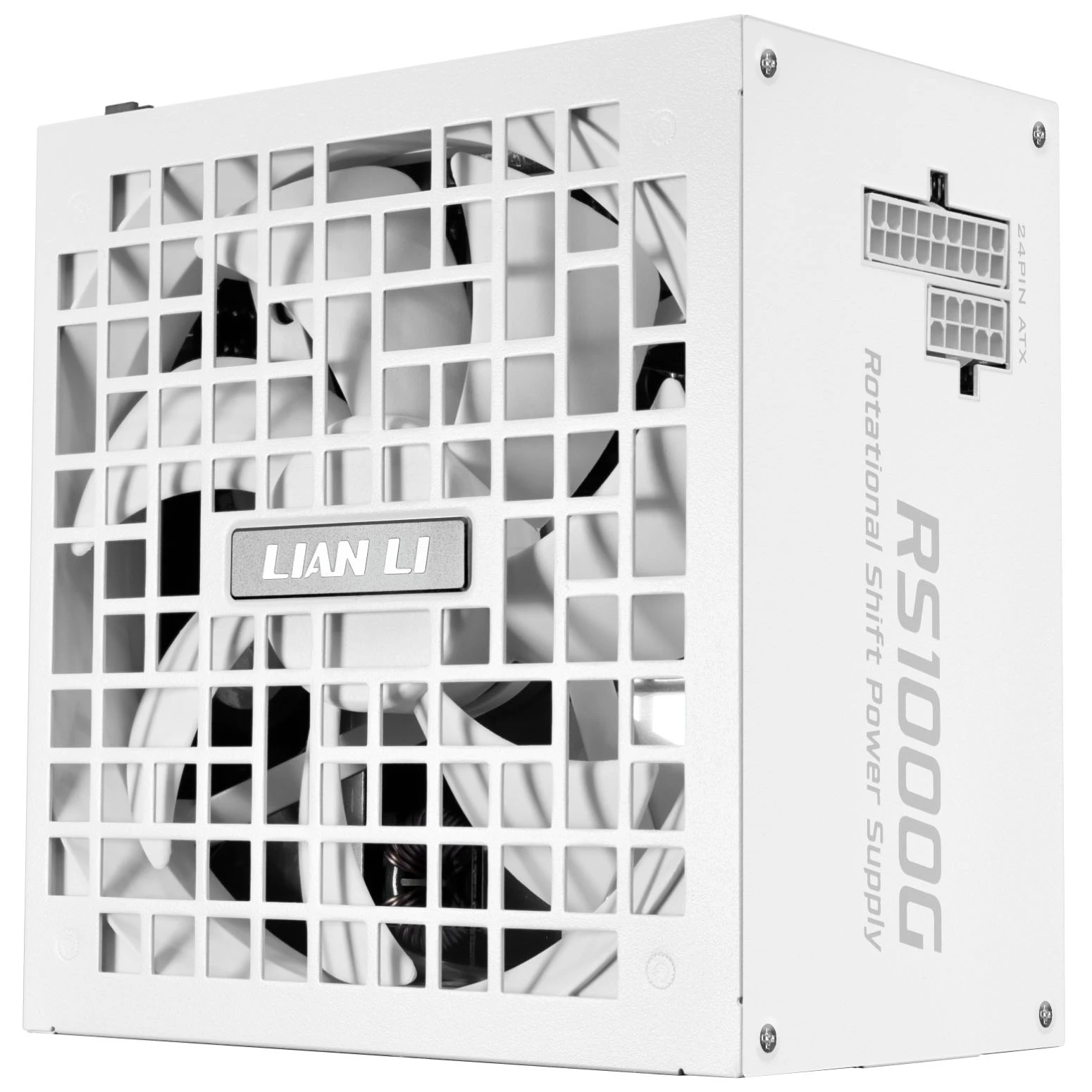

Lian Li RS Series 80 PLUS Gold Power...

Powerful 1,000-watt power supply, featuring a rotatable AC connector, 80 PLUS Gold efficiency, dual 24-pin connectors, and a quiet 135 mm fan

The Lian Li RS Series 1,000 W is a versatile power supply unit with well-thought-out features that noticeably simplify your PC build. Its special highlight is the rotatable power connector , allowing you to flexibly adjust the PSU’s orientation to your case. Thanks to the modular layout with two 24-pin motherboard outputs on both sides, you can route your cables particularly neatly and space-efficiently. Inside, high-quality components are used, including Japanese and EPCOS capacitors . This enables the PSU to achieve an efficiency of over 90% at half load and it has been certified with 80 PLUS Gold, PPLP Gold , and Cybenetics Gold .

Rotatable power connector: PSU can be installed in two directions
Powerful: Up to 1,000 watts output power
Highly efficient: Certified 80 PLUS Gold, PPLP Gold, and Cybenetics Gold
Modular design: Two 24-pin connectors on both sides
Current standard: ATX 3.1 compatible

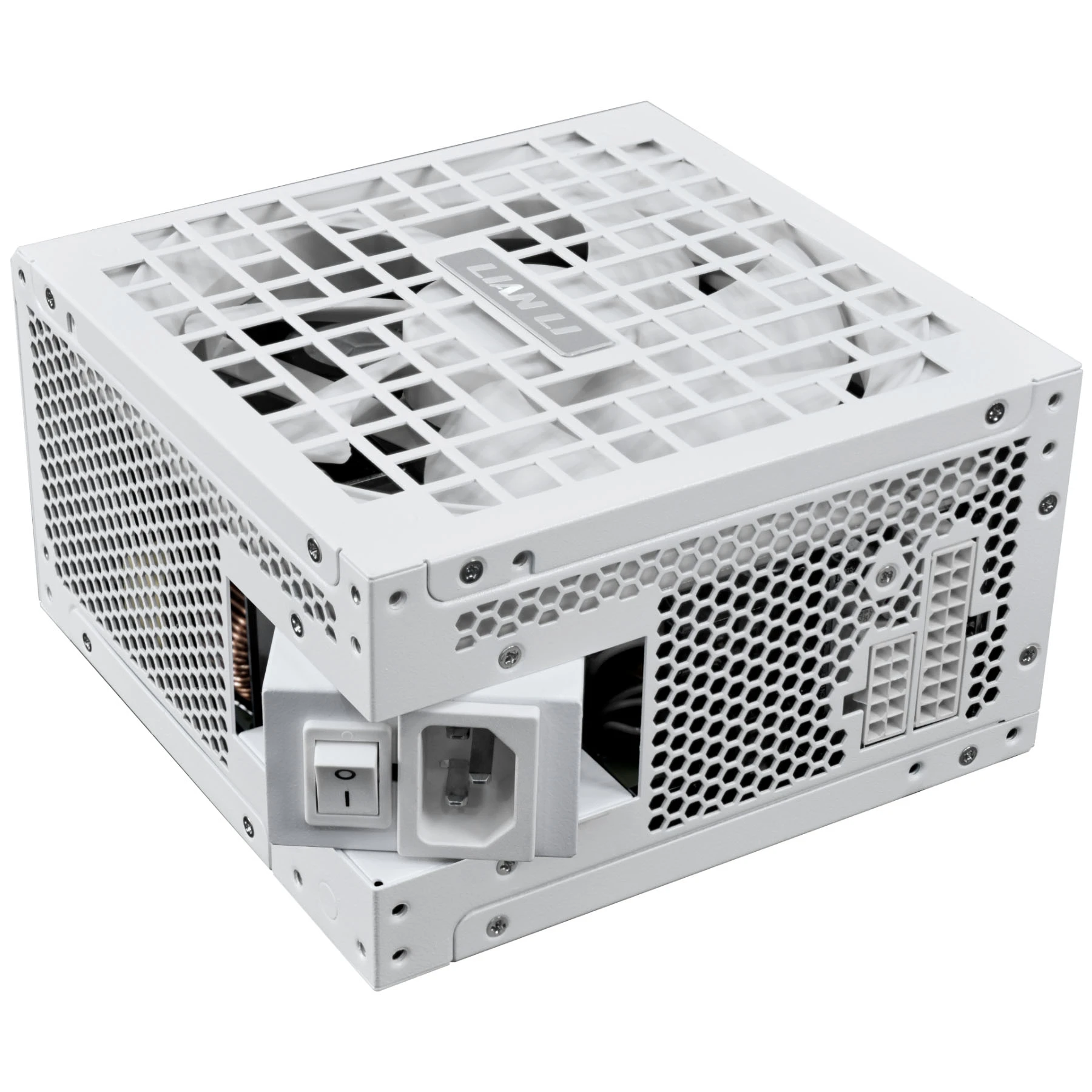

Rotatable power connector for flexible installation

The Lian Li RS Series 1,000 W relies on a clever concept: the AC connector can be rotated by 90 degrees . This allows you to optimally adapt the PSU to the layout of your case. When there is enough space, use the standard position; in tighter cases, choose the rotated version – this makes it easier to access all connectors and reduces cable clutter.

Perfect for efficient and flexible PC builds

Ideal for cases with limited space
For users who value high efficiency and clean cable management
Practical for gaming PCs with many USB devices

With the Lian Li RS Series 1,000 W , you make the right choice if you don’t want to compromise on performance despite limited space. The rotatable connector noticeably simplifies installation.

Modern, modular layout

The RS Series 1,000 W uses a well-designed, modular design . Instead of just one 24-pin output, you have two connector panels on opposite sides . This allows you to better adapt cable routing to your system and avoid bottlenecks inside the case. As an ATX 3.1 PSU, it is also equipped with a 12V 2x6-pin connector – ideal for current high-end graphics cards.

High efficiency and quiet operation

With high-quality Japanese and EPCOS capacitors , the PSU delivers stable power supply with over 90% efficiency. The 80 PLUS Gold certification confirms the energy-saving supply of your components. Cooling is provided by a 135 mm FDB fan that operates particularly quietly. Under low load, the fan switches off completely – for an almost silent operation in everyday use.

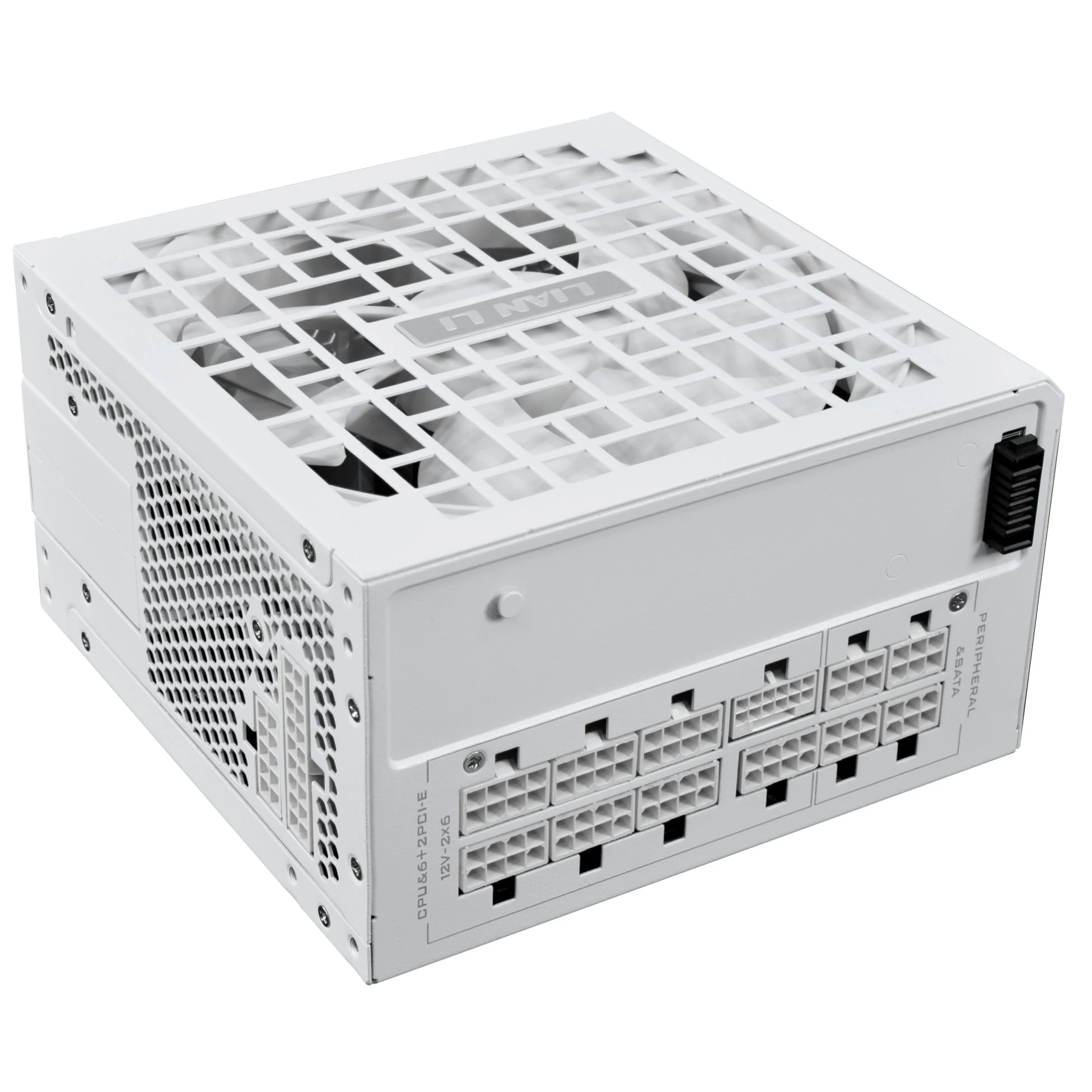

Flexible cable routing with double-sided 24-pin connector

The double-sided connector design allows you to route the 24-pin motherboard cable from either side of the PSU. This lets you optimally adapt cable management to your case and ensures a much tidier look inside your system. Note: Both connectors must not be used simultaneously!

Specification

Colour
Primary Colour	White
Dimensions
Length / Depth	150 mm
Width	86 mm
Height	150 mm
Fan Specifications
Fan Size	135 mm
Power Supply
PSU Format	ATX
ATX Standard	ATX 3.1
Modular Power Supply	Yes
Modular Type	fully modular
Protection Circuits	OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), UVP (Undervoltage Protection)
Power Specifications
Total Power Output	1000 W
Power Output +3.3V & +5V (combined)	100 W
Power Output +12V rails	1000 W
Cable Specifications
Max. CPU Power Cable Length	700 mm
Max. 24-Pin Motherboard Power Cable Length	620 mm
Max. 12V-2x6 Cable Length	650 mm
Max. PCIe Power Cable Length	750 mm
Max. SATA Power Cable Length	850 mm
Cooling
Semi Passive Power Supply	Yes
Internal Ports
CPU Power Connectors 12V ATX/EPS	2
CPU Power Supply	1x 4+4-Pin + 1x 8-Pin
12V-2x6 Power Connectors	1
6+2 Pin PCIe Power Connectors	4
SATA Power Connectors	12
External Ports
USB Hub	No
Efficiency Class
80PLUS Efficiency	80 PLUS Gold
Cybenetics Efficiency Level ETA (230V)	GOLD
PPLP Efficiency (230V)	Gold
Lighting
Lighting / RGB	No
