1. Kodėl šis maitinimo blokas tinka dvikamerėms kompiuterio korpusams?

Lian Li EDGE EG0850 yra specialiai sukurtas dvikamerėms sistemoms. Unikalus L formos dizainas leidžia vertikaliai sumontuoti bloką antroje kameroje, o jungtys nukreiptos į išorę. Tai labai palengvina laidų valdymą ir užtikrina švarų, tvarkingą surinkimą, ypač tokiuose korpusuose kaip Lian Li O11 serijos.

2. Kaip veikia integruotas vidinis USB centras?

Maitinimo bloke yra keturi papildomi 9 prievadų vidiniai USB jungtys. Šis vidinis USB skirstytuvas leidžia vienu metu prijungti iki keturių papildomų įrenginių, pvz., UNI-Fans ventiliatorių, Strimer-Plus kabelių ar RGB valdiklių. Prijungti įrenginiai gali veikti net kai kompiuteris išjungtas, jei maitinimo blokas įjungtas.

3. Ar šis 850W blokas palaiko naujausius PCIe 5.1 vaizdo plokštes?

Taip, šis maitinimo šaltinis yra suderinamas su PCIe 5.1 standartu. Jis aprūpintas specialiu 12V-2x6 jungtuvu, skirtu saugiam ir stabiliam naujausių vaizdo plokščių maitinimui. Šis patobulintas jungtis turi sumažintą kontaktinę varžą ir dviejų spalvų korpusą, kuris patikimai rodo, ar jungtis yra gerai sujungta.

4. Kokią aukštą efektyvumą užtikrina platinos sertifikatas?

Prietaisas turi tris aukščiausios klasės efektyvumo sertifikatus: 80 PLUS Platinum, Cybenetics Platinum ir PPLP Platinum. Esant 50% apkrovai ir 230 voltų įtampai, jo naudingumo koeficientas siekia 92.41%. Toks aukštas efektyvumas reiškia mažesnę energijos sąnaudą, mažesnę šilumos gamybą ir stabilesnę sistemos veikimą.

5. Kaip užtikrinamas tylus ir šaltas veikimas?

Dėl plieninio korpuso su dideliu grotelių langu, šiluma efektyviai išsklaidoma. Tai leidžia integruotam 120 mm ventiliatoriui suktis lėtai ir tyliai. Be to, naudojant aukštos kokybės EPCOS kondensatorius ir aktyvų PFC, maitinimo šaltinis veikia efektyviau ir generuoja mažiau šilumos, pailgindamas įrangos tarnavimo laiką.

Lian Li EDGE EG0850 80 PLUS Platinum...

High-performance ATX 3.1 power supply with 850 watts, L-shaped design for dual-chamber cases, integrated USB hub with four headers, highly efficient Platinum certification, fully modular cable management

L-shaped design simplifies cable management for dual-chamber cases
Integrated USB hub with four headers for additional USB devices
Excellent efficiency with Platinum certification
Steel housing with mesh panel and 120mm fan for quiet and cool operation
Secure power supply, thanks to PCIe-5.1 standard for graphics cards with 12VHPWR
Comprehensive protection circuits: OVP, UVP, SCP, OPP, OTP, and OCP
Fully modular cable management

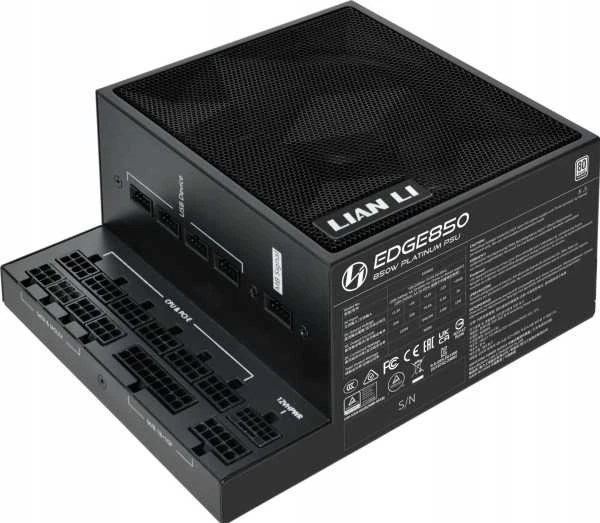

Revolutionary ATX-3.1 Power Supply: The Lian Li EDGE EG0850 for Dual-Chamber Cases

The EDGE Power Supplies from Lian Li set new standards in power supply design, combining high performance with ease of use . The unique L-shaped design and the integrated USB hub make these power supplies ideal for cases with a dual-chamber design, like the iconic Lian Li O11 series. Specifically designed for such PC cases, the EDGE PSUs are perfect for vertical installation in the second chamber. The design directs the connectors outward, making cable management easier and ensuring a clean, tidy build .

Two-in-One: Integrated USB Hub for UNI-Fans, Strimer-Plus Cables, and RGB Controllers

The Lian Li EDGE power supplies integrate four 9-pin internal USB expansion ports directly into the power supply. This significantly simplifies the connection of additional USB devices such as UNI-Fans, Strimer-Plus cables, and RGB controllers . The hub allows the simultaneous operation of up to four devices . Connected accessories remain functional even when the PC is turned off - provided the power supply is on. Each port provides a rated current of 500 mA. There are two ways to connect the USB hub: either via an internal USB header on the motherboard or alternatively with the included USB-A cable to the rear IO panel .

ATX 3.0 and 3.1 Compliant and Platinum Certified

The EDGE series fully complies with the ATX 3.0 / 3.1 standards , making it compatible with the latest components. Thanks to the 80 PLUS, Cybenetics, and PPLP Platinum certifications , the EDGE series offers excellent energy efficiency, reducing power consumption and heat generation while delivering reliable and stable performance.

Stable, Two-Coloured PCIe-5.1 Connector for Graphics Cards

Lian Li has developed its own 12V-2x6 connectors based on the PCIe-5.1 standard . These offer a safer and more efficient power supply compared to older 12VHPWR connectors. The design features soldered connections for improved power stability and a gold alloy to prevent short circuits. The connectors also have a two-coloured housing to ensure the plug is securely seated. With an increased material thickness of 0.25 mm, they achieve lower contact resistance. The connectors maintain a contact resistance of under 1.5 mΩ after 50 mating cycles. Compared to common connectors, which range between 2 and 3 mΩ, this is a significant improvement . This noticeably enhances the performance and long-term reliability of the connectors.

Industrial-Grade Capacitors

The Lian Li EDGE power supplies use high-quality EPCOS capacitors from Germany . These are compact and particularly robust, meaning they are better protected against high temperatures and harsh environments. Thanks to the LLC topology and active PFC (Power Factor Correction), the EDGE power supply operates more efficiently, generates less heat, and delivers a cleaner and more reliable power supply . This means for you: less heat, longer lifespan, and more stable performance for your hardware!

Cool and Quiet, Thanks to Mesh Panel and Powerful 120mm Fan

The power supply's steel housing features a large mesh panel on one side. This open design helps efficiently dissipate generated heat. As a result, the integrated 120mm fan runs at a low speed, ensuring quiet operation while maintaining cool operating temperatures.

Braided Cables for a Neat Look

The power supply comes with high-quality braided cables. The easily adjustable cable combs make cable management significantly easier, giving your dual-chamber build an aesthetic and organised look. This not only improves the appearance but also facilitates maintenance and optimises airflow for better cooling. The braided SATA power cables offer you flexible options when building your gaming PC. The Y-splitter cable enables a flexible and tidy connection of drives and controllers. A second 300mm SATA cable with a 15mm spacing between the connectors allows easy connection of multiple devices while ensuring clean and neat cabling.

Note: Only use the supplied cables. Using other, incompatible internal power supply cables can cause damage not covered by the manufacturer's warranty.

Specification

Dimensions: 150 x 86 x 182 mm (W x H x D)
Material: Steel
Colour: Black
Fan: 120 mm PWM (FDB / max. 25.96 db(A) at 2,000 RPM)
Standard: ATX 3.0 / 3.1
Efficiency: 92.41% at 50% load and 230 volts input voltage (80 PLUS Platinum / Cybenetics Platinum / PPLP Platinum)
Form Factor: ATX
Power: 850 W +3.3V: 20 A / 66 W +5V: 20 A / 100 W +3.3V & +5V: 120 W (combined) +12V: 70.8 A / 849.6 W (combined) -12V: 0.3 A / 3.6 W +5Vsb: 3 A / 15 W
Connections (modular): 1x 20+4-Pin (500 mm) 1x 4+4-Pin (550 mm) 1x 8-Pin (550 mm) 3x 8- / 6+2-Pin PCIe (550 mm) 1x 12V-2x6 (550 mm) 1x 4x SATA (50 mm - 150 mm - 150 mm - 150 mm) 1x 4x SATA (255 mm - 15 mm - 15 mm - 15 mm) 1x 4x SATA, Y-Splitter (275 mm - 125 mm) 4x 4-Pin Molex (50 mm - 150 mm - 150 mm - 150 mm) 1x USB 9-Pin to USB 9-Pin (350 mm) 1x USB 9-Pin to Type A (550 mm)
Protection Circuits: OVP (Over and Under Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OPP (Overload Protection) OTP (Over Temperature Protection) OCP (Over Current Protection)

Colour
Primary Colour	Black
Dimensions
Length / Depth	182 mm
Width	150 mm
Height	86 mm
Fan Specifications
Fan Size	120 mm
Power Supply
PSU Format	ATX
ATX Standard	ATX 3.1
12V Distribution	single rail
Modular Power Supply	Yes
Modular Type	fully modular
Protection Circuits	No-Load Protection, OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), UVP (Undervoltage Protection)
Power Specifications
Total Power Output	850 W
Power Output +12V rails	849.6 W
Cable Specifications
Max. CPU Power Cable Length	550 mm
Max. 24-Pin Motherboard Power Cable Length	500 mm
Max. PCIe Power Cable Length	550 mm
Cooling
Semi Passive Power Supply	Yes
Internal Ports
CPU Power Connectors 12V ATX/EPS	2
CPU Power Supply	1x 4+4-Pin + 1x 8-Pin
12VHPWR PCIe Power Connectors	1
6+2 Pin PCIe Power Connectors	3
SATA Power Connectors	12
4 Pin Molex Power Connectors	4
External Ports
USB Hub	Yes
Efficiency Class
80PLUS Efficiency	80 PLUS Platinum
Cybenetics Efficiency Level ETA (230V)	PLATINUM
Materials
Materials	Stainless steel
Lighting
Lighting / RGB	No
Product Series
Product Series/Family	EDGE
