Spring WIFI remote light controller, two lines

Smart control

The remote control is a smart and convenient device that allows you to control your home lighting and other electrical appliances by phone, internet even when you are not at home.

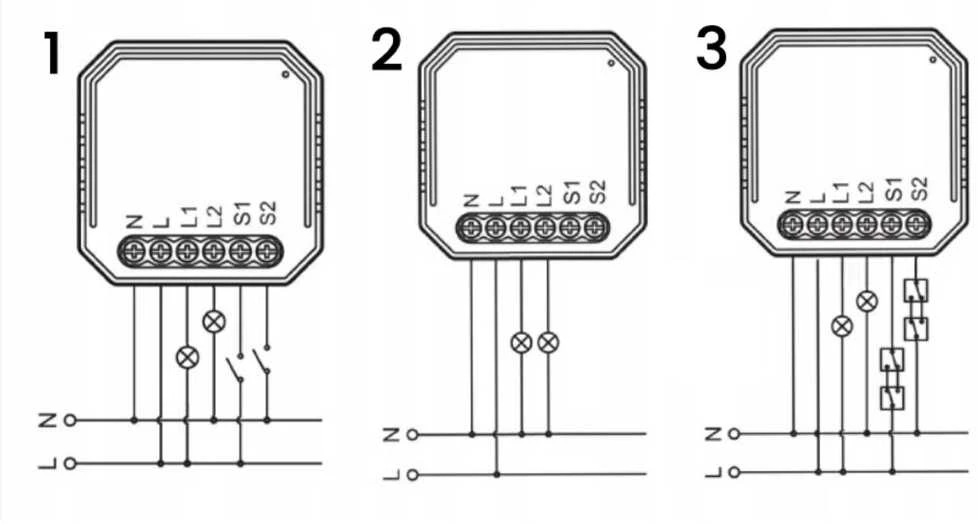

Installation

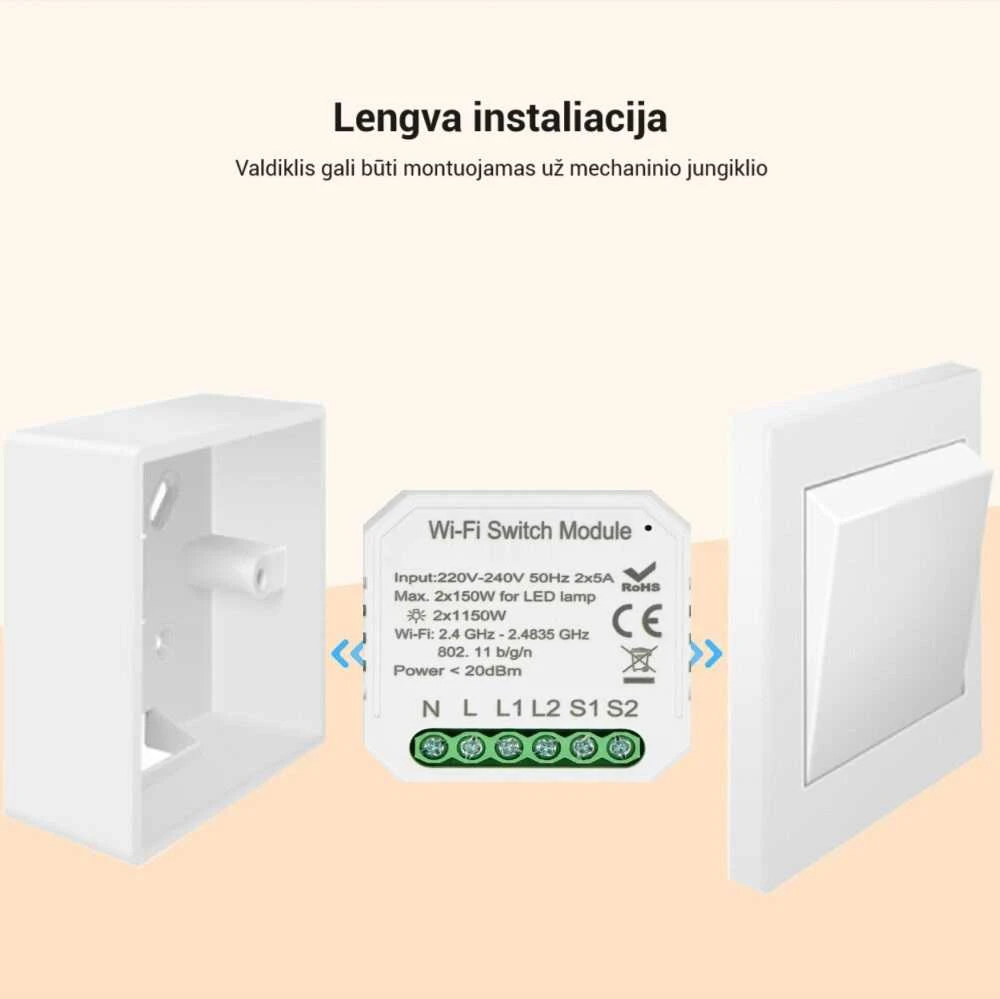

The controller can be installed together with conventional mechanical switches and installed in a standard electrical installation box.

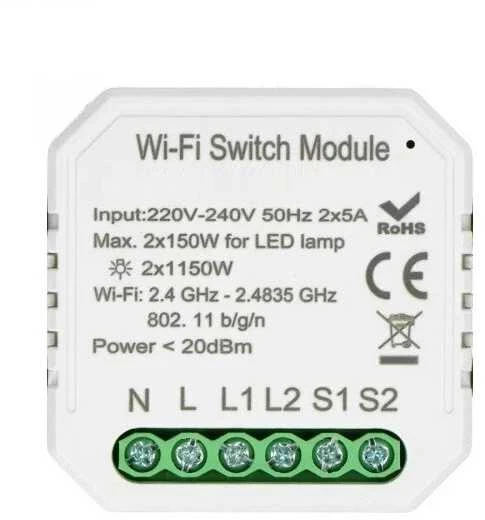

Technical information

Nominal operating voltage: 110V – 240V AC
Maximum current: 10A
Maximum load for lighting control: 2x1150W, LED lamps 2x150W
Working environment from: -20 to 70 C
Size: 42x20x42mm

Phone control

Controller binding with the app:

1) The app used is “Smart life – Smart Living”.

2) Adding a device: Press the button on the controller and hold it down for 5 seconds until the blue light starts flashing.

3) Go to the “Smart life -Smart Living” app, press “+”, then select “Breaker (Wi – Fi)”.

4) Press “confirm” and enter the WIFI connection data.
