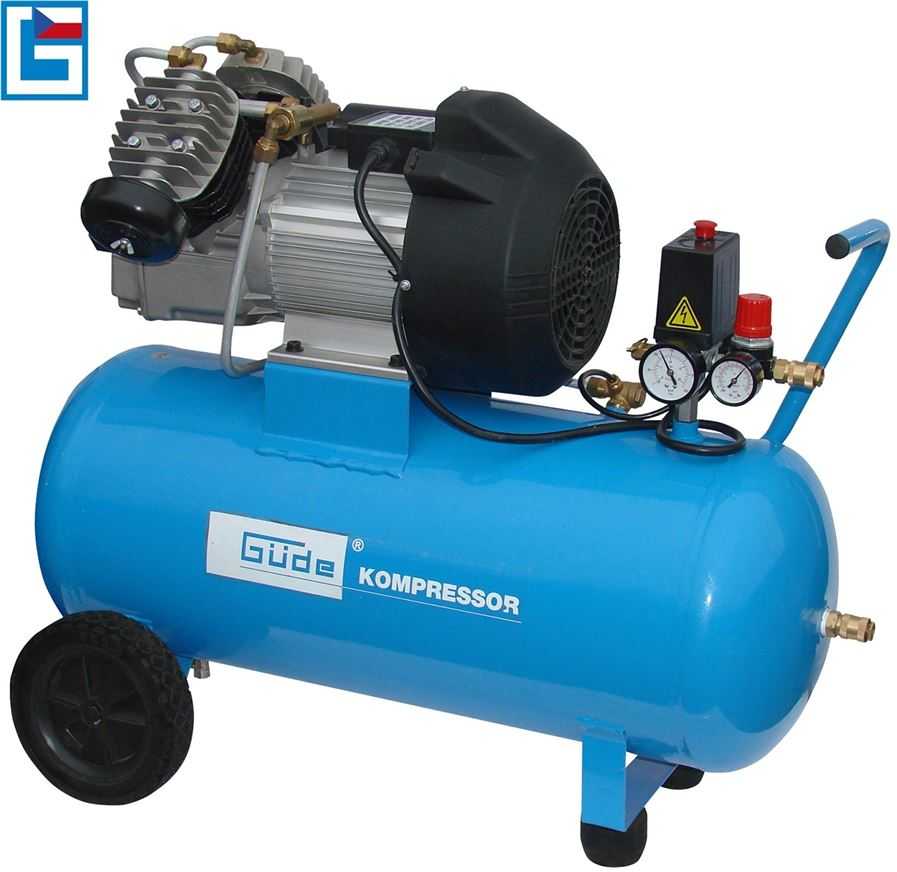

Güde Compressor 400/10/50 N

Reliable compressor, designed for DIY and craftsmen (-> fifth design version of the traditional model).

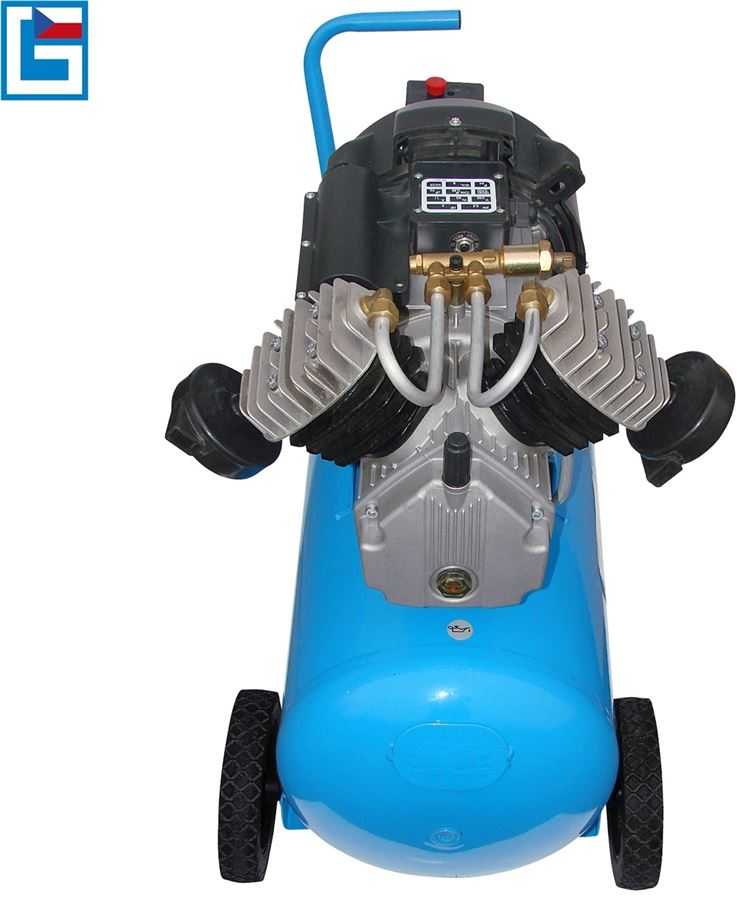

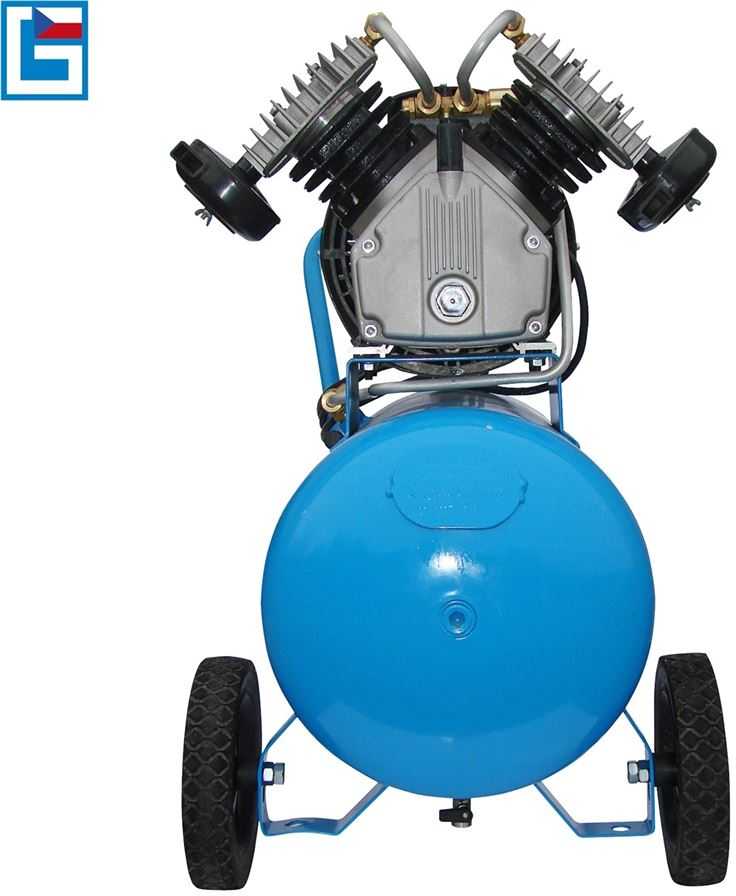

Construction: electric motor 2,2 kW (-> type of operation: S3/60%), two-cylinder "V" unit with oil lubrication, direct drive (-> motor/aggregate on one shaft), robust chassis with low center of gravity.

Features.

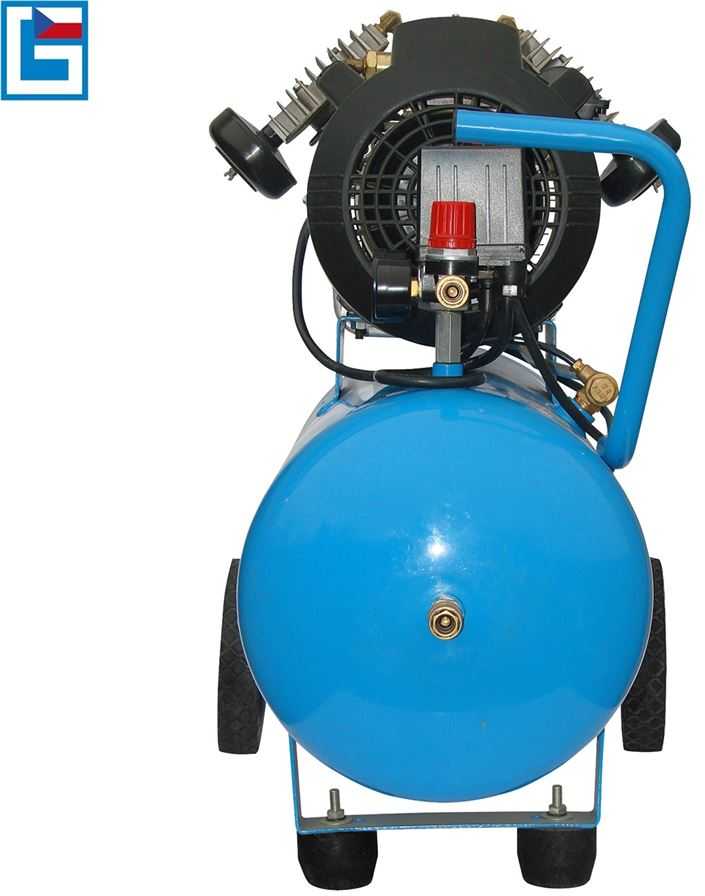

Pressure vessel: 50 l, condensate drain valve, front vessel support with rubber feet, plastic wheels with rubber tread/transport handle for easy handling.

Total dimensions (l x w x h): 835 x 350 x 635 mm, sound power level L_wa: 97 dB (A), electrical protection class: IP 20.

<n i="">Connection</n><h i="">230 V~50 Hz</h>

<n i="">Connection</n><h i="">230 V~50 Hz</h>

<n i="">Motor power</n><h i="">2.2 kW/P1</h>

<n i="">Power suction</n><h i="">395 l/min.</h>

<n i="">Filling power</n><h i="">250 l/min</h>

<n i="">Max. Output pressure</n><h i="">10 bar</h>

<n i="">Vessel capacity</n><h i="">50 l</h>

<n i="">Weight (net)</n><h i="">37,3 kg</h>

<n i="">Width of assembled unit in mm</n><h i="">415</h>

<n i="">Height of assembled unit in mm</n><h i="">685</h>

<n i="">Length of assembled unit mm</n><h i="">785</h>

<n i="">Width</n><h i="">355</h>

<n i="">Height</n><h i="">665</h>

<n i="">Depth</n><h i="">765</h>

<n i="">Weight</n><h i="">45.389kg</h>
