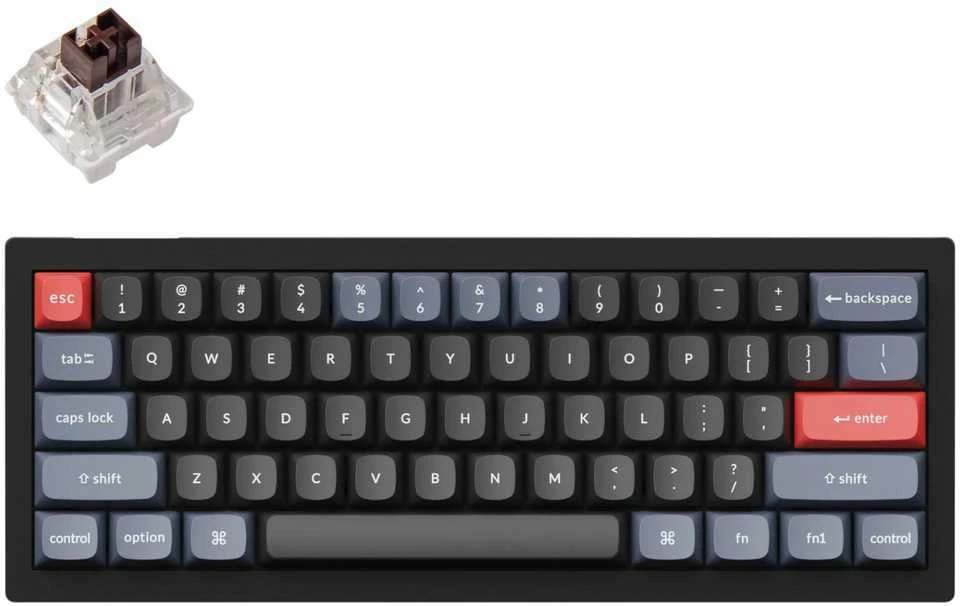

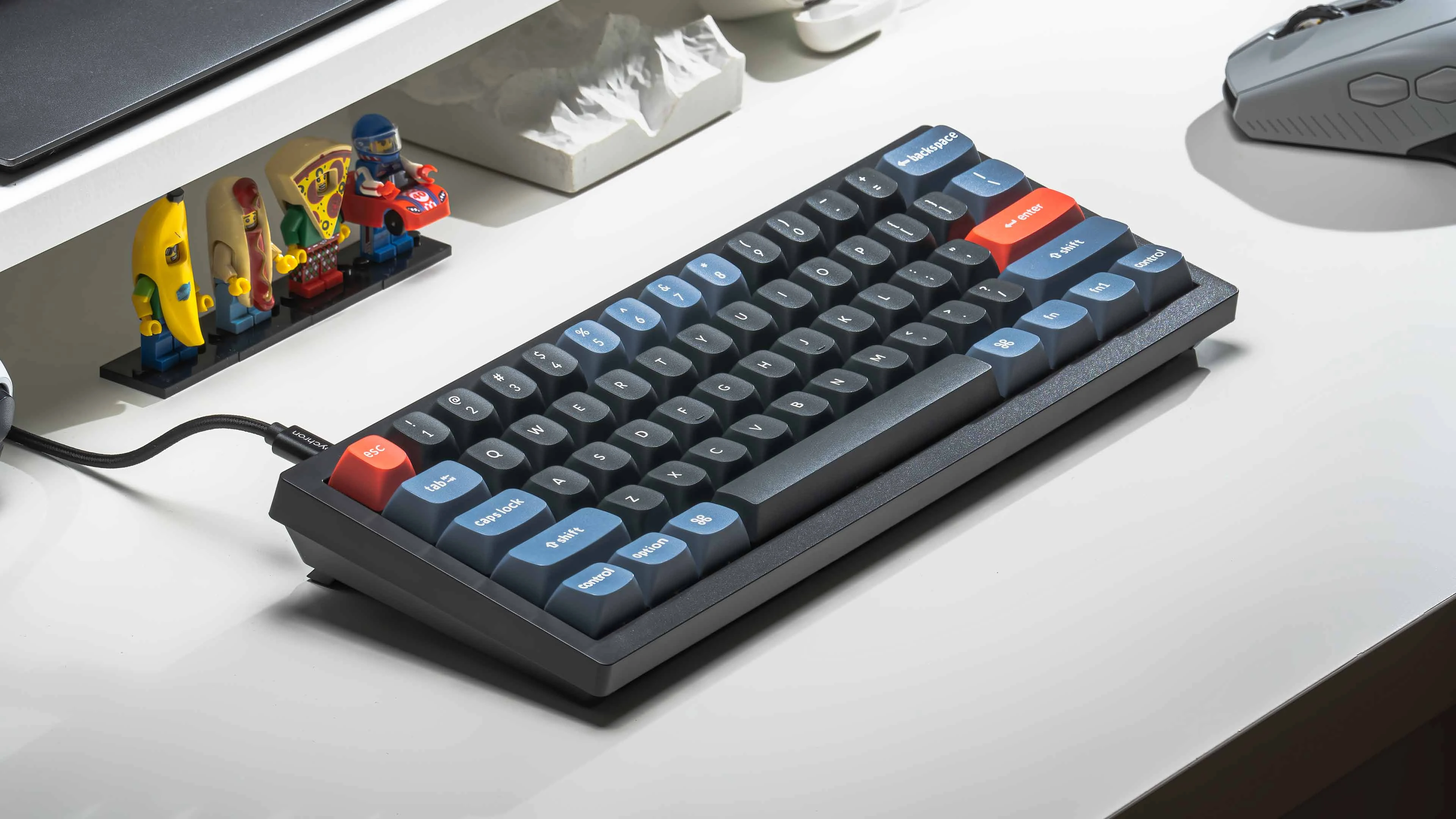

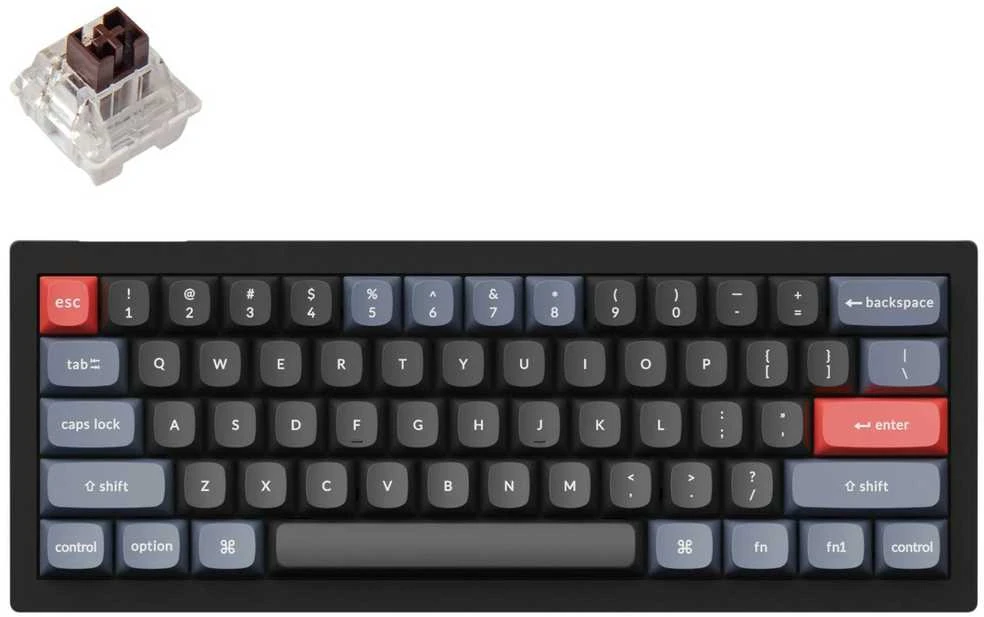

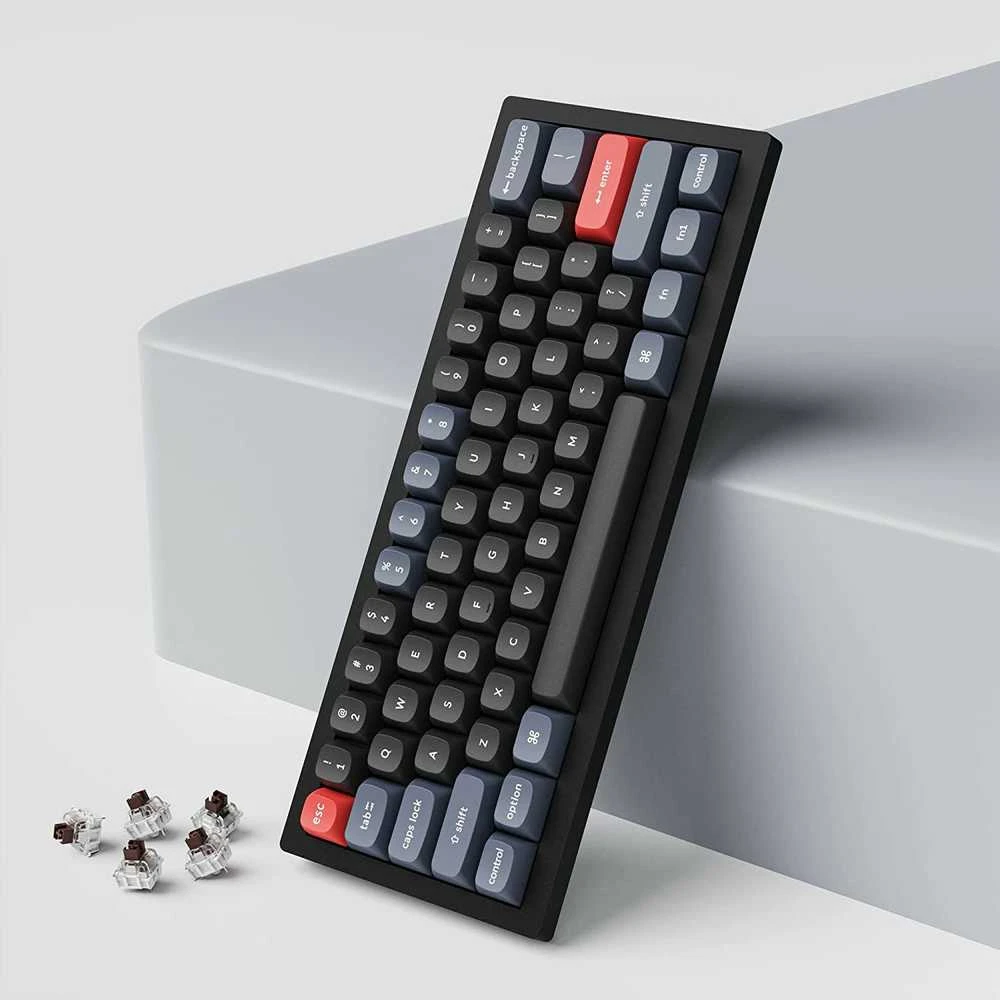

Keychron V4

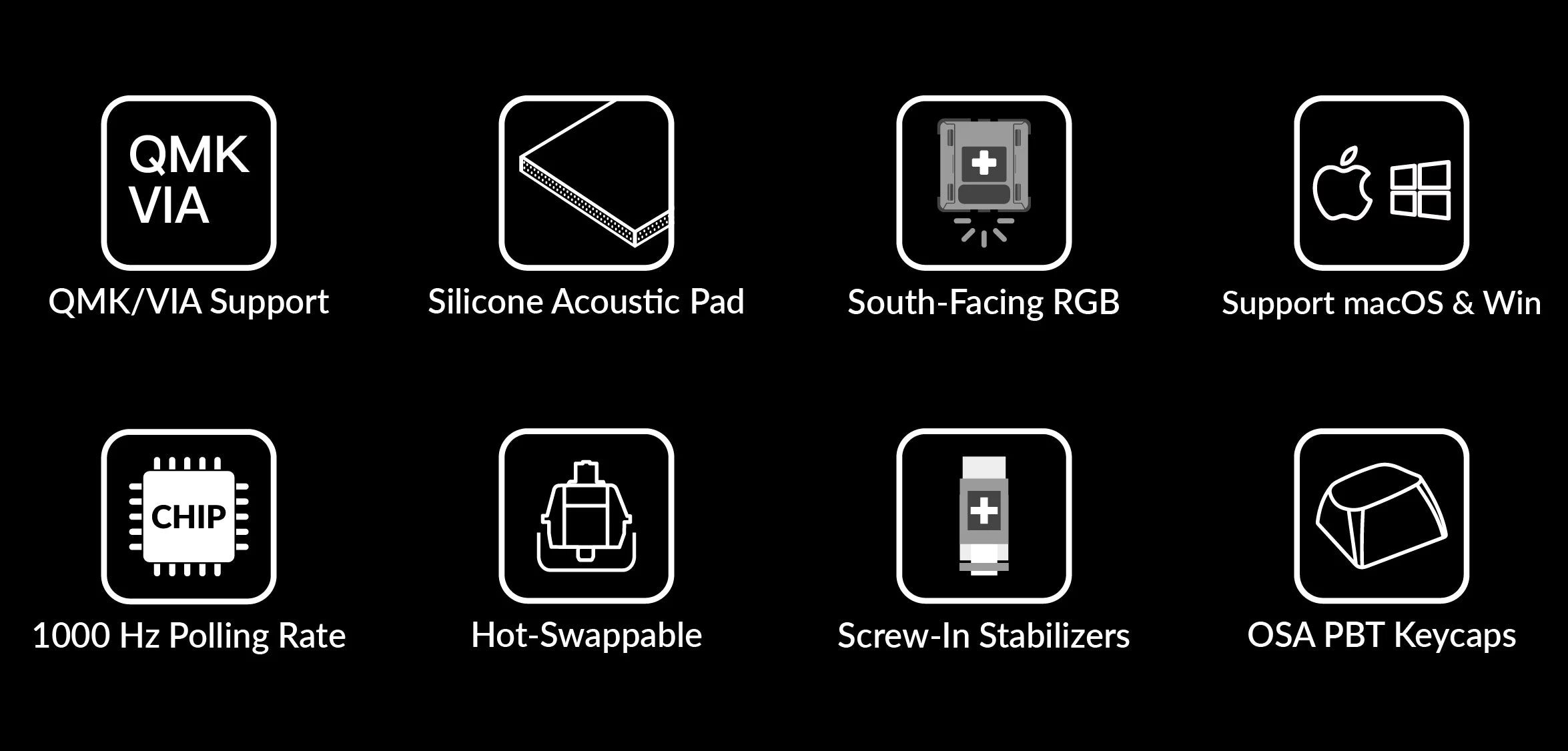

The V4 is a fully customizable mechanical keyboard suitable for different scenarios. It’s an entry-level custom keyboard with a mini 60% layout, QMK/VIA support, an acoustic silicone pad, and double-shot PBT keycaps to provide you with a great typing feel and endless possibilities.

Frosted Black Version (Translucent）

Carbon Black Version (Non-transparent）

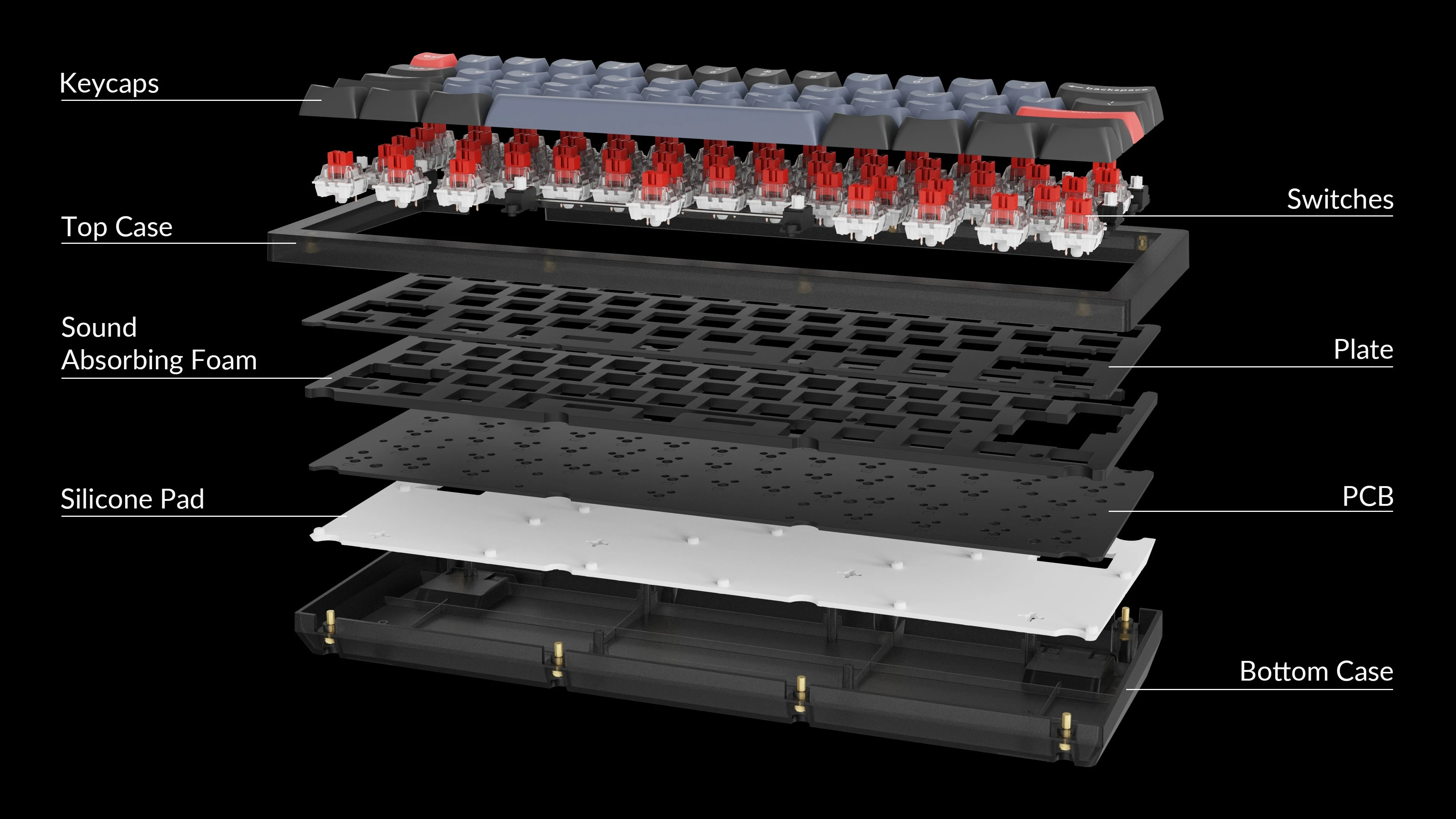

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

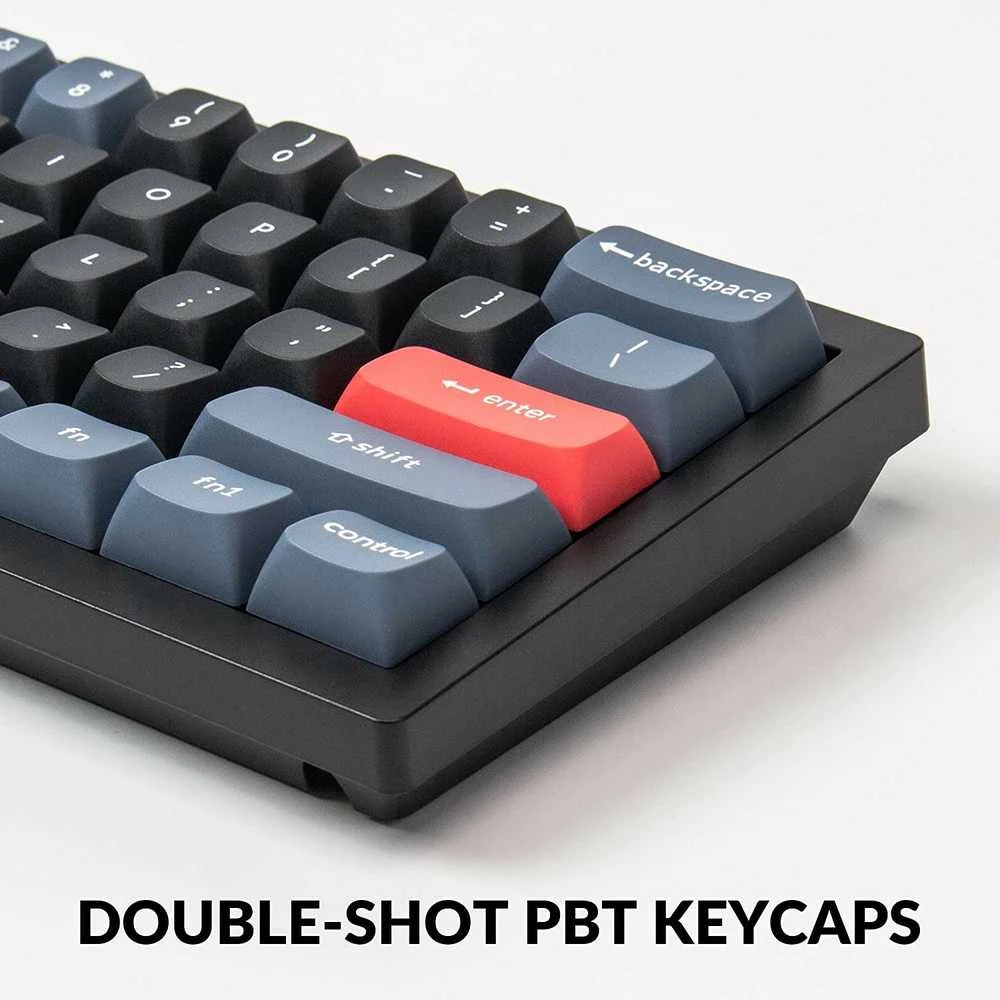

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

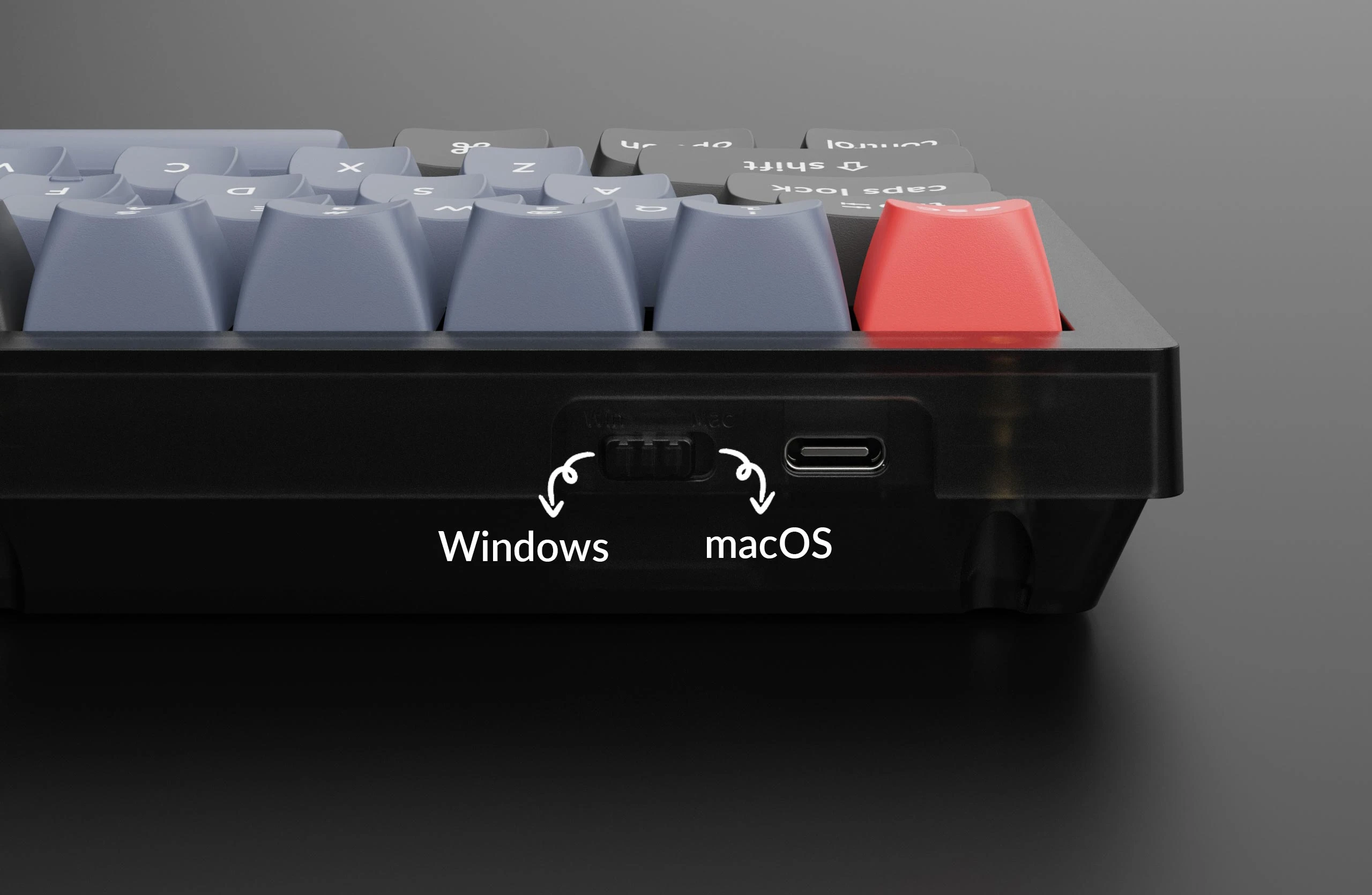

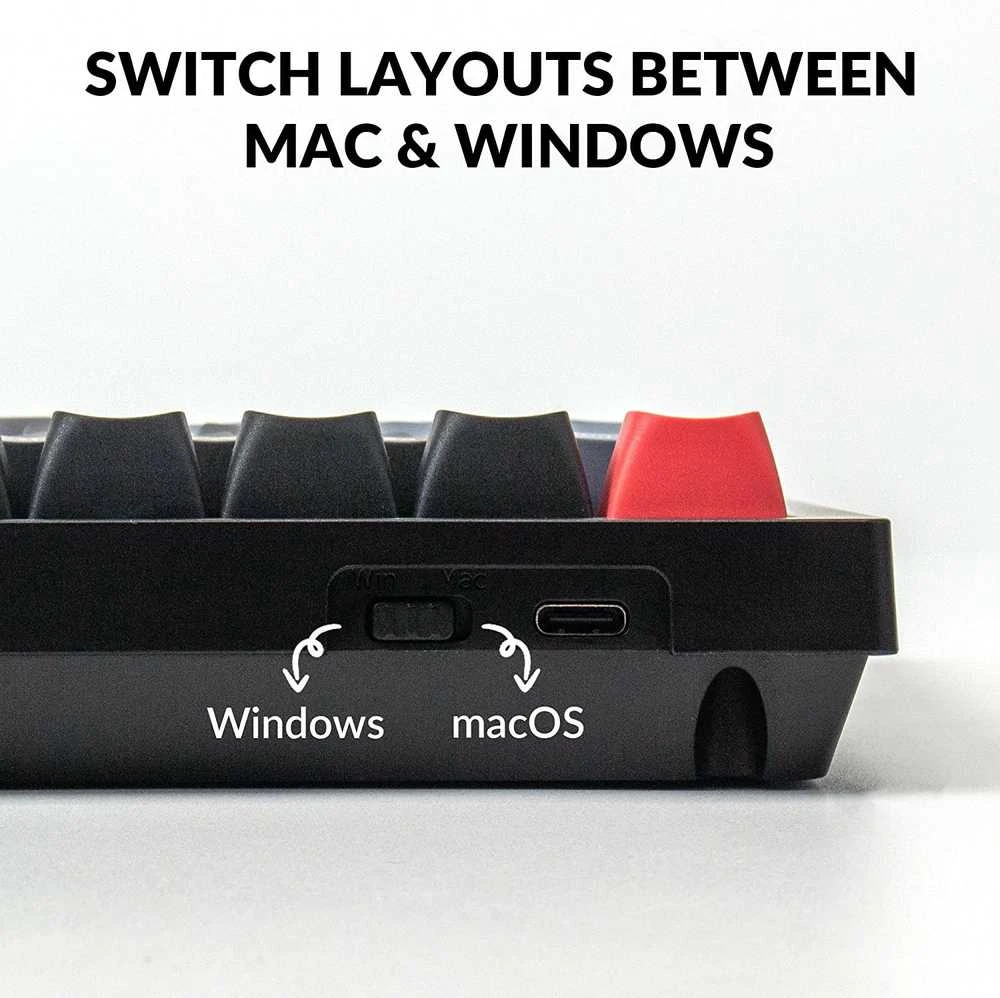

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V4 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

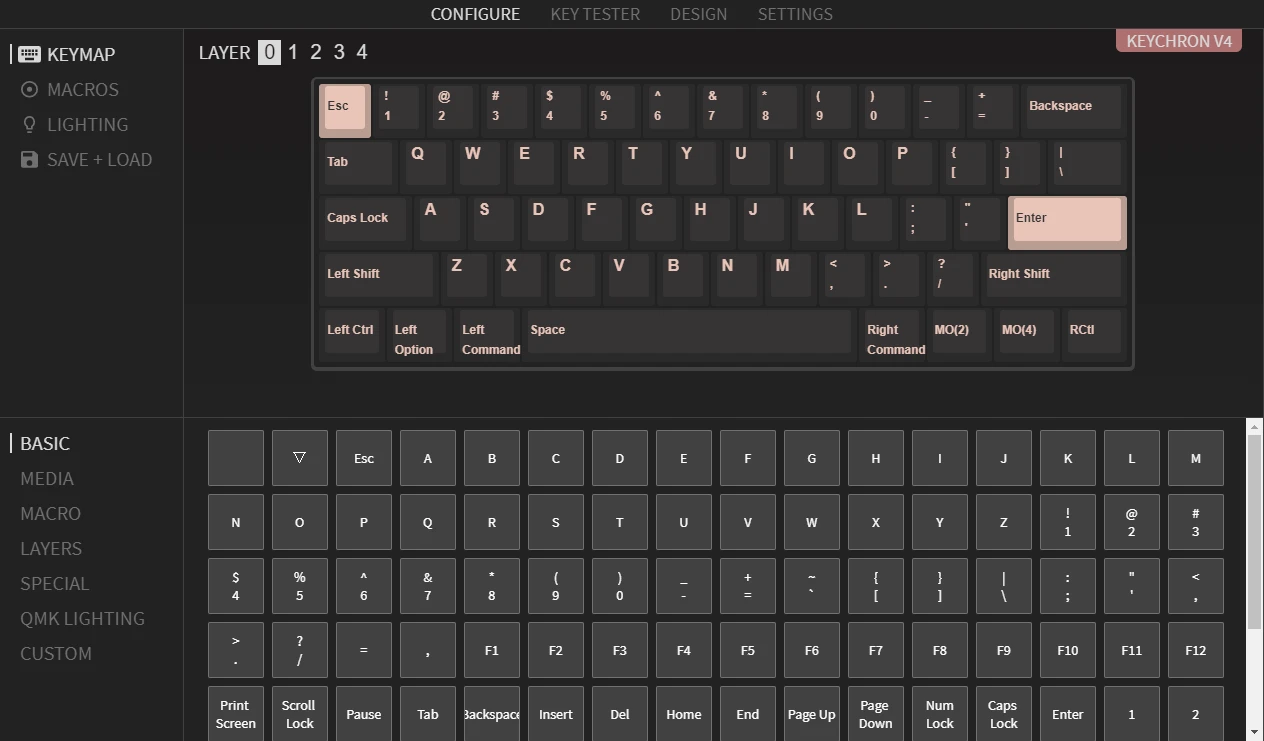

Program V4 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.

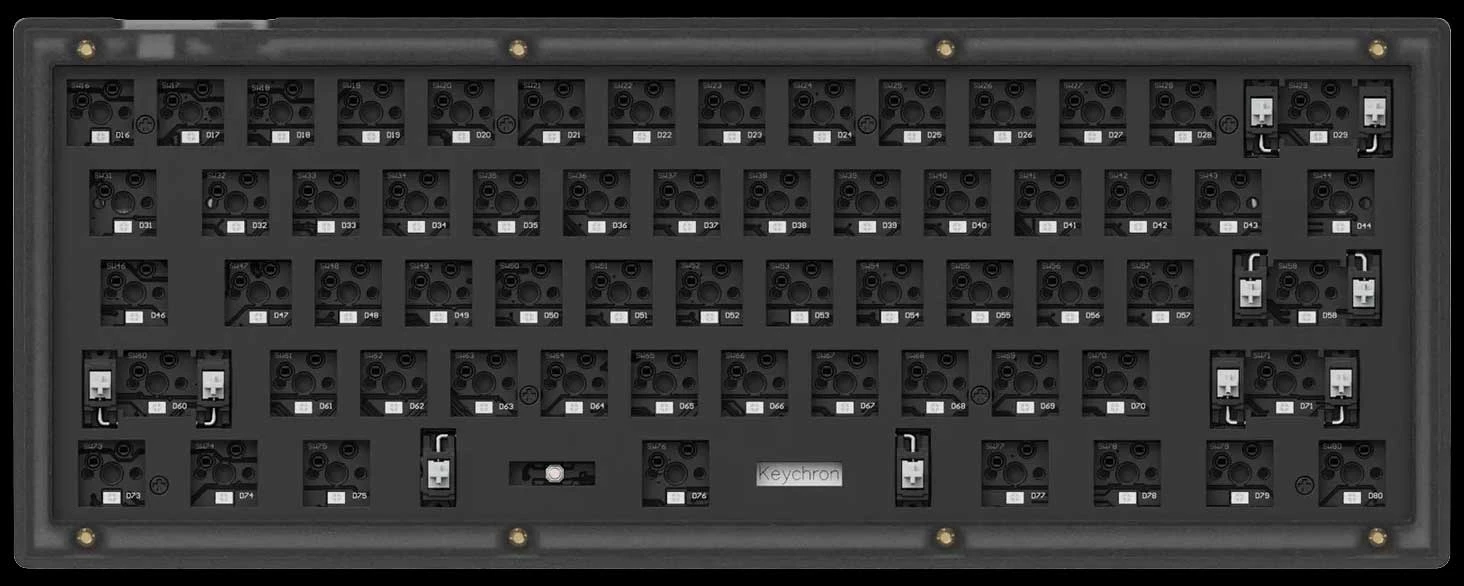

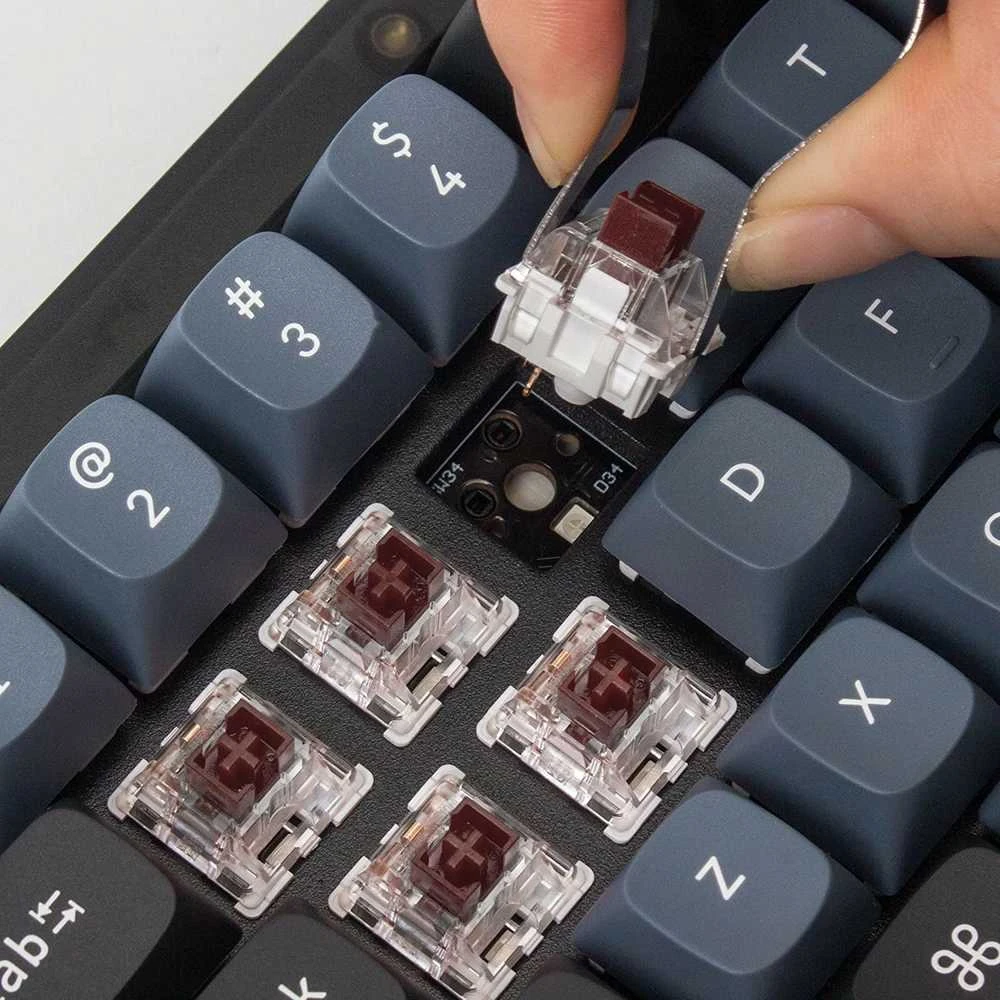

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

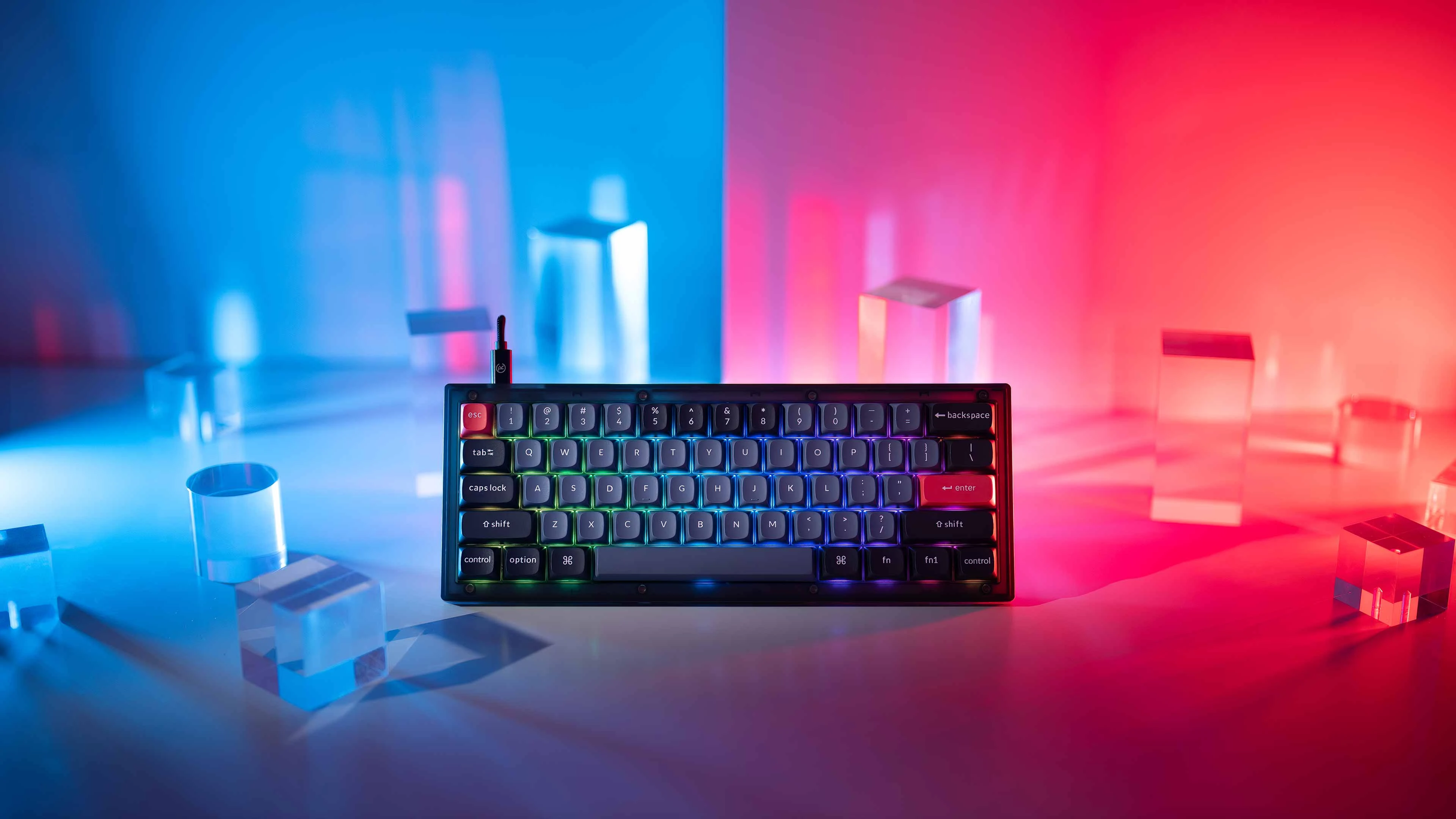

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

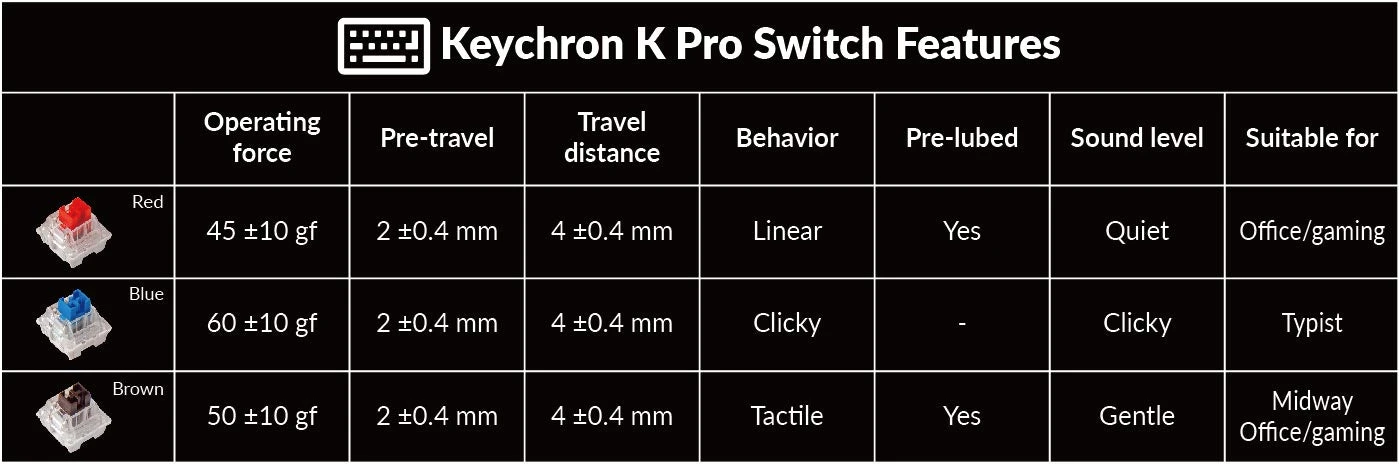

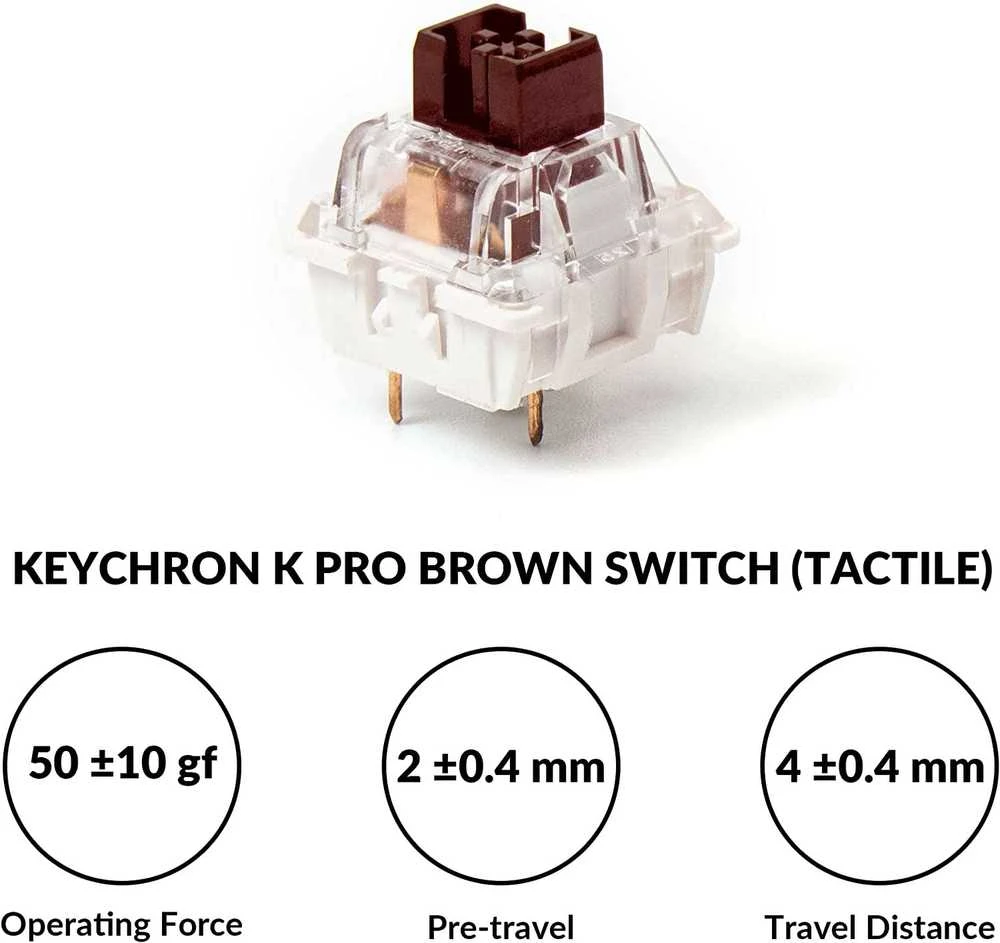

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

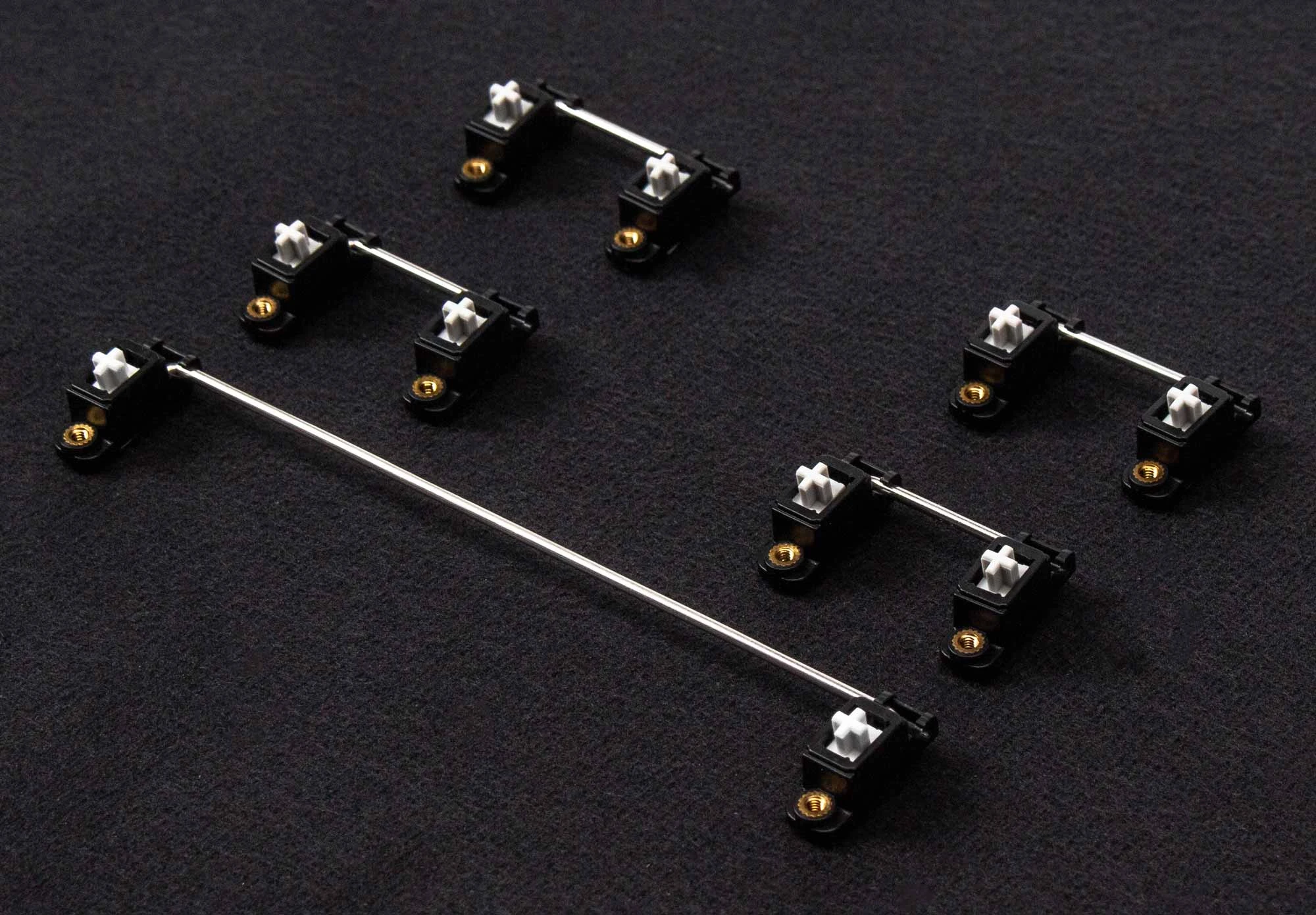

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V4 also supports third-party screw-in PCB stabilizers.

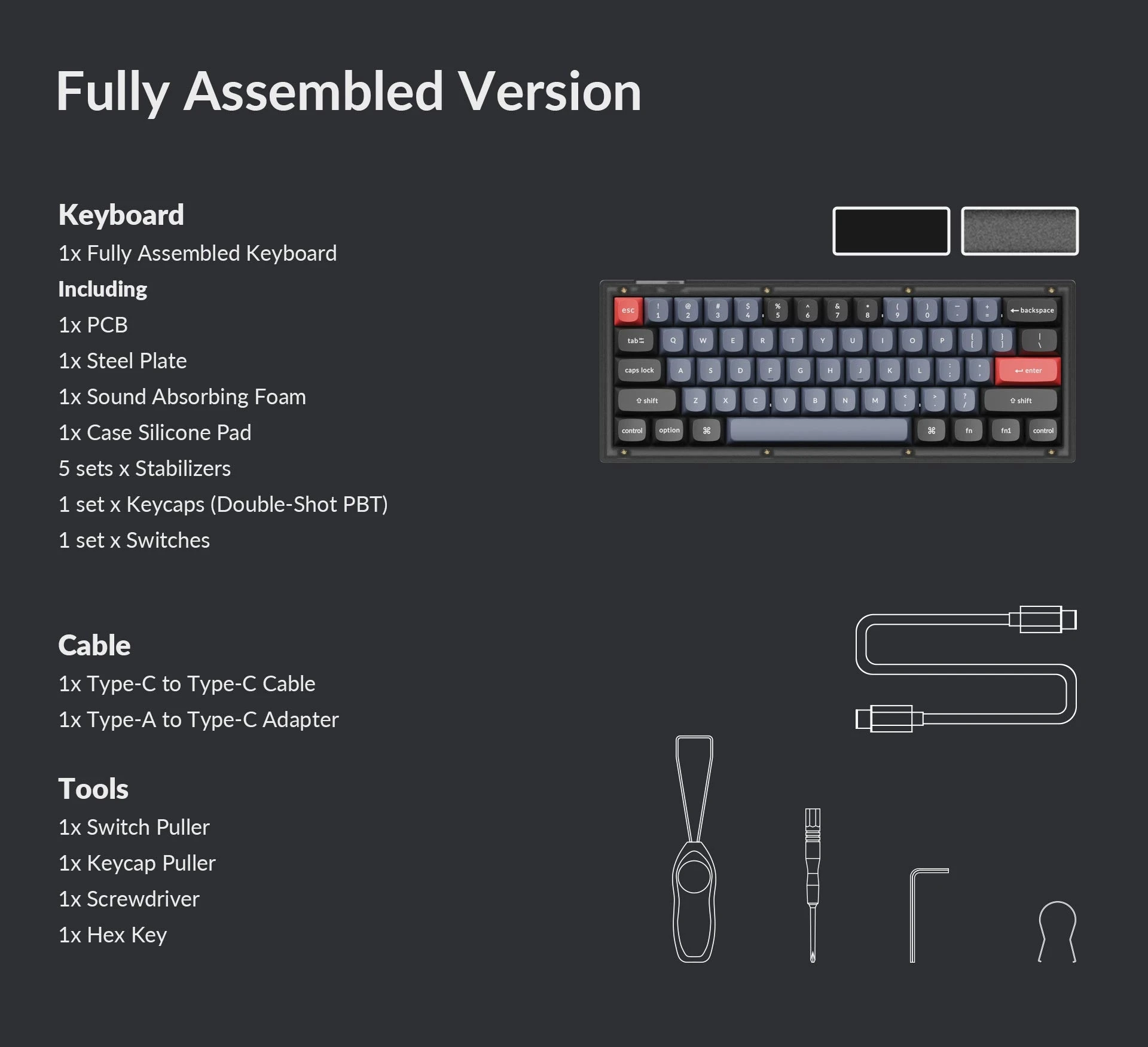

What's in the box?

Specs

Width	117.09 mm
Length	303.85 mm
Front Height	19.54 mm (without keycaps)
Back Height	25.75 mm (without keycaps)
Feet Height	2.4 mm

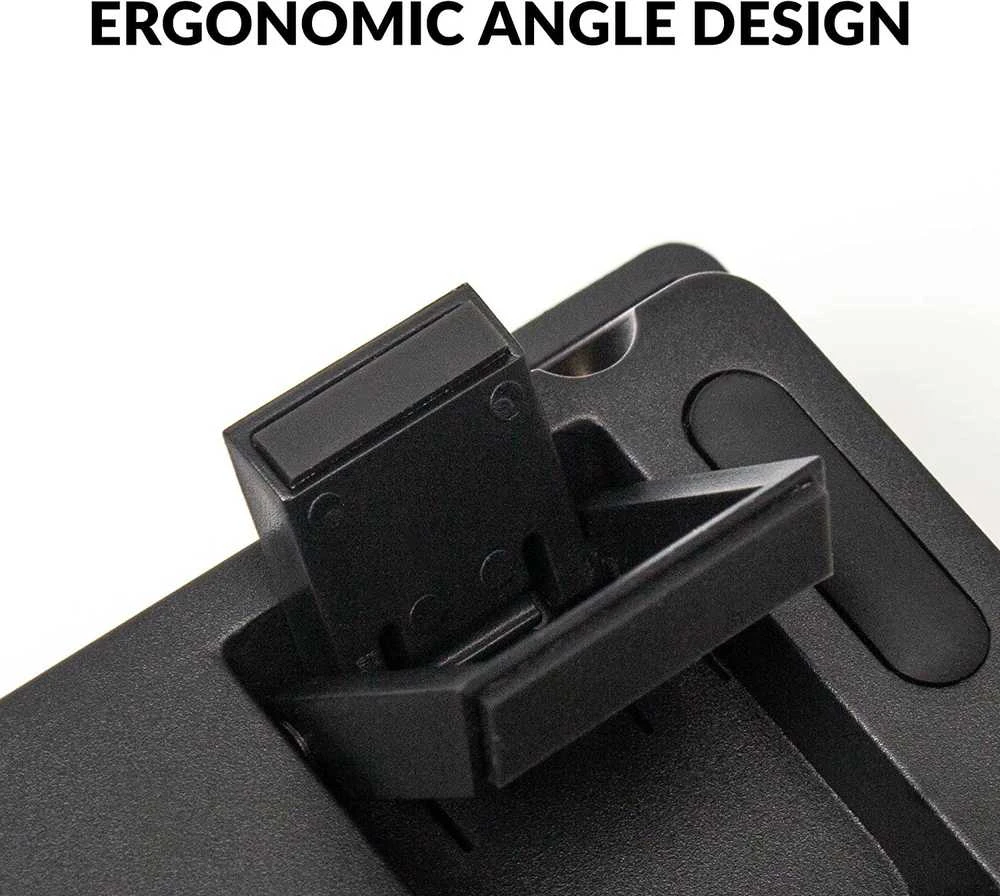

Angle	3.5° / 7.98° / 11°
Weight	730 ± 10 g (Fully Assembled Version)
Body Material	ABS Plastic
Plate Material	Steel
Polling Rate	1000 Hz
Mount Style	Tray Mount Design

Keycaps (Fully Assembled Version)	Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU	Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Switches	Keychron K Pro (Fully Assembled Version)
Backlight	South-facing RGB LED
Switch Support	Hot-swappable (5 pin & 3 pin)
Stabs	Screw-in PCB stabs
Connectivity	Type-C
Cable	Type-C cable + Type-A to Type-C adapter
Operating Environment	-10℃ to 50℃
