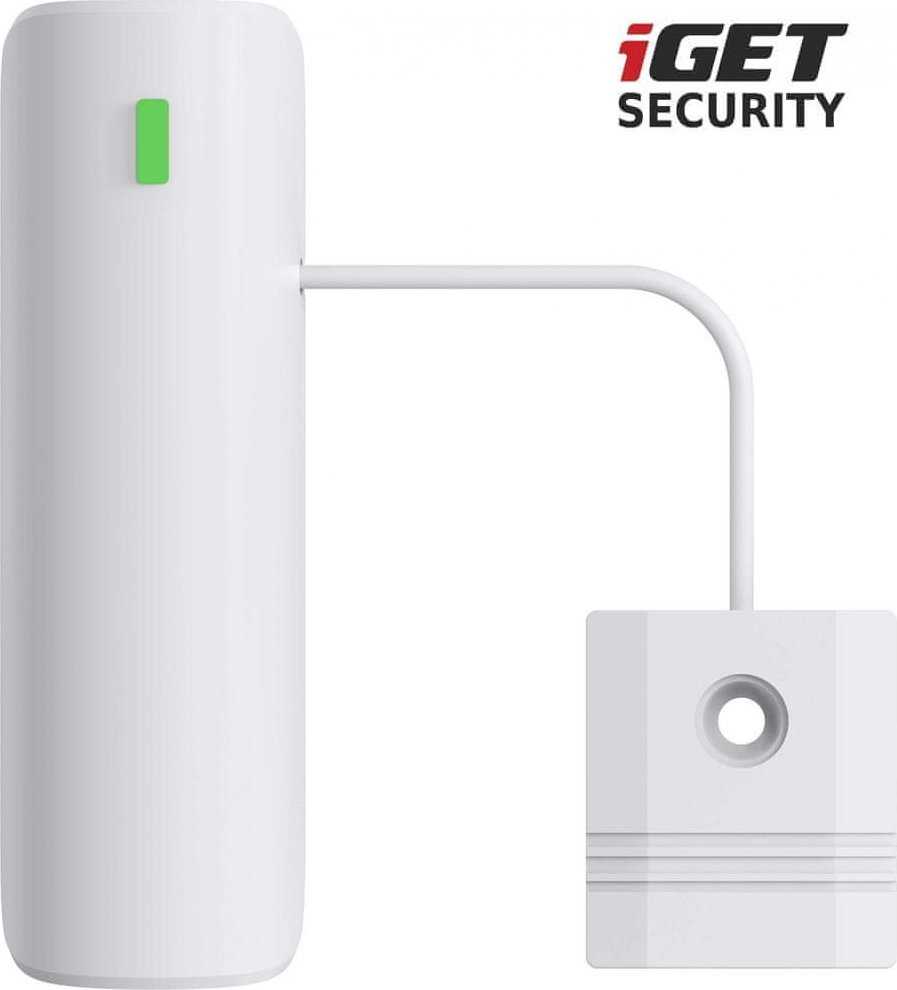

iGET SECURITY EP9 - Wireless sensor for water detection
Wireless water detection sensor for iGET SECURITY M5 alarm. It is used for water detection in bathrooms, utility rooms, tanks, etc., wherever there is a risk of water flooding. Once the detection plate detects water, the transmitter informs the alarm of this. Protection against tampering, highest transmission security of 256bit, very long battery life of 5 years, the alarm constantly monitors the activity of this sensor, also the signal, battery percentage and more.
Easy pairing to the basic alarm set using a QR code. Location distance from the main unit up to 1 km. Workmanship in modern design, environmentally friendly due to low power consumption.
Main parameters:
- The sensor is designed for all locations where it is necessary to report the presence of water using a detection plate,
- simple extension of the basic alarm set, just scan the QR code on the sensor,
- highest wireless transmission encryption 256bit,
- battery life up to 5 years depending on the number of detections,
- sensor distance from the main unit up to 1 km,
- the iGET M5 alarm constantly checks if this sensor is available, also the signal strength and the % of battery in the sensor,
- contains a signal LED - lights up when water is detected, still lights up when the battery is low, also serves as a test button.
Specifications:
Transmitting frequency: 868.35 MHz
Security: 256 bit
Battery life: up to 5 years
Operating temperature: - 20°C ~ +50°C
Operating Humidity: 5% ~ 95%
Power supply: 1x 3V battery, CR123A type
Operating current: up to 100 mA
Quiescent current: 0.015 mA
Contact disconnection: when the detection plate is partially under water
Signal range to the central unit: up to 1 km in line of sight
Sensor weight: 39g including battery
Transmitter dimensions (length x width x depth): 84 x 26 x 22.5 mm
Sensor dimensions (length x width x depth): 30.4 x 26.4 x 10 mm
Cable length from transmitter to detection plate: 220 mm
More information at www.iget.eu
