Shelly RGBWW Pro WiFi 5-channel DIN-rail lighting controller

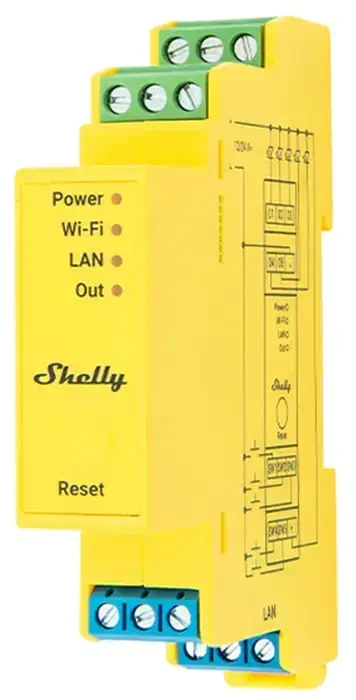

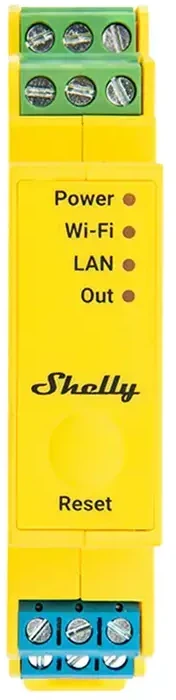

Shelly RGBWW Pro PM is a 5-channel professional DIN-rail mounted LED lighting controller. It allows you to manage five independent light channels or multicolor RGB and CCT strips, and with precise power measurement, it allows you to monitor voltage, current and power consumption in real time. The controller offers both Wi-Fi and Bluetooth connectivity, as well as an Ethernet port for flexibility in residential and industrial installations. The device works without the need for an additional hub.

Flexible control profiles

The device supports four operating profiles: RGB + CCT, CCT x2, RGB + 2x Light and Light x5. In the Light x5 profile, five outputs can be controlled independently, giving maximum configuration freedom. The RGB + CCT mode, on the other hand, allows simultaneous control of color and color temperature of light.

Built-in energy measurement

The Shelly RGBWW Pro PM is equipped with the function of measuring active power, apparent power, power factor and energy (basic active and reactive). The user gains access to accurate energy consumption data for each light source, allowing better planning of consumption and increased energy efficiency.

Wi-Fi, LAN and Bluetooth connectivity

The device can operate simultaneously over Wi-Fi and LAN, and can also act as a Wi-Fi signal booster or BLE gateway. It offers reliable local network communication and remote access from the Shelly Smart Control app. Configuration can also be done via the built-in web interface.

High level of security

Thanks to built-in protection against overheating, overvoltage and overload, the Shelly RGBWW Pro PM reacts instantly in case of dangerous conditions - it shuts down channels and sends notifications. In addition, the device's housing is made of flame-retardant plastic (class V-0), which increases the safety of the entire installation.

Intelligent scenes and automations

The controller supports up to 20 schedules, HTTP/HTTPS webhooks and advanced mjS scripts, allowing you to create complex operating scenarios. You can control light according to sunrise and sunset, set brightness transition time and brightness and color temperature limits.

Precise control and easy operation

Shelly RGBWW Pro PM works with buttons, switches and analog potentiometers (10 kΩ). It allows night mode configuration, independent adjustment of each channel, as well as detailed settings of transitions, minimum brightness or color temperature for each output. The user also has access to event history and the ability to use the KVS data storage function.

Management via the Shelly app

The Shelly RGBWW Pro PM works with the free Shelly Smart Control app, which allows you to manage the device locally and remotely. Using it, you can configure settings, control lighting, create schedules and monitor energy consumption. You'll also gain access to event history.

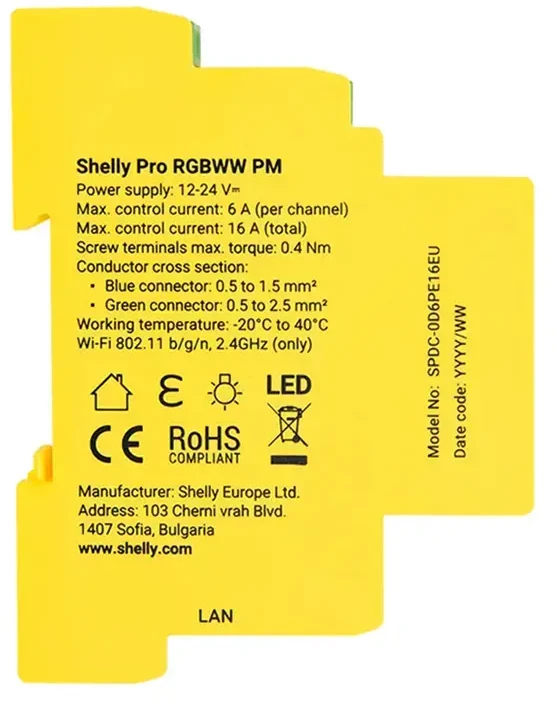

ManufacturerShellyModelProRGBWWPMDimensionsApproximately 94 × 19 × 69 mmWeight61 gMax. torque for tightening screw connectors0.4 NmWire cross section0.5 to 2.5 mm² / 20 to 14 AWG (green connector), 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) (solid sleeves, twisted sleeves and bootlace sleeves)Length of stripped wire6-7 mm (green connector), 5-6 mm (blue connectors)MountingOn a DIN railHousing materialPlasticHousing colorYellowOperating temperature rangeFrom -20°C to 40°CWorking environment humidity30%-70% RHMaximum installation altitude2000 mPower supply12-24 VDCPower consumption< 1,5 WExternal protection16 A, characteristic B or C, 6 kA, energy limiting class 3Max. switching voltage24 VDCMax. switching current16 AMax. control current16 A (total), 6 A (per channel)CCT range2700-6500K (default, configurable from 1000-10000K)Voltmeter (DC)12-24 V ±10%Voltmeter accuracy±5% (for 12-24 V DC)Ammeter (DC)0-5 A ±10%Accuracy of the ammeter±5%Power and energy metersActive and apparent power, active and apparent energy, power factor, basic active and reactive energyMeasurement data storageNoInternal temperature sensorYesWi-Fi protocol802.11 b/g/nWi-Fi RF band2401 - 2495 MHzMax. Wi-Fi signal strength< 20 dBmWi-Fi rangeUp to 30 m indoors, up to 50 m outdoors (depending on conditions)Bluetooth protocol4.2Bluetooth RF band2400 - 2483.5 MHzMax. Bluetooth signal strength< 4 dBmBluetooth rangeUp to 10 m indoors, up to 30 m outdoors (depending on conditions)Processor (CPU)ESP32-D0WDQ6Clock frequency40 MHzFlash memory8 MBNumber of schedulesUp to 20Webhooks (URL shares)Up to 20 (up to 5 URLs per webhook)Scripting supportYesMQTTYesEncryptionYesAdvanced schedulingYesKVS (Key-Value Store)Yes
