Shelly PRO 3EM 120A WiFi Three-Channel Electric Energy Meter

The Shelly Pro 3EM 120A is a professional three-phase electric energy meter that can be installed on a DIN rail. The device reports accumulated energy with 1% accuracy as well as real-time voltage, current, and power for each phase. It stores data for the last 60 days with a resolution of one minute for each phase, enabling precise analysis. It can operate independently on a local LAN and/or Wi-Fi network or be controlled via a home automation cloud service using MQTT, HTTP, and WebSocket protocols. Furthermore, it offers advanced scripting capabilities and extended monitoring options.

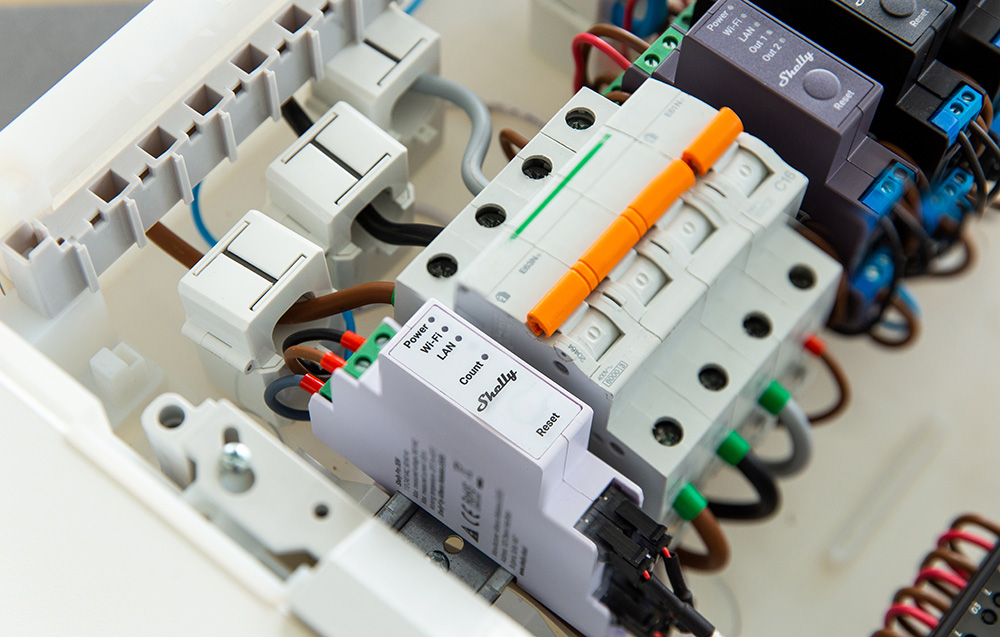

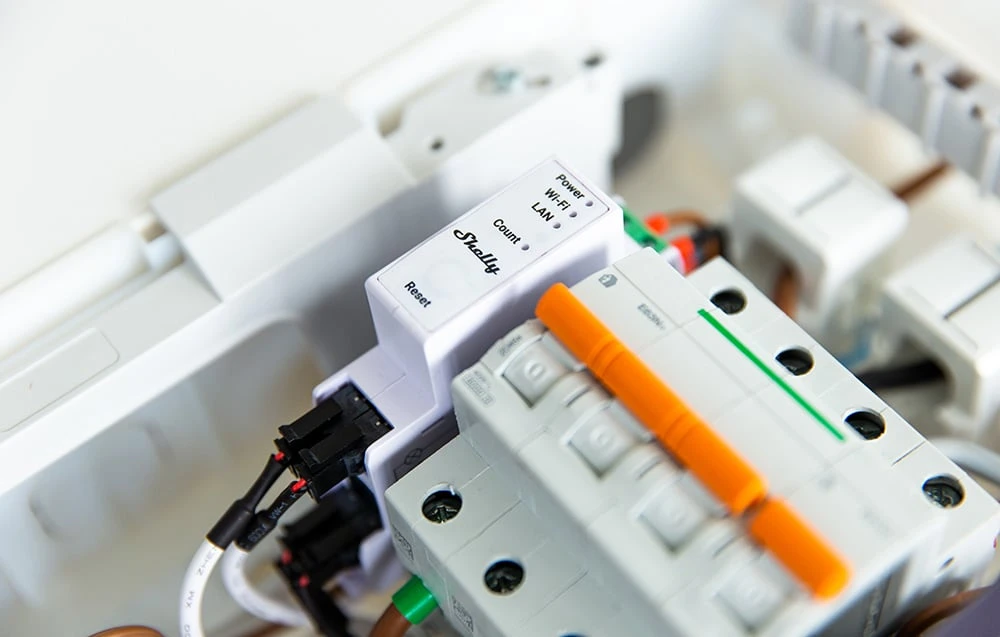

Shelly PRO 3EM 120A 3-Phase Energy Meter, WiFi/Bluetooth aprašymas - Prekės nuotrauka

Manufacturer	Shelly
Model	SPEM-003CEBEU120
AC Power Supply Voltage	100 - 260 V, 50/60 Hz
Power Consumption	< 3 W
Internal Temperature Sensor	Yes
Voltmeters (RMS for each phase)	100 - 260 V
Voltmeter Accuracy	±1%
Ampermeters (RMS via current transformers for each phase and Neutral)	0 - 120 A
Compatible Current Transformer (CT)	CT 120A
Ampermeter Accuracy	±1% (2 - 120 A), ±2% (1 - 2 A), ±5% (0 - 1 A)
Active and Apparent Power and Energy Meters	Active and apparent power, active and apparent energy, power factor, active fundamental energy, and reactive fundamental energy
Channel Calibration at Minimum Load	500 W per channel
No-Load Threshold	30 VA per channel
Measurement Data Storage	At least 60 days with 1-minute data resolution
Wi-Fi Protocol	802.11 b/g/n
Wi-Fi Range	Up to 30 m indoors and 50 m outdoors
Bluetooth Protocol	4.2
Bluetooth Range	Up to 10 m indoors and 30 m outdoors
CPU	ESP32-D0WDQ6
Flash Memory	16 MB
Dimensions	94 x 19 x 69 ±0.5 mm
Weight	62 ±1 g
Mounting	DIN rail
Housing Material	Plastic
Ambient Temperature	-20°C to +40°C
Humidity	30% to 70% RH
Maximum Altitude	2000 m
