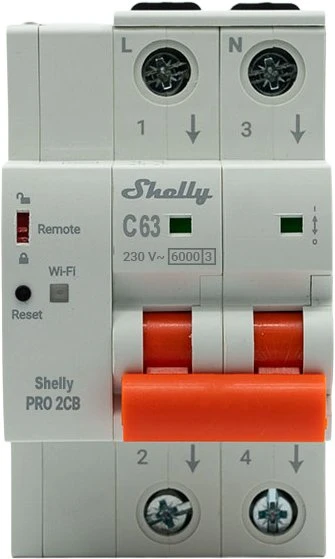

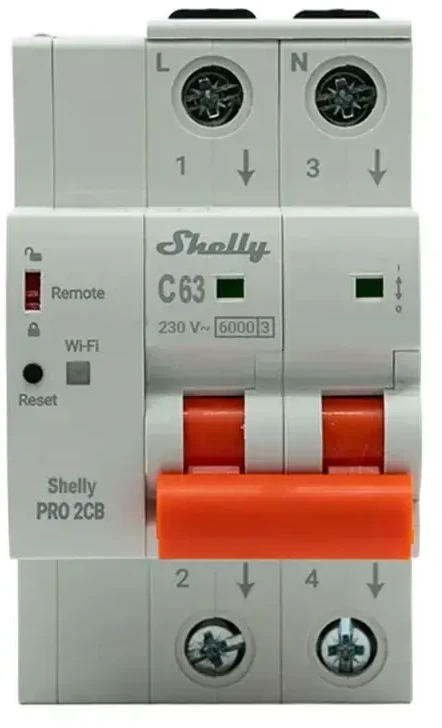

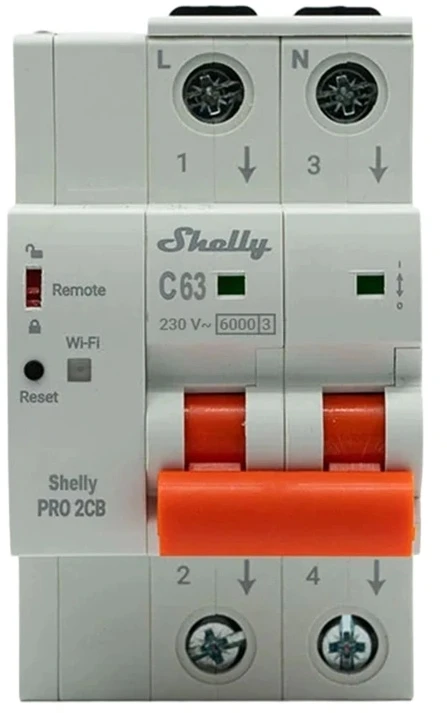

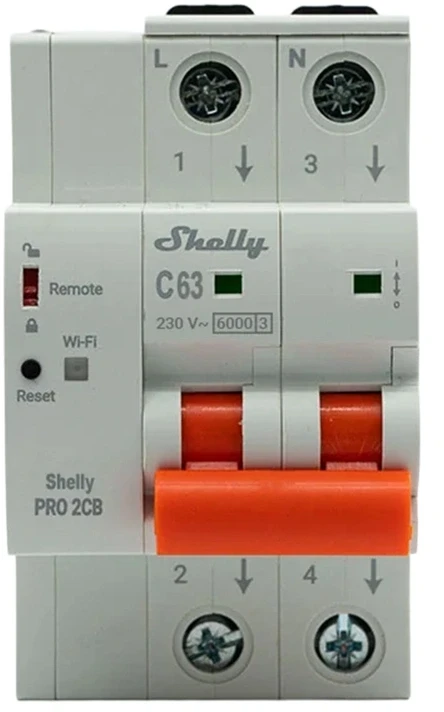

The SHELLY Pro 2CB C63 circuit breaker is a smart, 2-pole electrical circuit protection device with a rated current of 63 A, a C-type trip characteristic, and a short-circuit breaking capacity of 6 kA. The device protects the electrical system against overloads, short circuits, and excessively high or low voltage. Thanks to Wi-Fi, Bluetooth, and Ethernet connectivity, it allows for remote circuit activation and deactivation, as well as measurement and monitoring of line voltage (V) using a built-in voltmeter. Support for the Shelly Smart Control app, schedules, automation scripts, and the MQTT protocol enables integration with smart home and building management systems. A built-in safety switch allows you to disable remote control, and an event history of up to 100 events makes it easy to monitor the operation of the safety feature.
| Manufacturer | Shelly |
|---|---|
| Model | Pro 2CB C63 |
| Device Type | Smart circuit breaker |
| Number of poles | 2 |
| Rated current | 63 A |
| Tripping characteristic | C |
| Rated short-circuit capacity | 6 kA |
| Supply voltage | 230 V AC, 50 Hz |
| Minimum operating voltage | 160 V AC |
| Electronics power consumption | Less than 3 W |
| Circuit breaker power loss | 11.20 W |
| Energy limitation class | 3 |
| Insulation voltage | 500 V |
| Withstand voltage | 4 kV |
| Protection functions | Overload, short-circuit, overvoltage, and undervoltage |
| Mains voltage measurement (AC) | Yes |
| Voltage measurement accuracy | ±5% |
| Voltage monitoring | Yes, in volts (V) |
| Current measurement (A) | No |
| Power measurement (W) | No |
| Energy consumption measurement (kWh) | No |
| Internal temperature sensor | Yes |
| Connectivity | Wi-Fi 2.4 GHz, Bluetooth 4.2, Ethernet (RJ45) |
| Supported protocols | MQTT, HTTP, WebSocket |
| Remote control | Yes |
| Schedule support | Yes |
| Automation script support | Yes |
| Event history | Up to 100 entries |
| App | Shelly Smart Control |
| Installation | DIN rail |
| Dimensions | 93 × 54 × 76 mm |
| Weight | 335 g |
| Housing Material | Plastic |
| Color | Light gray |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 30–70% RH |
| Electrical Life | Over 6,000 cycles |
| Mechanical durability | Over 20,000 cycles |
