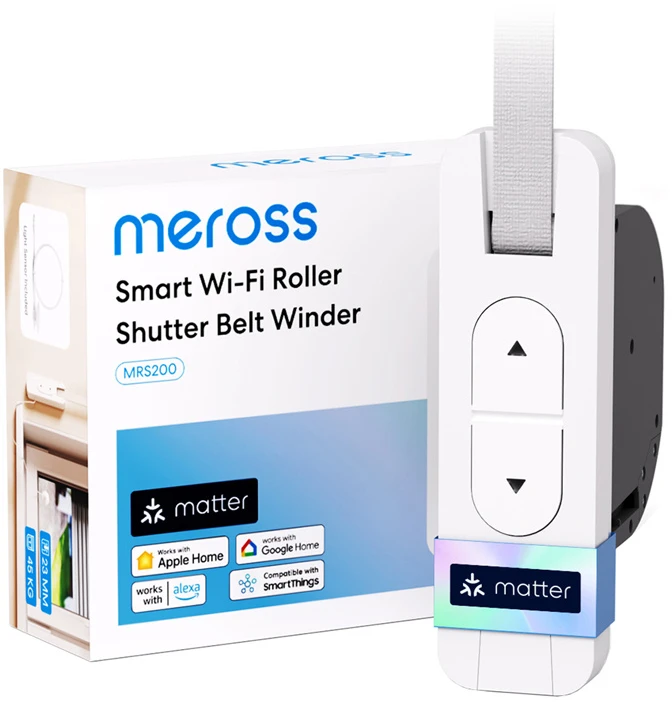

MEROSS MRS200MA-EU Wi-Fi Smart Roller Shade Operator

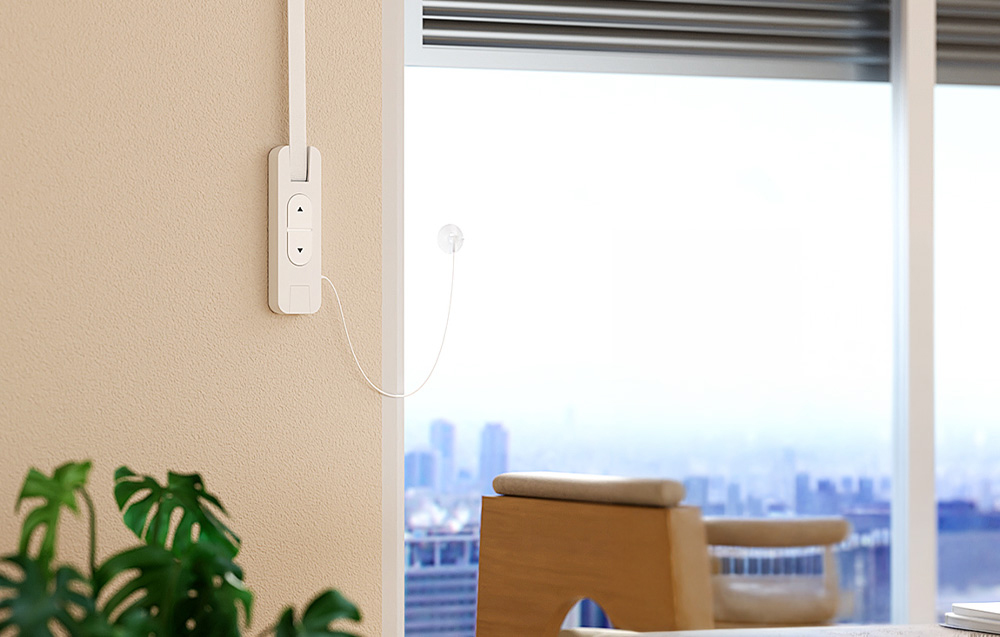

The MEROSS MRS200MA-EU is a smart roller shade operator that, thanks to its support for the Matter standard, offers full compatibility with Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings. Equipped with a motor capable of lifting up to 45 kg, it easily handles most standard roller blinds, and the automatic calibration feature precisely sets the end positions, allowing you to control the blind with pinpoint accuracy. This solution lets you conveniently manage light and privacy in your home using an app or voice commands.

MEROSS MRS200MA-EU Wi-Fi Smart Roller Shade Reel aprašymas - Prekės nuotrauka

Smart features tailored to everyday needs

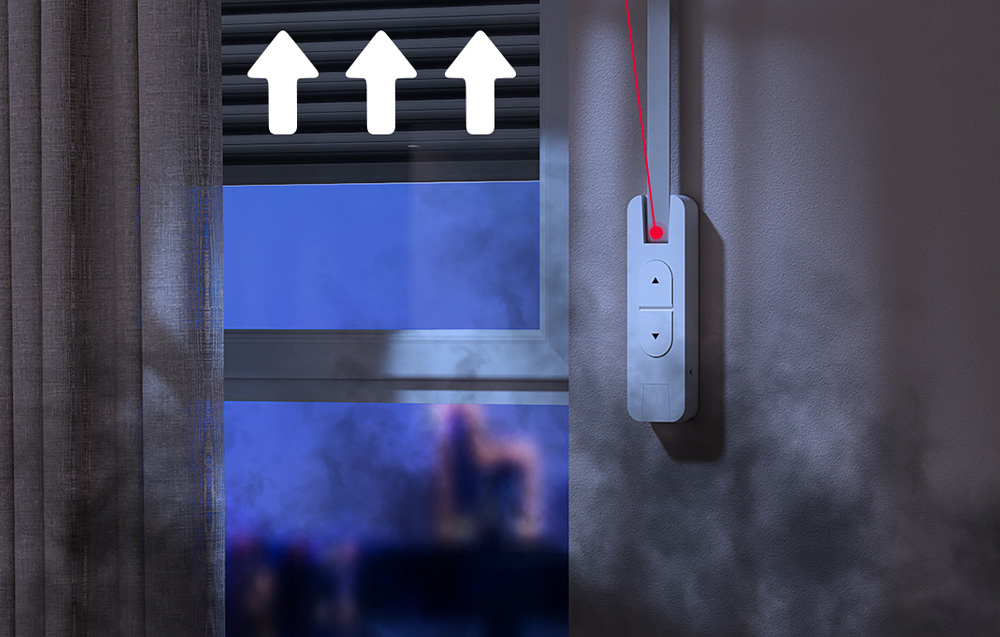

The device offers a range of automation features that enhance user comfort. An external light sensor allows the roller shades to be raised and lowered automatically depending on lighting conditions, and the ventilation position feature lets you stop the roller shade at a selected position, ensuring airflow while maintaining privacy. The ability to create scenes allows the roller shutter operator to work with other devices—for example, automatically opening the roller shutters if smoke is detected.

MEROSS MRS200MA-EU Wi-Fi Smart Roller Shade Reel aprašymas - Prekės nuotrauka

Safety and Reliability

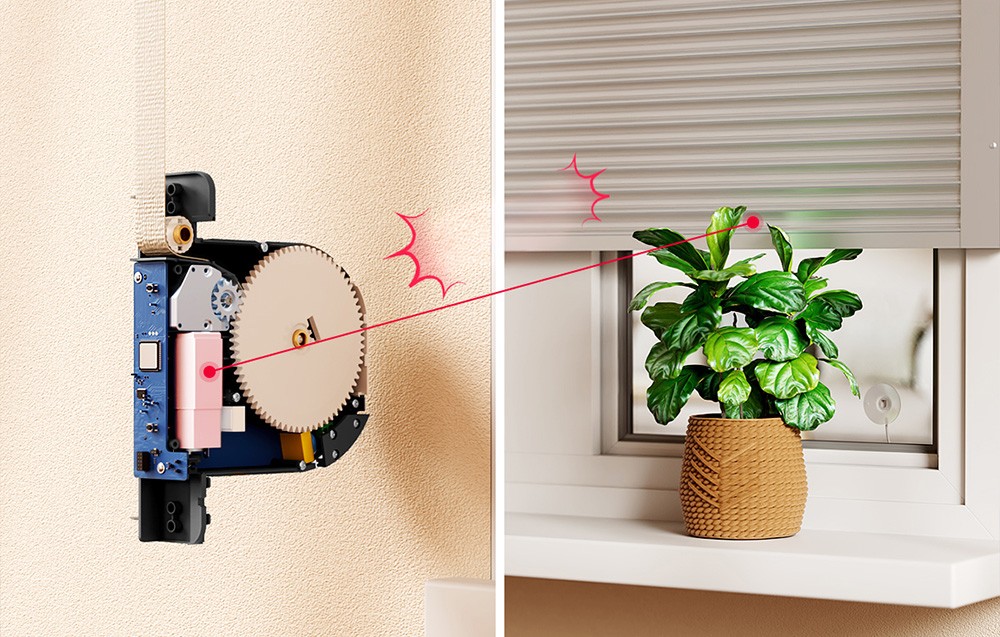

The roller is equipped with a range of safety features, such as overload protection and an obstacle detection system that automatically stops the motor if it encounters resistance. In the event of a power outage, manual control is possible thanks to the motor disengagement mechanism.

MEROSS MRS200MA-EU Wi-Fi Smart Roller Shade Reel aprašymas - Prekės nuotrauka

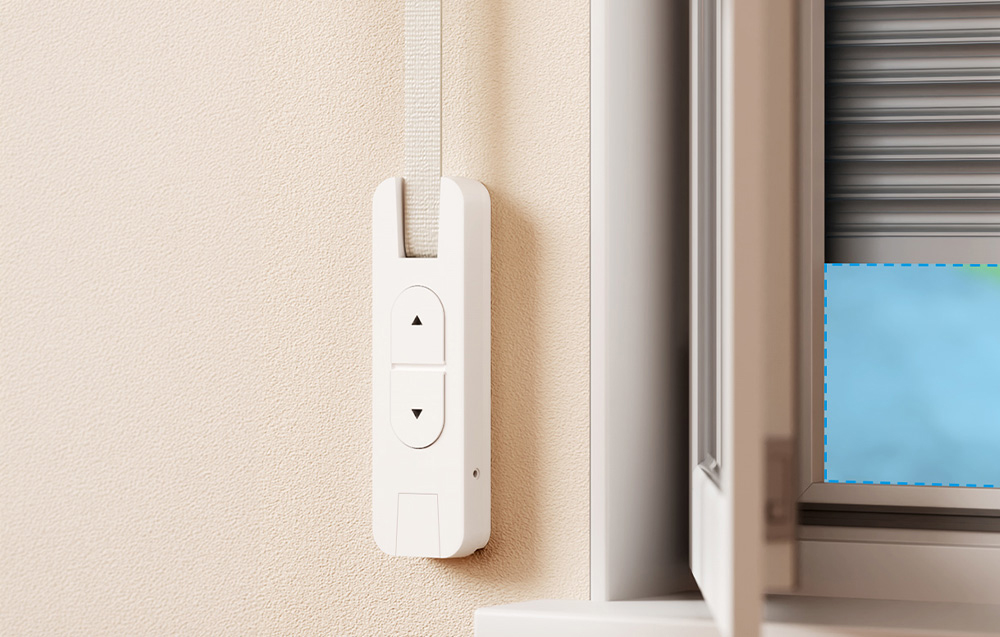

Installation requirements and compatibility

The device supports belts ranging from 3 to 6 meters in length (depending on thickness) and is compatible with aluminum roller shutters with an area of up to 3 m² and plastic ones up to 6 m². Installation requires a hole spacing of 165 mm or 185 mm and an installation space measuring approximately 136 x 131.5 x 61 mm.

MEROSS MRS200MA-EU Wi-Fi Smart Roller Shade Reel aprašymas - Prekės nuotrauka

Included

Smart Wi-Fi roller blind tape winder
Light sensor (1.5 m)
Power cord (2 m)
Decoupling bracket (in the housing)
Mounting screws x5
Roller shutter chamber cover
Mounting hole cover
Power cord cover
Corner strap bracket

Manufacturer	Meross
Product code	MRS200MA-EU
Input voltage	230 V ~ 50/60 Hz
Rated power	70 W
Standby power consumption	< 0.6 W
Torque	10 Nm
Maximum speed	36 rpm
Intermittent operation mode (KB)	4 minutes (maximum continuous operating time)
Noise level	≤ 70 dB(A)
Maximum drive force	45 kg
Protection class	II
Protection rating	IP20 (for use in dry rooms)
Power cord length	2 m
Light sensor cable length	1.5 m
Mounting type	Flush-mounted
Mounting hole spacing	165 / 185 mm
Dimensions	61 × 164 × 210 mm (without power cord)
Antenna	1 internal
Wireless communication standards	IEEE 802.11 b/g/n, 2.4 GHz, 1T1R
Network security	WEP 64/128-bit, WPA-PSK / WPA2-PSK (no support for Enterprise networks)
Certifications	CE, RoHS, WEEE
System requirements	iOS 16.1 or later, Android 10.0 or later, existing Wi-Fi network
Operating temperature	0°C to 40°C
Storage temperature	-40°C to 70°C
Operating humidity	10%–90% (non-condensing)
Storage humidity	5%–90% (non-condensing)
