EVOLVEO Thermal, smart wireless programmable thermostat

- Connects to Tuya, Smart Life, SmartThings and IFTTT apps
- Extensive app settings
- Programmable for every day of the week with 4 time windows
- Open window detection and child lock function
- Mirror-effect touch screen
- Support for Google Assistant and Amazon Alexa voice assistants
- Flexible power supply using a power adapter or 2 pencil batteries

________________________________________________________________________________________________________________
Advanced control system for optimal comfort
The Thermal smart wireless thermostat brings a modern and intelligent solution for efficient temperature control in the home. Its advanced features and easy operation allow for optimal comfort and energy savings without complicated installation. The Thermal thermostat is designed to meet a variety of heating needs. Its programmable interface and support for different types of heating systems make it the ideal choice for boilers or underfloor heating.

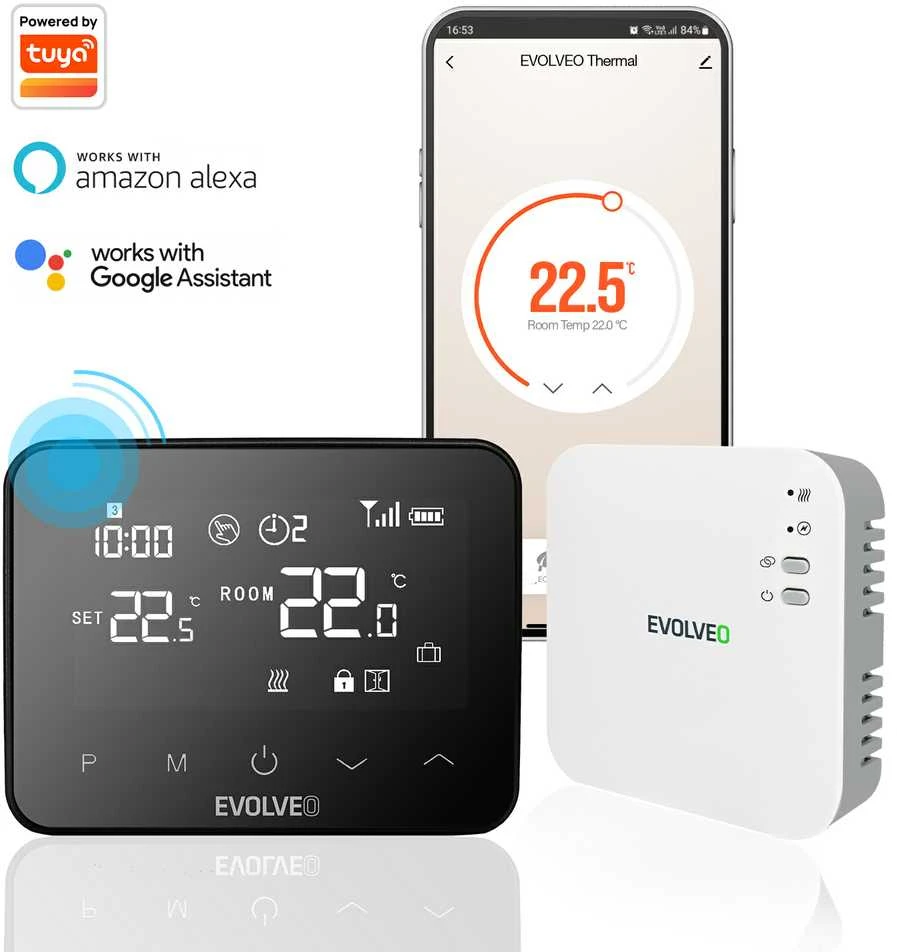

Convenient control via a smart app
The thermostat is fully compatible with the Smart Life, Tuya apps, which are freely downloadable for Android and iOS. The apps allow you to control the temperature in your home from anywhere using your smartphone or tablet. The app offers a wide range of features for full control of the thermostat, including the ability to set a target and check the current temperature, program time windows, set temperature limit protection, set a child lock to protect against unwanted changes to the temperature setting, set an open window function, calibrate the temperature sensor for accurate temperature measurement, set hysteresis to optimize heating operation, adjust the brightness of the display backlight to user preference, and reset to factory settings if needed.

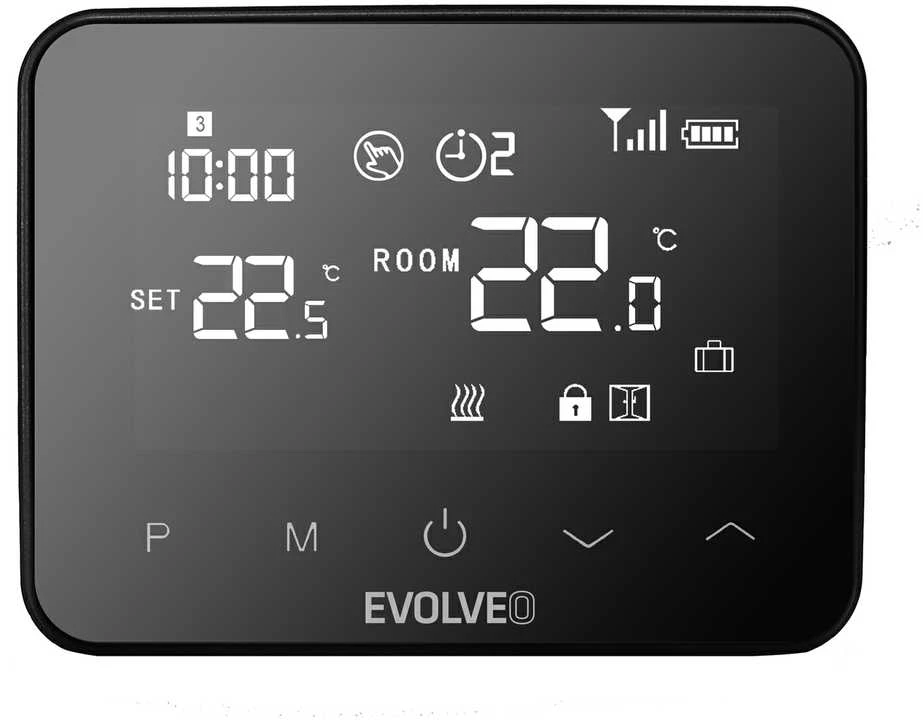

Intuitive backlit touchscreen display
With an elegant backlit touchscreen display with mirror effect, the Thermal thermostat not only offers a great look but also easy operation. The touch sensors allow easy adjustment of temperature and functions directly on the display.

Wide range of functions for maximum comfort and energy savings
The Thermal thermostat offers a range of advanced features such as frost protection, child lock and open window detection. With these features, the thermostat actively adapts to environmental conditions and user behaviour. The frost protection ensures that the optimum temperature is maintained in freezing conditions, the child lock prevents unintentional changes to the temperature setting, and the open window detection ensures that the thermostat automatically responds to room ventilation, helping to save energy.

Flexible programming and full control
With 7 days of programming per week and 4 time windows for each day, you get full control over the temperature in your home. The Thermal thermostat allows you to set different temperature profiles for different times of the day. Thermal Thermostat provides flexibility in the way it is powered - you can power it with either batteries or a USB-C cable. It also offers a wide operating range of up to 100 meters in an open space and up to 25 meters in an enclosed space, ensuring a reliable signal and temperature control even in large indoor environments.

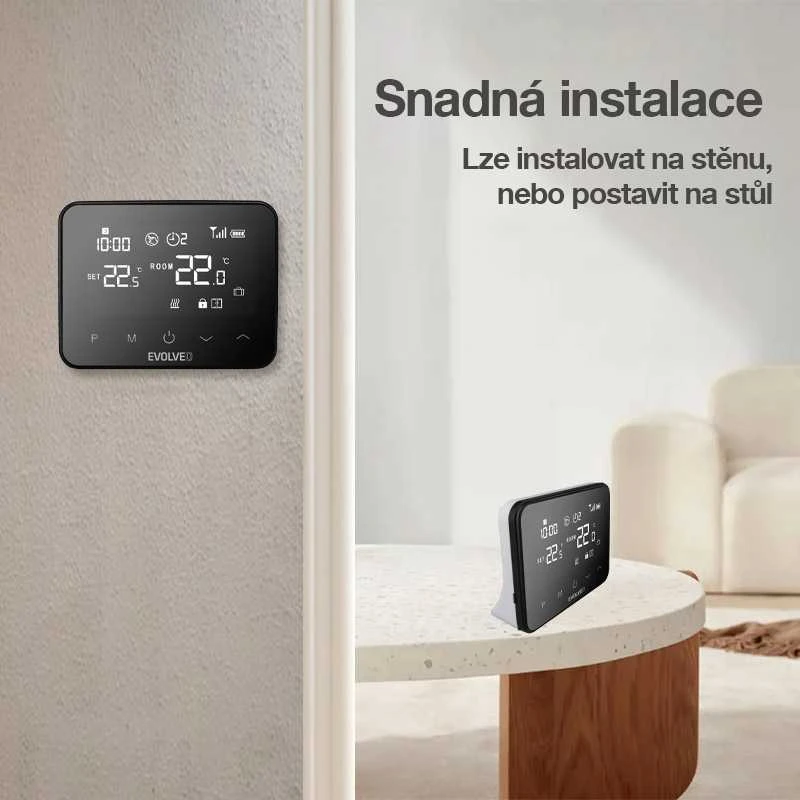

Easy installation and compatibility
The Thermal thermostat is designed to be easy to install and compatible with a variety of heating systems. With the supplied mounting components and installation instructions, the thermostat can be easily mounted on a wall or placed on a table as required. Its compatibility with Google Assistant, Amazon Alexa voice assistants will allow you to control the temperature in your home with voice commands.

SPECIFICATIONS:

- Suitable for connection to boiler, underfloor heating

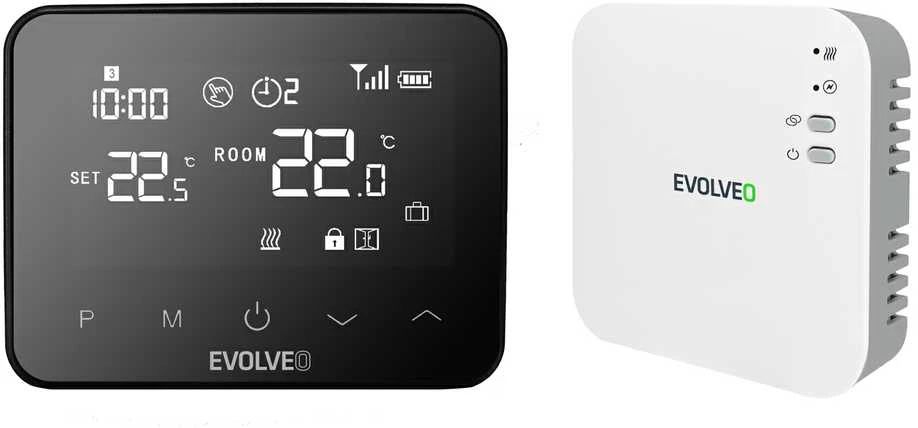

- Consists of two parts:

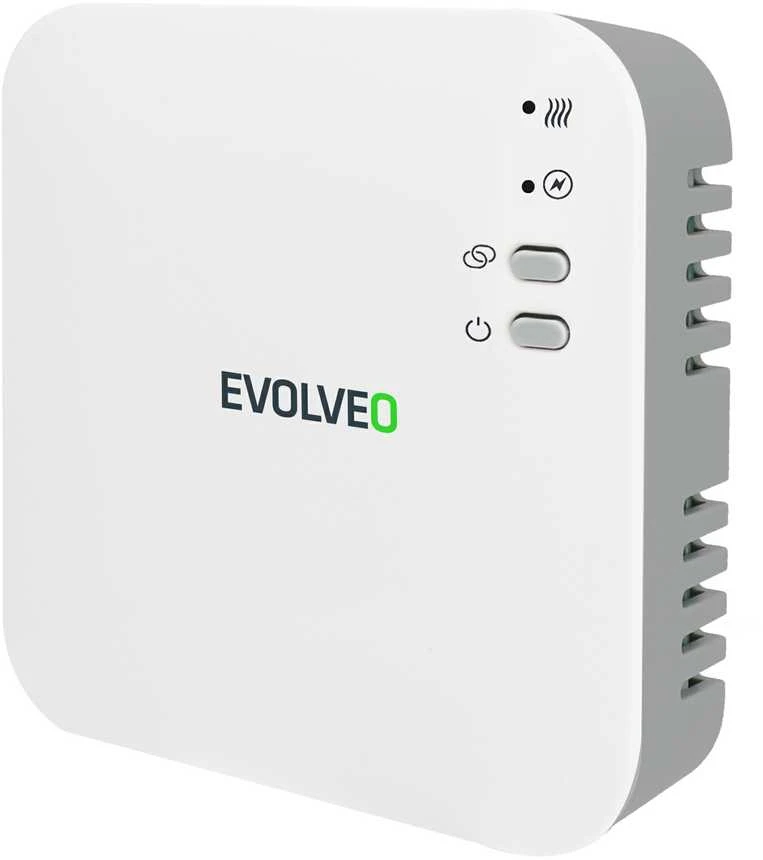

1) Receiver that evaluates the room temperature and communicates with the boiler/floor heating.
2) Transmitter enabling control and displaying the current status
- WiFi or Bluetooth connectivity to Tuya, Smart Life, Samsung SmartThings or IFTTT apps for iPhone and Android phones
- Touchscreen digital display with inverse backlight and mirror effect
- Adjustable display backlight brightness when powered by USB
- Backlight intensity on battery power: 40%
- Temperature sensor located on the outer surface of the transmitter for higher accuracy
- Programming for 7 days of the week (day programming option)
- 4 time windows for each day of the week
- Support for Google Assistant and Amazon Alexa voice assistants
- Child lock to disable display control
- Open window detection:
1) automatic switching off of the heating when the temperature drops suddenly
2) Temperature drop limit can be set to 2-4 °C
3) possibility of setting the drop time to 2-30 min.
4) possibility of setting the return from the mode in 10-60 min.
- Frost protection (automatic start of heating when the temperature drops below the set temperature limit in the range of 5-15 °C)
- The application allows:
1) Setting the target temperature and checking the current temperature
2) Programming of time windows
3) Setting the frost protection temperature limit with the possibility of deactivating the function
4) Setting the child lock with the possibility of deactivating the function
5) Setting of the open window function including setting of the temperature drop limit, drop time and return from mode with the possibility of deactivating the function
6) Calibration of the temperature sensor in the range -8 to +8 °C
7) Hysteresis setting in the range 0-3 °C
8) Backlight brightness adjustment in the range of 0-100%
9) Reset to factory settings
- Thermostat modes:
1) Fully automatic programmable mode
2) Manual mode for temporary setting to a constant temperature
3) Absence mode for temporary setting to an economical reduced temperature
- The display on the transmitter shows: day of the week, time, instantaneous and target temperature, signal strength, battery level, heating indication, child lock indication, open window mode indication, absent mode indication
- LED indicators on the receiver to indicate active/inactive heating and power
- Radio communication frequency of the units: 868 MHz
- Operating range in open/enclosed space: 100/25 m
- The receiver can be installed in a wall-mounted junction box

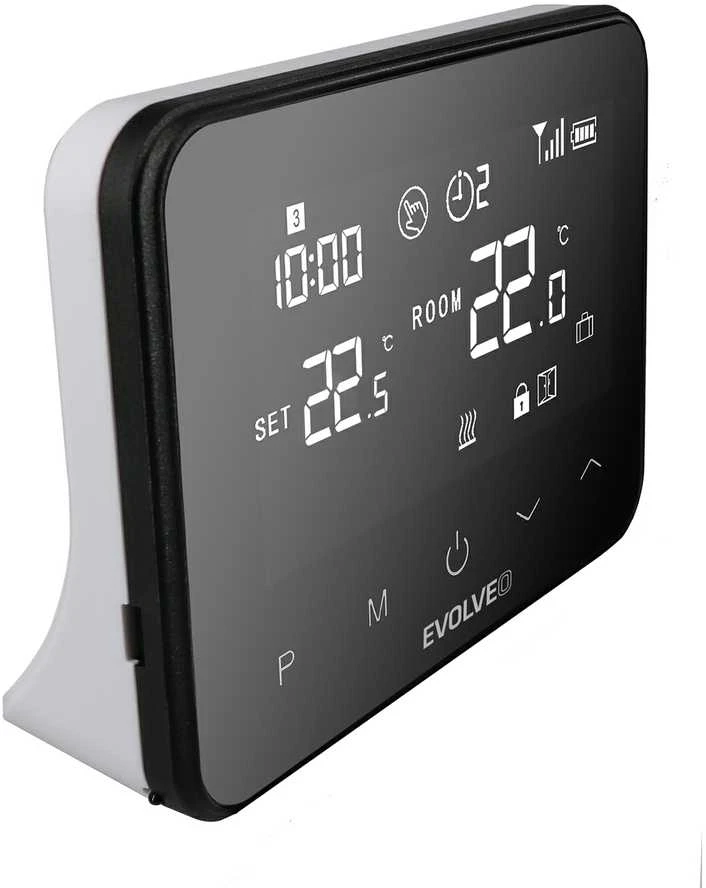

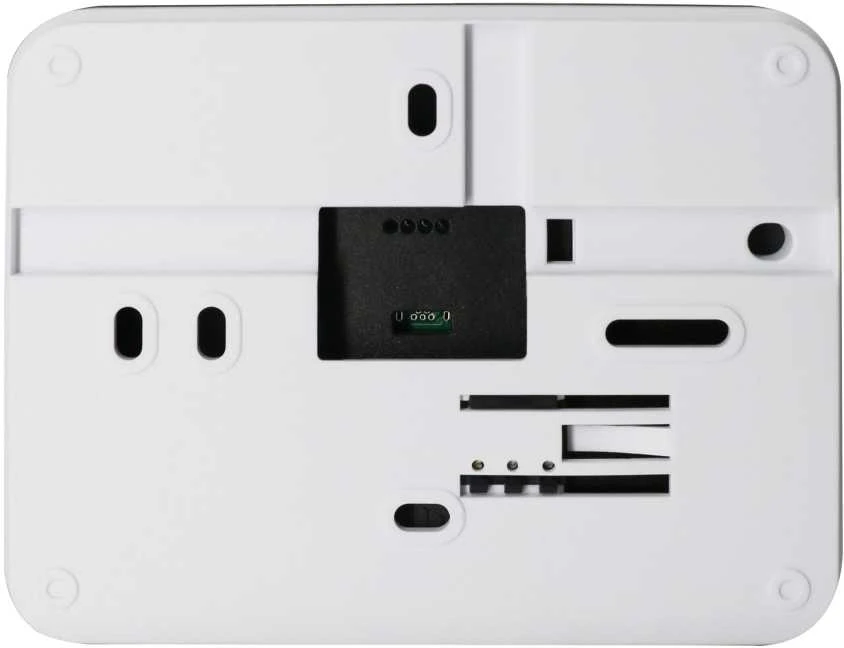

- The transmitter can be installed on the wall or placed on a table
- Temperature adjustment in the range of 5-35 °C in 0.5 °C steps
- Hysteresis can be set in the range of 0-3 °C
- Measurement deviation ± 0.5 °C
- Two transmitter power supply options:
1) Power adapter with USB-C cable (included)
2) 2 × AA pencil battery (not included)
- Rated voltage of the power adapter: AC 100-240 V
- Rated frequency of the power adapter: 50/60 Hz
- Power adapter output voltage and current: 5 V, 1 A
- Maximum ohmic load: 2500 W (250 V, 10 A)
- Backup storage: EEPROM
- 4 screws and 4 screws included for wall mounting in junction box
- USB-A to USB-C power cable length: 1 m
- Transmitter dimensions: 125 × 98 × 23.5 mm
- Receiver dimensions: 90 × 90 × 26 mm
