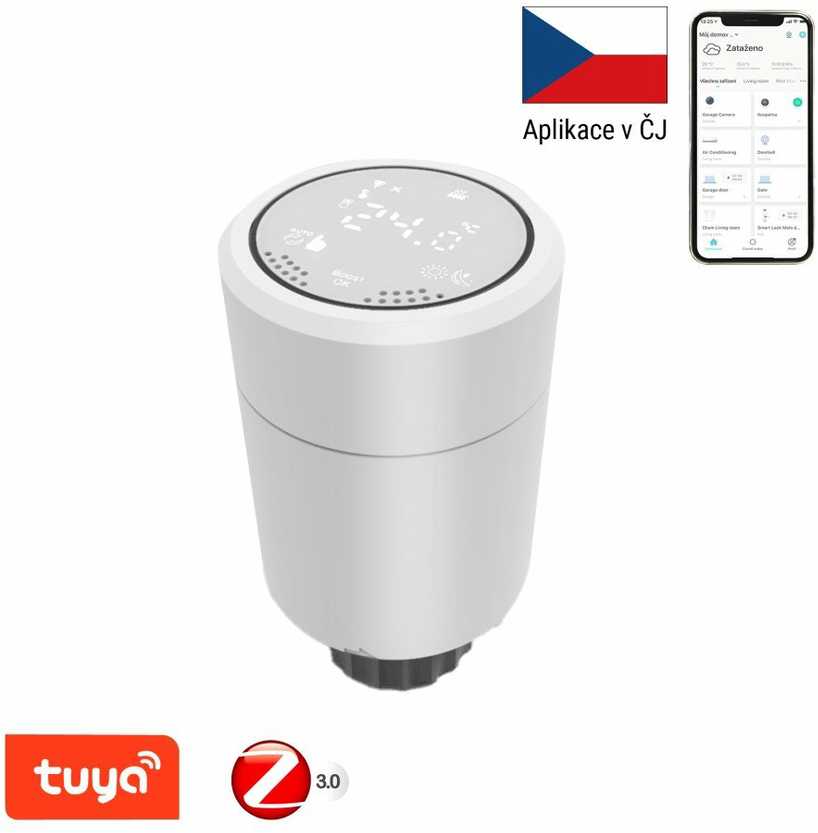

Remote communication and control via the IMMAX NEO PRO mobile app (requires NEO BRIDGE PRO Smart Zigbee 3.0 v2)
Convenient, energy-saving heating control with programmable functions and remote control from anywhere in the world.
Can be controlled locally with buttons on the head body.
Weekly program with a choice between 5+2, 6+1 and 7 days x 6 temperature and time modes.
Special functions - holiday mode / open window function / comfort mode / mode.
Programmed time functions are stored in the thermostat head and work even in case of internet failure.
The lock function restricts control directly from the thermostat head (suitable as a child lock or for rental properties).
BOOST rapid heating function.

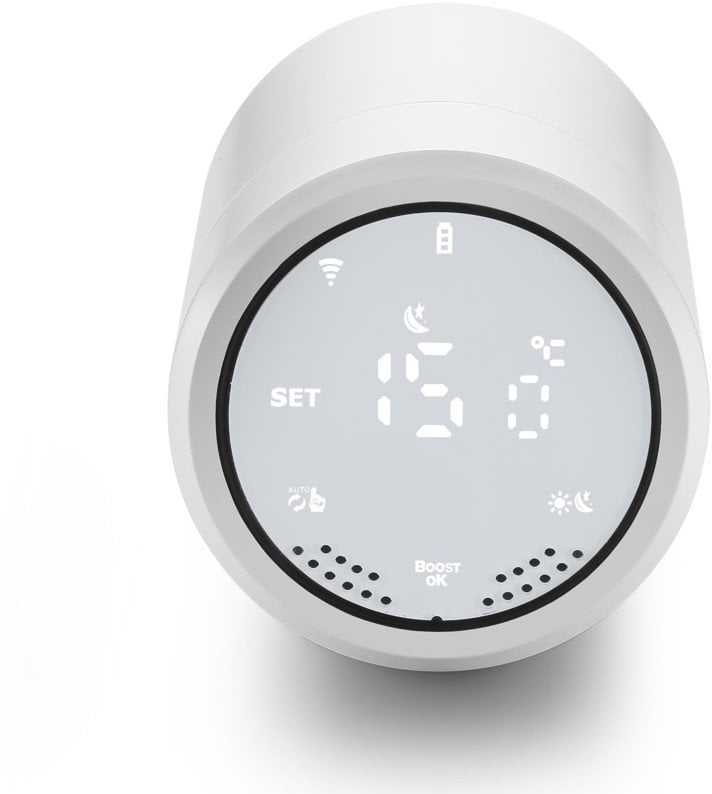

Backlit LCD display.
Easy installation, thread size M30 x 1.5.
Display can show set/measured temperature or time.
Notice
All Zigbee devices require Zigbee 3.0 v2 to control the NEO BRIDGE PRO Smart.
The thermostatic head does not control the boiler.
Password to set advanced functions: 123456
Technical Specification:
Protocol: ZigBee 3.0
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: ZigBee:10dBm - max 19dBm

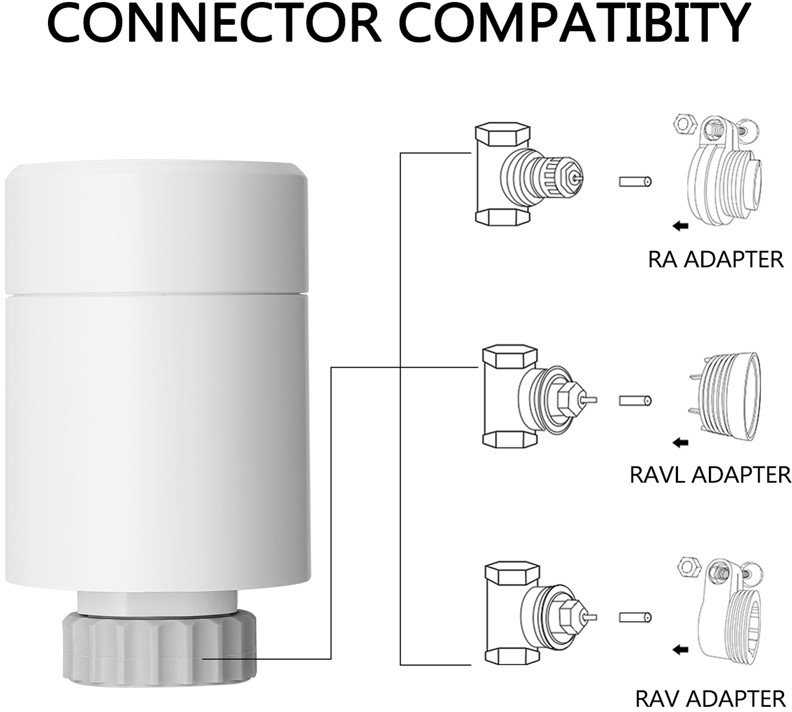

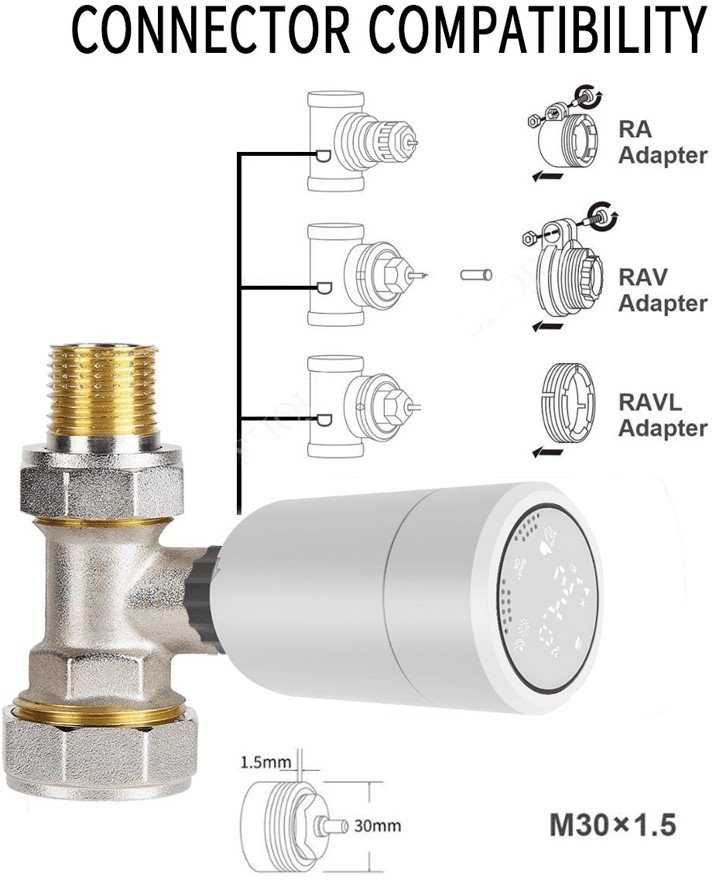

Compatible with valves: RA, RAV, RAVL
Thermostat operating voltage: 2 x AA1.5V, alkaline batteries.
Temperature setting range: 5°C - 35°C, in 0.5°C steps
Accuracy: ± 1°C
Control: PID
Thermostat dimensions: 53 x 89.5 mm
Max. extension: 4.5 mm
Thread size: M30 1.5
Colour: white
Degree of protection: IP20
Certification: CE, RoHs

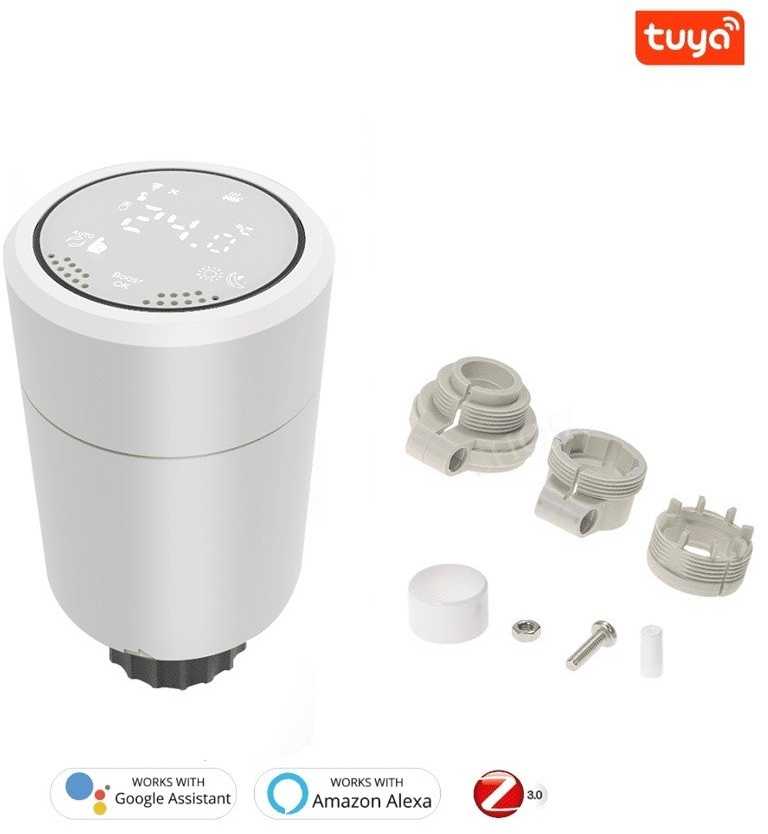

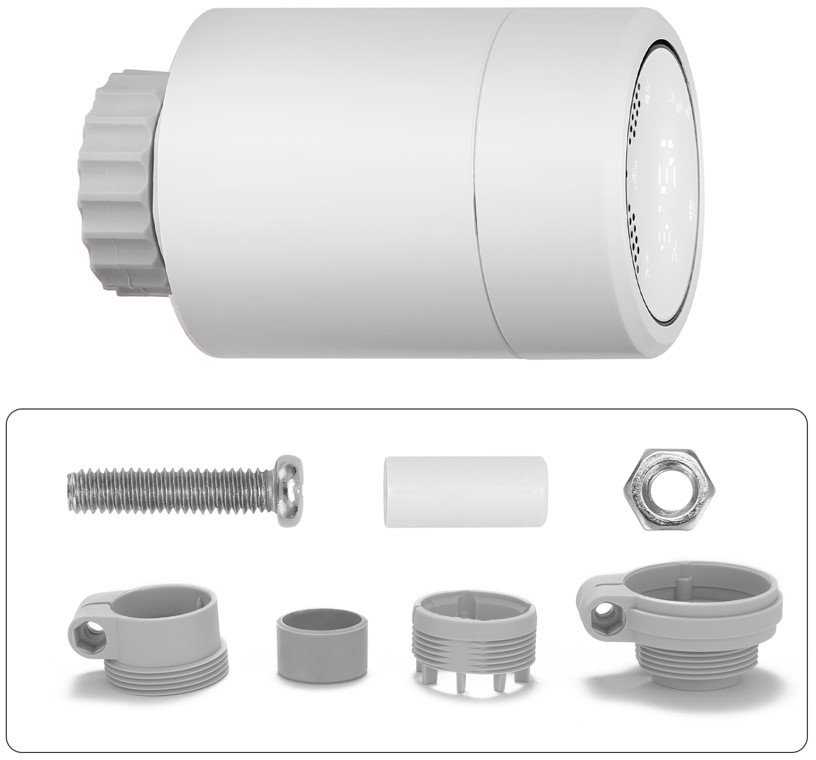

Package contents: thermostatic head, reducer, user manual
