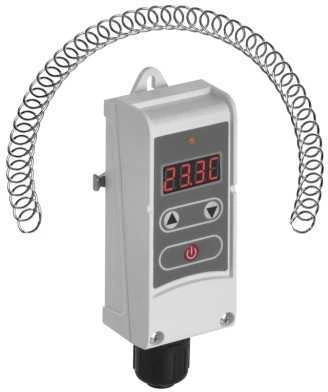

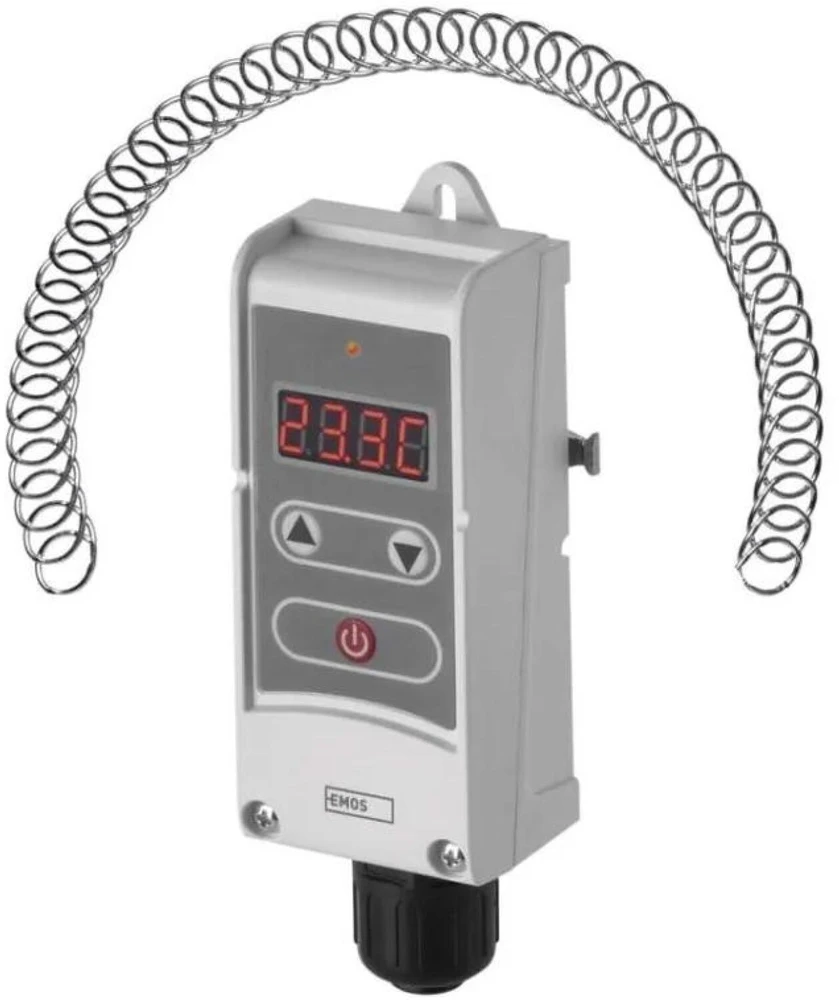

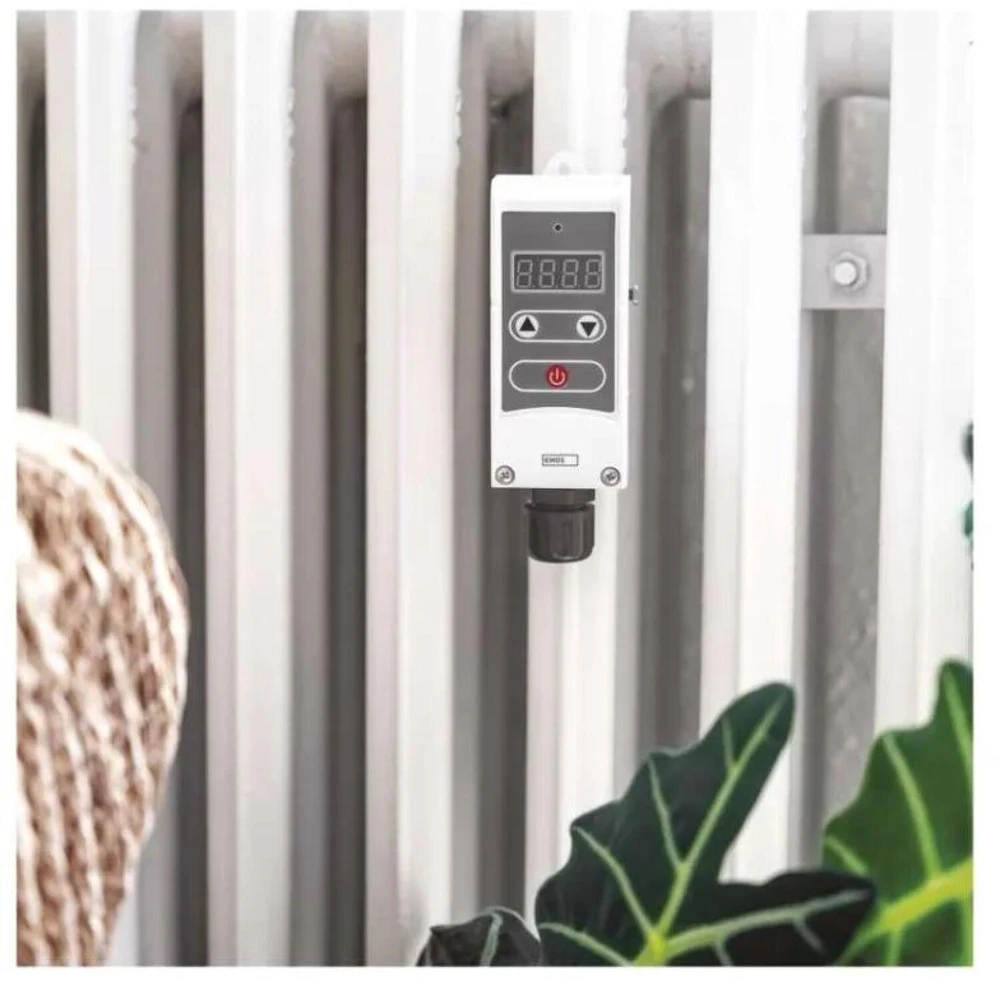

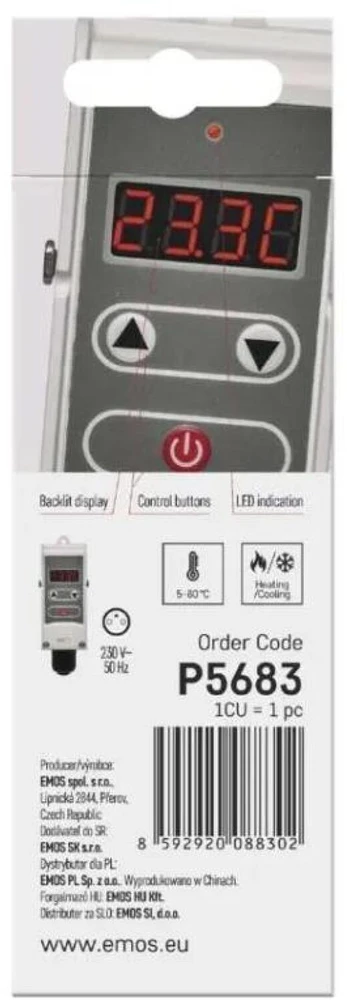

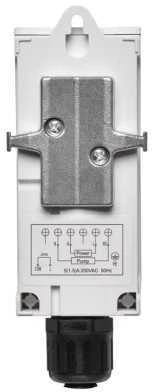

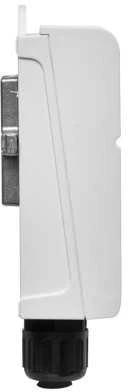

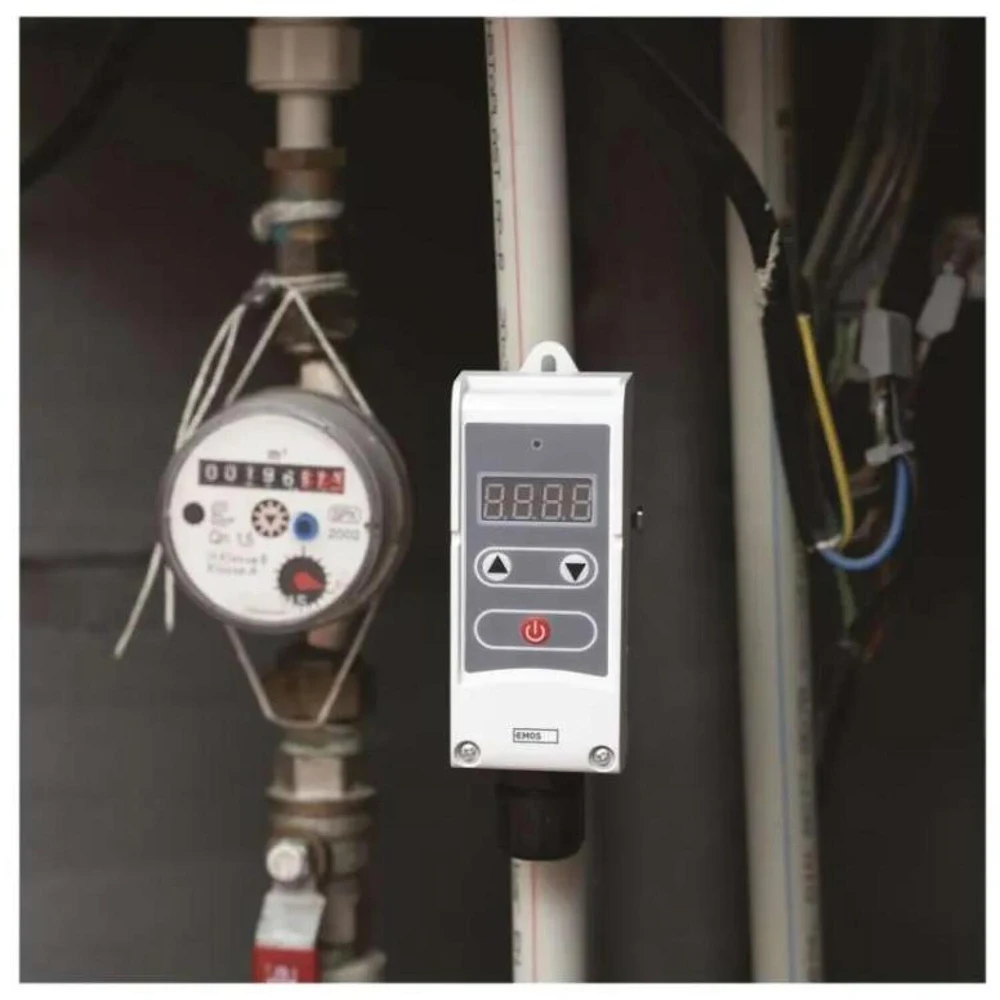

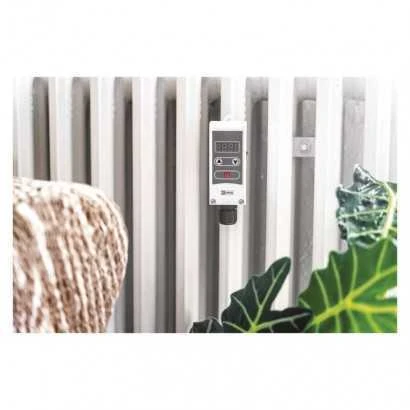

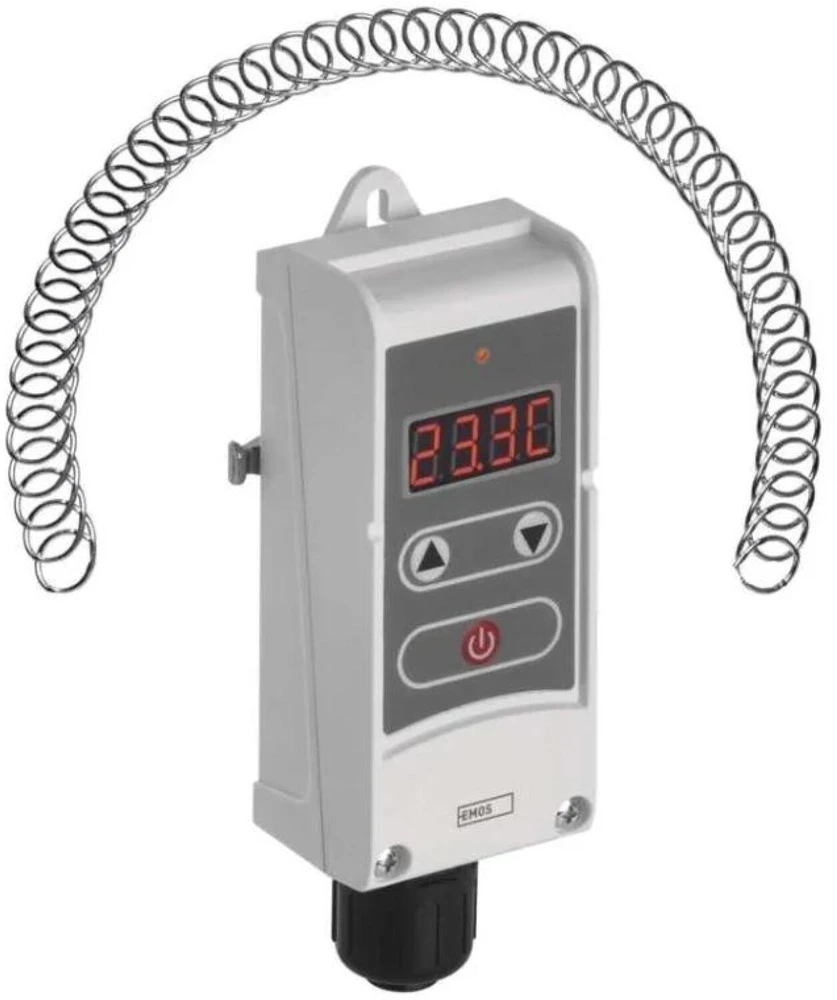

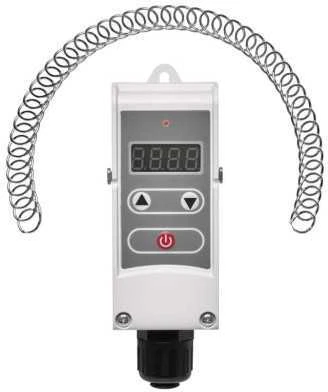

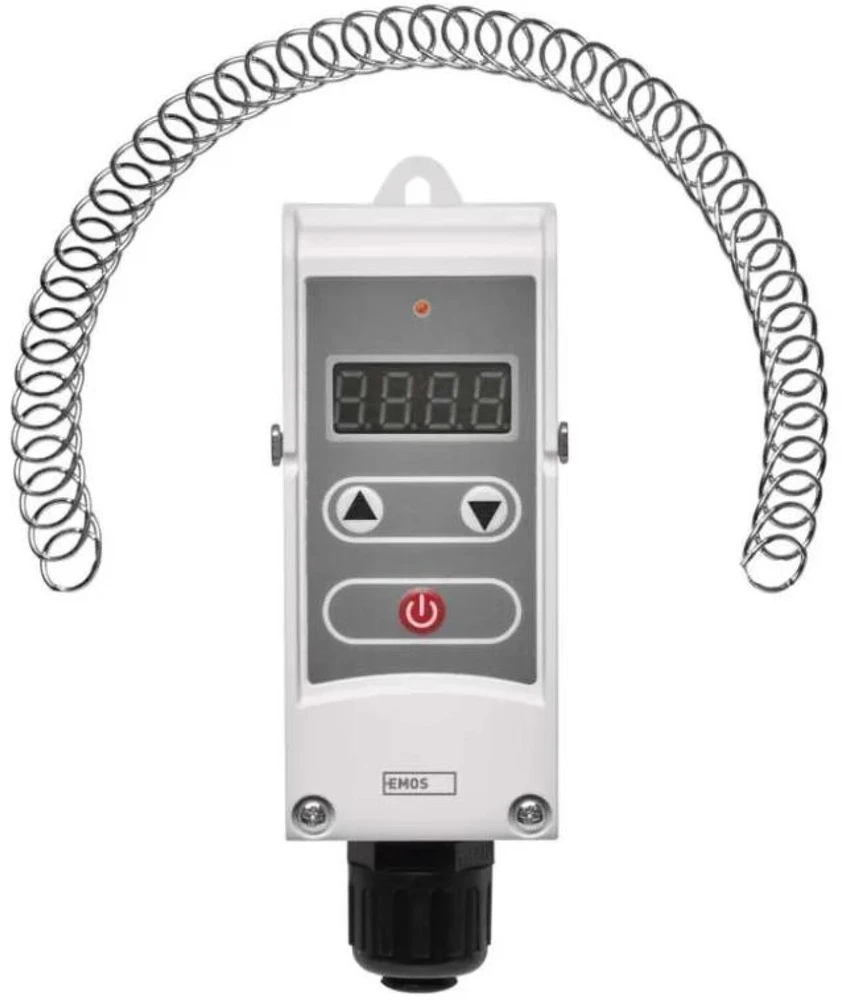

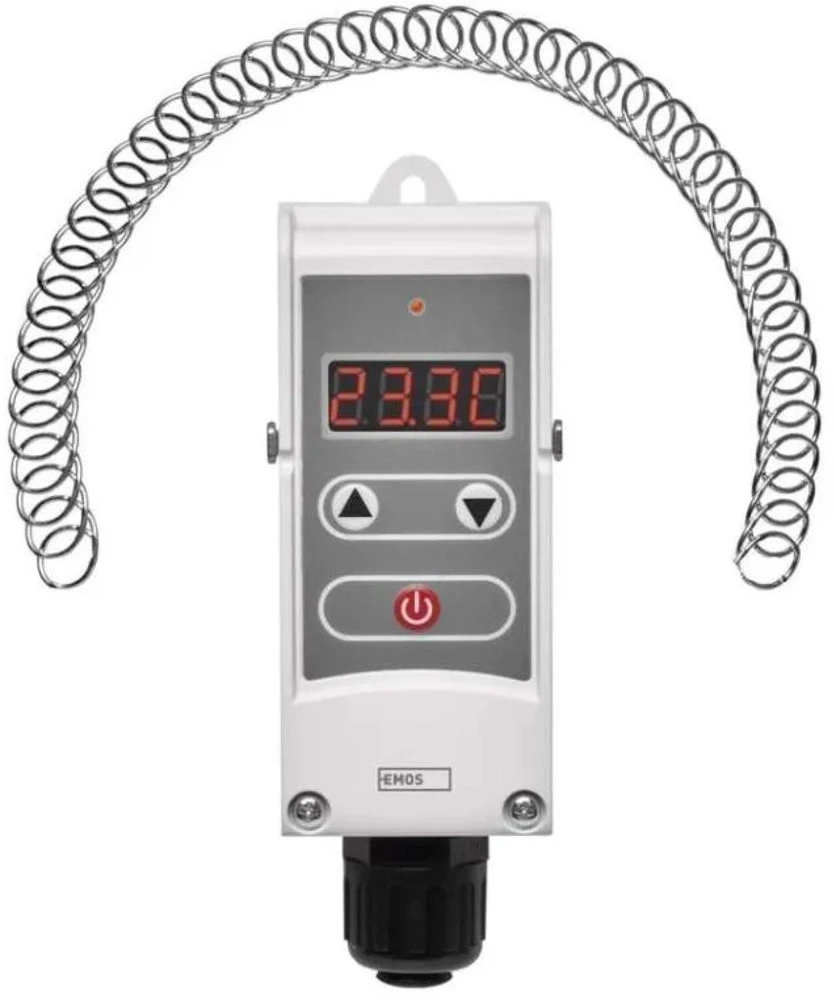

EMOS thermostat P5683

Surface mount thermostat. Senses the temperature of water in hot water tanks or heating systems. Allows temperature control, temperature limit monitoring and temperature drop function.Product benefitsAdjustable hysteresisDigital backlit displayScrewless terminal

Colour: white
Capillary sensor length: not specified
Free space range: not specified
type of control: heating and cooling system
ON/OFF function: yes
Holiday function: no
Set-back function: not applicable
temperature calibration: no
Temperature measurement: 5 °C to 80 °C, 0.1 °C resolution
possibility of interfacing with other detectors: not applicable
power supply: 230 V AC
Gateway power supply: not applicable
Receiver power supply: not applicable
transmitter power supply: not applicable
temperature setting: 5 °C to 80 °C, in 0.1 °C increments
Adjustable temperature range: 0.1 °C to 15 °C, in 0.1 °C increments
freeze protection: no
number of programmes: not applicable
illuminated display: yes
operating frequency: not specified
sales packaging: 1 piece, box

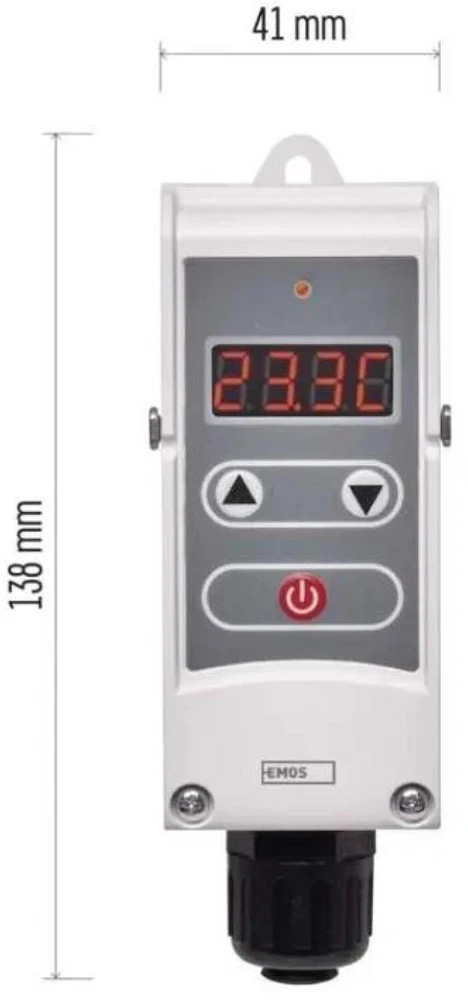

Dimension: 41 × 50 × 138 mm
Gate size: not specified
Receiver size: not specified
transmitter size: not applicable
part of the package: not applicable

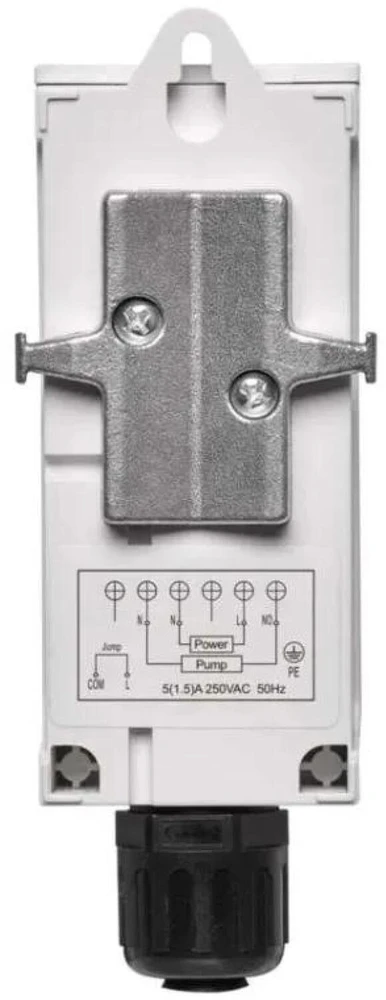

switching load: 5 A resistive, 1.5 A inductive
switching: 230 V AC, 50 Hz
type of temperature setting: manual
control type: manual thermostat
thermostat type: wired thermostat
