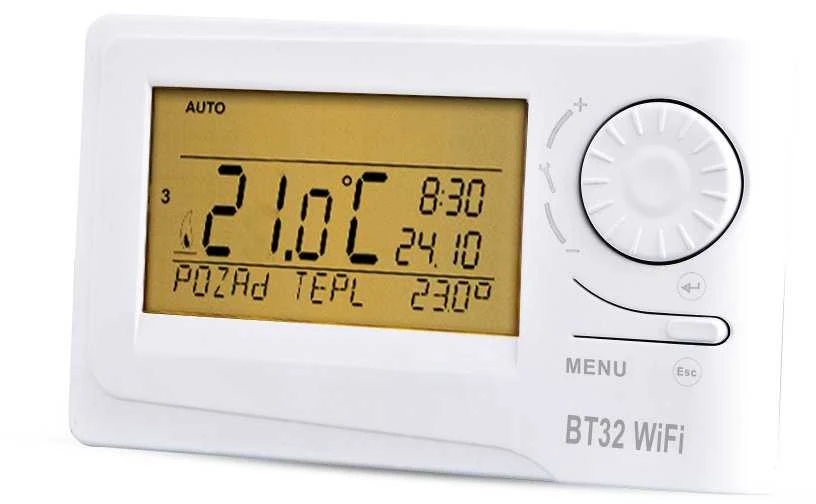

Elektrobock Wireless thermostat with WiFi module BT32 WiFi

BT32 WiFi is a wireless thermostat with an implemented WiFi module and internal antenna.
It is suitable for all boilers that require potential-free (voltage-free) switching contacts (e.g. gas boilers, electric boilers, circulators, thermoelectric drives or air conditioning units).


The EOB PT-WiFi application allows:

WiFi setup - no public IP address required, first time commissioning, quick start-up.
creation of an account on the ELEKTROBOCK server
setting thermostat constants from a smartphone (android, iOS) or computer (with Win10)
service mode
key lock with code
quick change of thermostat mode (AUTO/MANU/OFF/Summer mode)
holiday setting from - to with constant temperature
setting of temperature programs
adding and managing users for a given thermostat
possibility to control multiple thermostats from one application
remote control of the thermostat from a PC from anywhere in the world
Ways to control the new BT32 WiFi (version 12.01+):

Control via SERVER (from anywhere within range of an internet connection).
Control within range of your router (home). If you have a public IP address, you can control outside your home network.
Control within the home where there is no WiFi connection. The thermostat creates its own WiFi hotspot (AP-access point).
Control and setup the thermostat via USB cable using a PC with Win10.
Manual control, you always know what is happening and can manually reset the thermostat.


Advantages of BT32 WiFi:
9 weekly programs
6 temperature changes per day
Programming in 10-minute increments and 0.5°C
Programming by day or Mon-Fri, Sat-Sun and Mon-Sun
Large clear backlit graphic display
intuitive navigation in the selected language (CZ/PL/EN/DE/RU/SVK)
possibility to set HYSTEREZE, PI control or PID control
premature heating switch-on function
possibility of connecting an external sensor, e.g. for monitoring the floor temperature
selection of HEATING/COOLING mode
short-term change of the desired temperature
manual mode (MANU)
permanent switch-off (OFF)
MODE ALLOWED
summer mode
even-odd week selection
correction of the current temperature
key lock
sum of boiler operating hours
boiler maintenance indication
frost protection (3 °C)
TEST function
option to change the SUMMER/WINTER time
service password
power supply 5 V/ DC, 2.5 A, type AD05 - Jack (included)
output (potential-free contact) max. 5 A/ 250 V AC

Technical parameters
Power supply 2 universal / 5.0 V / 2.5 A, DC (AD05-Jack included)
Thermostat type with WiFi module (2.4-2.5 GHz)
Hysteresis control type/PI control/PID control
Accuracy 0.5 °C
Dimensions (LxWxD) 136.5x83x28.5 mm
Degree of protection IP20
Operating temperature 0 °C to 40 °C
Battery backup Yes
Temperature variation per day 6
Adjustable temperature range 3 °C to 39 °C
Temperature setting in 0, 5 °C increments
Min. programming time 10 min.
Min. indication jump 0, 1 °C
Frequency 433, 92 MHz
RF power 10,0 mW
Receiver
Power supply 230 V / 50 Hz
Communication type bidirectional
Range in built-up areas 35 m
Consumption 1.0 VA
Sensitivity -102 dBm
Switching element relay
Output 8 A / 250 VAC
Degree of protection IP20
Operating temperature 0 °C to 40 °C
