ELEKTROBOCK Bimetal thermostat PT03

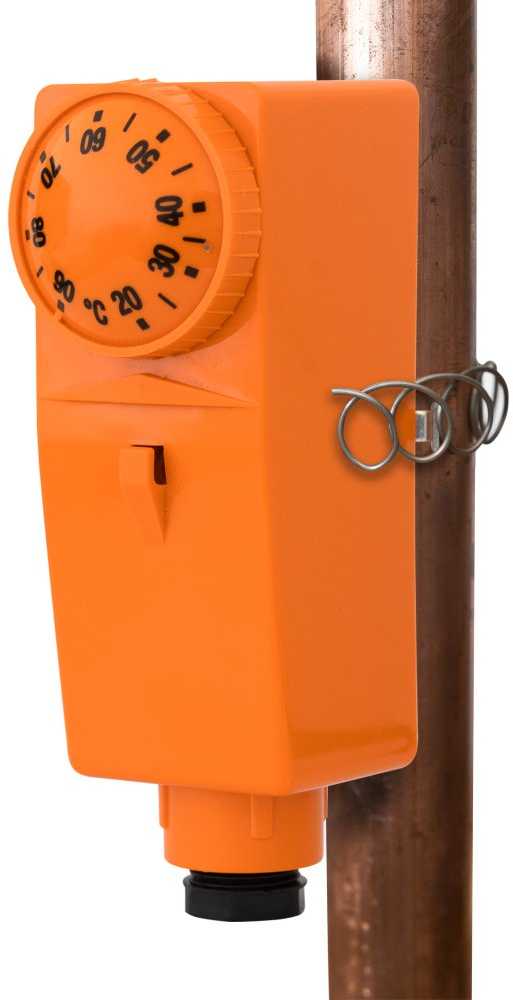

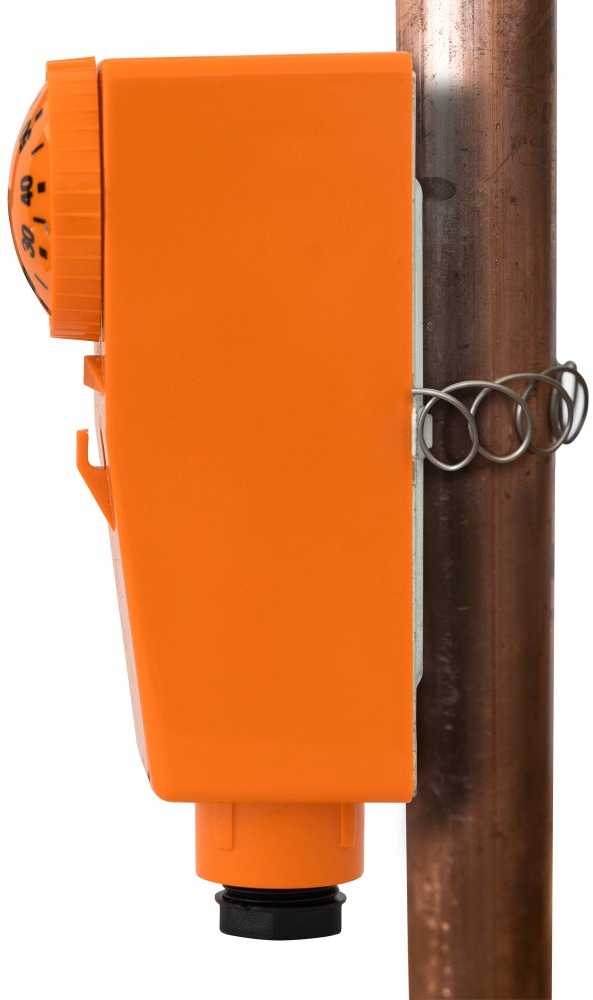

Bimetal thermostat with switching contact designed exclusively for measuring temperatures on pipe lines. Features of the PT03 thermostat: Compact design with bimetal sensor, externally adjustable temperature and direct mounting on the pipe with a special spring. Suitable e.g. for underfloor heating, for switching circulators depending on the set temperature and hysteresis. Advantages of PT03: Easy adjustment of the control temperature in the range of 20-90°C. easy mounting directly on the pipe surface using a spring electromechanical thermostat temperature sensed by touch from the surface switching contact Technical parameters Power supply 2 mains (230VAC/50Hz) Thermostat type wired Hysteresis control type (8°C ) Dimensions (LxWxD) 109x50x59 mm Degree of protection IP30 Operating temperature 0 °C to 40 °C Switching element relay Output 16 A (1-2), 2,5 A (1-3) Temperature changes per day 1 Adjustable temperature range 20 °C to 90 °C
