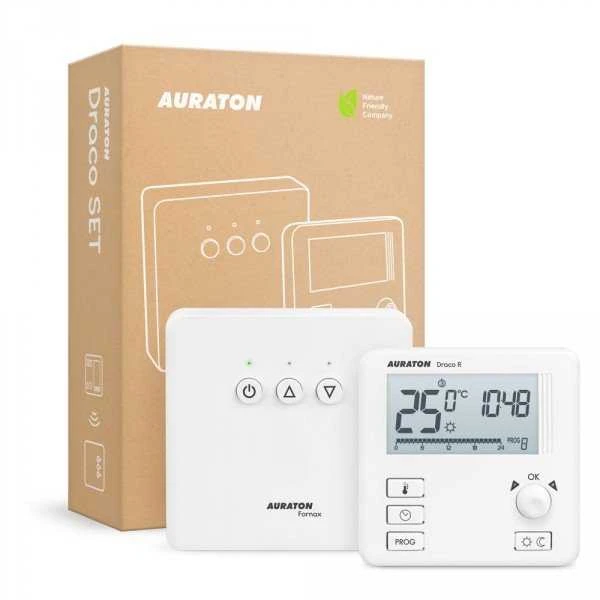

Auraton Auraton tygodniowy, belaidis regulator temperatury ze sterownikiem urządzenia grzewczego lub klimatyzacyjnego Fornax Draco Set AUR00DRC0SE00

weekly program similar to the Auraton Tucana SET / Libra SET thermostat
2 adjustable temperatures (comfort, economy) anti-freeze 7°C
9 programs (6 user programs)
backlit display
control accuracy 0.2°C / 0.4°C
switching between cooling and heating modes (HEAT/COOL)
16A max load operation (no voltage contact)
wall mounting on the electrical box
dimensions of the Draco R thermostat: 89 x 89 x 28 mm (35mm depth including rotary wheel)
Fornax receiver dimensions: 100 x 100 x 29 mm
SPECIFICATIONS
Operating temperature range: 0 to 45°C
Temperature setting range: 5-30°C
Hysteresis: ± 0.2°C / ± 0.4°C
Number of temperature levels: 2
Antifreeze temperature: YES (7°C)
Programming: weekly cycle
Voltage-free contact, max.16A
Power supply Draco R: 2 x AAA 1.5V
Dimensions of the Draco R thermostat: 89 x 89 x 28 mm (35mm depth including rotary wheel)
Fornax power supply: 230V 50Hz
Fornax receiver dimensions: 100 x 100 x 29 mm
Range: in an average building, with standard wall construction approx. 30m, in an open area up to 300m.
IP 20
