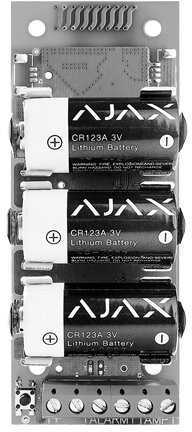

Ajax 000007487 Transmitter

Integration module for connecting third-party wired devices to the Ajax security system.

Compatible with normally closed (NC) and normally open (NO) contact sensors.

Supports tamper and alarm signal transmission via Jeweller protocol (868.0–868.6 MHz).

Communication range with Ajax Hub: up to 1600 m in open space.

Powered by a 3V CR123A lithium battery (included), with battery life up to 5 years.

Can provide external power output (3.3 V, up to 50 mA) for connected devices.

Operating temperature: –25°C to +50°C.

Relative humidity: up to 75%.

Designed for indoor use only.

Product dimensions: 100 mm (length), 39 mm (width), 22 mm (depth).

Product weight: 74 g.
