1. Kokie yra Lowrance HDS 12 Pro ekrano parametrai?

Šis plaukiojimo navigacijos ekranas turi 12 colių didelės raiškos SolarMAX HD ekraną. Jo skiriamoji geba yra 1280 x 800 pikselių, o ryškumas viršija 1200 nitų, todėl vaizdas aiškus net esant ryškiai saulės šviesai. Įrenginys naudoja pažangią IPS technologiją, užtikrinančią platų 80 laipsnių matymo kampą.

2. Kaip šis įrenginys jungiasi prie kitų laivo sistemų?

Šis daugiafunkcinis ekranas palaiko įvairias jungtis integruotai laivo elektronikai. Jis turi NMEA 2000 (Micro-C) ir NMEA 0183 (RS422) prievadus, taip pat du 100 Mbit Ethernet ir vidinį WiFi. Be to, yra integruotas Bluetooth 4.0, leidžiantis susieti su išmaniaisiais įrenginiais.

3. Kiek energijos sunaudoja šis plaukiojimo navigatorius?

Maksimali šio žvejybos navigatoriaus galios sąnauda yra 3,6 A, kai įtampa 13 V. Tipinė sąnauda yra apie 2,3 A, kai įjungtas pilnas ekrano apšvietimas ir aktyvus sonaro režimas. Įrenginiui maitinti rekomenduojama naudoti 12 V DC maitinimo šaltinį, o apsaugai – 5 A lydusią saugiklį.

4. Kokius automatinio vairo režimus palaiko sistema?

Šis hidrolokatorius su Active Imaging 3-in-1 gali valdyti automatinį vairą. Prieinami keturi pagrindiniai vadavimo režimai: kursas (Course), galvutės kampas (Heading), taikinys (Waypoint) ir galios vadavimas (Power Steer). Taip pat palaikomi įvairūs posūkių šablonai, pavyzdžiui, U formos, C formos, spiralės ir kvadratiniai manevrai.

5. Ar šis prietaisas atitinka tarptautinius standartus?

Taip, šis jūrinis prietaisas turi reikiamus patvirtinimus naudojimui įvairiose šalyse. Jis atitinka FCC, Radio Equipment Directive, ACMA, RSM ir Industry Canada standartus. Įrenginys taip pat atlaiko aukštą drėgmę, nes sertifikuotas pagal IEC 60945 standartą (66°C temperatūroje ir 95% santykinei drėgmei).

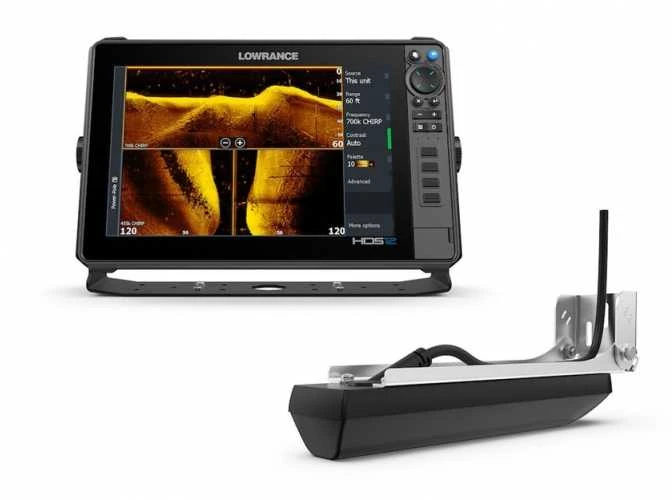

Lowrance HDS-12 Pro su Active...

Approvals

Compliance	FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Autopilot

Manouevres / Turn Patterns	CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S
Steering Modes	CourseHeadingWaypointPower Steer

Connectivity

NMEA 0183 Sentences supported	TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSCReceive DSC DSE VDMAIS sentences are not bridged to or from NMEA 2000.
Bluetooth	Integrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet	2 x 100 Mbit, 6 max MFD's on a network
N2K PGNs	Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	1x RS422 port Baud rates: 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200
NMEA 2000	1x Micro-C
PC Connectivity	None
Video	Output: NoInput: Composite video RCA - singlechannel via optional adaptor
WiFi	Internal 802.11b/g/n and Compatible with WiFi-1 Module

Display

Backlight Color	Pure White LED
Resolution	1280 x 800
Screen Brightness	>1200 Nits
Size and Type	12" (305mm)SolarMAX HD (TM) IPStechnologyMulti-touch, P-CAP
Viewing Angles	80° top/bottom, 80° left/right

Electrical

Power Consumption, max.	3.6A @ 13VDC with Full Backlight, Sonar on
Power Consumption, min.	2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption, typical	2.3A @ 13VDC withwith Full Backlight, Sonar on
Recommended Fuse Rating	5A
Supply Voltage	12 v DC (10.8-17VDC)
Humidity	IEC 60945Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)

Environment

Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock and Vibration	100,000 cycles of 20 G
Storage Temperature Range	4°F to 140°F (-20°C to 60°C )
Waterproof rating	IPX7 with card door closed

GPS

Correction	DGPS, WAAS
GPS Receiver Channels	16
Position Accuracy	20m RMS
Time to First Fix	30s
Update rate	10 Hz

MFD

AIS	AIS Chart and Radar overlay. Target vessel details.
Autopilot	Outboard PilotNAC-1NAC-2Ghost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography included	C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
Cartography supported	C-MAP RevealC-MAP DiscoverC-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Digital Switching	CzoneNaviop
External Storage	2 micro SD cards up to 32GB
GPS	10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage	8.0 GB Internal
Multimedia	SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Radar (inc. compatibility)	4G (Broadband)3G (Broadband)Halo20/20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)Halo 3'/4'/6' (Open Array Pulse Compression Radar)
Sonar (inc. compatibility)	Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanActive Imaging HD DownScanActive Imaging HD SideScanCompatible with:ActiveTargetActiveTarget2S3100 SonarHubStructureScanStructureScanHDStructureScan3DLiveSight (requires PSI-1 module)
Weather	SiriusXM via WM-3 (USA only)SiriusXM via WM-4 (USA only)
Waypoints, Routes, Tracks	3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Compass Safe Distance - Metric, imperial	12" (300mm)

Physical

Dimensions (W x H x D)	13.68" (347.5 mm) x 9.00" (225.5 mm) x 3.26" (82.9 mm)
Mounting Type	Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
Weight	5.76 lb (2.61 kg)

Other

Warranty Period	2 Year + 3 additional years ofupgrade optionsTotaling 5 years
Interface	Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light4 - User Programmable Quick Access Keys
Languages	Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
